Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

22 part groups · 2 illustrations

Illustrations

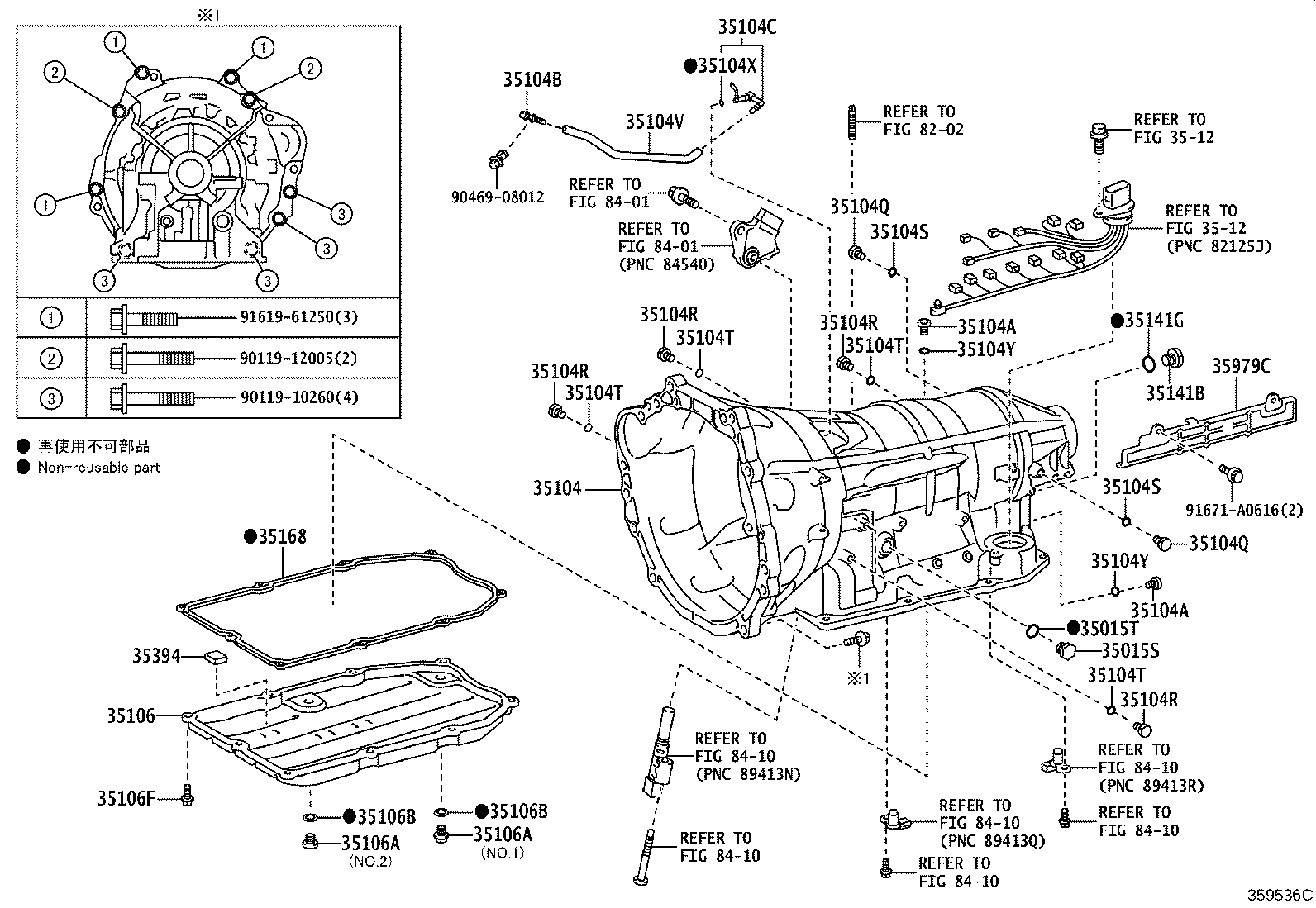

Figure 358975E 358975E 2014-09 → — Figure 359536C 359536C 2015-10 → —

Part groups

PNCDescription
35015S Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
35015T Ring, O(FOR TRANSMISSION CASE ADAPTER)
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104C Plug, Breather, NO.2 (ATM)
35104Q Plug, NO.1 (FOR TRANSAXLE CASE)
35104R Plug, NO.2 (FOR TRANSAXLE CASE)
35104S Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
35104T Ring, O (FOR TRANSAXLE CASE PLUG NO.2)
35104V Hose (FOR BREATHER PLUG)
35104X Ring, O (FOR BREATHER PLUG)
35104Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35141B Plug (FOR AUTOMATIC TRANSMISSION CASE)
35141G Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35168 Gasket, Automatic Transmission Oil Pan
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35979C Insulator, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
