Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 2 illustrations

Illustrations

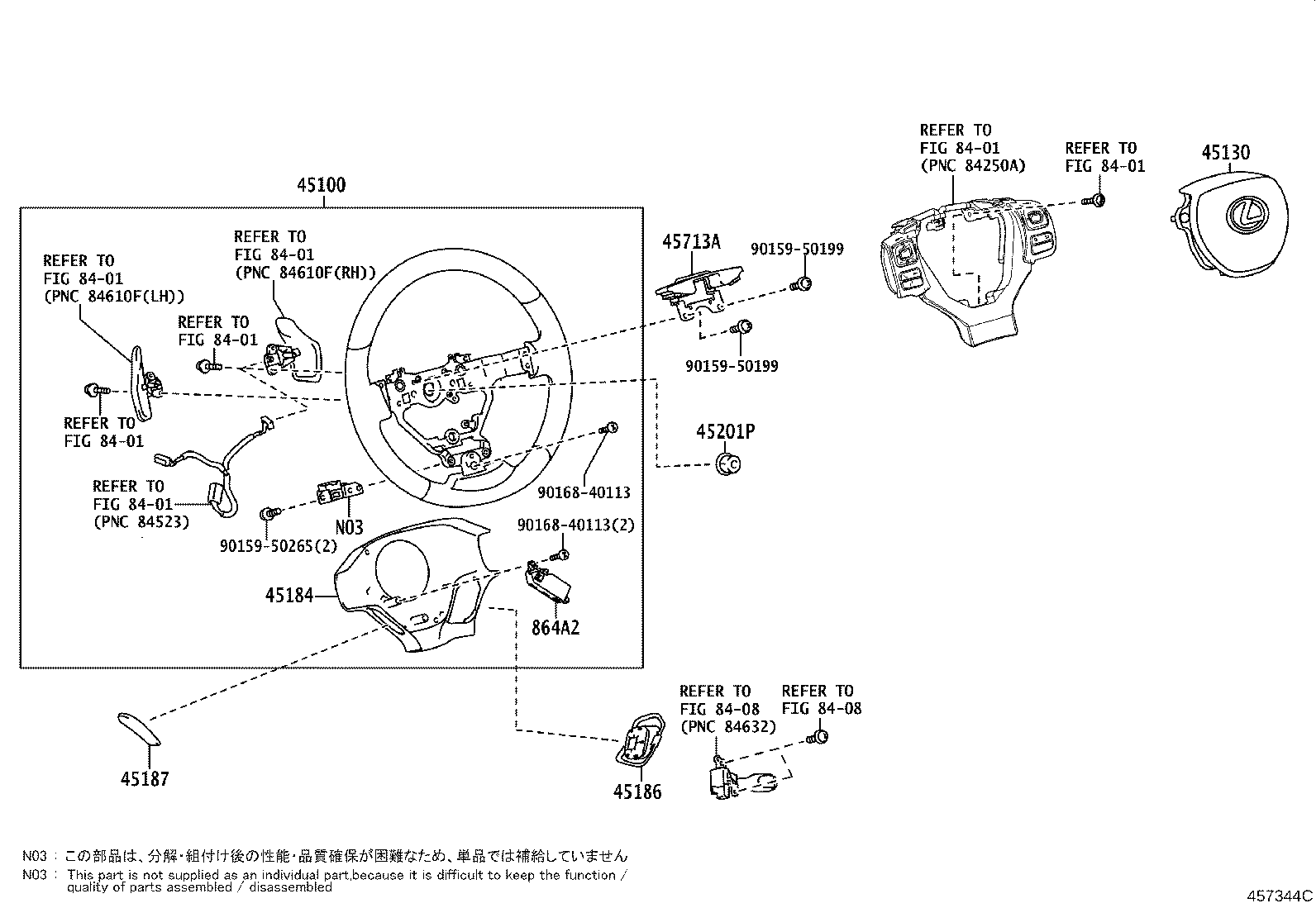

Figure 456645D 456645D 2014-09 → — Figure 457344C 457344C 2017-11 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
55910E Control Assy, Steering Wheel Heater
864A2 Computer, Steering Vibration
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
