Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

10 part groups · 2 illustrations

Illustrations

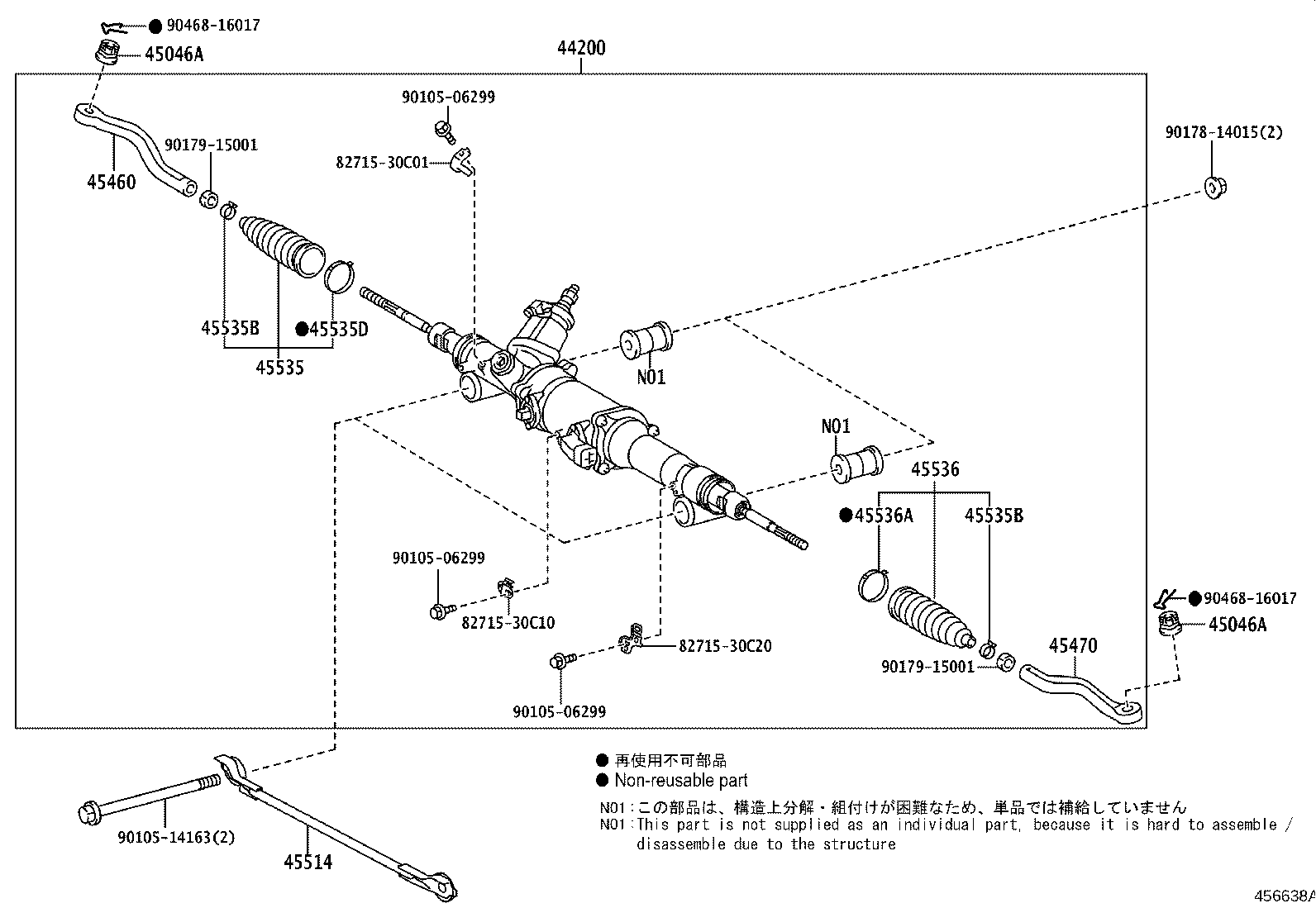

Figure 456639B 456639B 2014-09 → — Figure 456638A 456638A 2015-10 → —

Part groups

PNCDescription
44200 Link Assy, Power Steering
45046A Nut, Castle(FOR TIE ROD END)
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45514 Bracket, Steering Rack Housing, NO.1
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
