Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

4 part groups · 4 illustrations

Illustrations

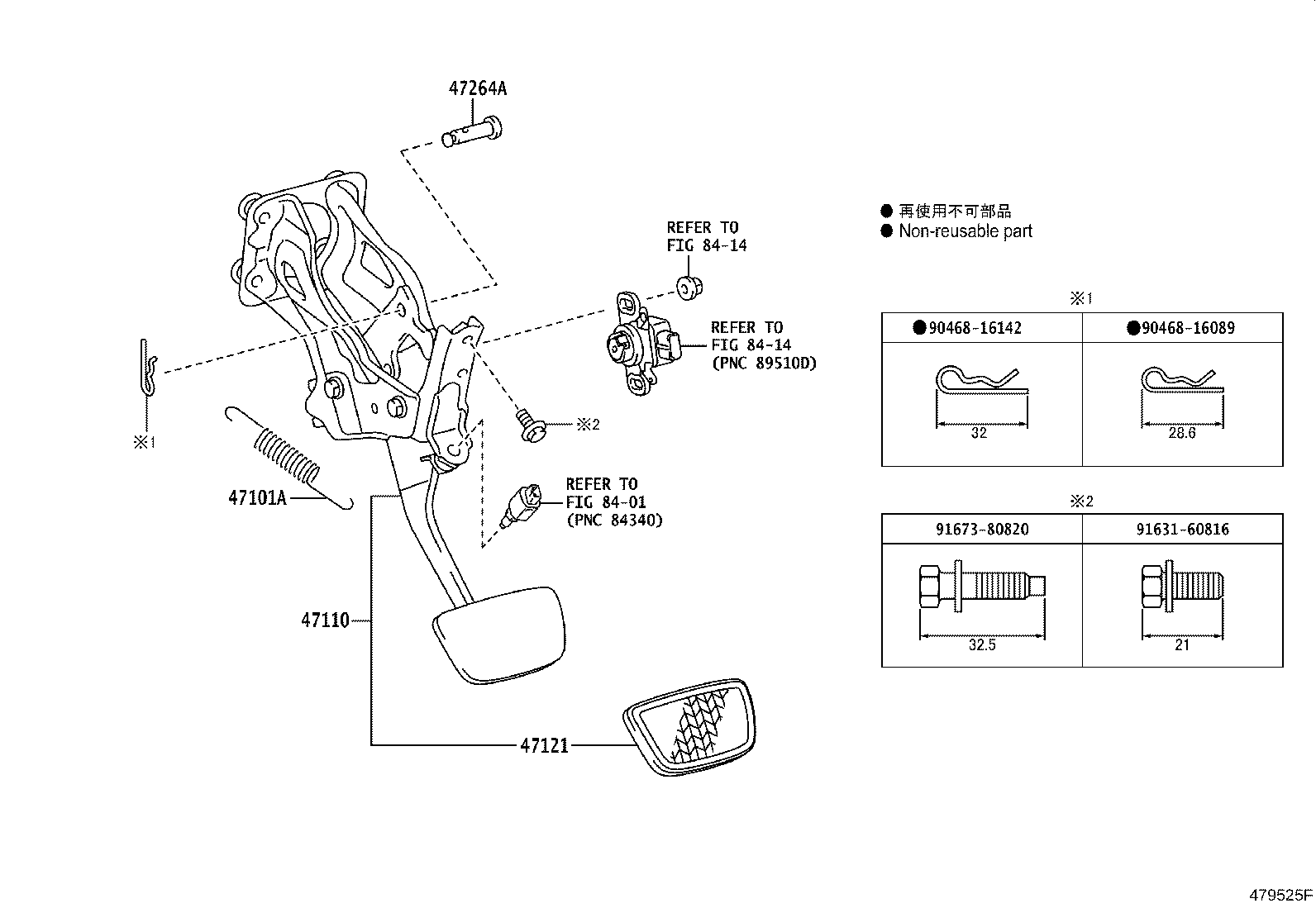

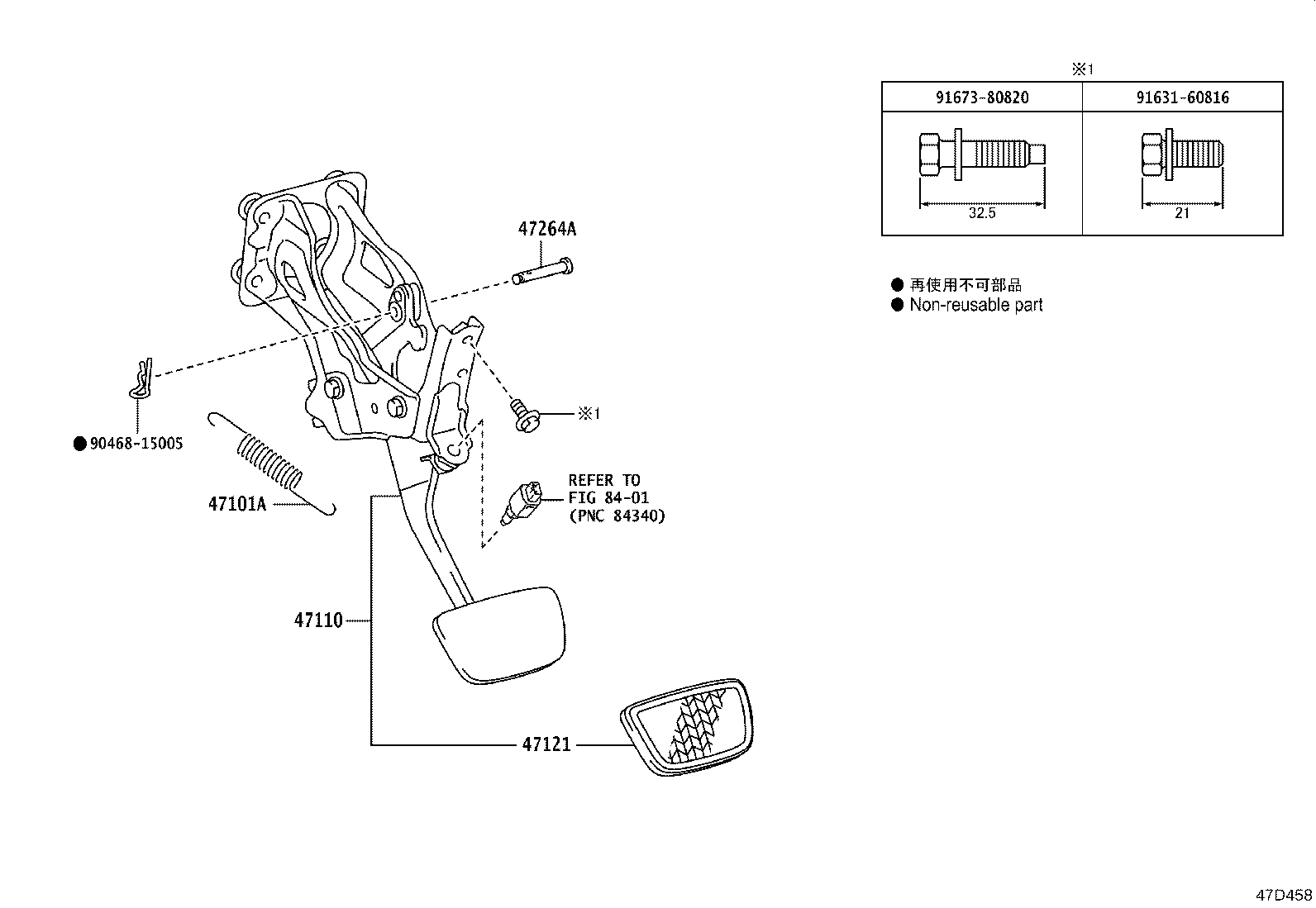

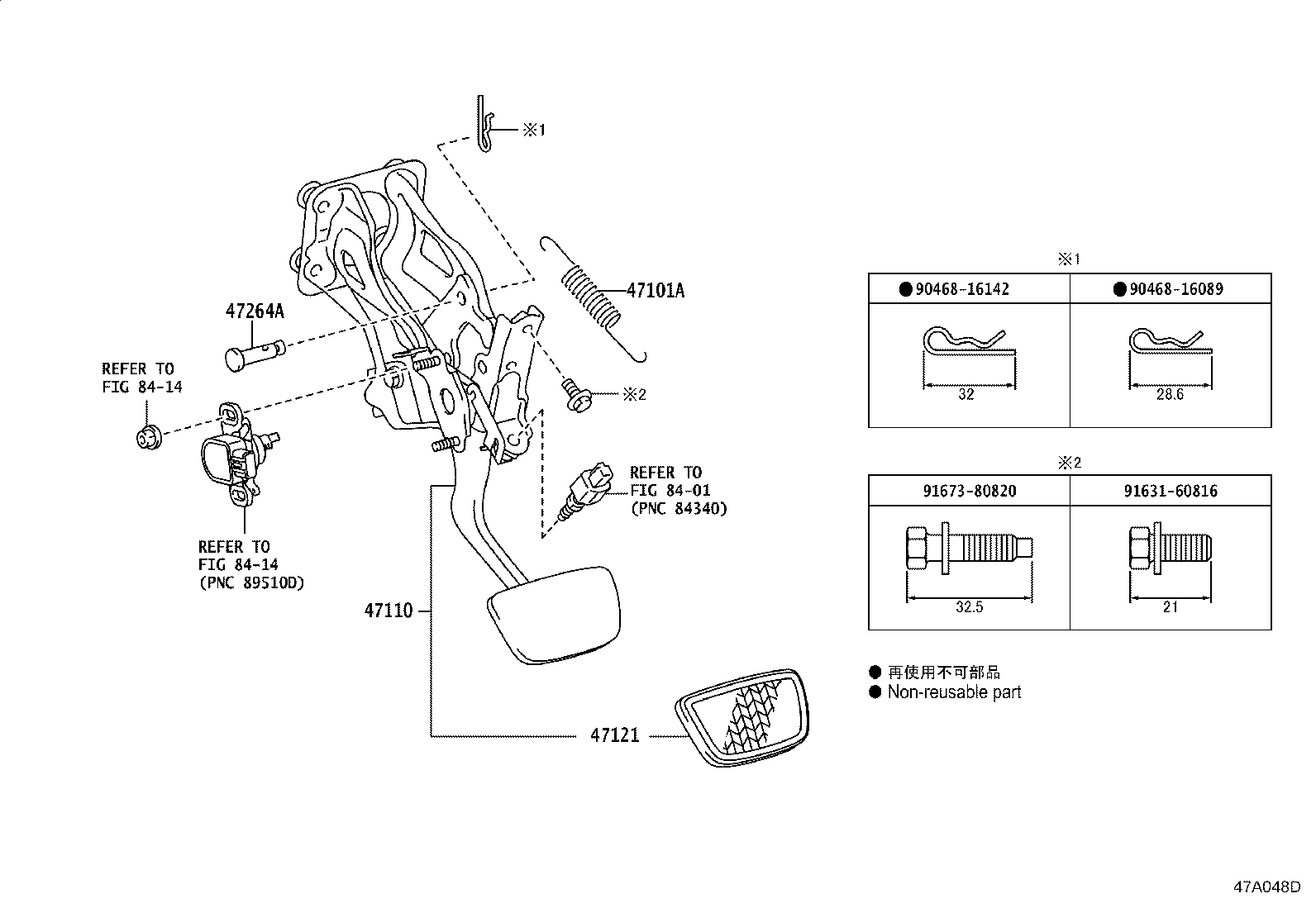

Figure 47D457 47D457 2014-09 → — Figure 47D458 47D458 2015-10 → — Figure 479525F 479525F 2015-10 → — Figure 47A048F 47A048F 2015-10 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
