Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12

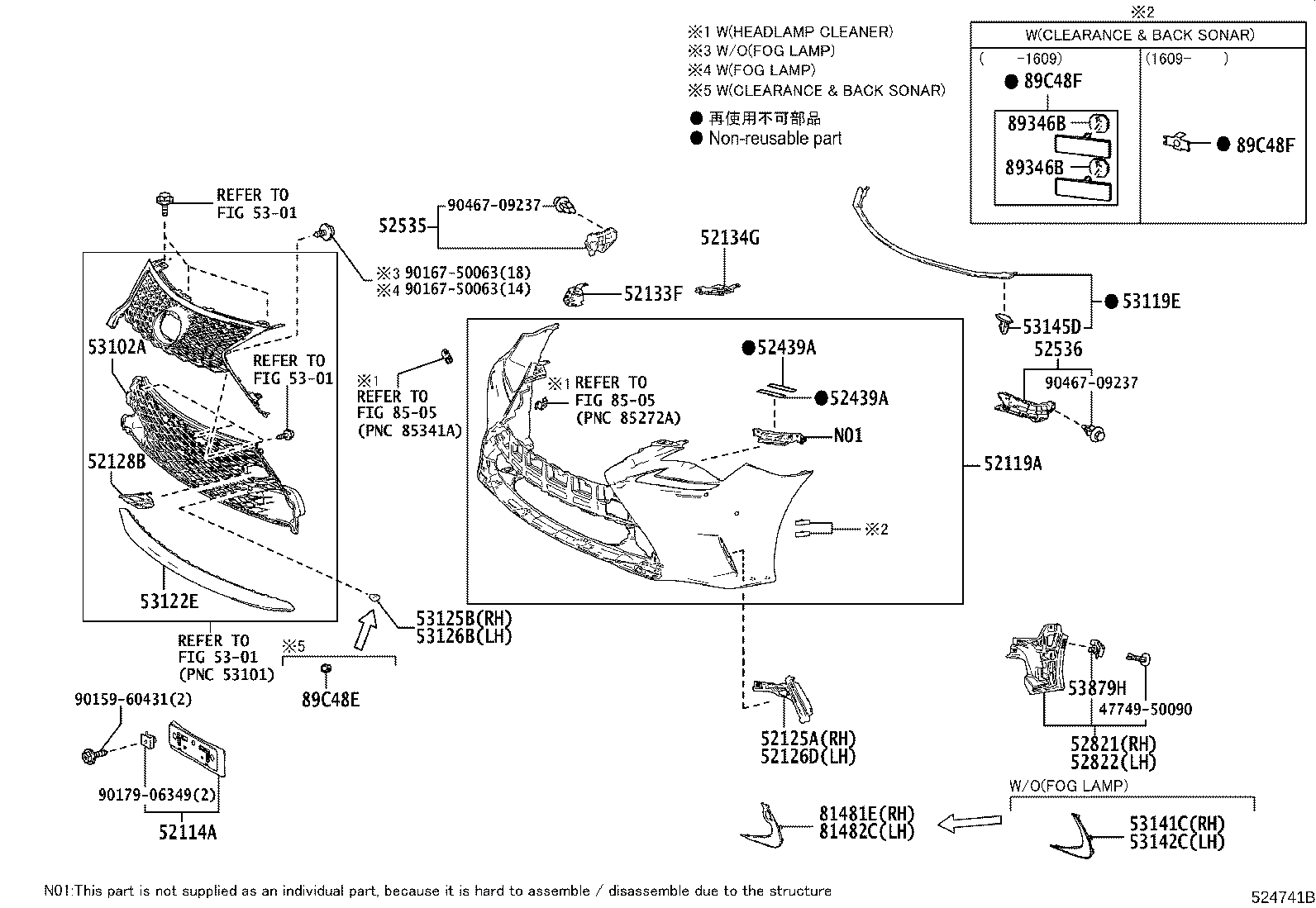

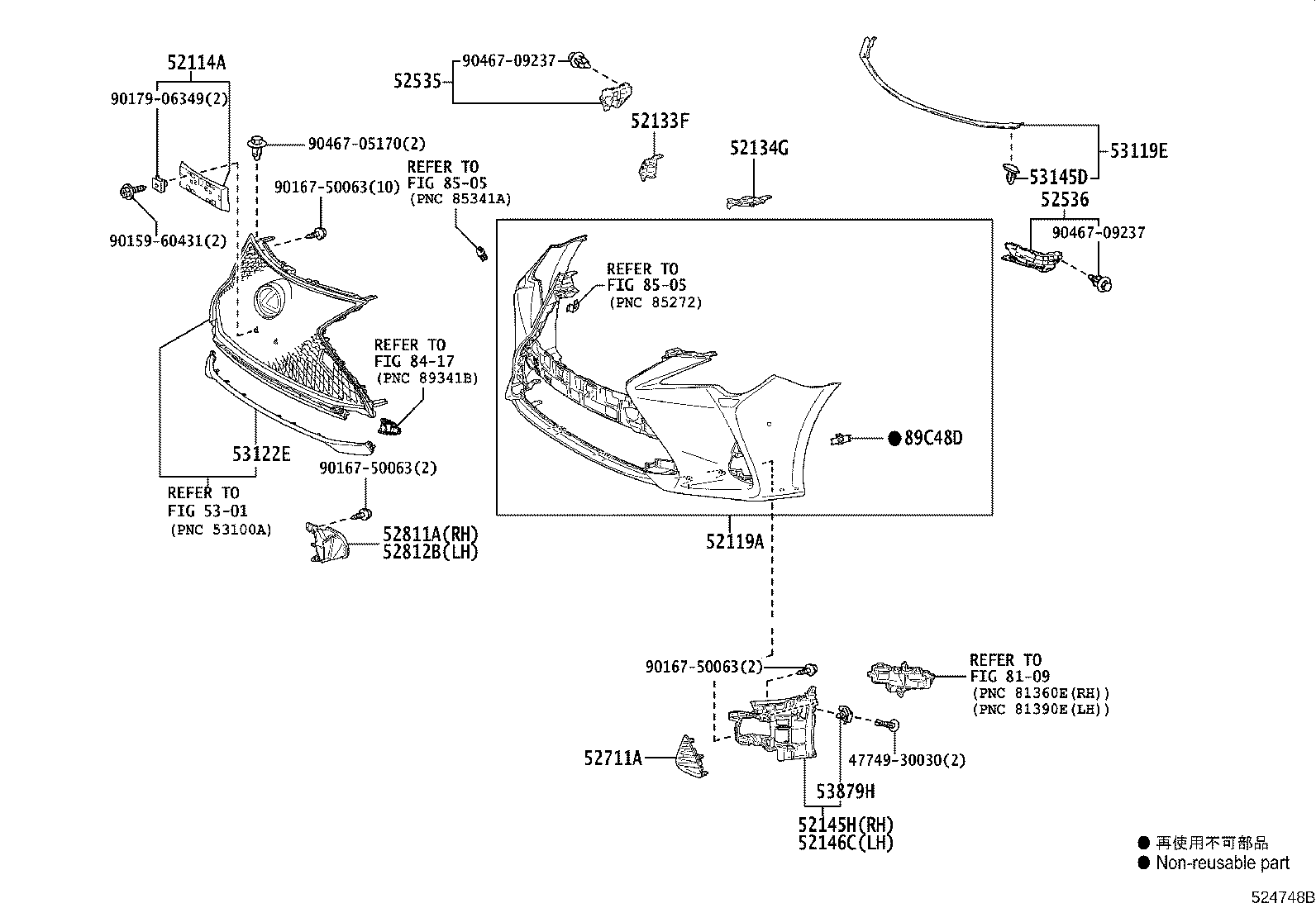

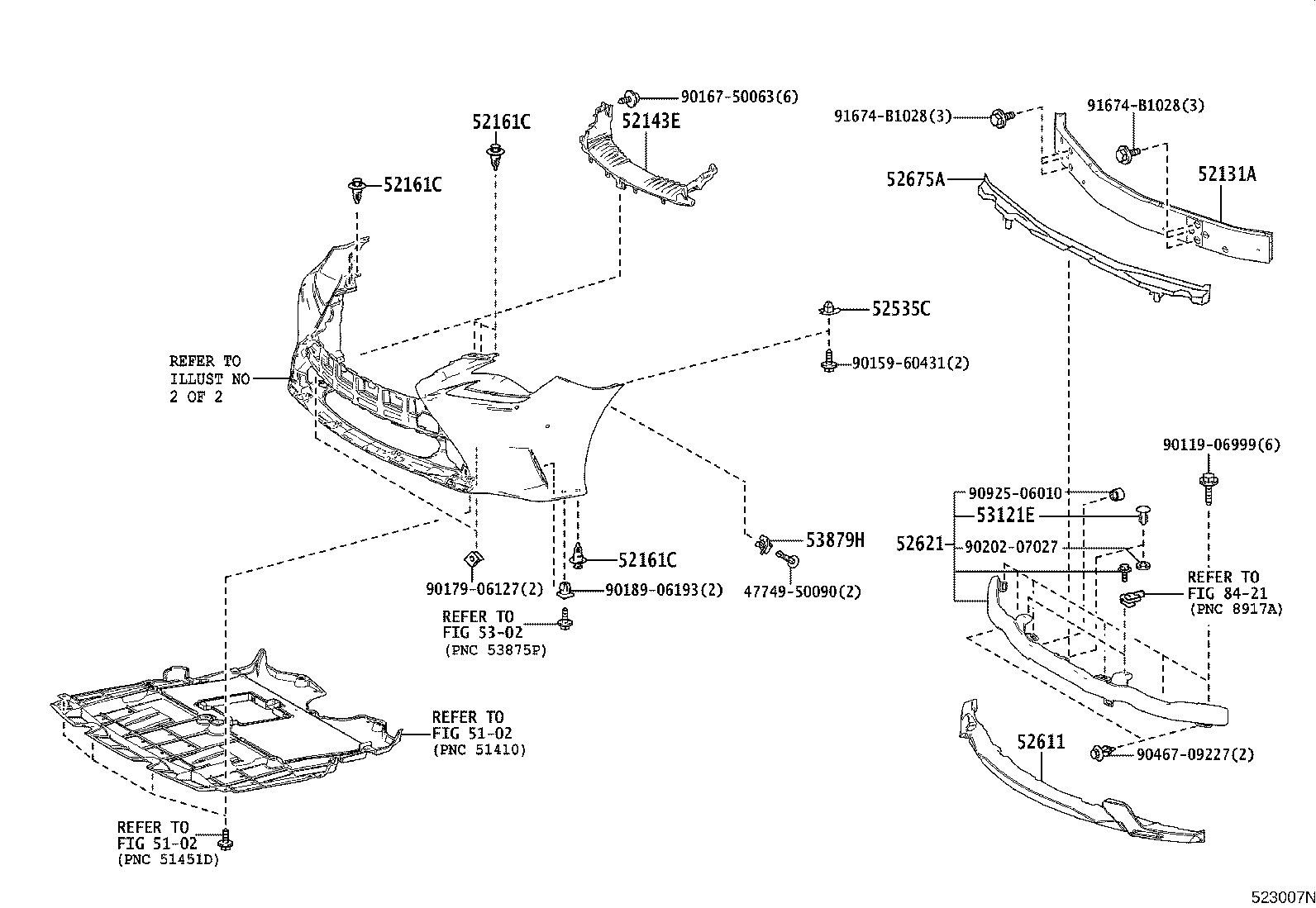

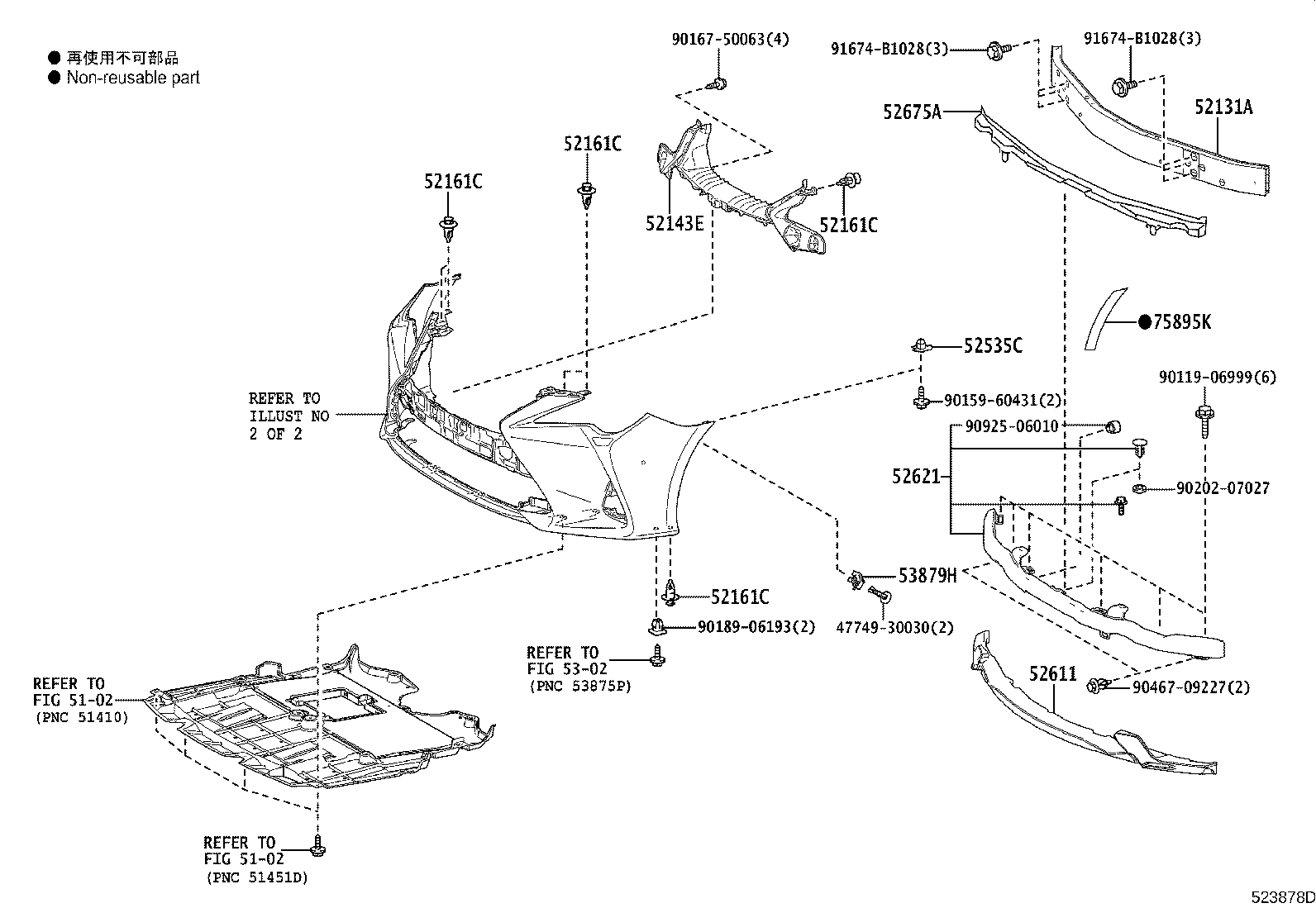

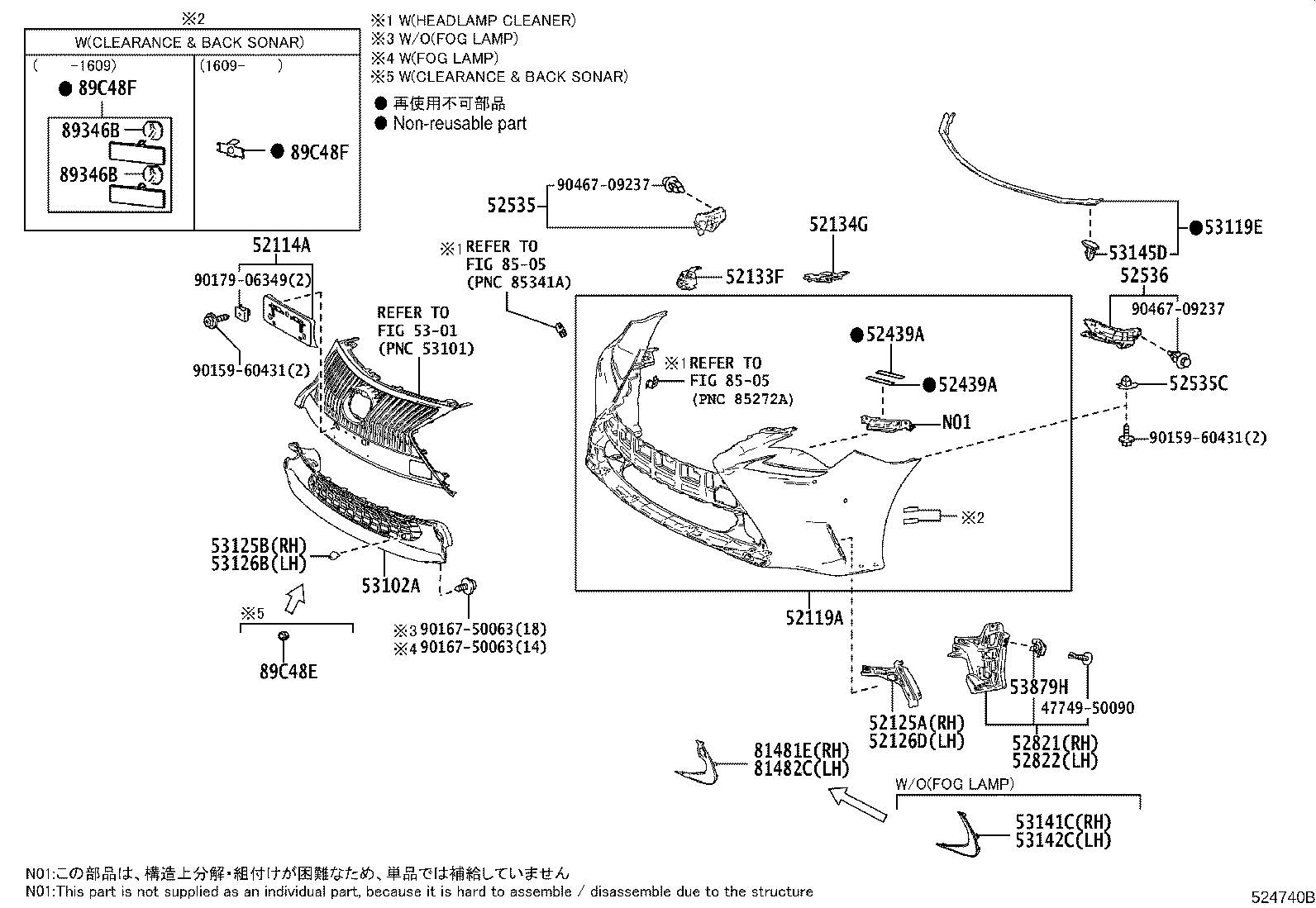

Front Bumper & Bumper Stay

41 part groups · 6 illustrations

PNC	Description
52114A	Bracket, Front Bumper Extension Mounting
52119A	Cover, Front Bumper
52125A	Bracket, Fog Lamp Mounting, RH
52126D	Bracket, Fog Lamp Mounting, LH
52128B	Cover, Front Bumper Hole, LH
52131A	Reinforcement, Front Bumper
52133F	Bracket, Front Bumper, RH
52134G	Bracket, Front Bumper, LH
52143E	Plate, Front Energy Absorber Mounting
52145H	Stay, Front Bumper Side, RH
52146C	Stay, Front Bumper Side, LH
52161C	Piece, Front Bumper
52439A	Tape, Front Bumper Guard Prtector
52535	Retainer, Front Bumper Side, RH
52535C	Retainer, Front Bumper Side
52536	Retainer, Front Bumper Side, LH
52611	Absorber, Front Bumper Energy
52621	Chamber, Pop UP Hood
52675A	Support, Front Bumper Side, NO.1
52711A	Garnish, Front Bumper
52811A	Duct, Cool Air Intake, NO.1
52812B	Duct, Cool Air Intake, NO.2
52821	Duct, Air Intake, RH
52822	Duct, Air Intake, LH
53102A	Grille Sub-assy, Radiator, Lwr
53119E	Protector, Radiator Grille
53121E	Clip(FOR FRONT BUMPER), NO.1
53122E	Moulding, Radiator Grille, Lower
53125B	Moulding, Radiator Grille, Center RH
53126B	Moulding, Radiator Grille, Center LH
53141C	Garnish, Radiator Grille
53142C	Garnish, Radiator Grille, NO.2
53145D	Clip, Radiator Grille
53879H	Retainer, Front Fender Liner
75895K	Tape, Moulding, NO.1
81481E	Cover, Fog Lamp, RH
81482C	Cover, Fog Lamp, LH
89346B	Adjuster, Ultrasonic Sensor
89C48D	Retainer, Ultrasonic Sensor, Front Corner
89C48E	Retainer, Ultrasonic Sensor, Front Center
89C48F	Retainer, Ultrasonic Sensor, Front Side

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
