Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

12 part groups · 6 illustrations

Illustrations

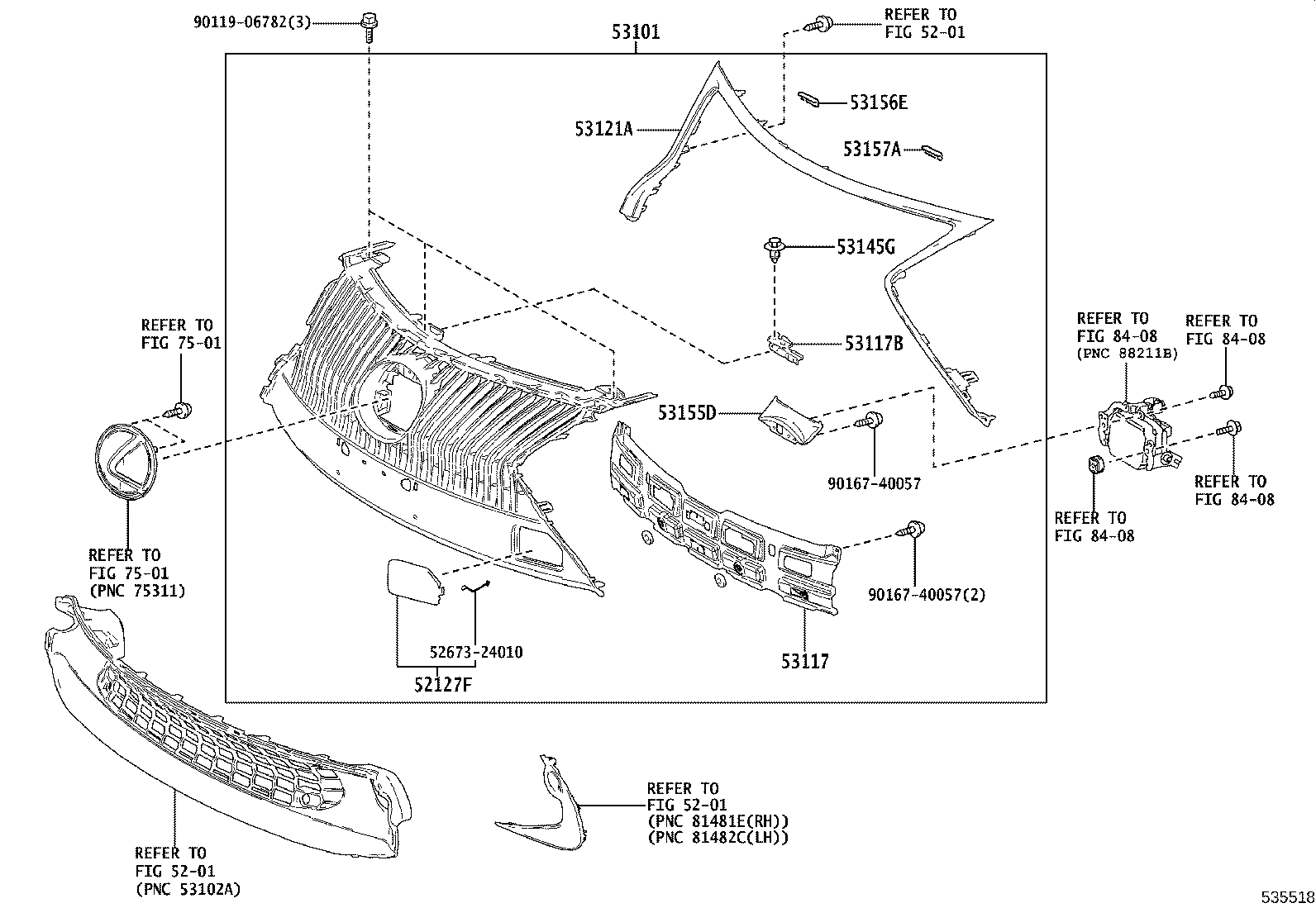

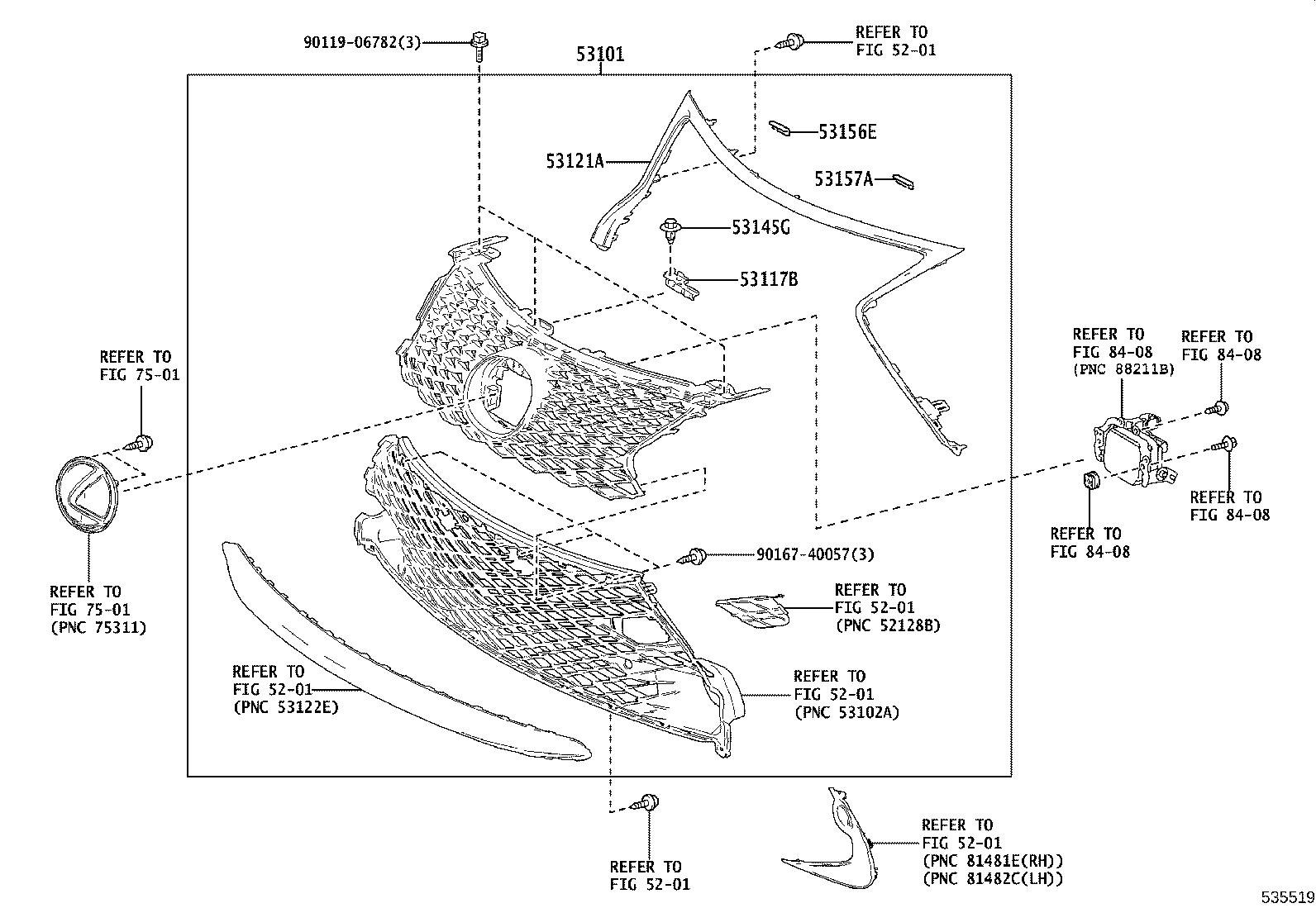

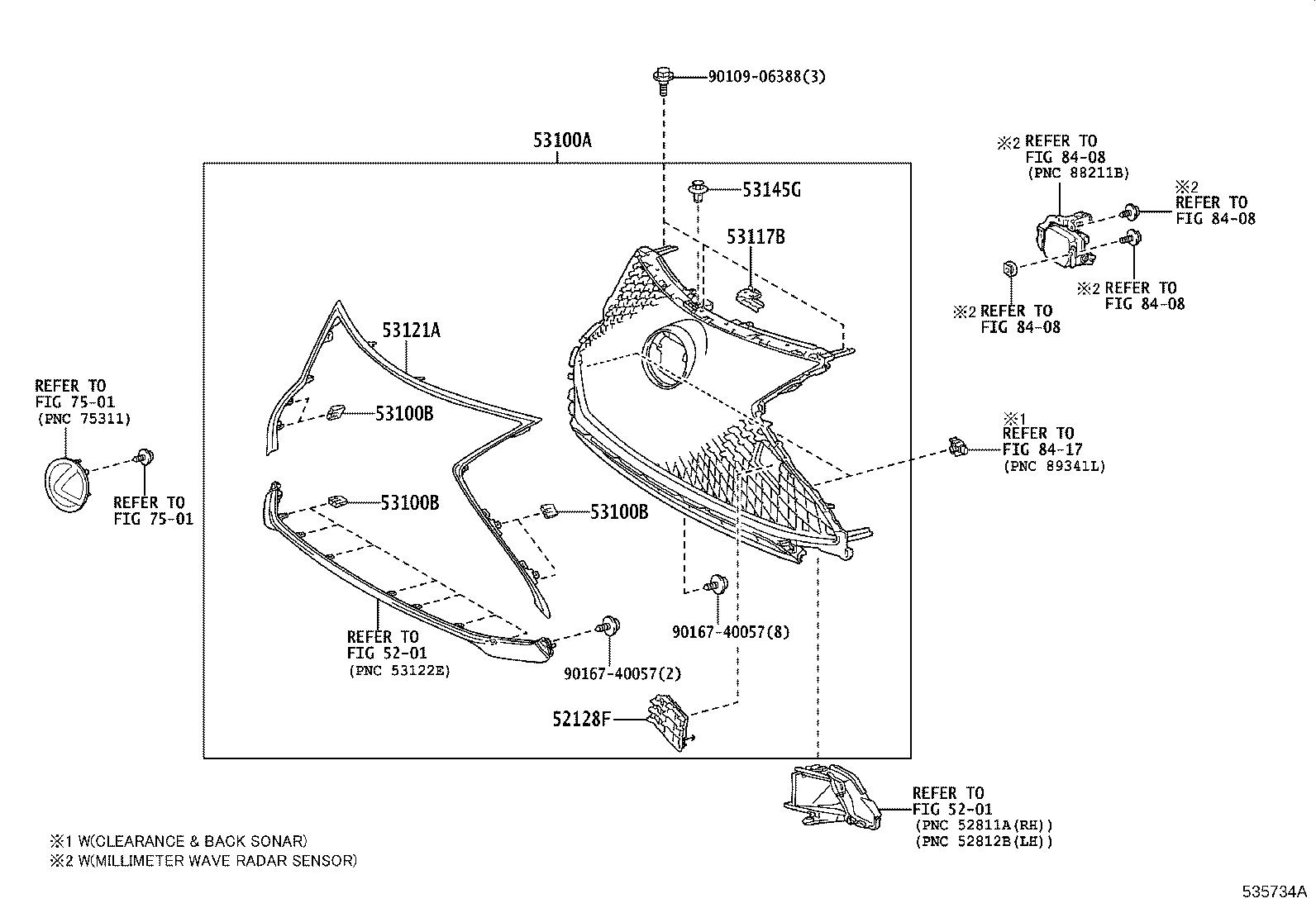

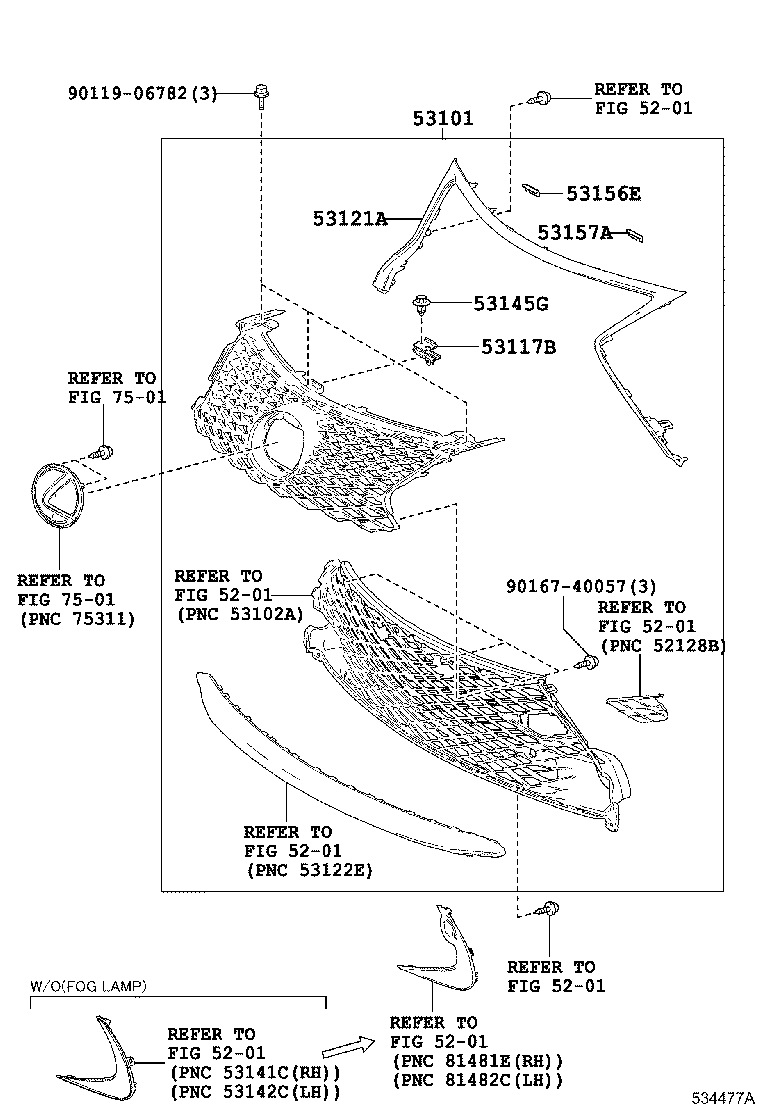

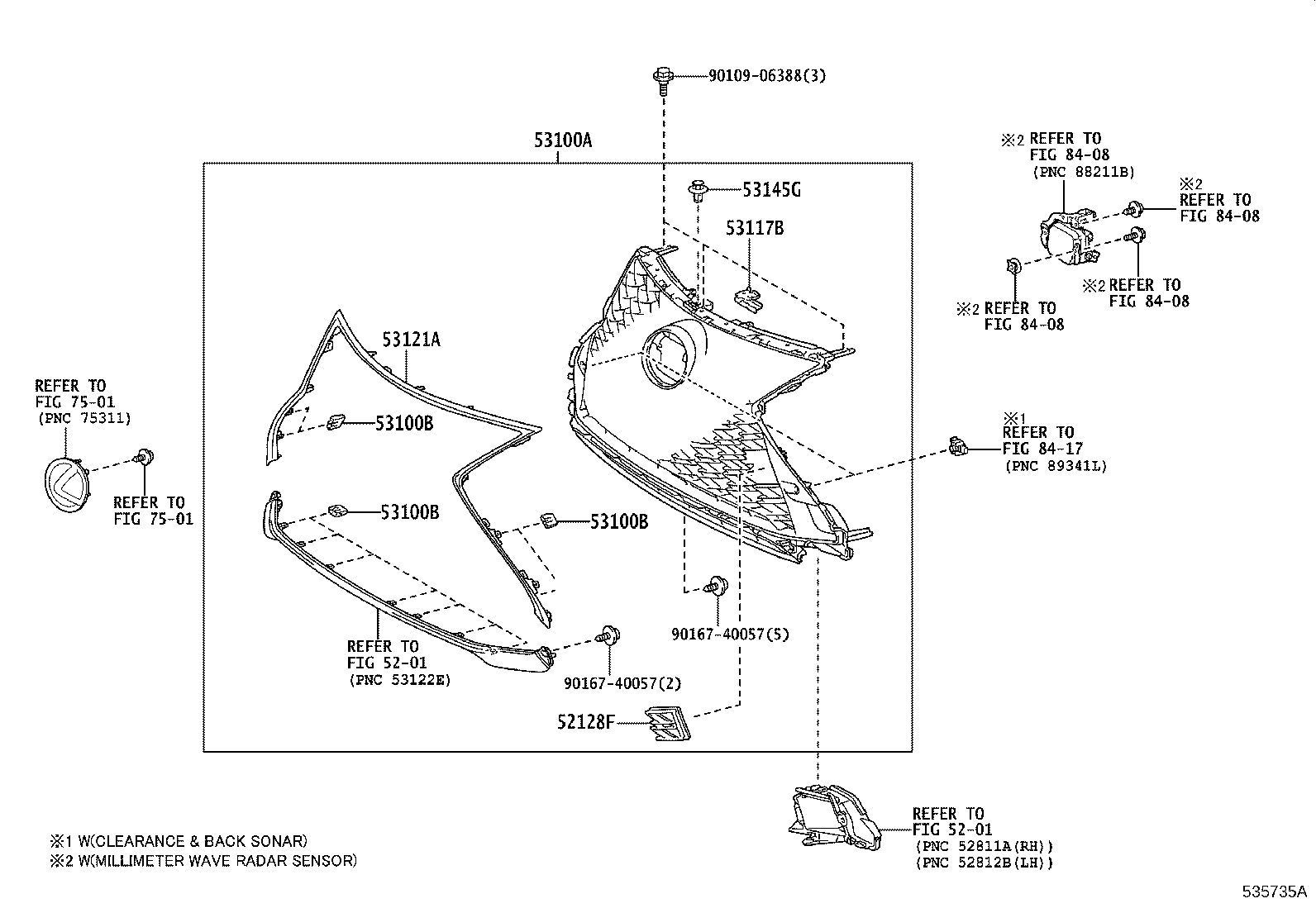

Figure 535133 535133 2014-09 → 2017-11 Figure 534477A 534477A 2014-09 → 2017-11 Figure 535518 535518 2017-11 → 2018-10 Figure 535519 535519 2017-11 → 2018-10 Figure 535734A 535734A 2018-10 → — Figure 535735A 535735A 2018-10 → —

Part groups

PNCDescription
52127F Cover, Front Bumper Hole
52128F Cover, Front Bumper Hole, LH
53100A Grille Assy, Radiator
53100B Clip, Radiator Grille
53101 Grille Sub-assy, Radiator
53117 Bracket, Radiator Grille Support, RH
53117B Bracket, Radiator Grille, Lower
53121A Moulding, Radiator Grille
53145G Clip, Radiator Grille
53155D Seal, Radiator Grille, NO.1
53156E Seal, Radiator Grille, NO.2
53157A Seal, Radiator Grille, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
