Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 2 illustrations

Illustrations

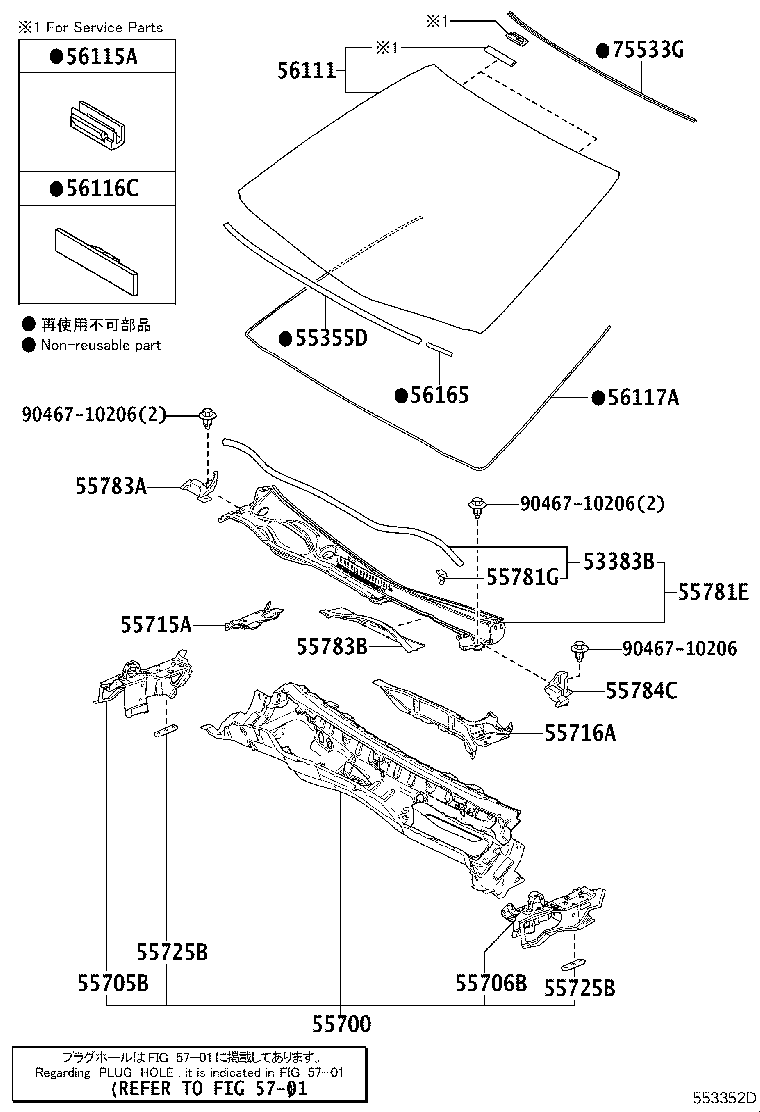

Figure 553338E 553338E 2014-09 → — Figure 553352D 553352D 2015-10 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55355D Cushion, Instrument Panel, NO.1
55700 Panel Assy, Front
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55725B Reinforcement, Hood Hinge Mounting
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55783A Pad, Cowl Top Silencer
55783B Louver, Cowl Top Ventilator, Center NO.1
55784C Pad, Cowl Top Silencer, LH
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56165 Cover, Front Window Inner Moulding, LH
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
