Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

18 part groups · 2 illustrations

Illustrations

Figure 585285C

585285C 2014-09 → —

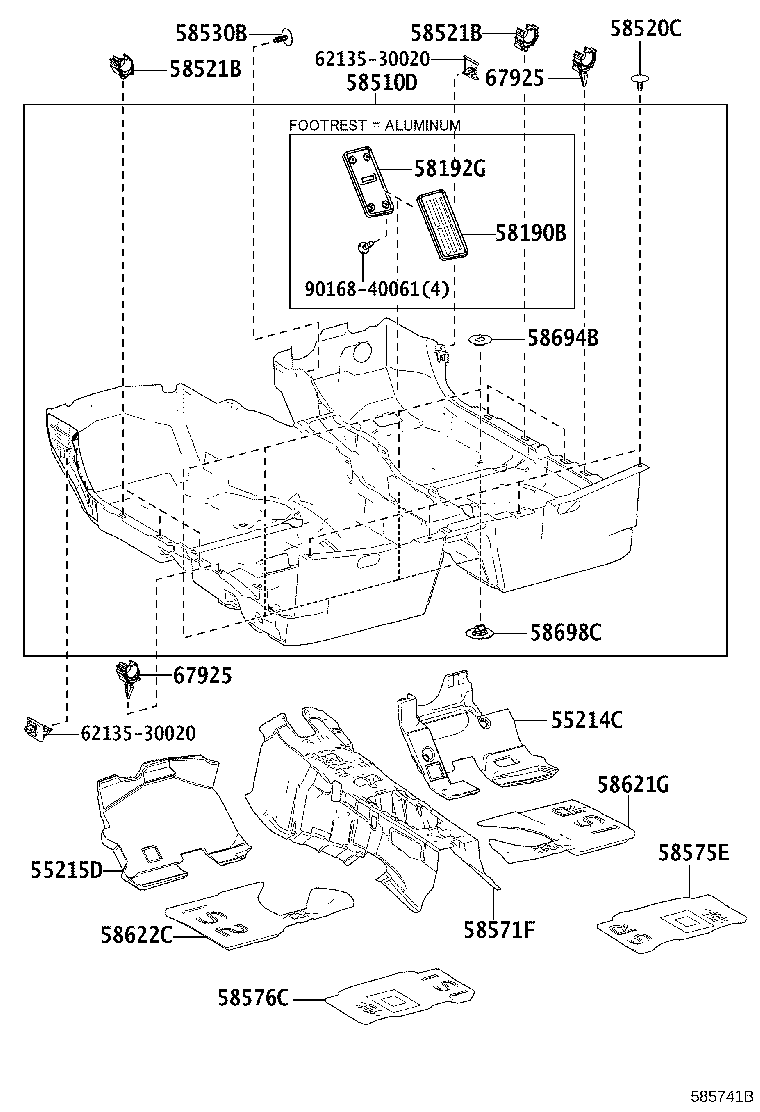

Figure 585741B

585741B 2015-10 → —

Part groups

PNC	Description
55214C	Pad, Dash Panel Insulator, NO.2
55215D	Pad, Dash Panel Insulator, NO.3
58190B	Rest Assy, Front Floor Foot
58191C	Panel, Footrest
58192G	Panel, Footrest, NO.2
58193G	Footrest, Front Floor, NO.3
58510D	Carpet Assy, Floor, Front
58520C	Clip(FOR FRONT FLOOR CARPET)
58521B	Hook, Floor Carpet
58530B	Clip(FOR FRONT FLOOR CARPET)
58571F	Pad, Front Floor, Front
58575E	Pad, Front Floor, Rear NO.1
58576C	Pad, Front Floor, Rear NO.2
58621G	Pad, Front Floor Silencer, RH
58622C	Pad, Front Floor Silencer, LH
58694B	Plate, Mat Set, Upper
58698C	Plate, Mat Set, Lower
67925	Cover, Door Scuff Plate

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
