Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12

Roof Panel & Back Window Glass

40 part groups · 3 illustrations

PNC	Description
56112A	Dam, Window Glass Adhesive
56115B	Stopper, Back Window Glass, NO.1
56116D	Stopper, Back Window Glass, NO.2
56119B	Dam, Back Window Glass Adhesive
63102A	Panel Sub-assy, Windshield Header
63104	Reinforcement Sub-assy, Roof Panel, Center
63105	Reinforcement Sub-assy, Roof Panel, Rear
63111	Panel, Roof
63118	Support, Roof Panel, RH
63119	Support, Roof Panel, LH
63123C	Reinforcement, Roof Panel
63124	Reinforcement, Roof Panel, NO.1
63133B	Frame, Back Window
63142	Reinforcement, Roof Panel, NO.2
63143A	Reinforcement, Roof Panel
63146A	Bracket, Roof Panel Reinforcement, NO.1
63147	Bracket, Roof Panel Reinforcement

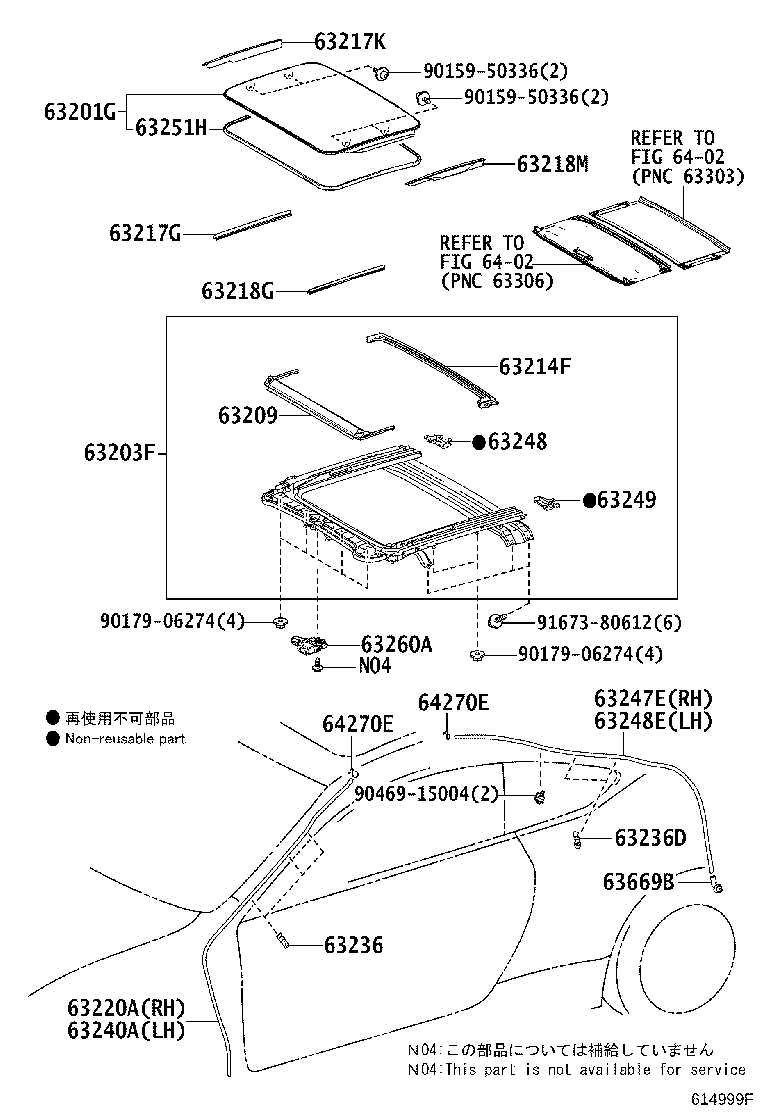

63201G	Glass Sub-assy, Sliding Roof
63203F	Housing Sub-assy, Sliding Roof
63209	Panel Sub-assy, Roof Wind Deflector
63214F	Channel, Roof Drip, Rear
63217G	Garnish, Sliding Roof Side, RH
63217K	Garnish, Sliding Roof Side, RH
63218G	Garnish, Sliding Roof Side, LH
63218M	Garnish, Sliding Roof Side, LH
63220A	Hose Assy, Sliding Roof Drain, RH
63236	Clamp, Sliding Roof OR Removable Roof Drain Hose
63236D	Clamp, Sliding Roof Drain Hose
63240A	Hose Assy, Sliding Roof Drain, LH
63247E	Hose, Sliding Roof Drain, Rear RH
63248	Joint, Slide Roof Drain Hose, RH
63248E	Hose, Sliding Roof Drain, Rear LH
63249	Joint, Slide Roof Drain Hose, LH
63251H	Weatherstrip, Sliding Roof
63260A	Gear Sub-assy, Sliding Roof Drive
63669B	Grommet, Sliding Roof Drain
64101	Panel Sub-assy, Upper Back
64270E	Clip

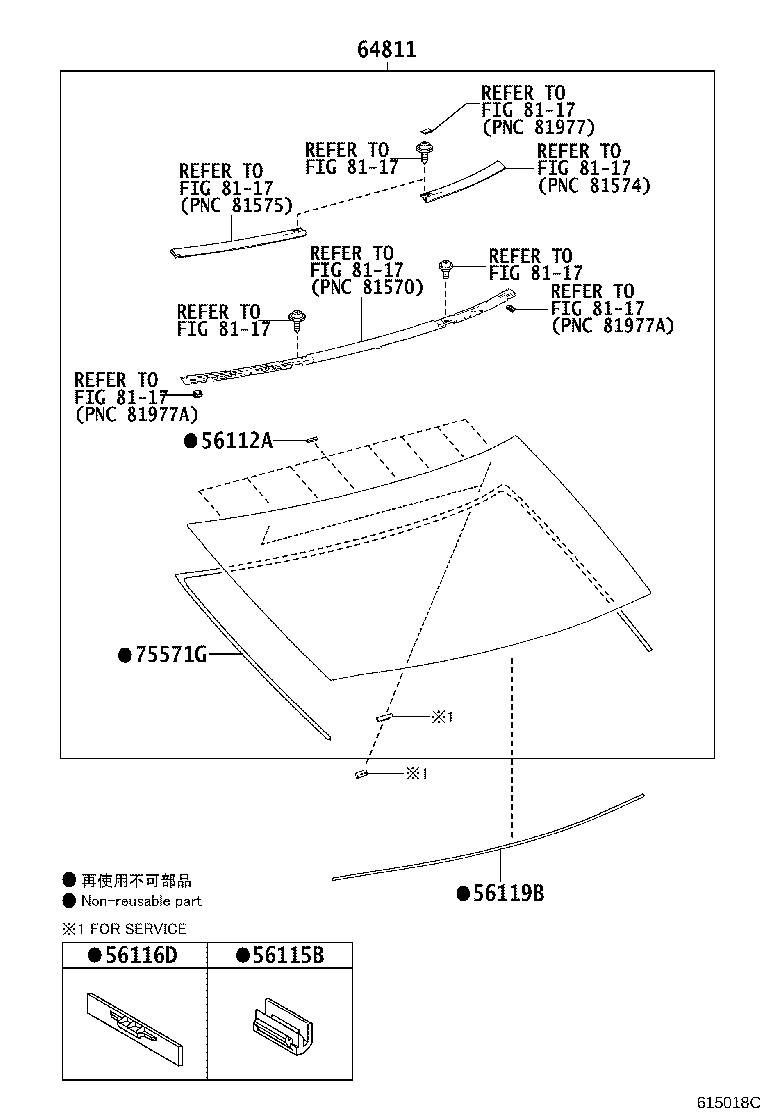

64811	Glass, Back Window
75571G	Moulding, Back Window, Outside Upper, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
