Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

22 part groups · 2 illustrations

Illustrations

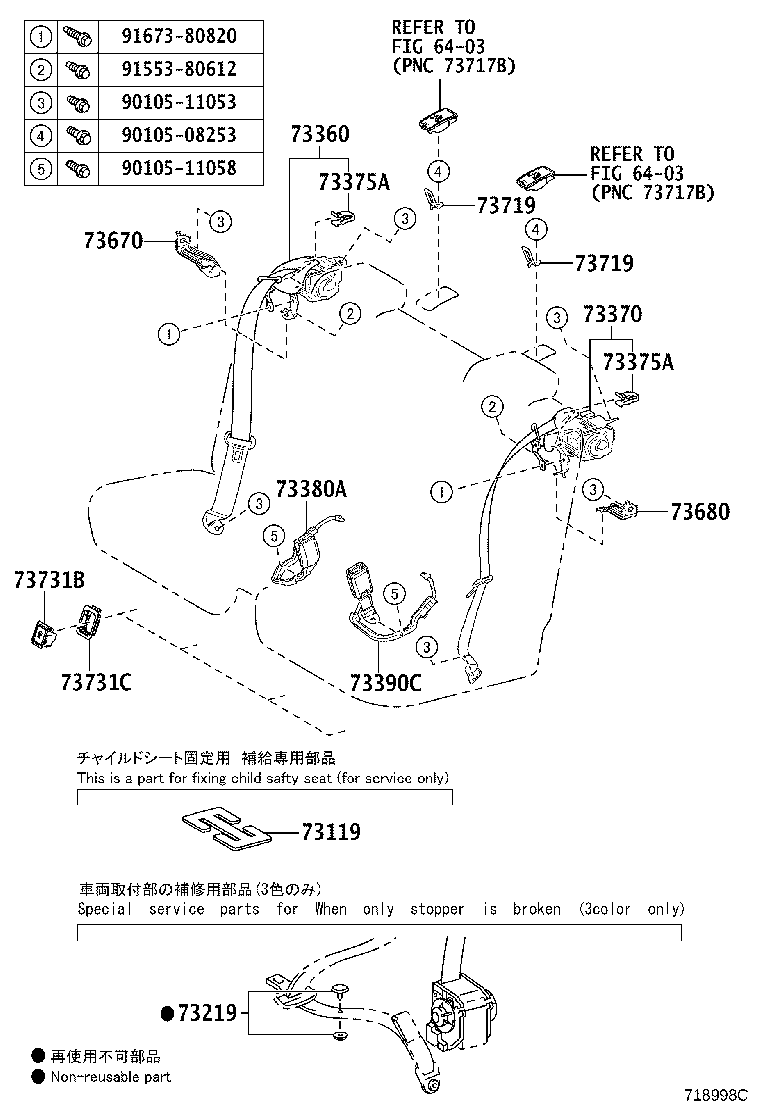

Figure 718996B 718996B 2014-09 → — Figure 718998C 718998C 2014-09 → —

Part groups

PNCDescription
73015 Bracket Sub-assy, Belt Outer Anchor, RH
73016 Bracket Sub-assy, Belt Outer Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73375A Clip, Rear Seat Belt Cover
73380A Belt Assy, Rear Seat, Inner
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73670 Bracket Assy, Rear Seat Belt Outer Anchor, RH
73680 Bracket Assy, Rear Seat Belt Outer Anchor, LH
73719 Bracket, Child Restraint Seat Tether Anchor
73731B Cover, Child Restraint Seat, NO.1
73731C Cover, Child Restraint Seat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
