Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

7 part groups · 2 illustrations

Illustrations

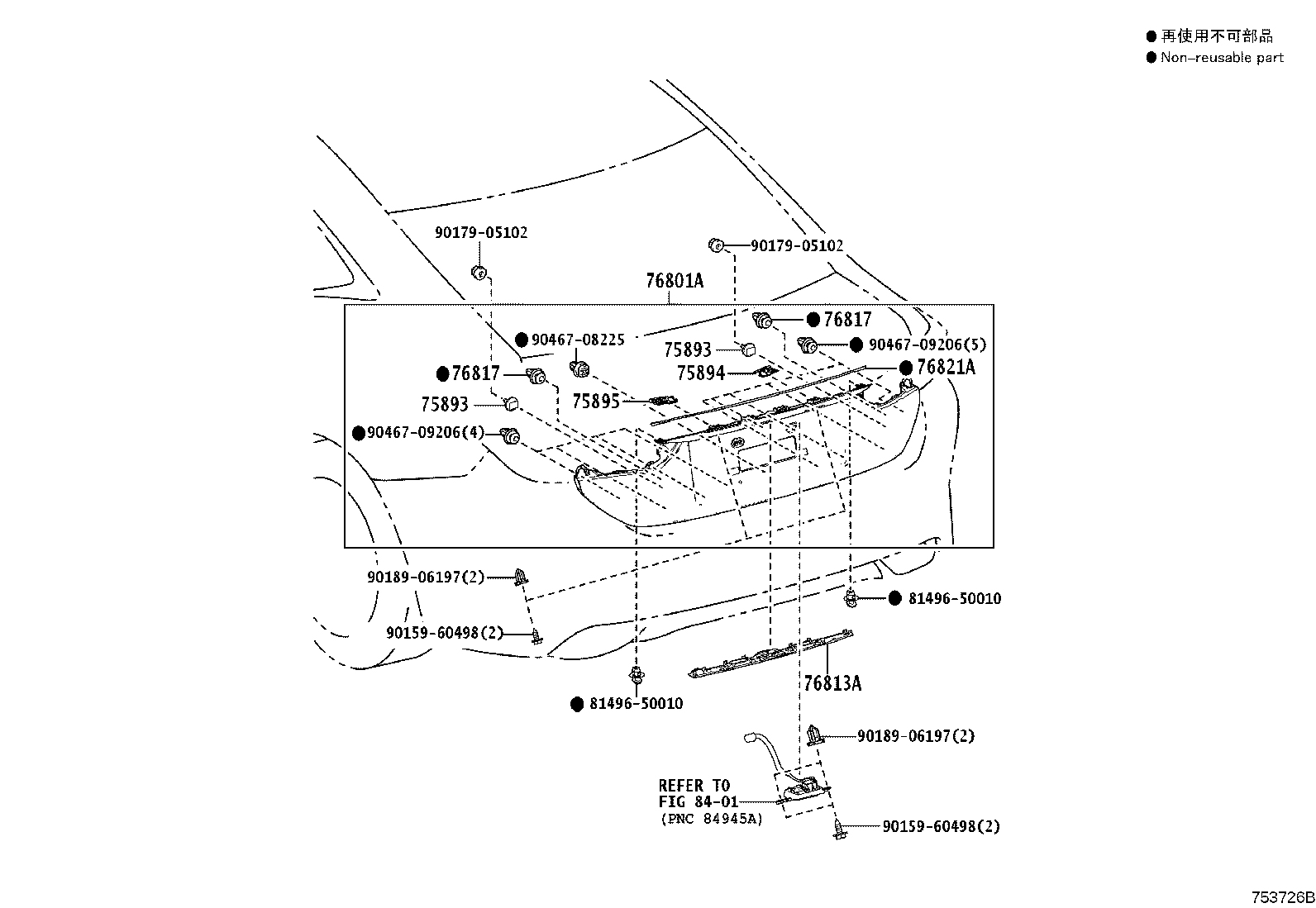

Figure 753047C 753047C 2014-09 → 2018-10 Figure 753726B 753726B 2018-10 → —

Part groups

PNCDescription
75893 Retainer, Luggage Door Moulding
75894 Retainer, Luggage Door Moulding, NO.2
75895 Retainer, Luggage Door Moulding, NO.3
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76813A Garnish, Luggage Compartment Door, Outside NO.3
76817 Clip, Back Door Outside Garnish
76821A Protector, Luggage Compartment Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
