Toyota Lexus RC3###/200T
2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe
Supported model
Data version 2020-12

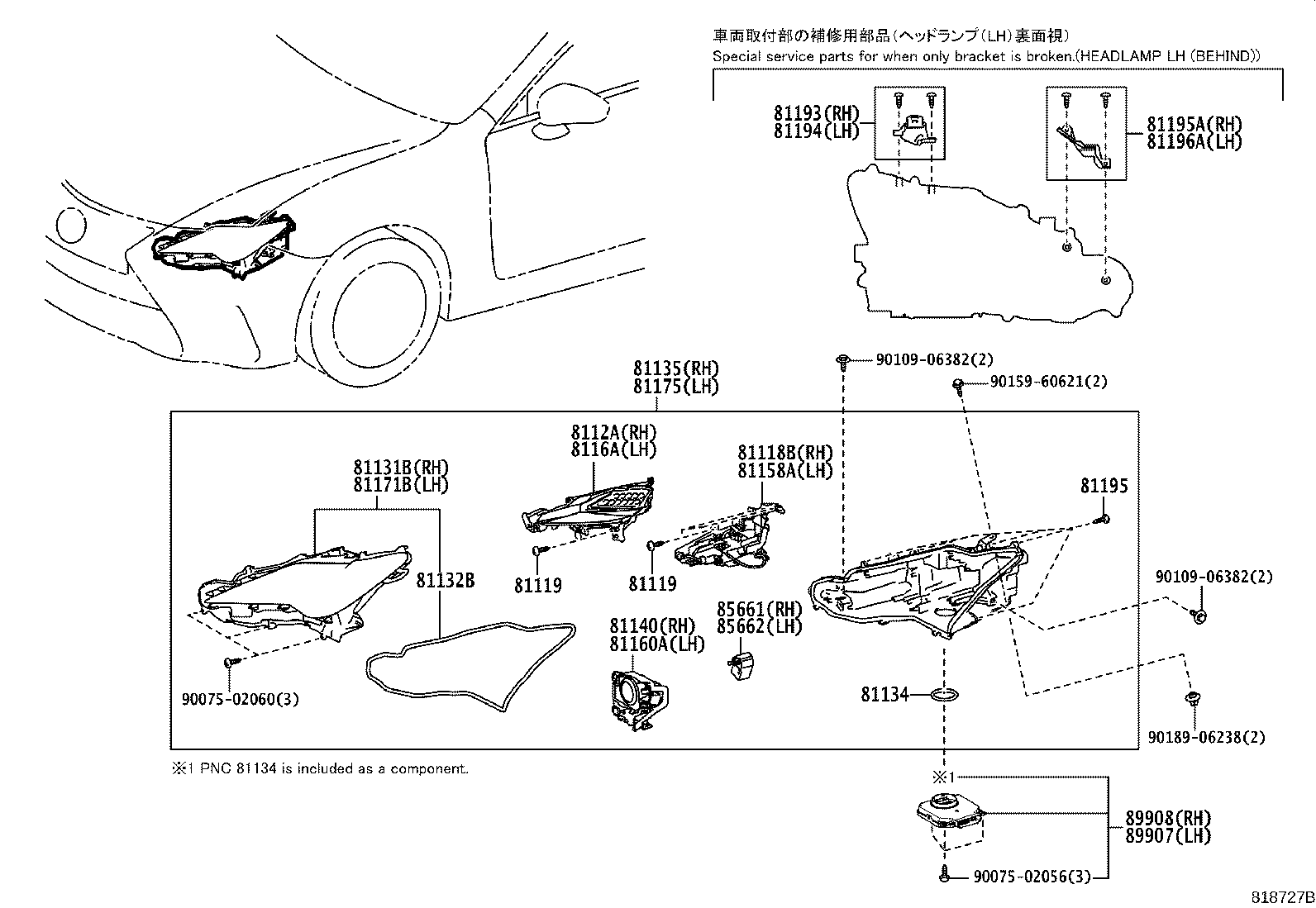

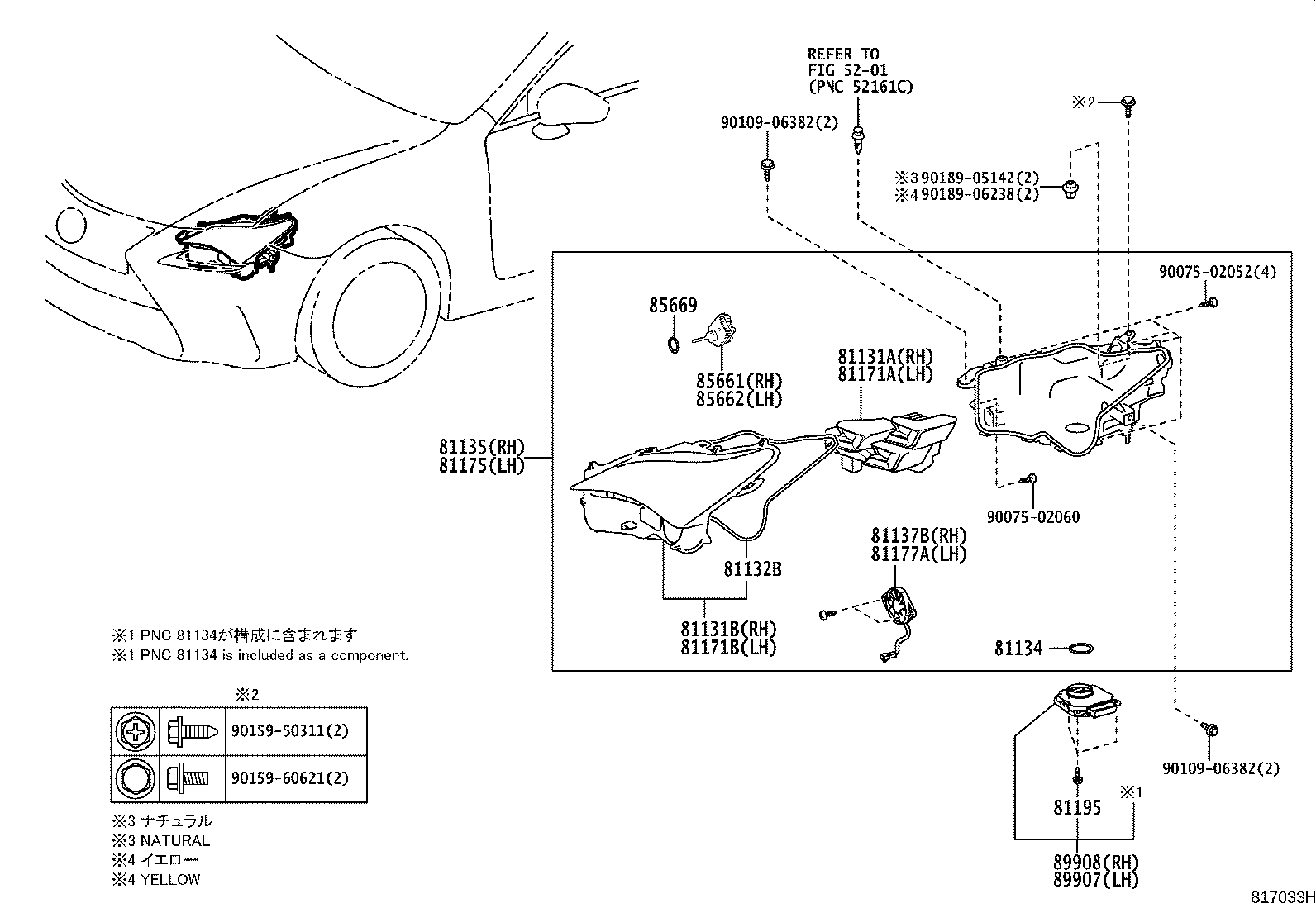

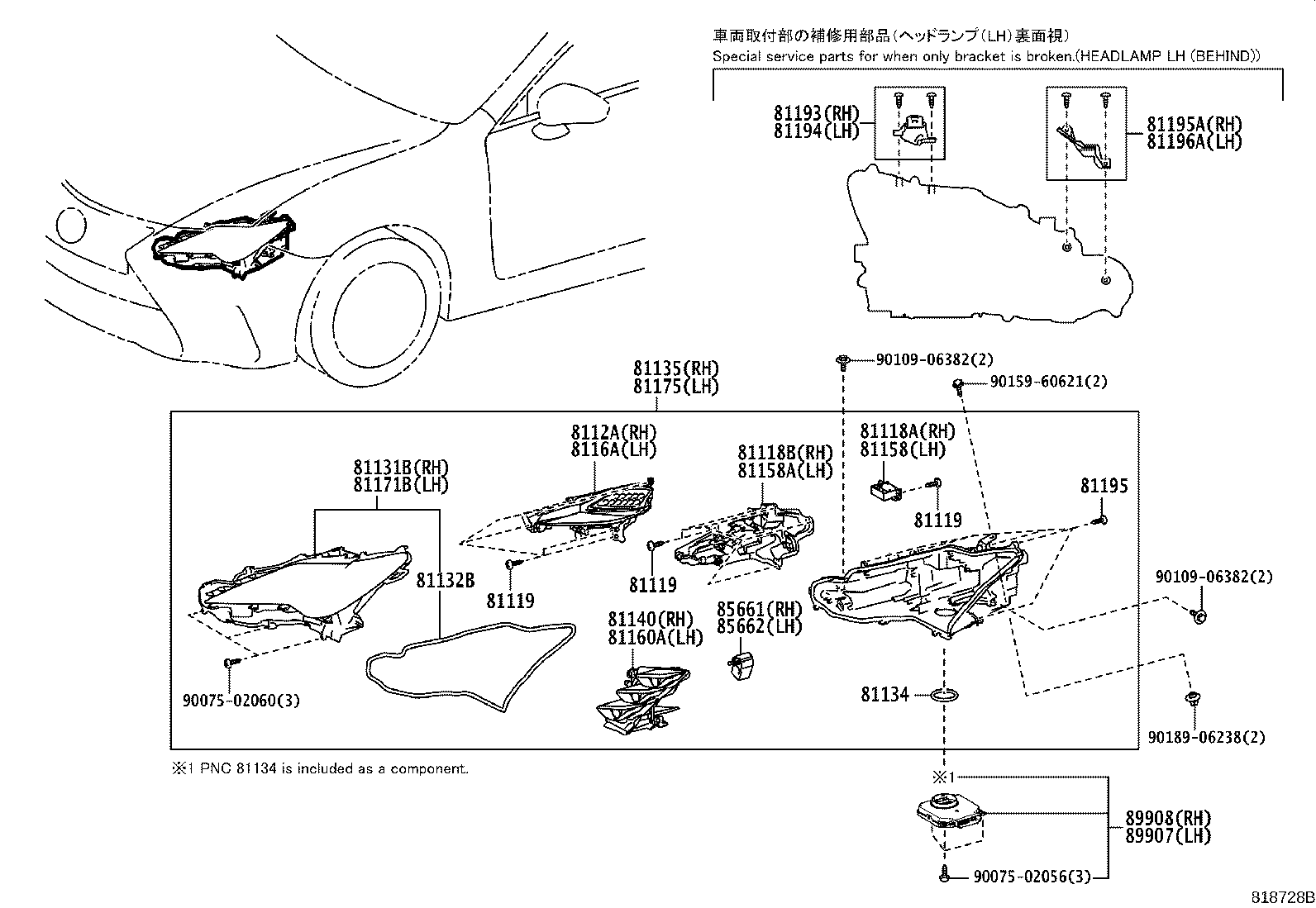

Headlamp
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81118A | Bracket, Headlamp, RH |
| 81118B | Bracket, Headlamp, RH NO.1 |
| 81119 | Screw, Headlamp |
| 81125 | Cord, Headlamp |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 81131A | Unit, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81137B | Fan, Headlamp, RH |
| 81140 | Unit Assy, Headlamp Led, RH |
| 81158 | Bracket, Headlamp, LH |
| 81158A | Bracket, Headlamp, LH NO.1 |
| 81160A | Unit Assy, Headlamp Led, LH |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 81171A | Unit, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81177A | Fan, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195 | Screw, Headlamp |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
| 85967 | Computer, Light Control |
| 89907 | Computer Sub-assy, Headlamp, LH |
| 89908 | Computer Sub-assy, Headlamp, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
