Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

128 part groups · 26 illustrations

Illustrations

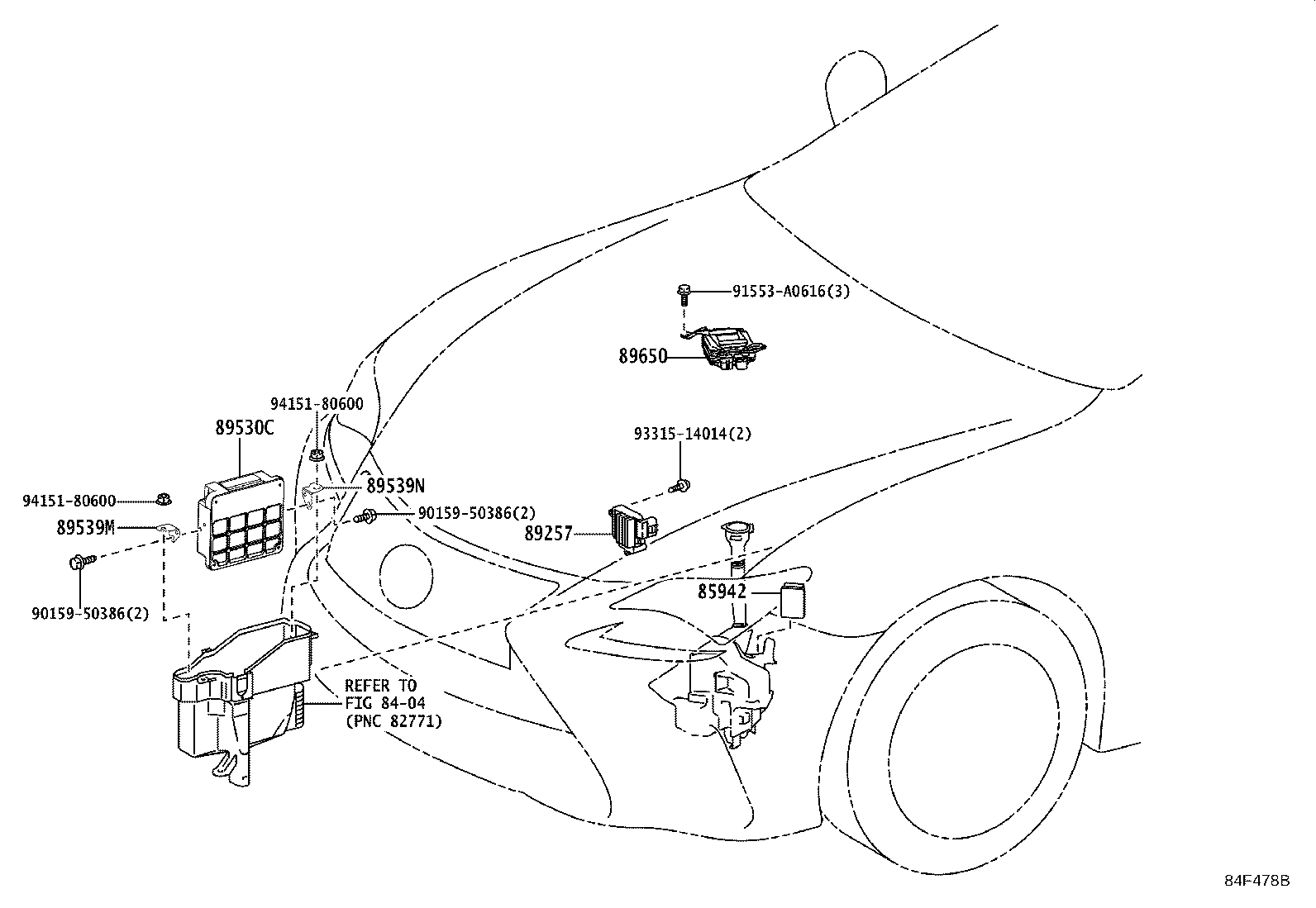

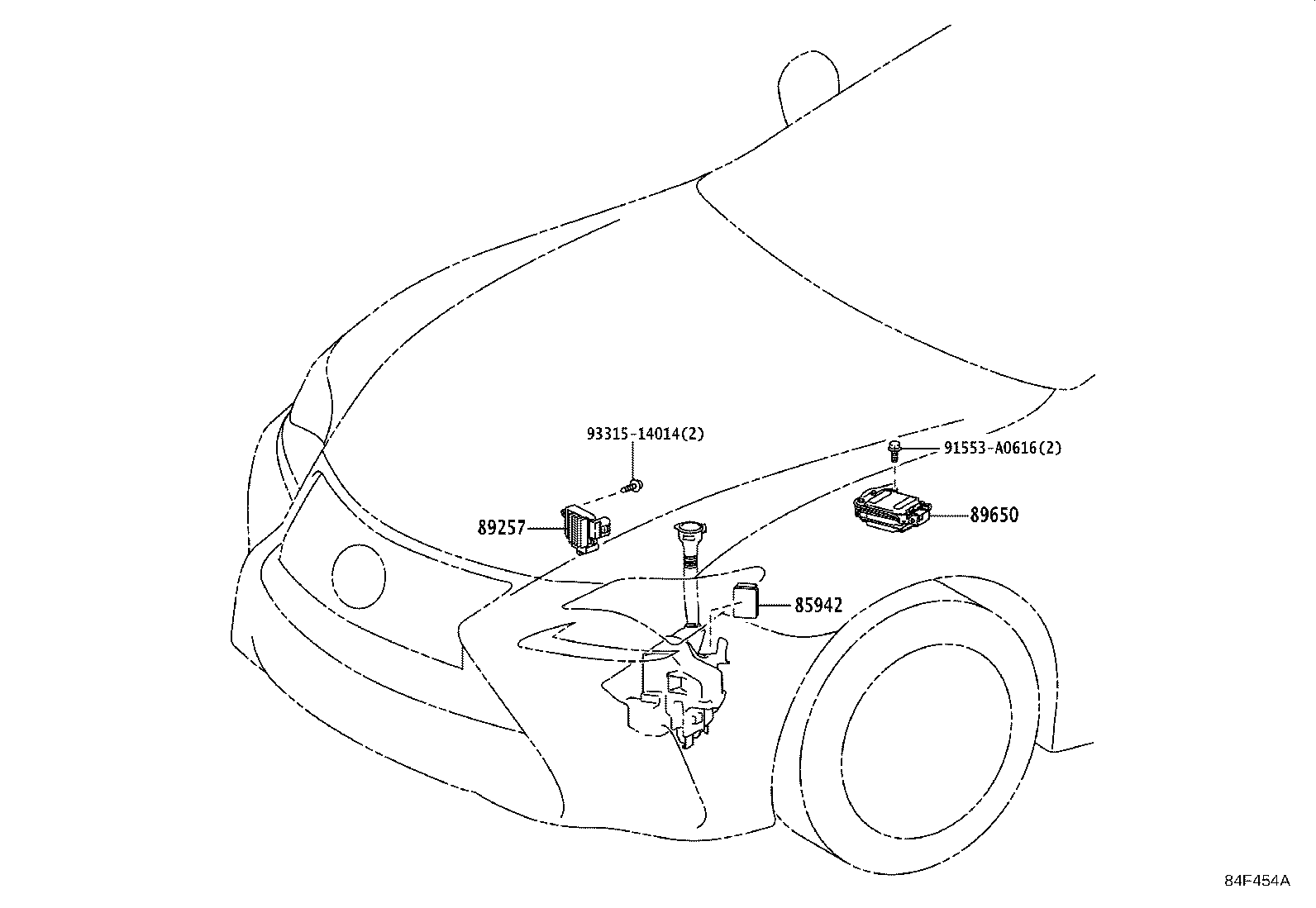

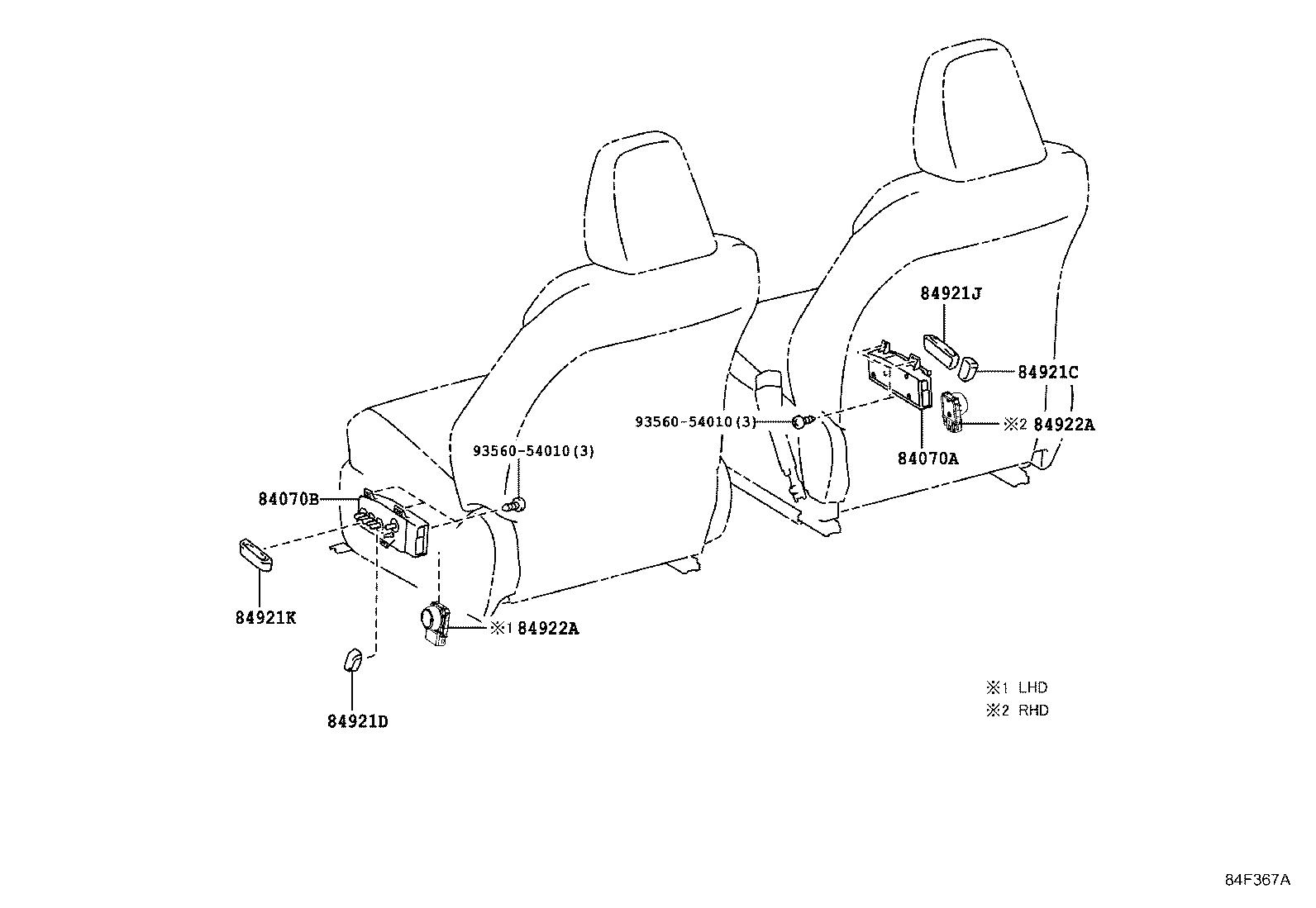

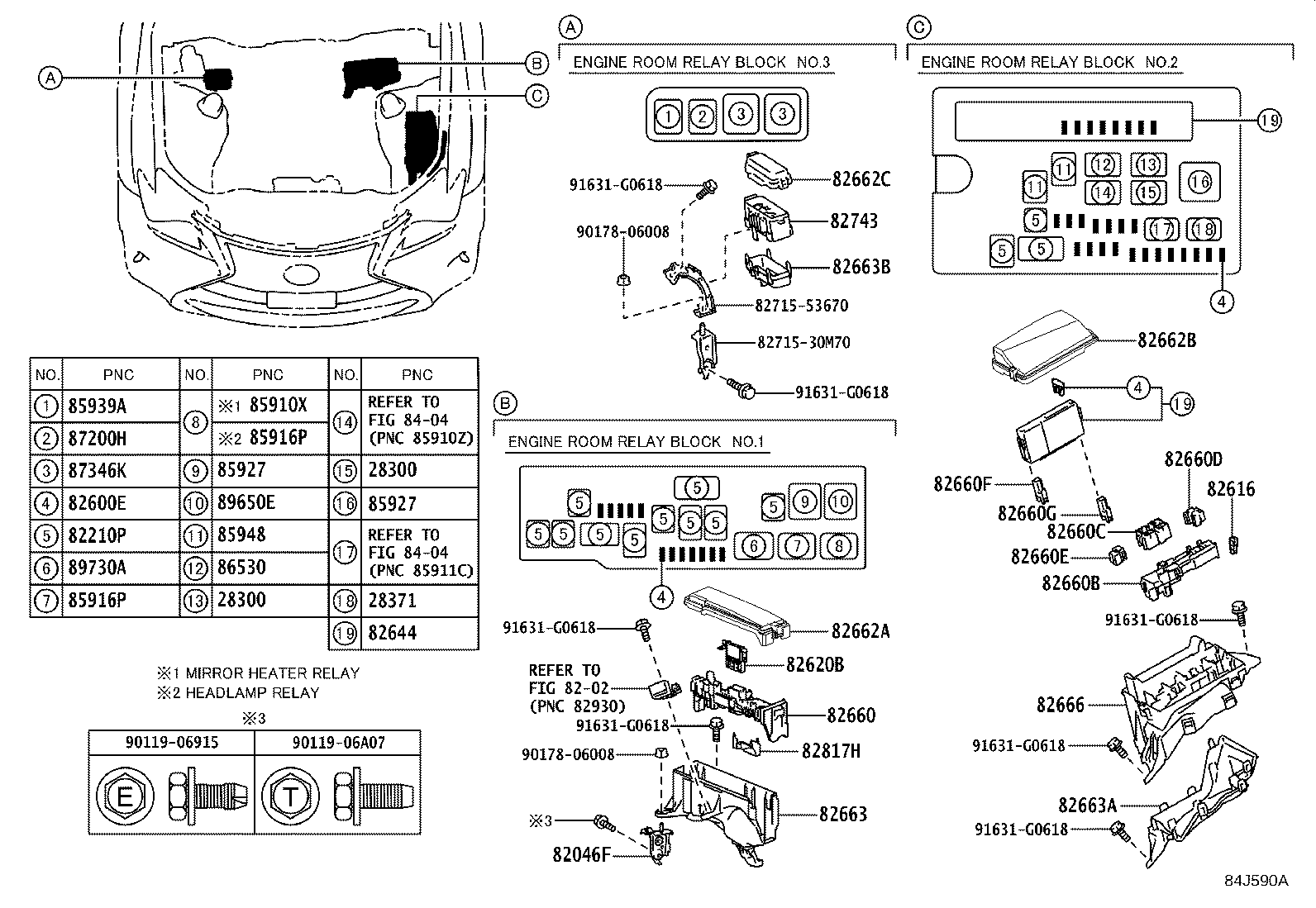

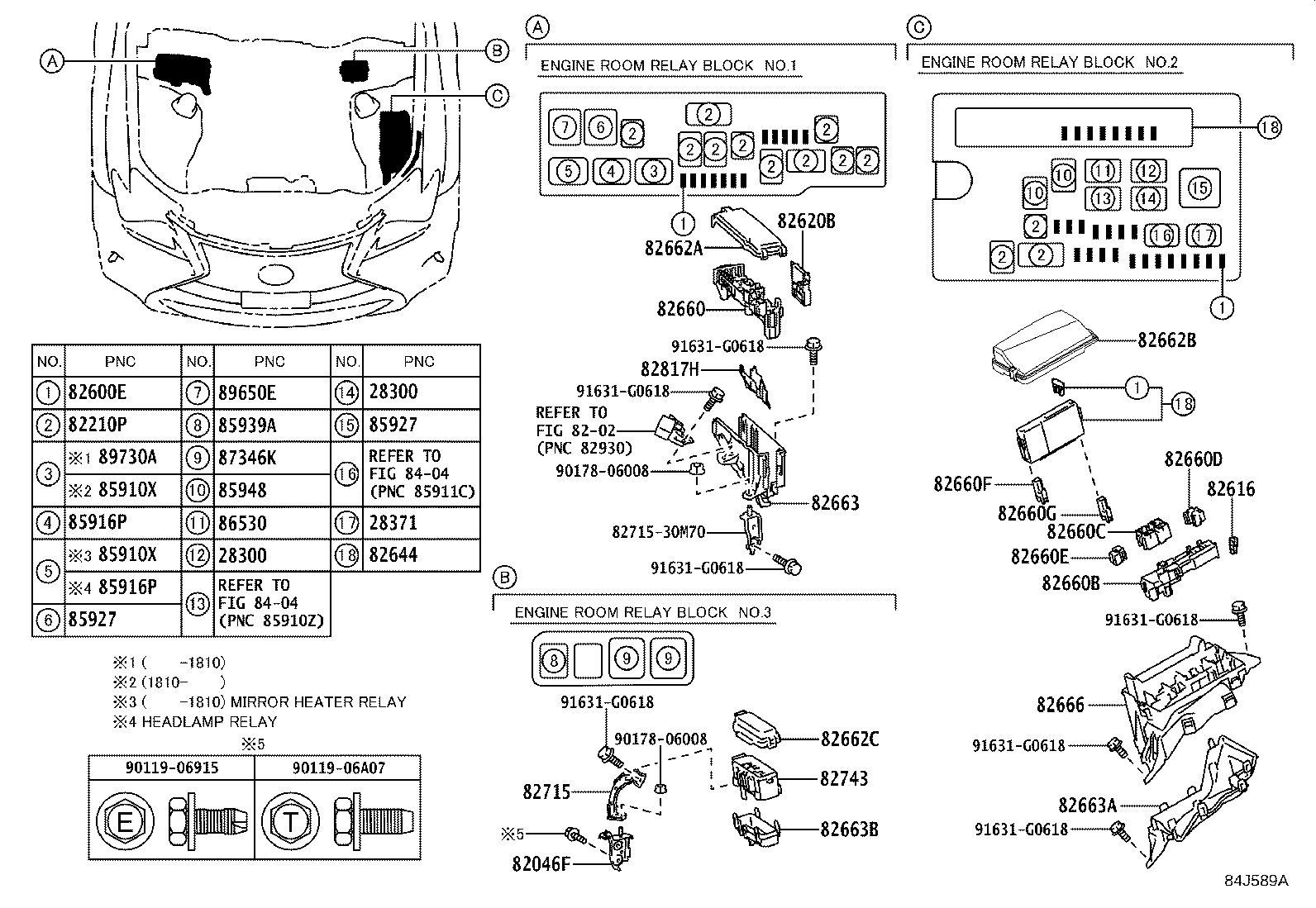

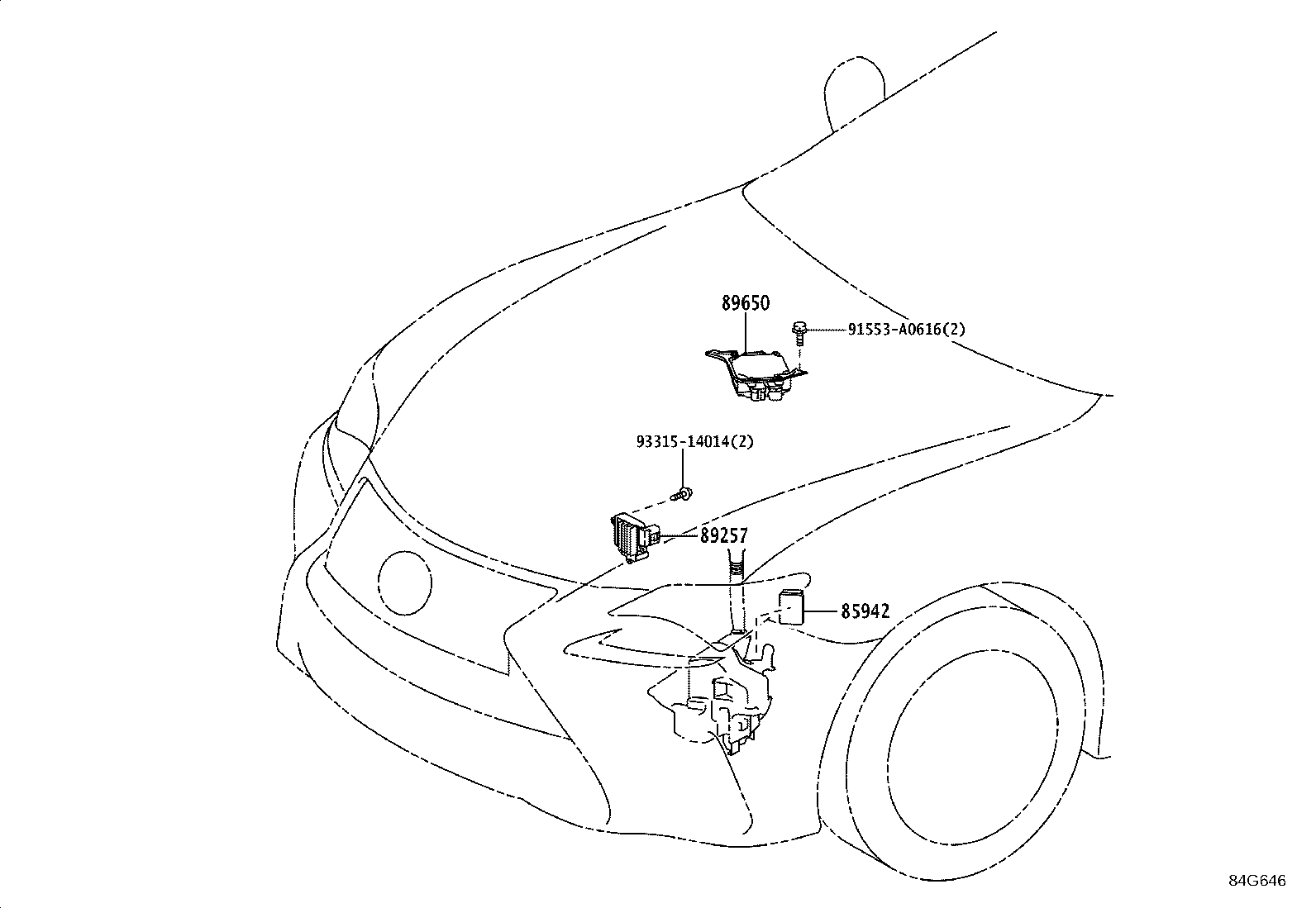

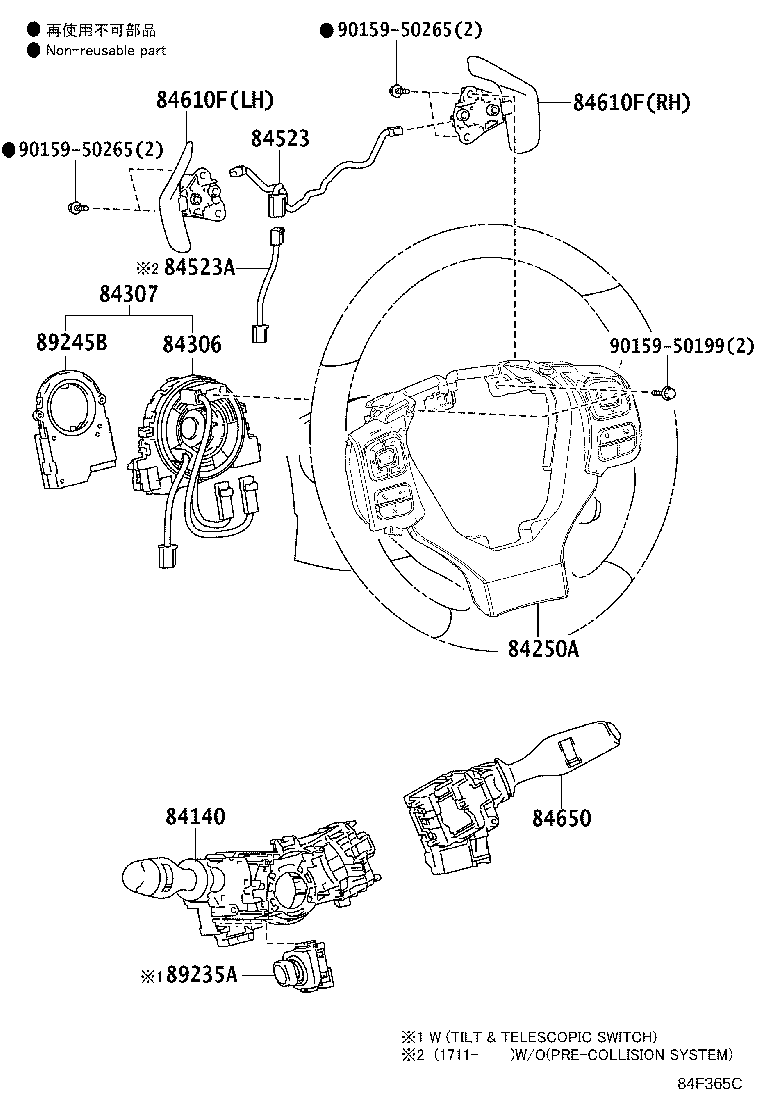

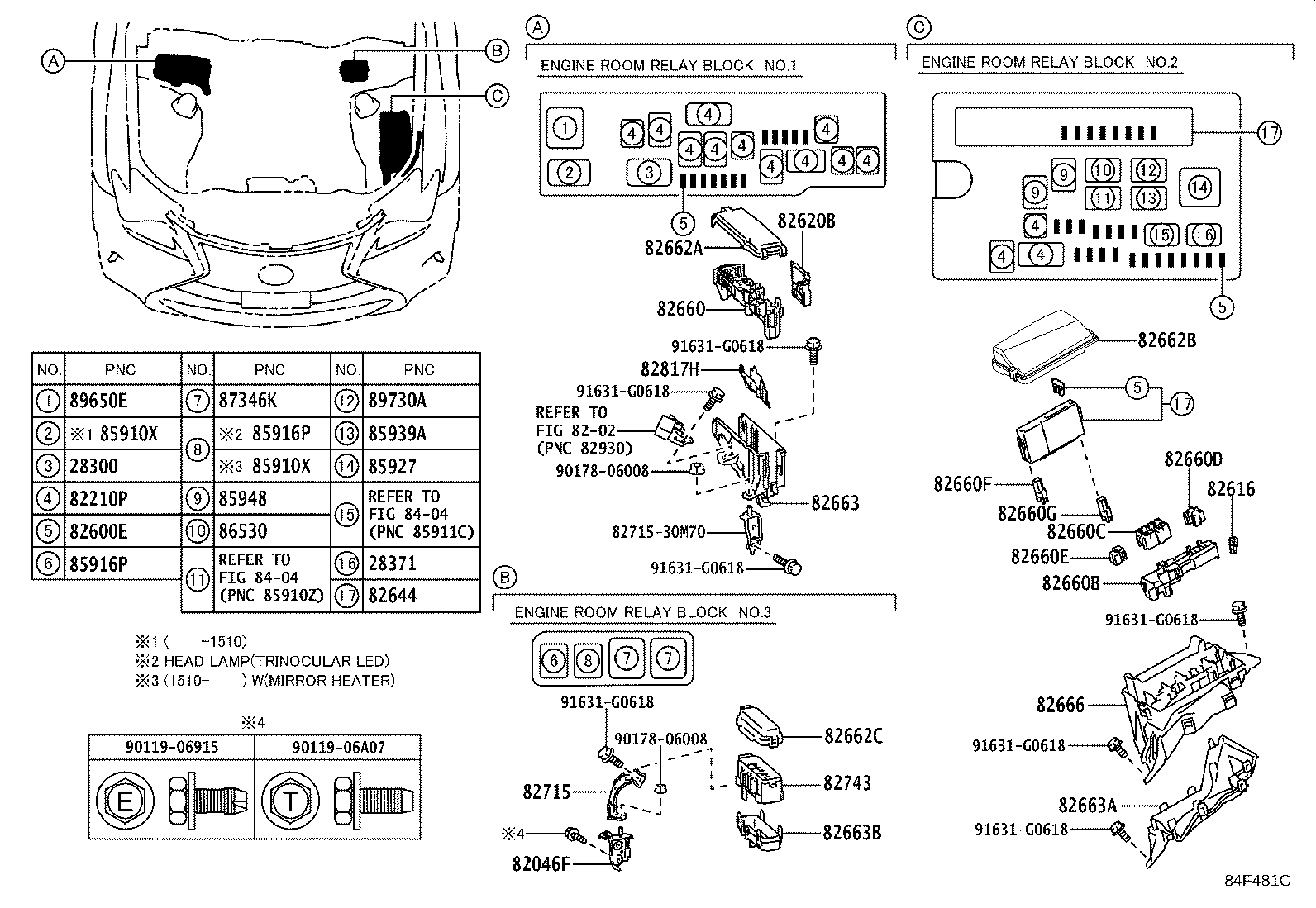

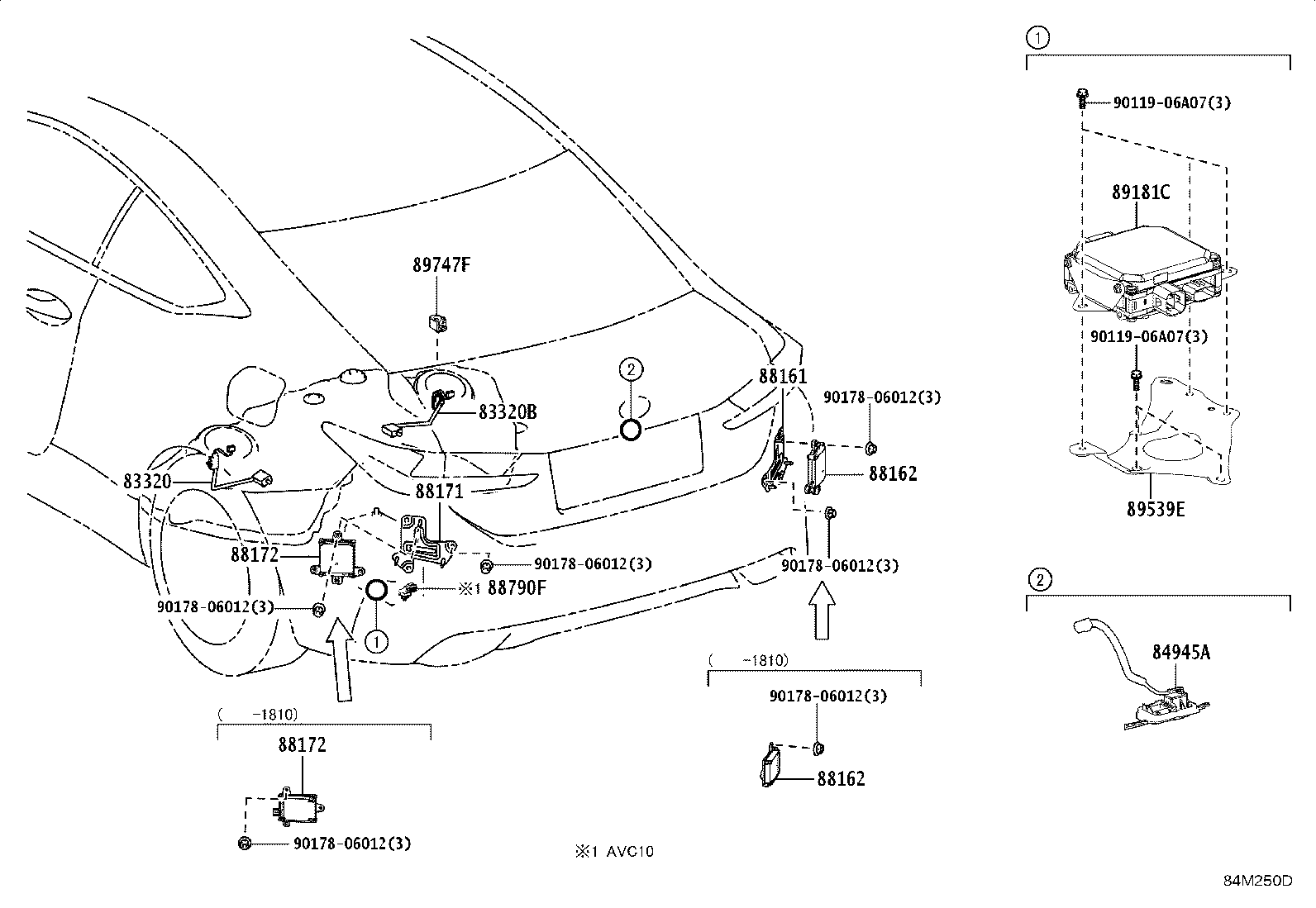

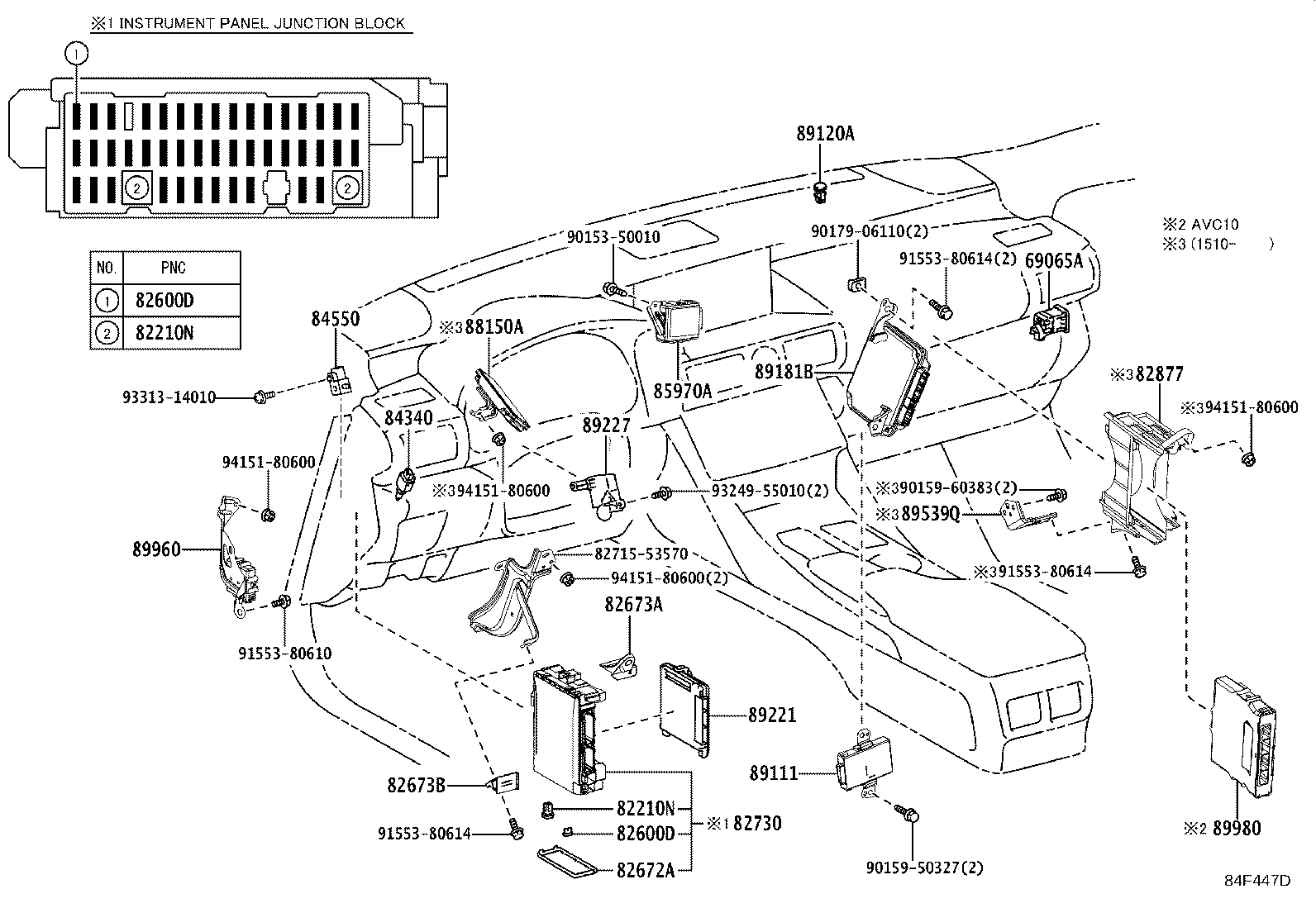

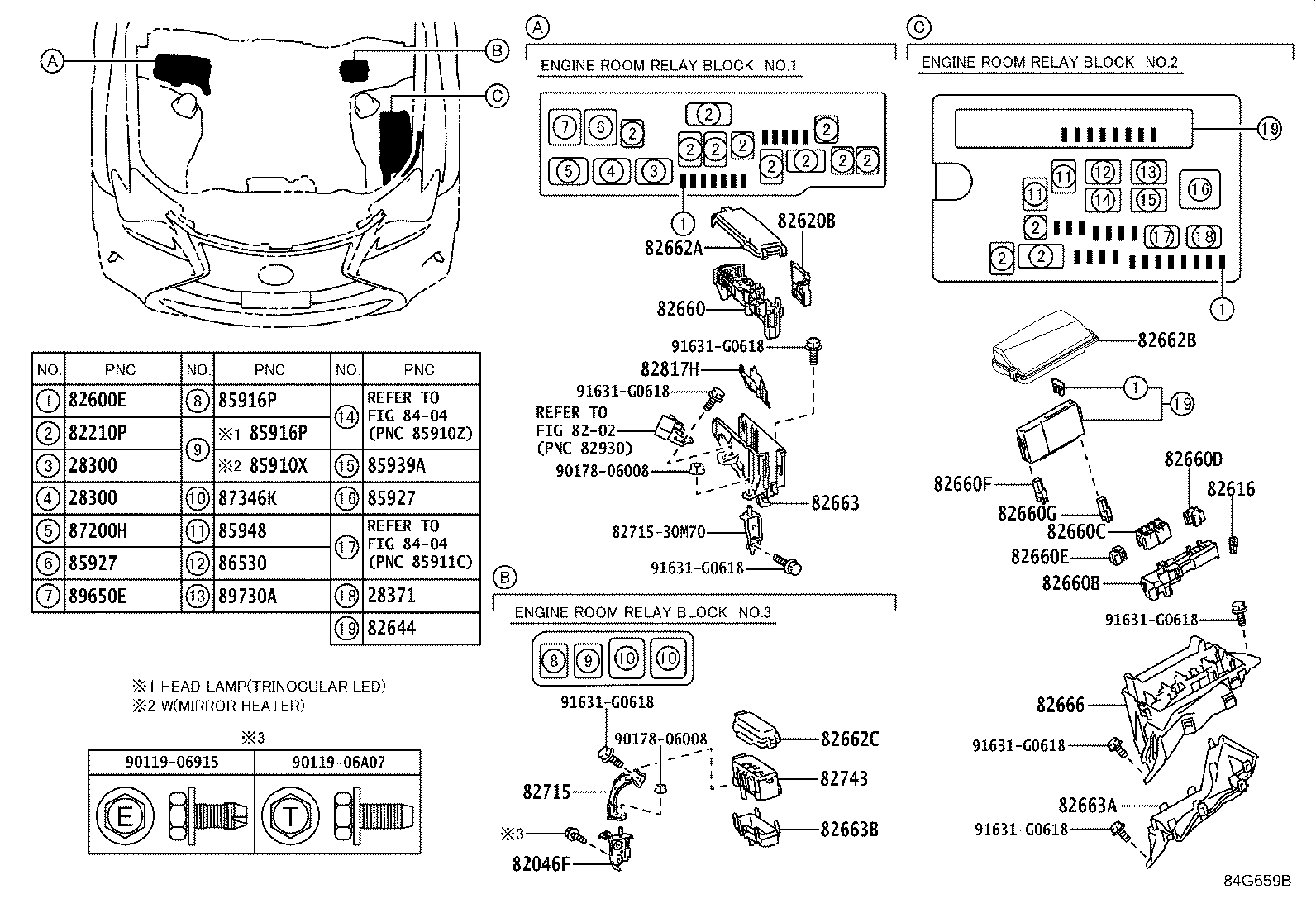

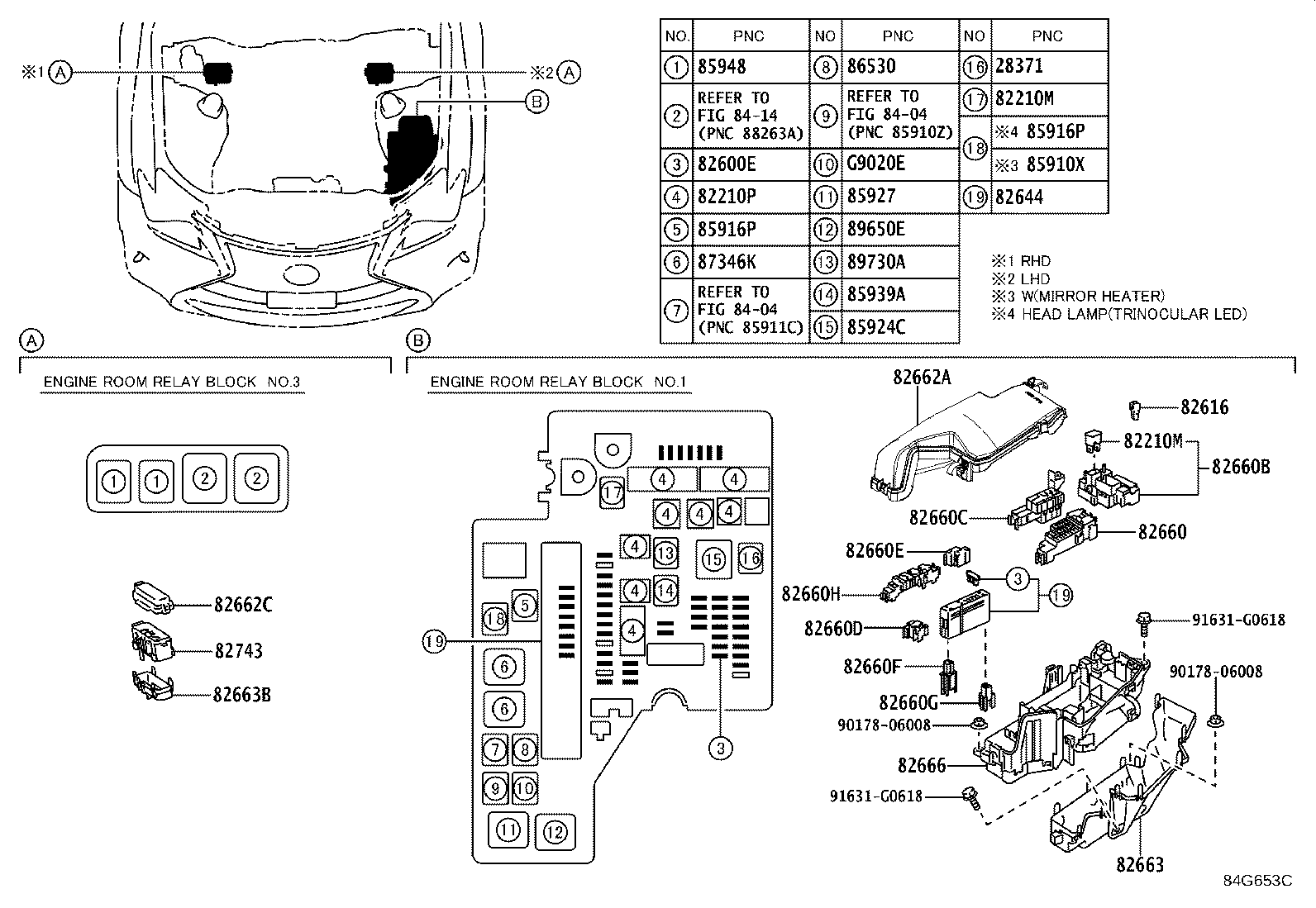

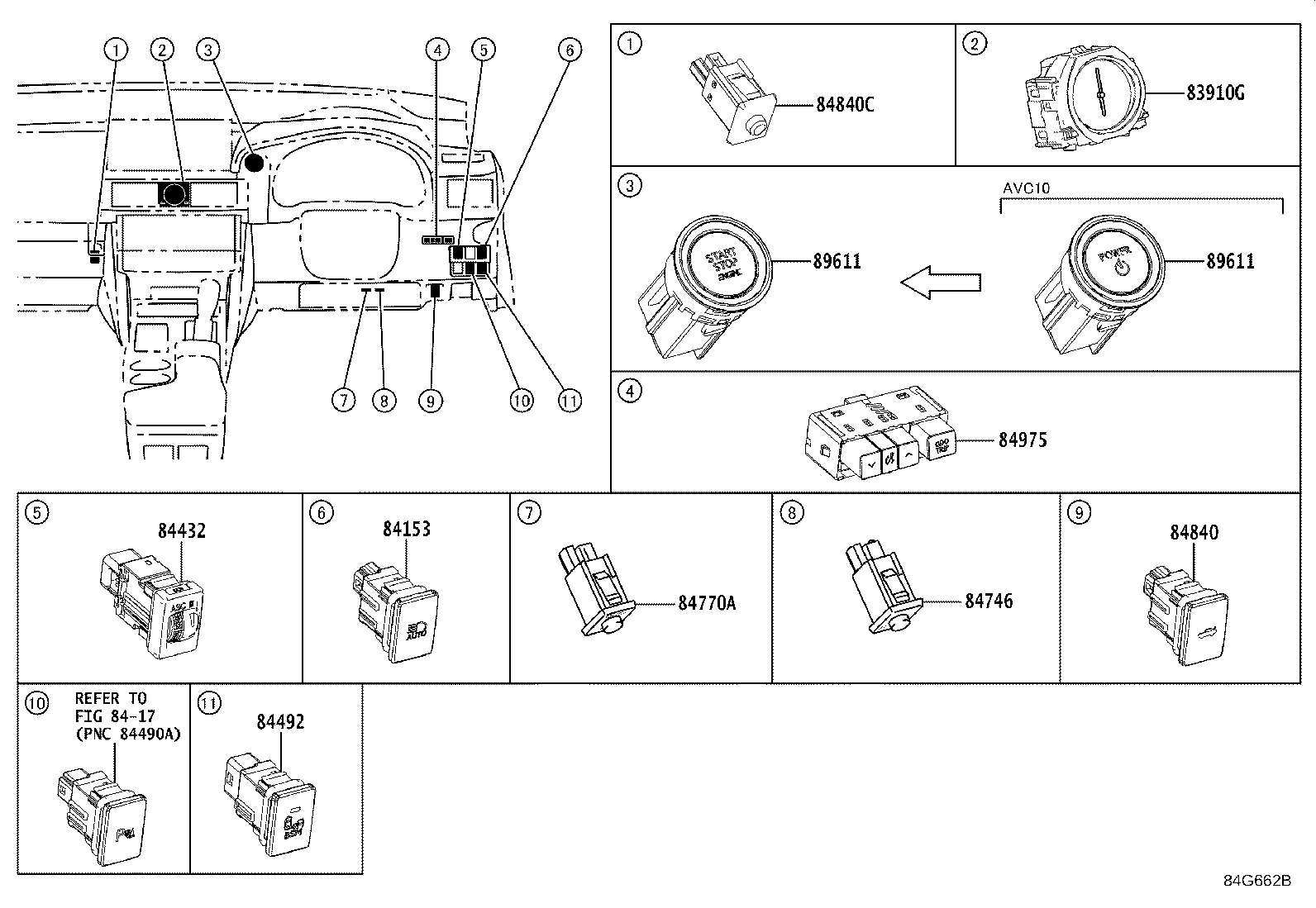

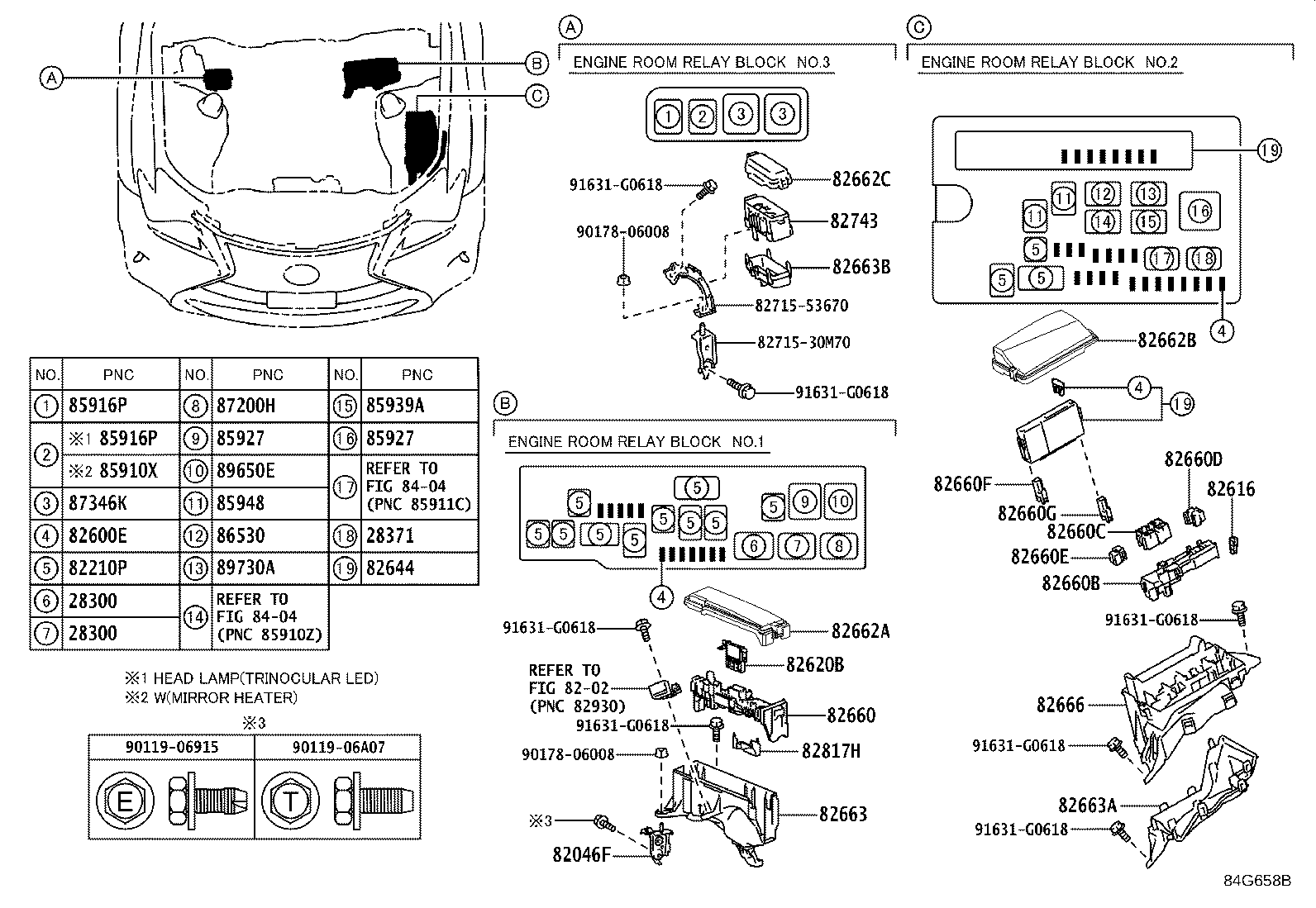

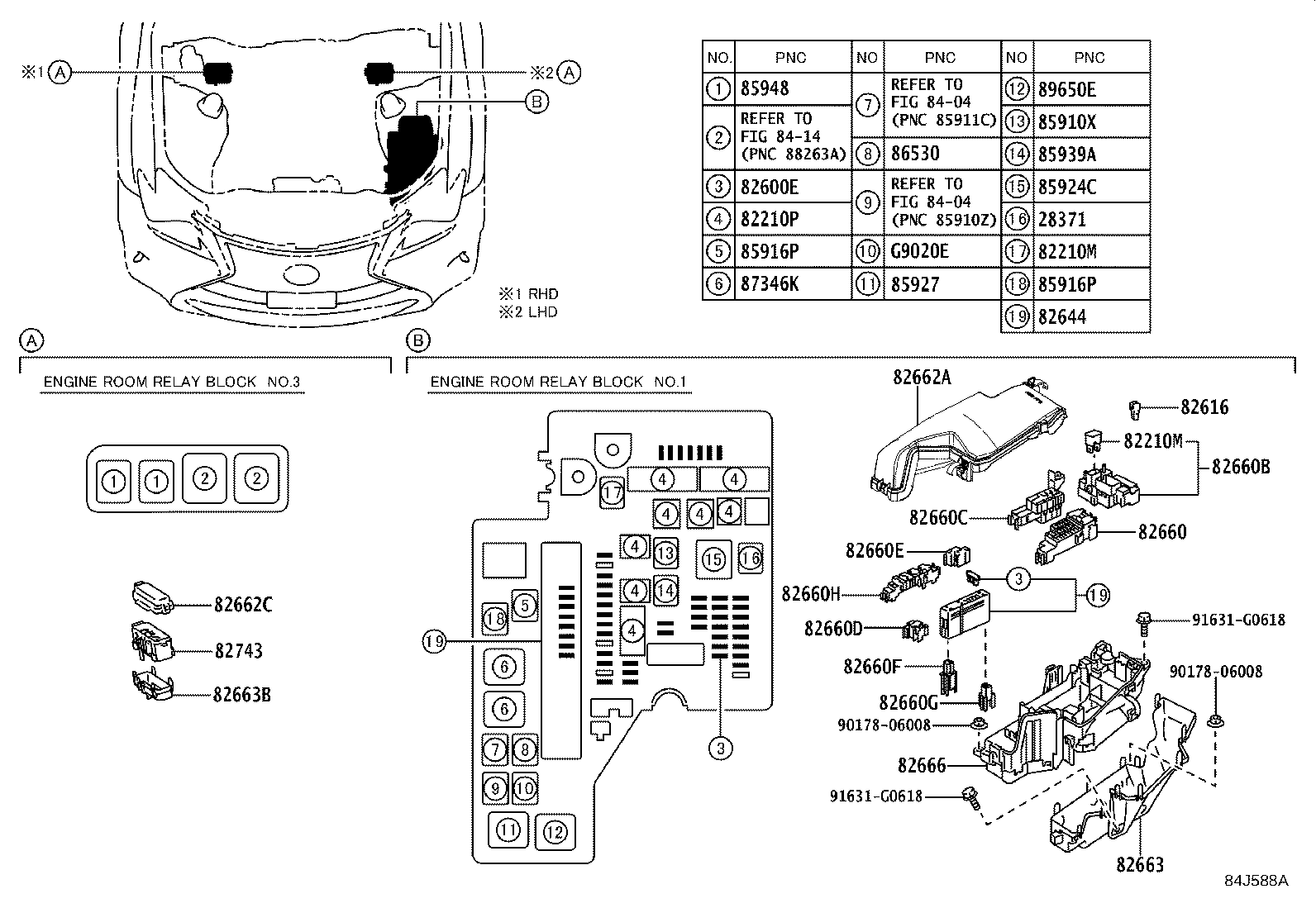

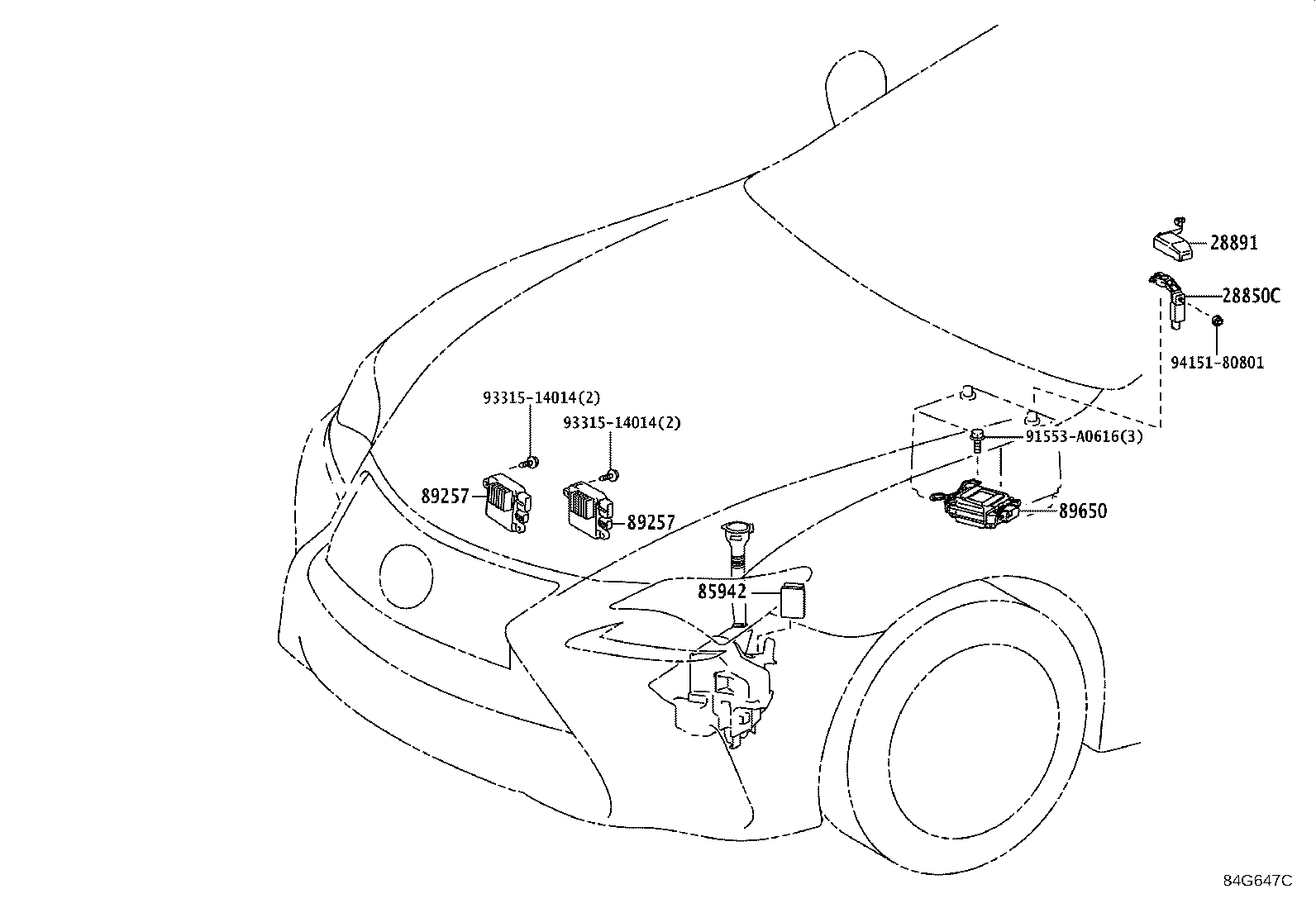

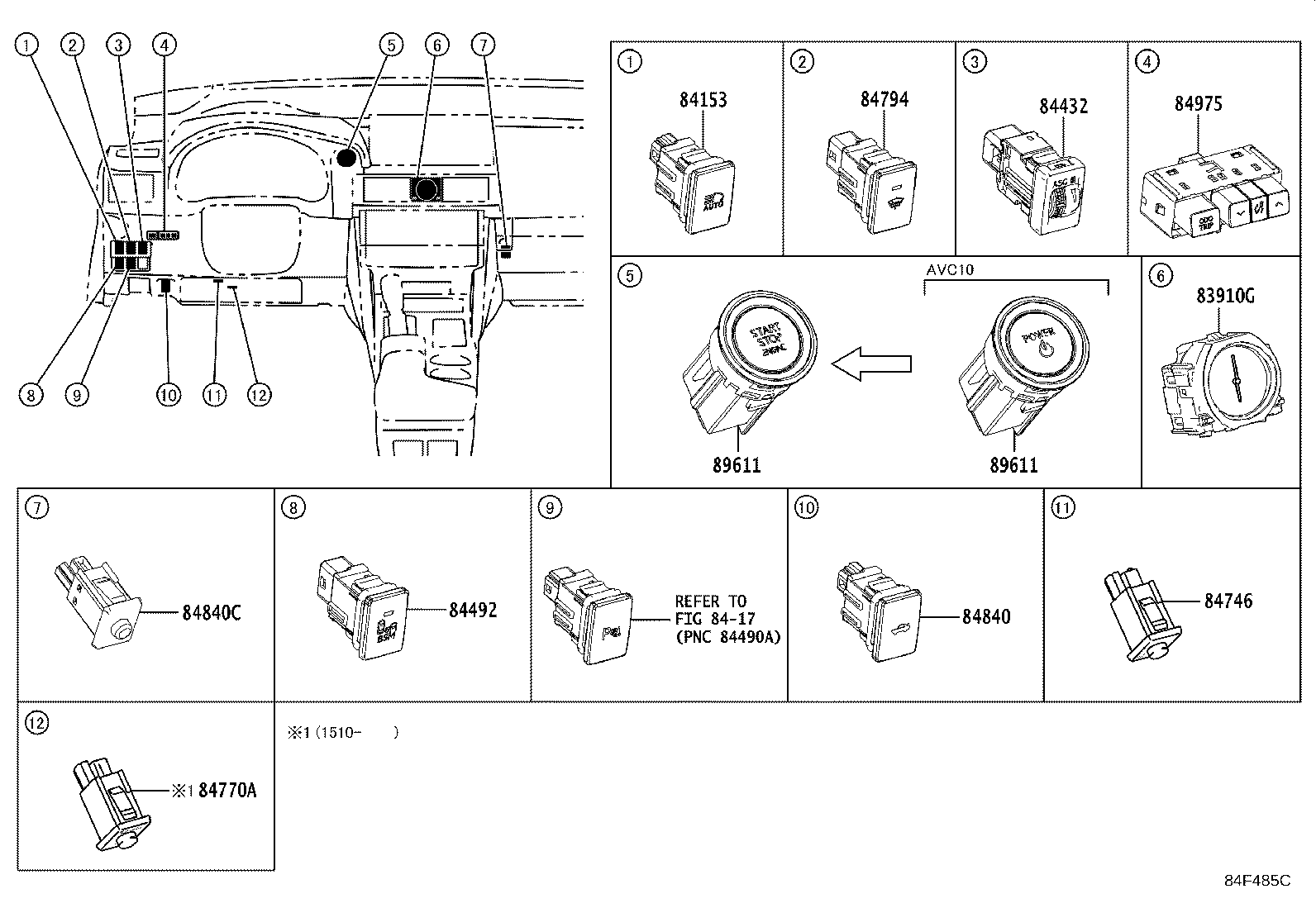

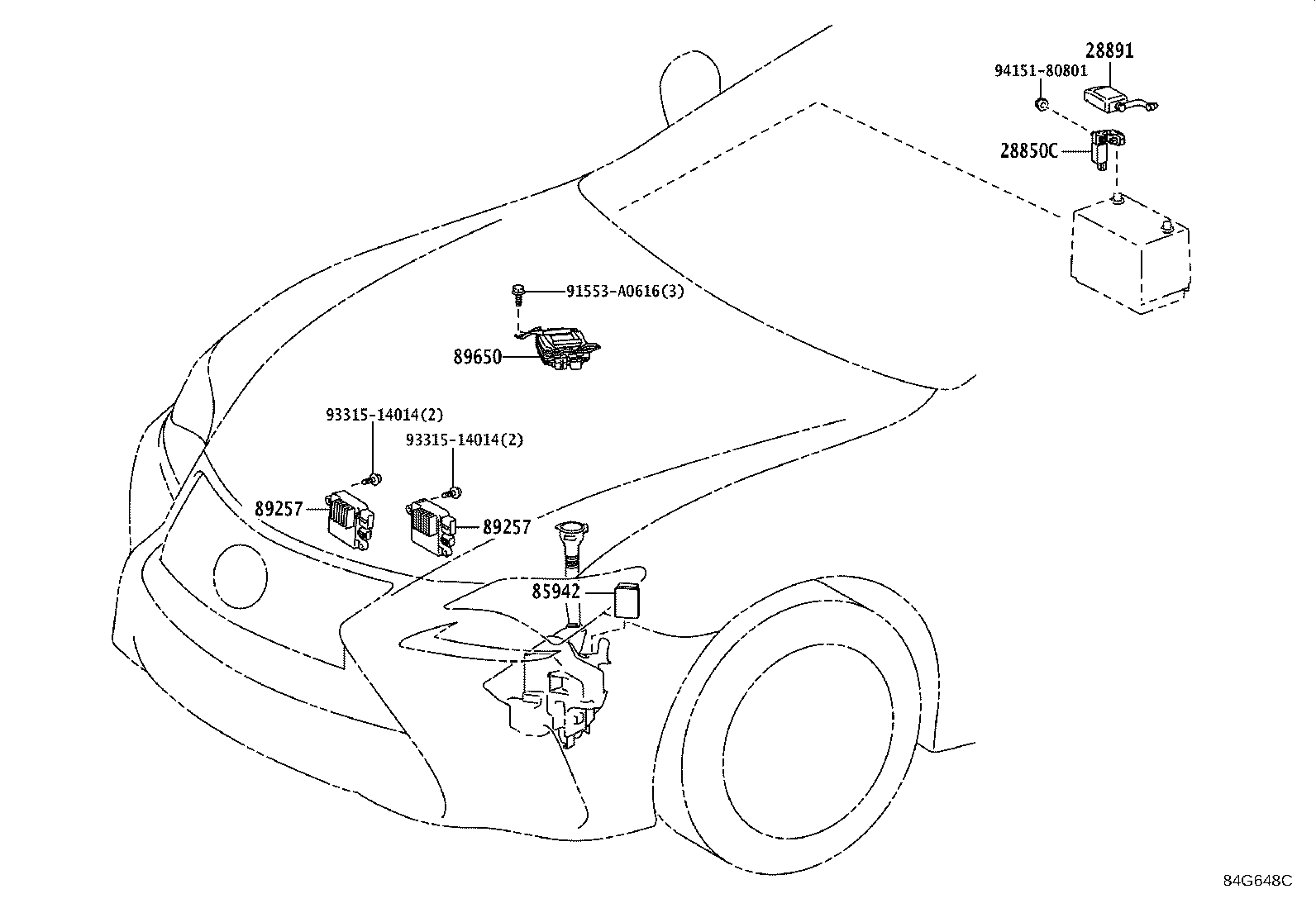

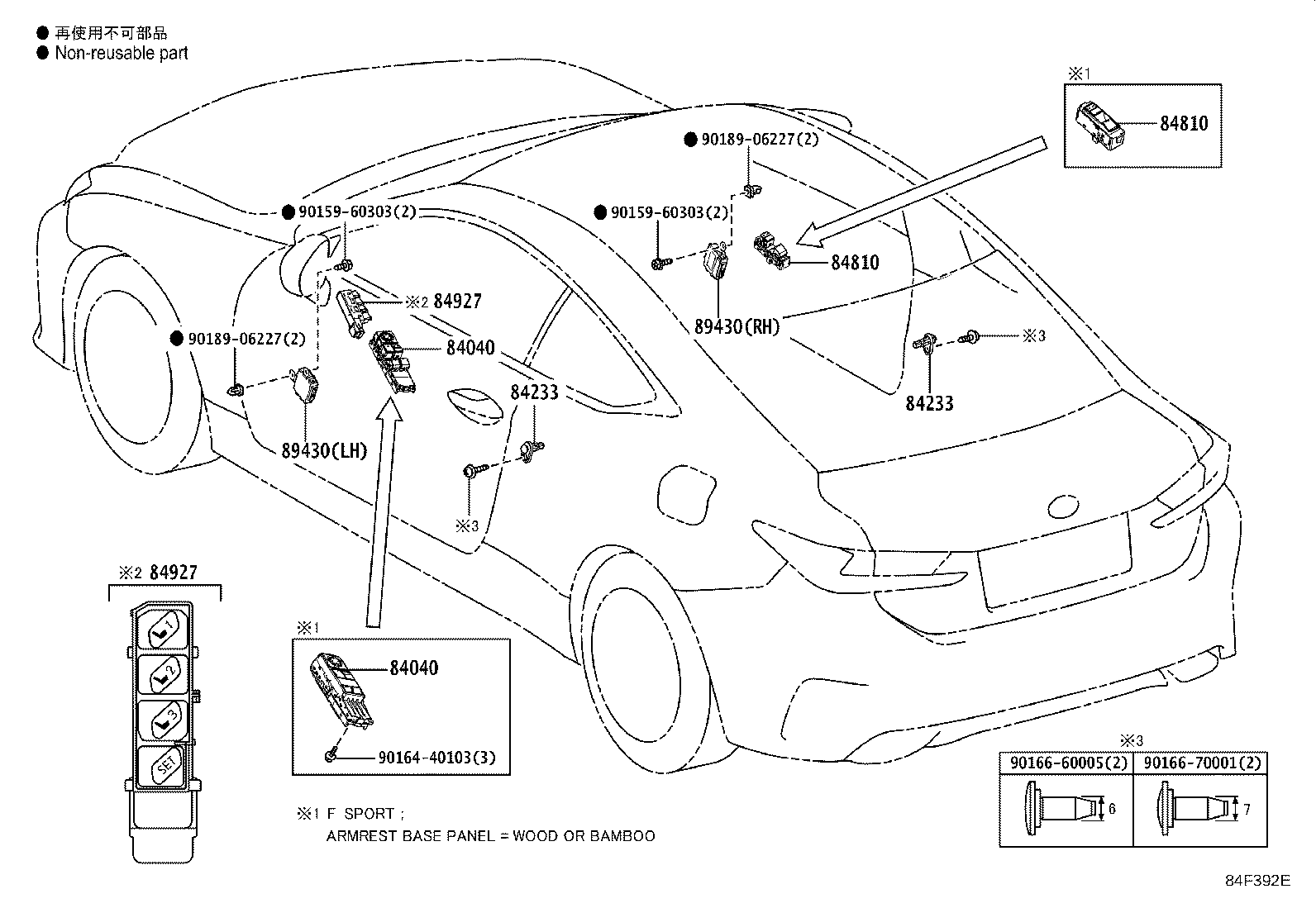

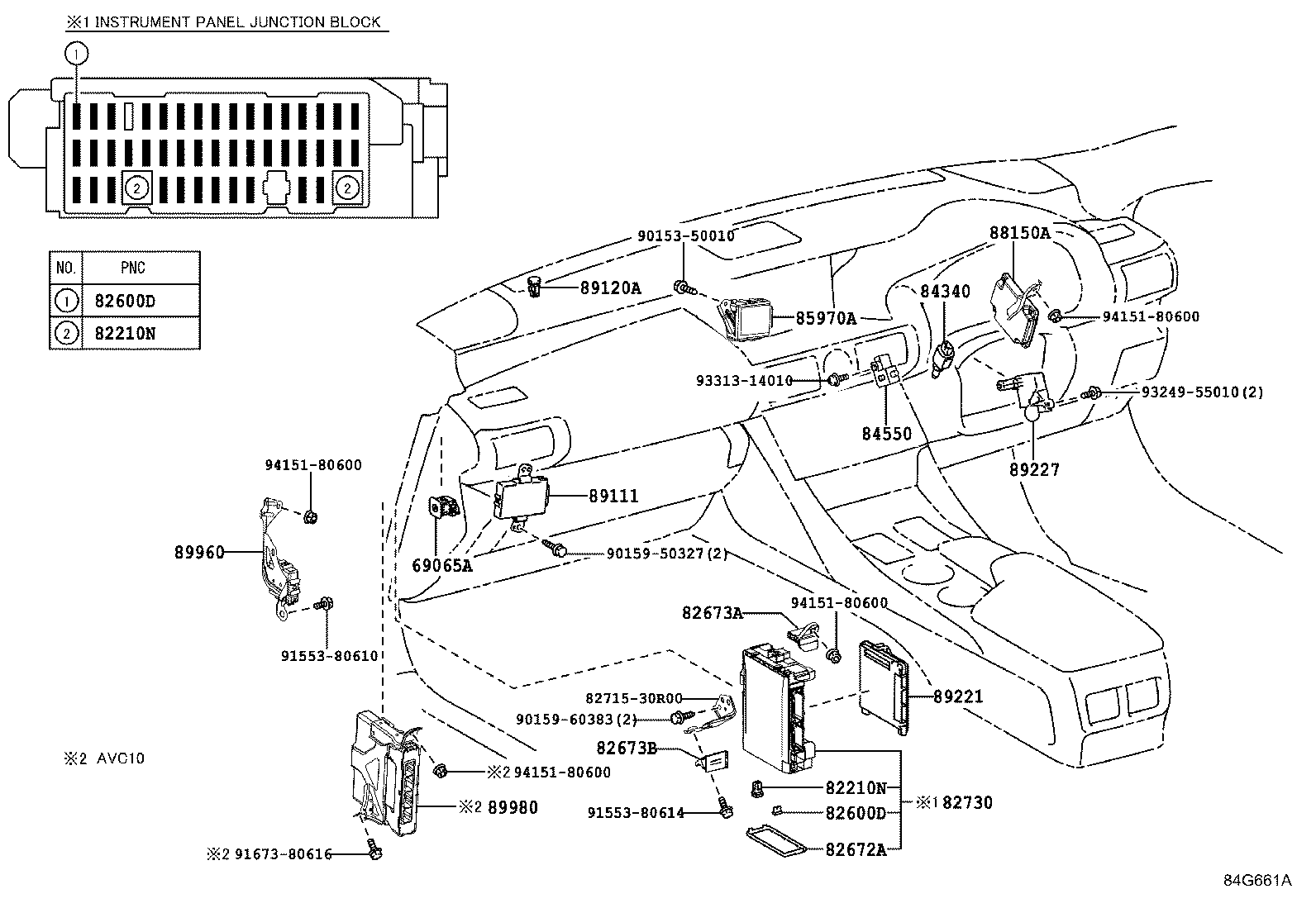

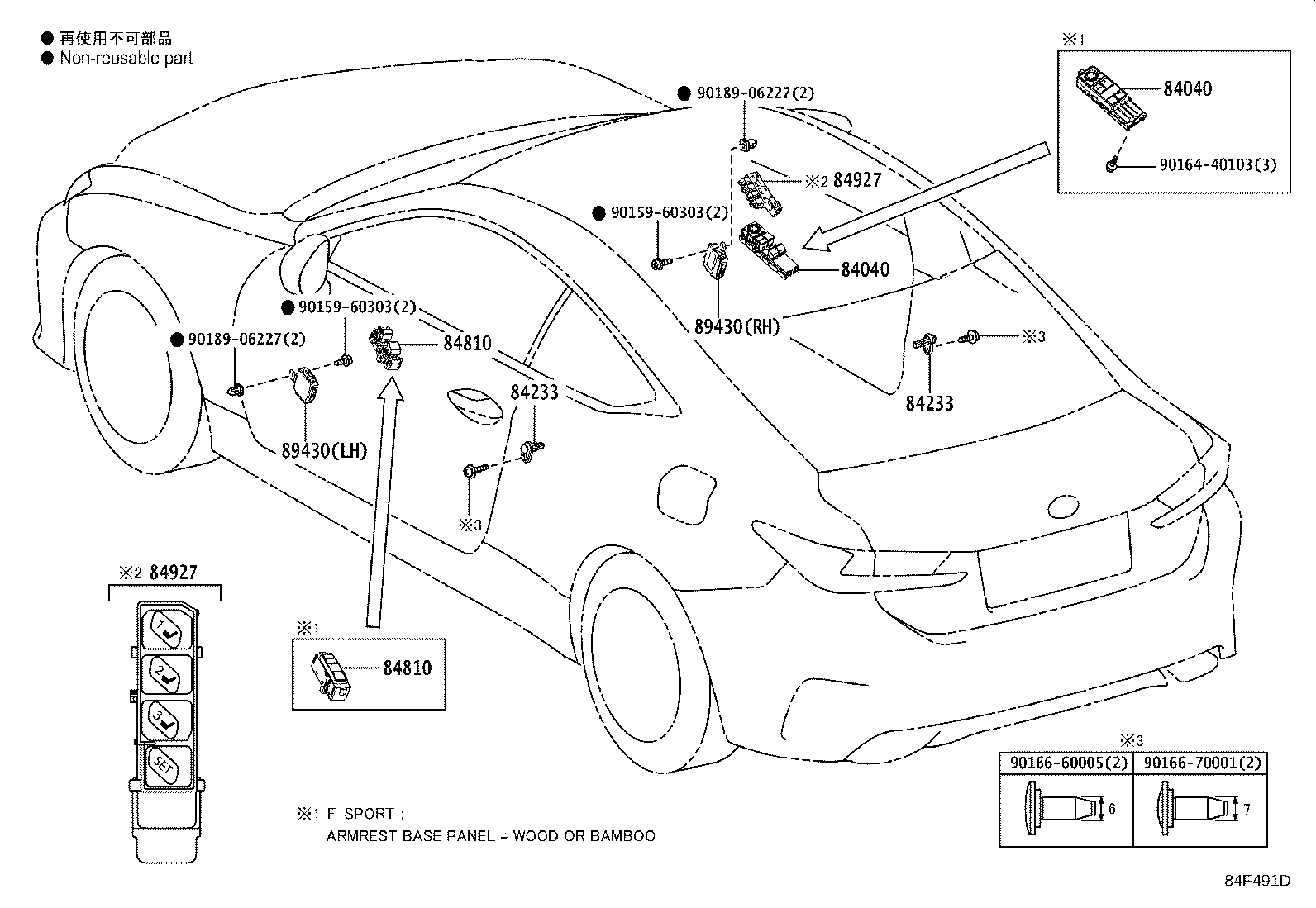

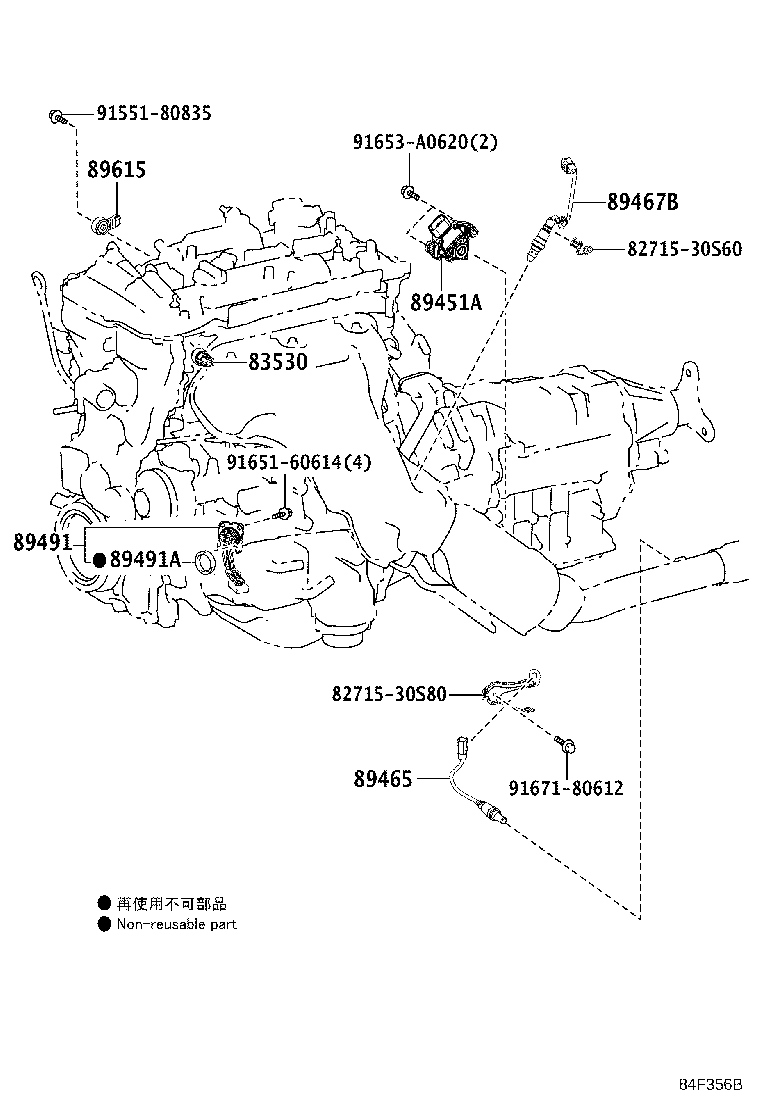

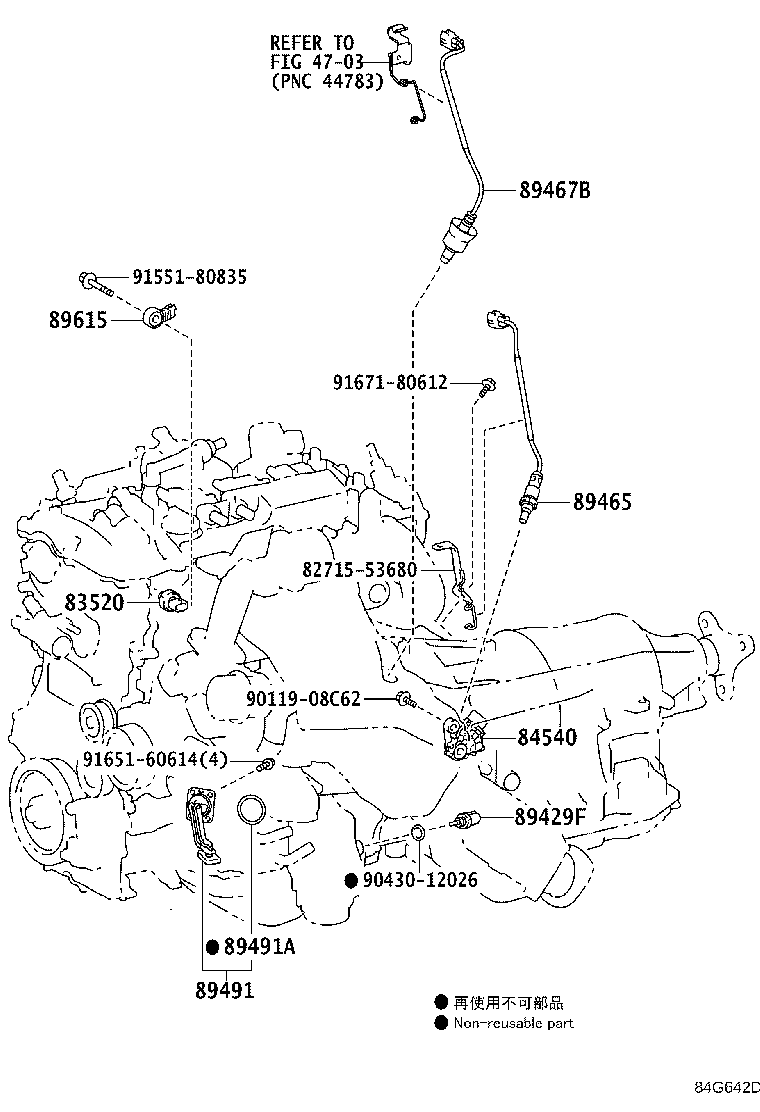

Figure 84F493A 84F493A 2014-09 → — Figure 84F356B 84F356B 2015-10 → — Figure 84G642D 84G642D 2015-10 → — Figure 84F478B 84F478B 2014-09 → — Figure 84G646A 84G646A 2015-10 → — Figure 84F454A 84F454A 2015-10 → — Figure 84G648C 84G648C 2015-10 → — Figure 84G647C 84G647C 2015-10 → — Figure 84F481C 84F481C 2014-09 → — Figure 84G653C 84G653C 2015-10 → 2018-10 Figure 84J588A 84J588A 2018-10 → — Figure 84G659B 84G659B 2015-10 → 2017-11 Figure 84G658B 84G658B 2015-10 → 2017-11 Figure 84J589A 84J589A 2017-11 → — Figure 84J590A 84J590A 2017-11 → — Figure 84F447D 84F447D 2014-09 → — Figure 84G661A 84G661A 2015-10 → — Figure 84F485C 84F485C 2014-09 → — Figure 84G662B 84G662B 2015-10 → — Figure 84F373A 84F373A 2014-09 → — Figure 84F374A 84F374A 2015-10 → — Figure 84F365C 84F365C 2014-09 → — Figure 84F367A 84F367A 2014-09 → — Figure 84F392E 84F392E 2014-09 → — Figure 84F491D 84F491D 2015-10 → — Figure 84M250D 84M250D 2014-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28850C Sensor Assy, Battery State
28891 Cover, Battery Terminal
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82046F Wire Sub-assy, Body Ground, NO.1
82210M Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620B Block Assy, Fusible Link
82644 Computer, Semiconductor Power Integration
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82666 Holder, Connector
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
82730 Block Assy, Instrument Panel Junction
82743 Block, Engine Room Relay, NO.3
82817H Protector, Wiring Harness
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83531A Switch, Oil Pressure
83910G Clock Assy
84040 Master Switch Assy,Multiplex Network
84070A Computer & Switch Assy, Position Control, RH
84070B Computer & Switch Assy, Position Control, LH
84140 Switch Assy, Headlamp Dimmer
84153 Switch, Auto High Beam
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84432 Switch, Vehicle Sound
84492 Switch, Blind Spot Monitor
84523 Wire, Switch NO.1
84523A Wire, Switch NO.2
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84746 Switch, Tire Pressure Warning
84752 Switch, Refreshing Seat
84770A Switch Assy, Pre-collision System Cancel
84794 Switch, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84840 Switch Assy, Luggage Compartment Door Opening
84840C Switch Assy, Luggage Door Opening, Cancel
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84927 Switch, Seat Memory
84945A Switch, Luggage Electrical Key
84970 Switch Assy, Combination
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85910X Relay, Heater Mirror
85916P Relay, Headlamp
85924C Relay, Igct
85927 Relay, Cooling Fan
85939A Relay, Steering Heater
85942 Relay, Headlamp Cleaner Control
85948 Relay, Windshield Wiper
85970A Relay Assy, Double Lock Door Control
86530 Relay Assy, Horn
87200H Relay, Heater Water Pump
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89181B Computer, Steering Control, FR
89181C Computer, Steering Control, RR
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89429F Sensor, Temperature
89430 Computer Assy, Outer Mirror Control
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89539E Bracket, Computer
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89539Q Bracket, Computer
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89650E Relay, Electric Power Steering
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89960 Computer Assy, Headlamp Leveling
89980 Computer Assy, Hybrid Vehicle Control
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
