Toyota Lexus RC3###/200T
2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe
Supported model
Data version 2020-12

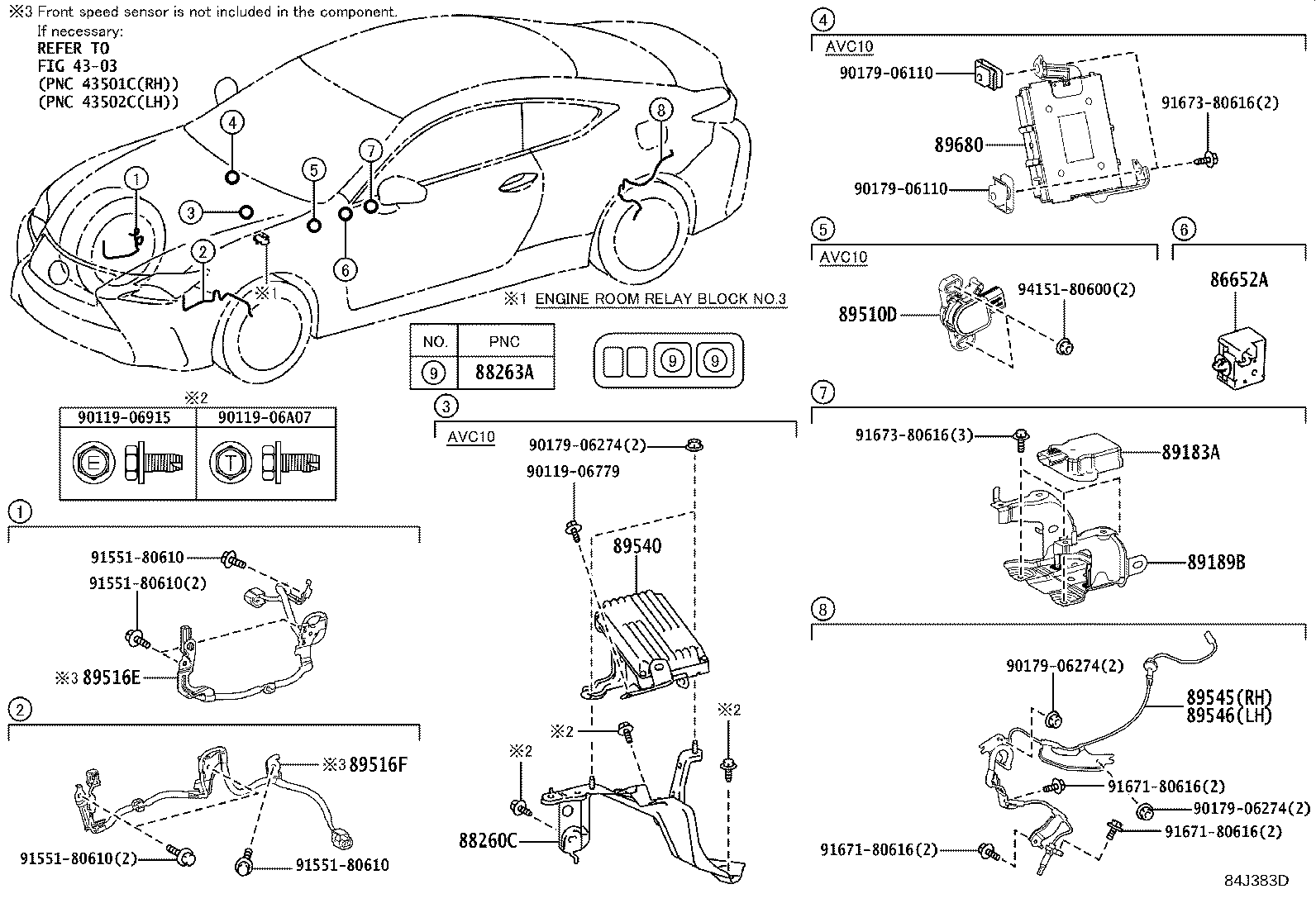

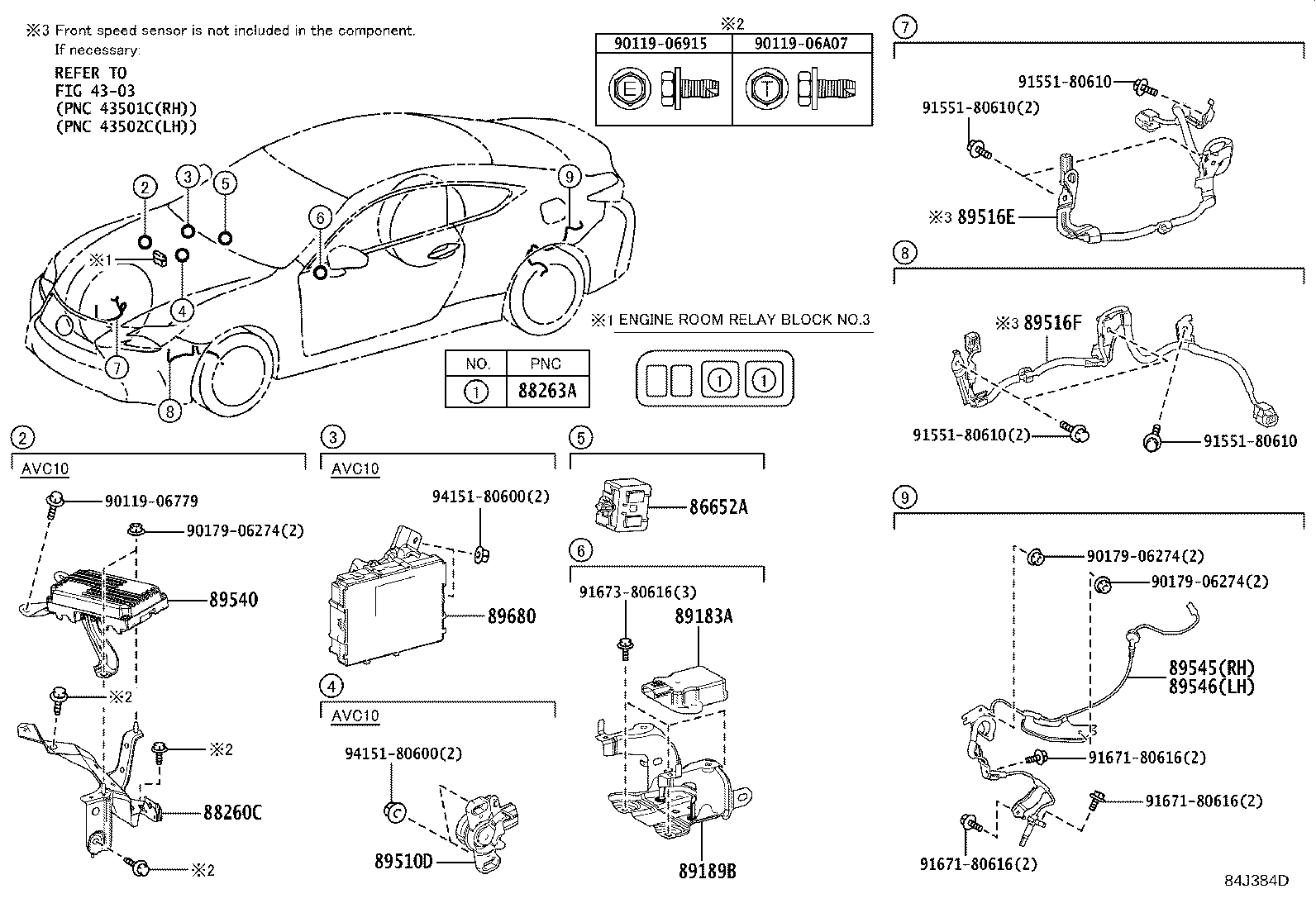

Abs & Vsc
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86652A | Buzzer Assy, Skid Control |
| 88260C | Bracket Assy, Skid Control Computer |
| 88263A | Relay, Skid Control |
| 89183A | Sensor, Yawrate |
| 89189B | Bracket, Yawrate Sensor |
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89516E | Wire, Skid Control Sensor, Front RH |
| 89516F | Wire, Skid Control Sensor, Front LH |
| 89540 | Computer Assy, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89680 | Supply Assy, Brake Control Power |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
