Toyota Lexus RC3###/200T
2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe
Supported model
Data version 2020-12

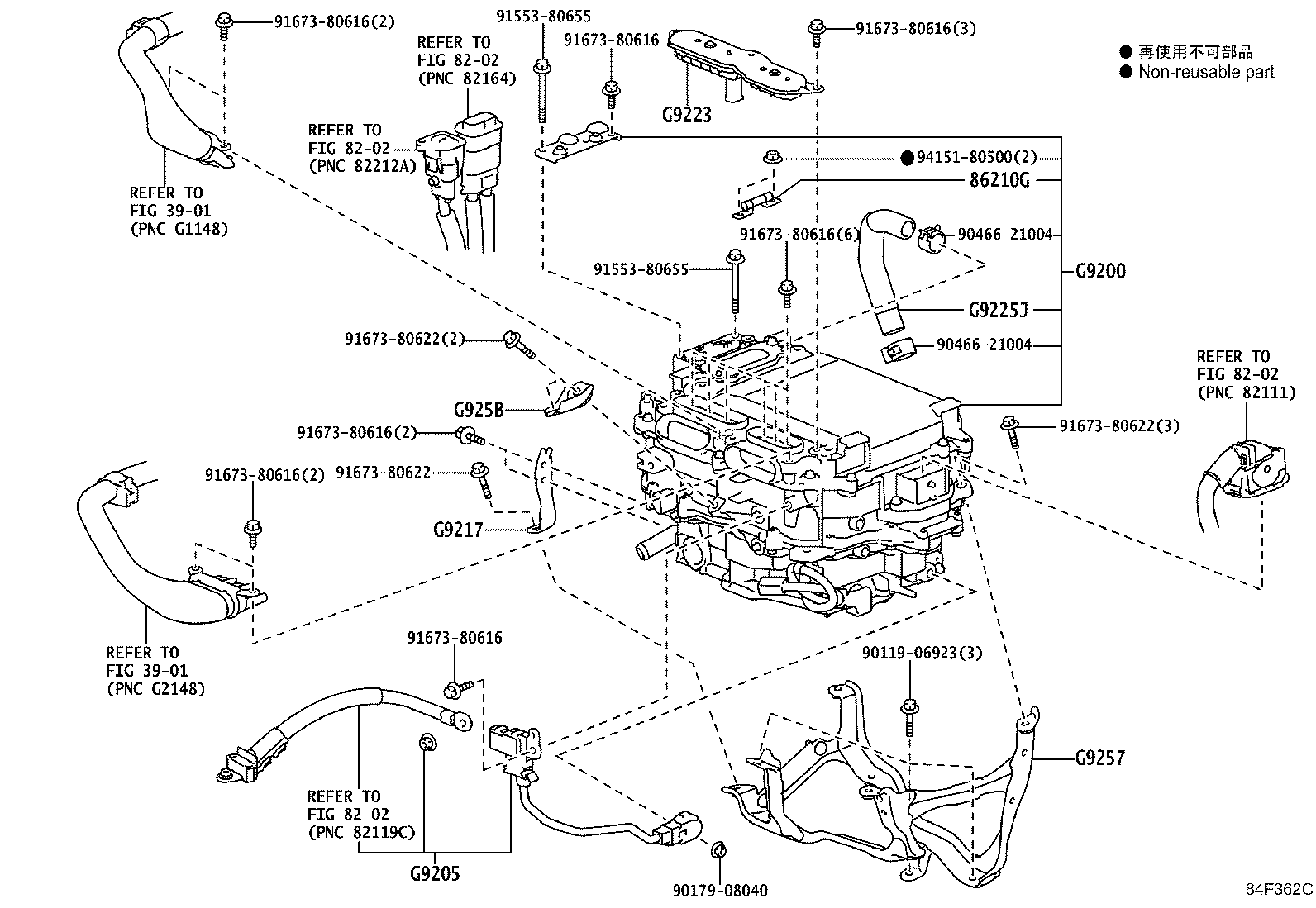

Hev Inverter
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82650G | Block Assy, Terminal |
| 86210G | Fuse, High Voltage |
| G9200 | Inverter Assy, W/Converter |
| G9205 | Plate Sub-assy, Inverter Bus-bar |
| G9217 | Bracket, Inverter, NO.4 |
| G9223 | Cover, Inverter Terminal |
| G9225J | Hose, Inverter Cooling, NO.1 |
| G9257 | Bracket, Inverter, NO.5 |
| G925B | Bracket, Inverter, NO.6 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
