Heating & Air Conditioning - Control & Air Duct

20 part groups · 5 illustrations

Illustrations

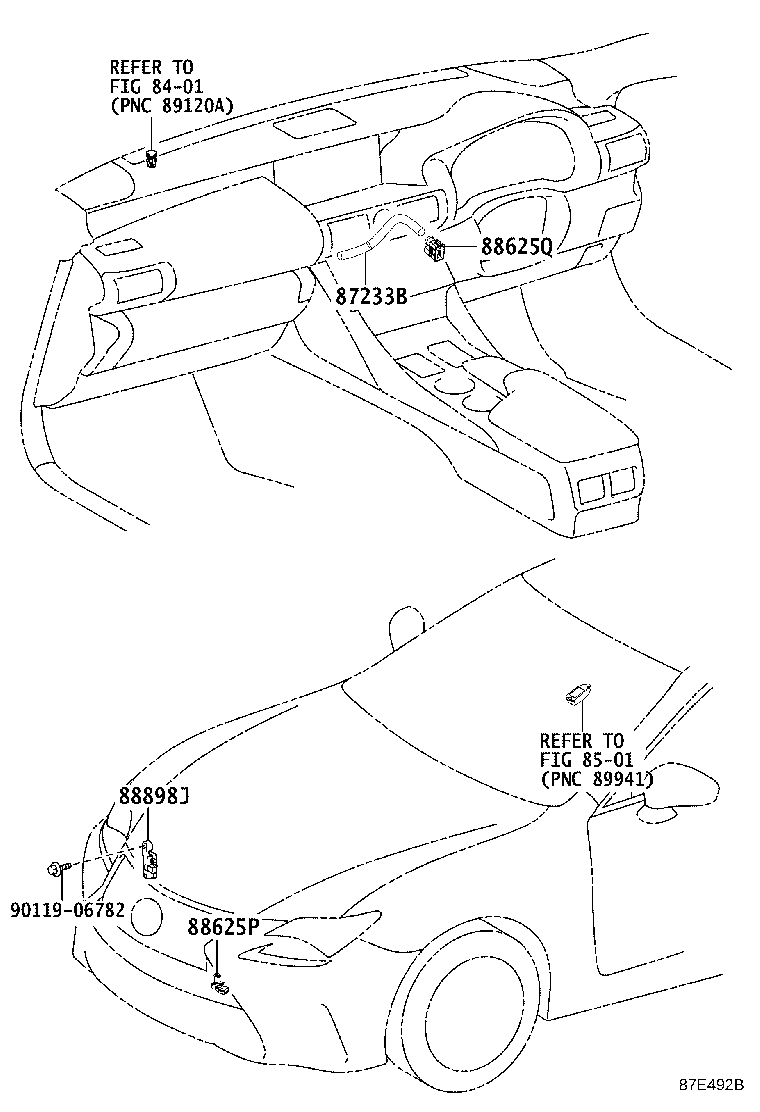

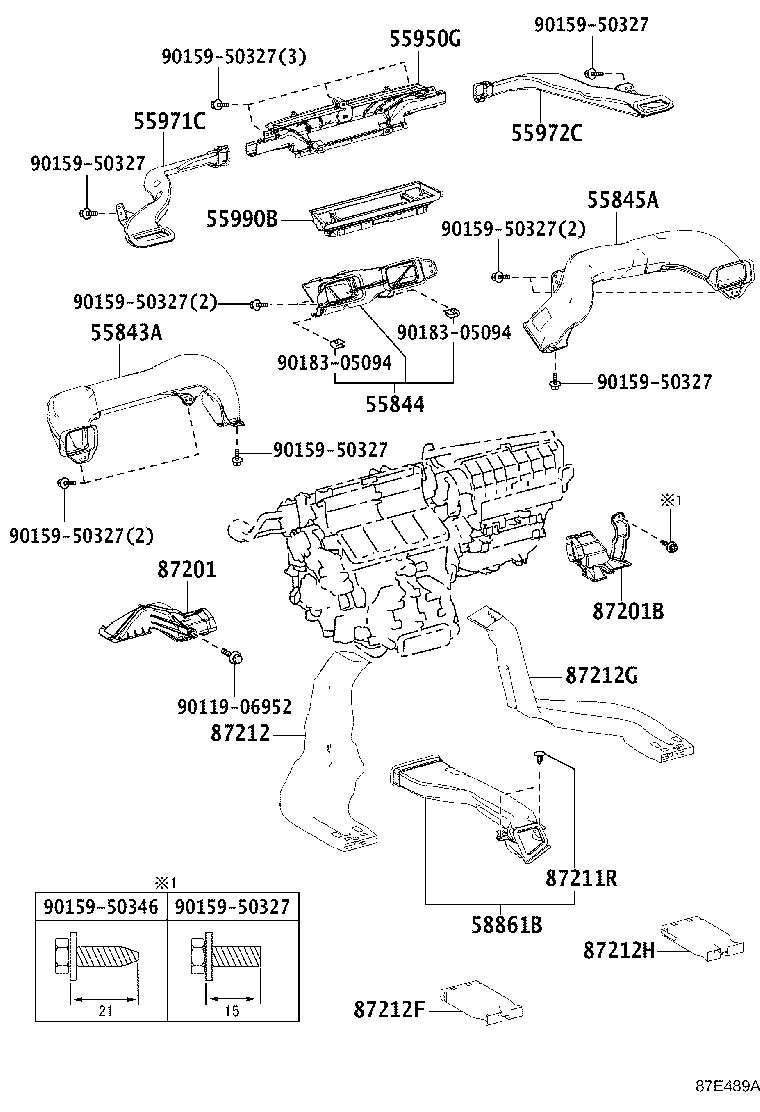

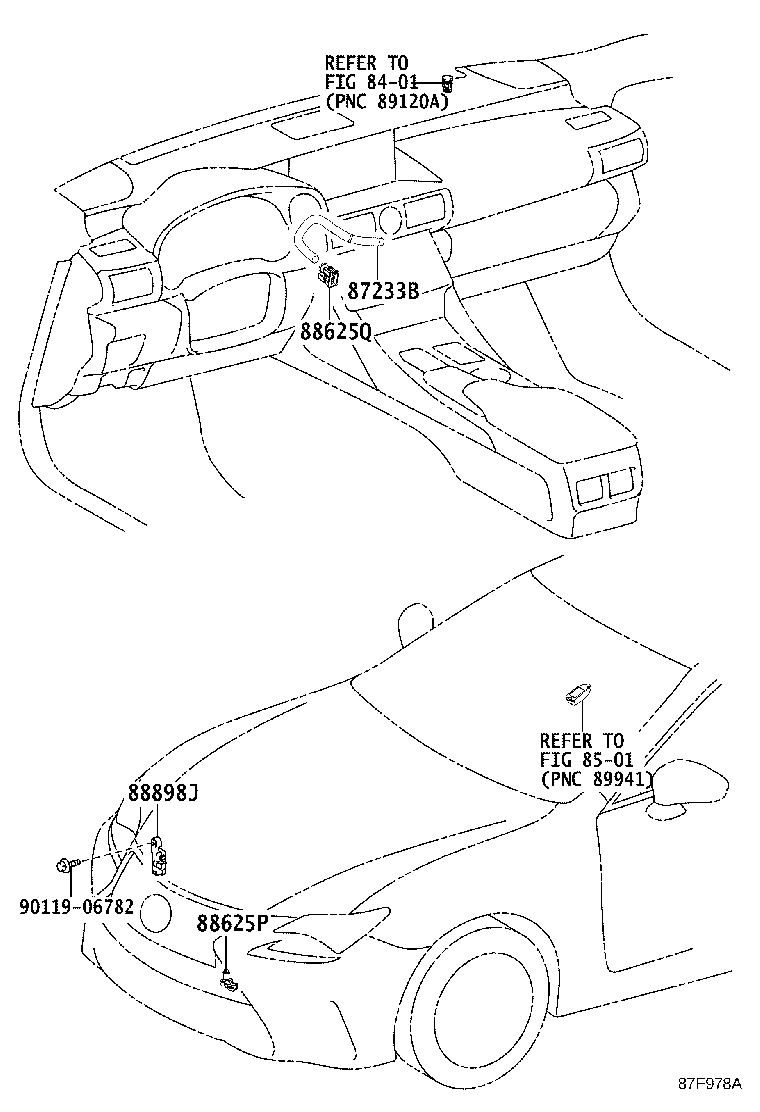

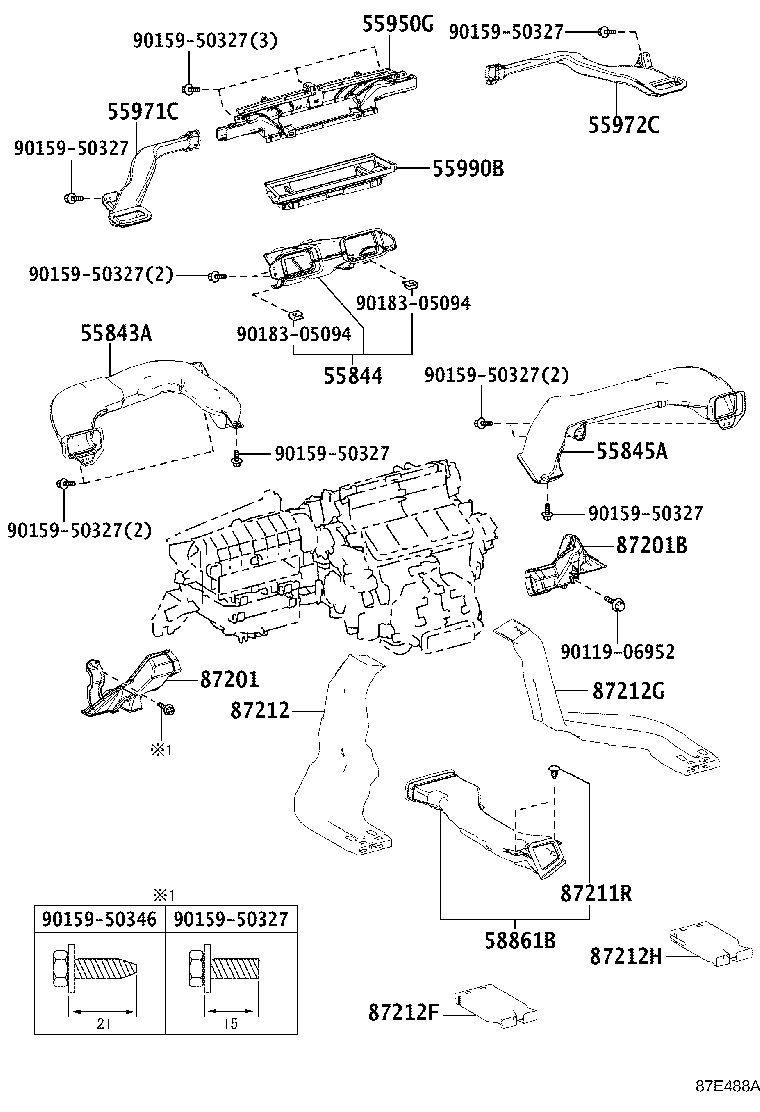

Figure 87E486A 87E486A 2014-09 → — Figure 87E489A 87E489A 2014-09 → — Figure 87E488A 87E488A 2015-10 → — Figure 87F978A 87F978A 2014-09 → — Figure 87E492B 87E492B 2015-10 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87233B Hose, Air
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88898J Sensor, Smog Ventilation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
