Heating & Air Conditioning - Cooler Piping

15 part groups · 3 illustrations

Illustrations

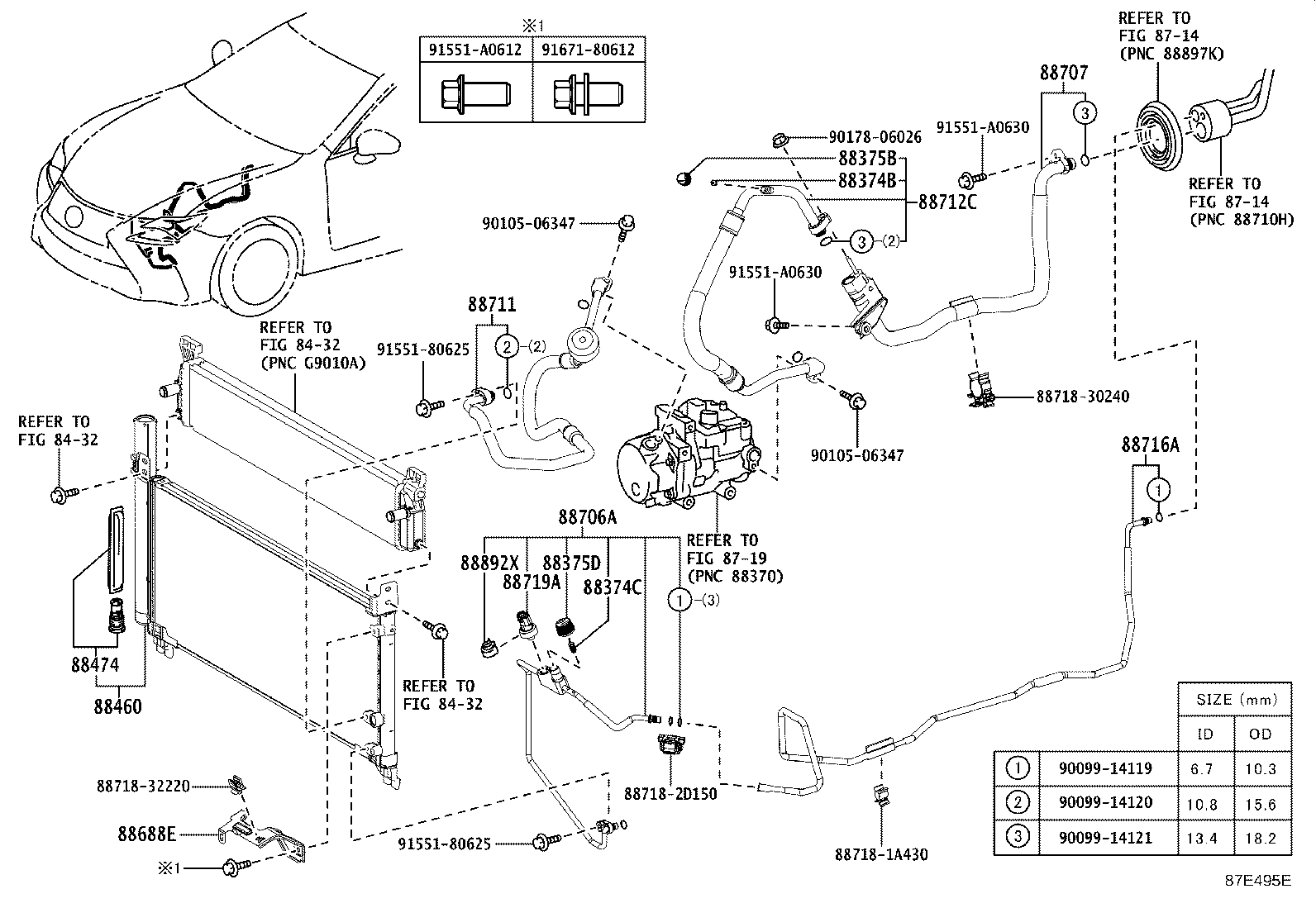

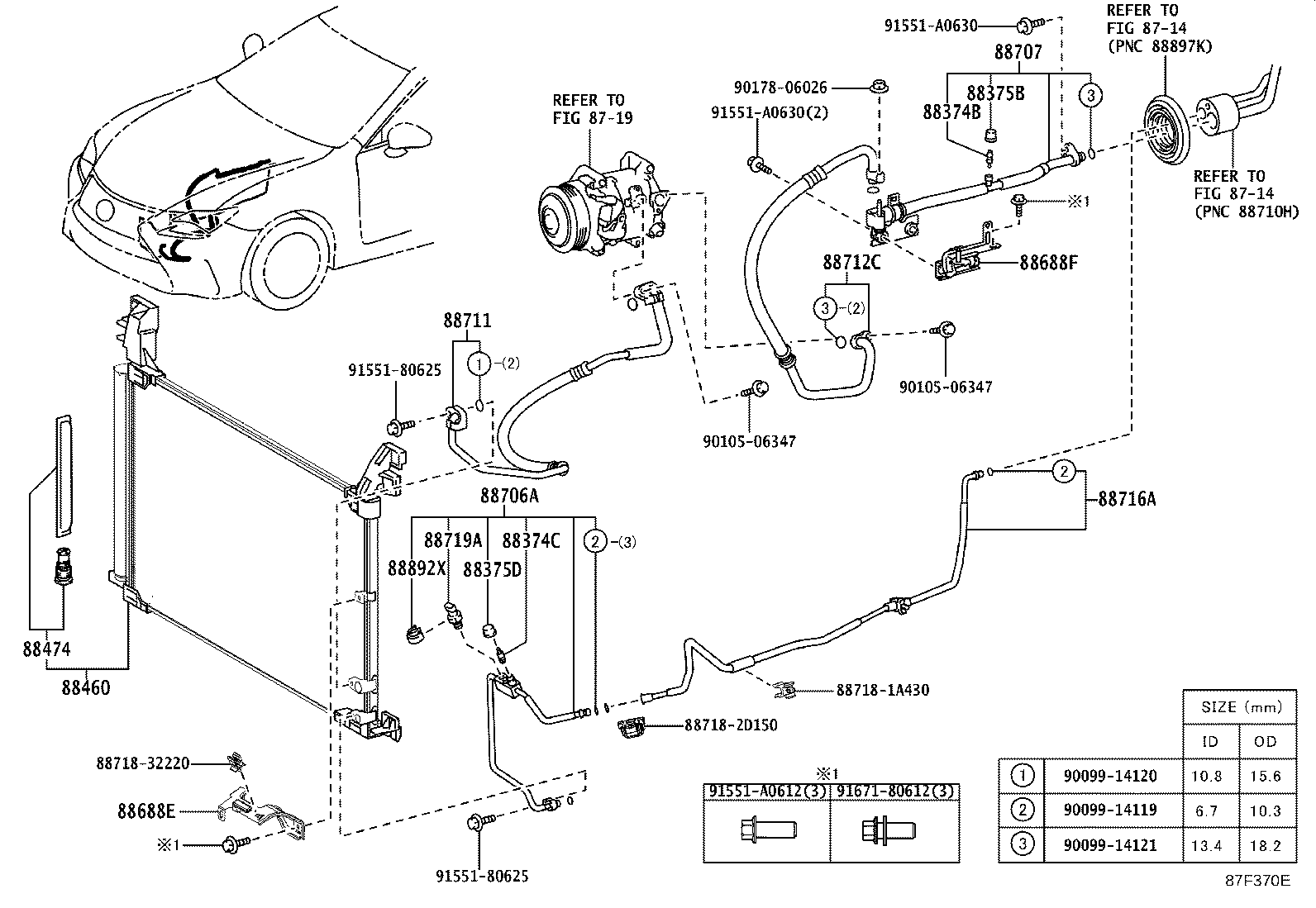

Figure 87H383 87H383 2014-09 → — Figure 87F370E 87F370E 2015-10 → — Figure 87E495E 87E495E 2015-10 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
