Toyota Lexus RC3###/200T
2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe
Supported model
Data version 2020-12
Heating & Air Conditioning - Compressor
6 part groups · 3 illustrations
Part groups

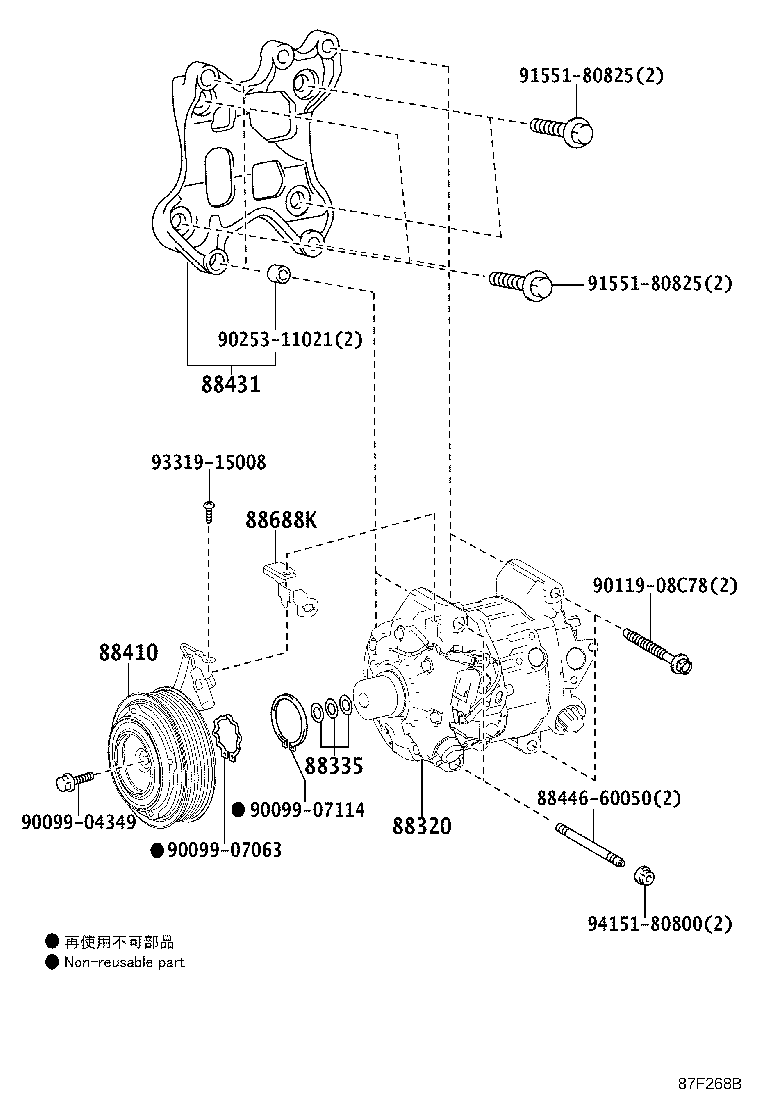

| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88335 | Gasket Kit, Overhaul |
| 88370 | Compressor Assy, W/Motor |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
