Toyota Lexus IS250C
2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe
Supported model
Data version 2016-01

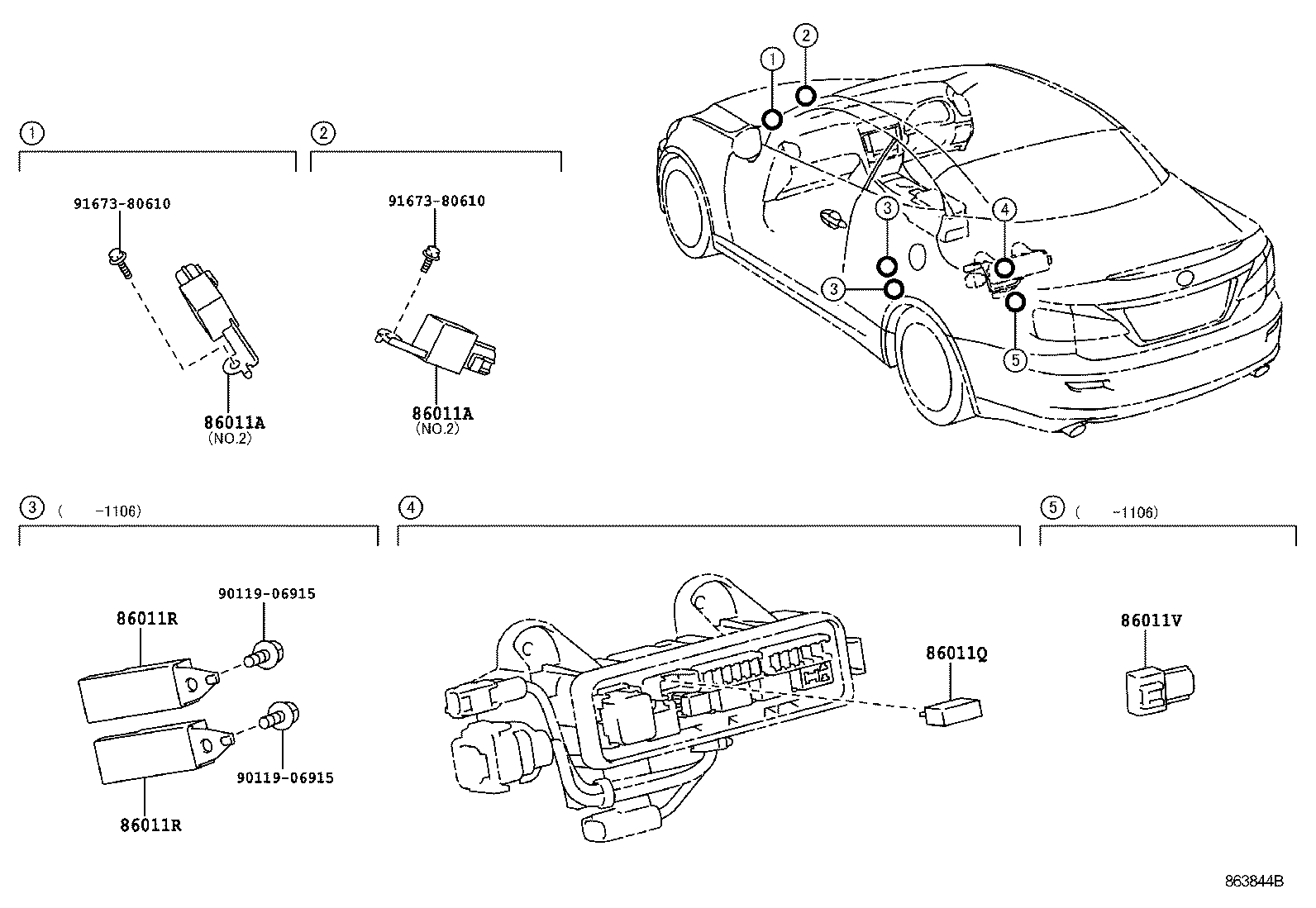

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04181 |
Condenser, Radio Setting
2009-04 → 2010-08
ended
|
GSE20 | — | |
| 86011Q — Condenser, Radio Setting | ||||
| 90980-04066 |
Condenser, Radio Setting
2009-04 → —
|
GSE20 | — | |
| 86011R — Condenser, Radio Setting | ||||
| 90980-04184 |
Condenser, Radio Setting
2009-04 → 2011-06
ended
|
GSE20 | — | |
| 86011V — Condenser, Radio Setting | ||||
| 90980-04083 |
Condenser, Radio Setting
2009-04 → 2011-06
ended
|
GSE20 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
