Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

10 part groups · 2 illustrations

Illustrations

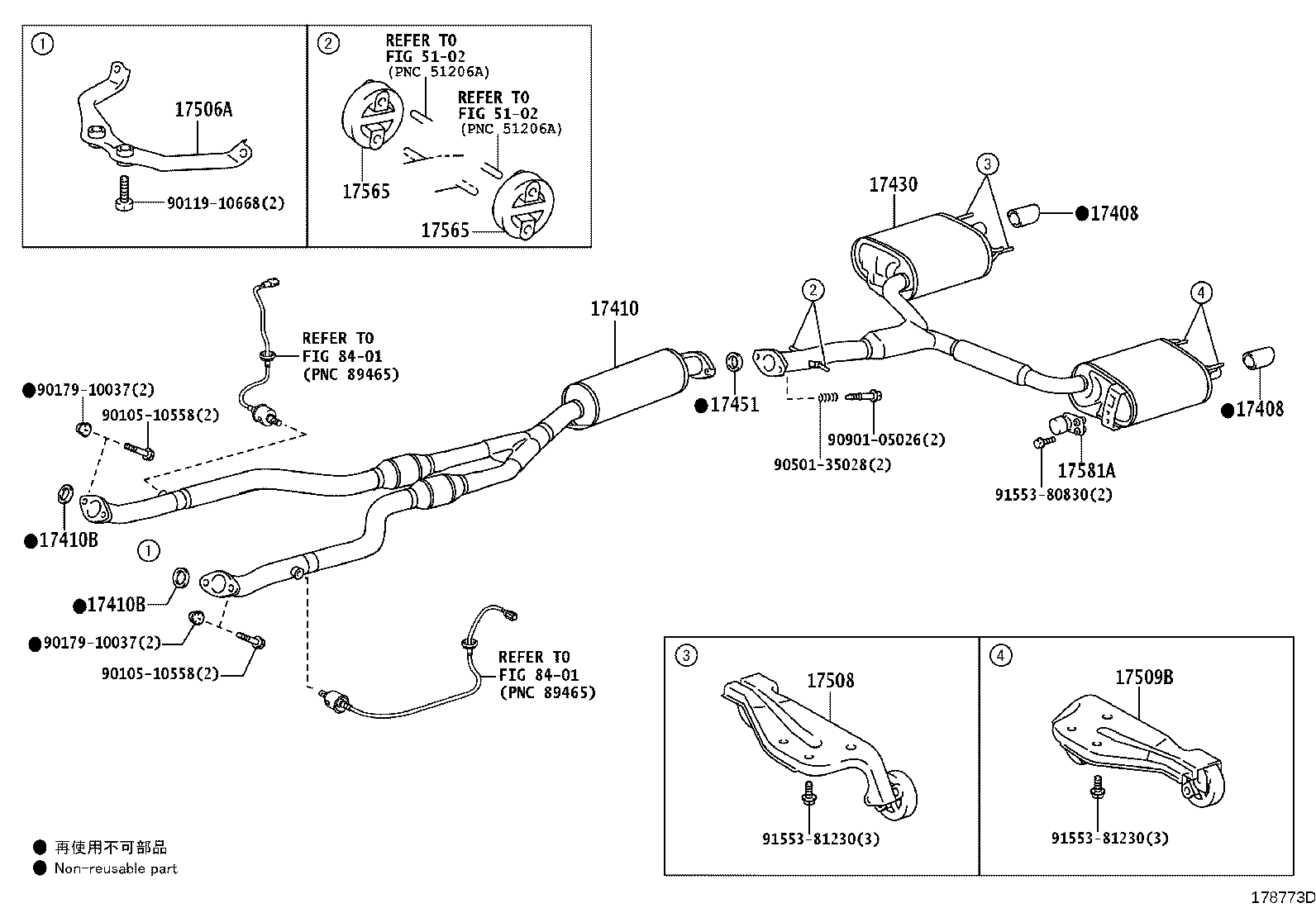

Figure 176444J 176444J 2009-04 → 2012-06 Figure 178773D 178773D 2012-05 → —

Part groups

PNCDescription
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17509B Support, Exhaust Pipe NO.4
17565 Support, Exhaust Pipe, NO.5
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
