Steering Wheel

8 part groups · 2 illustrations

Illustrations

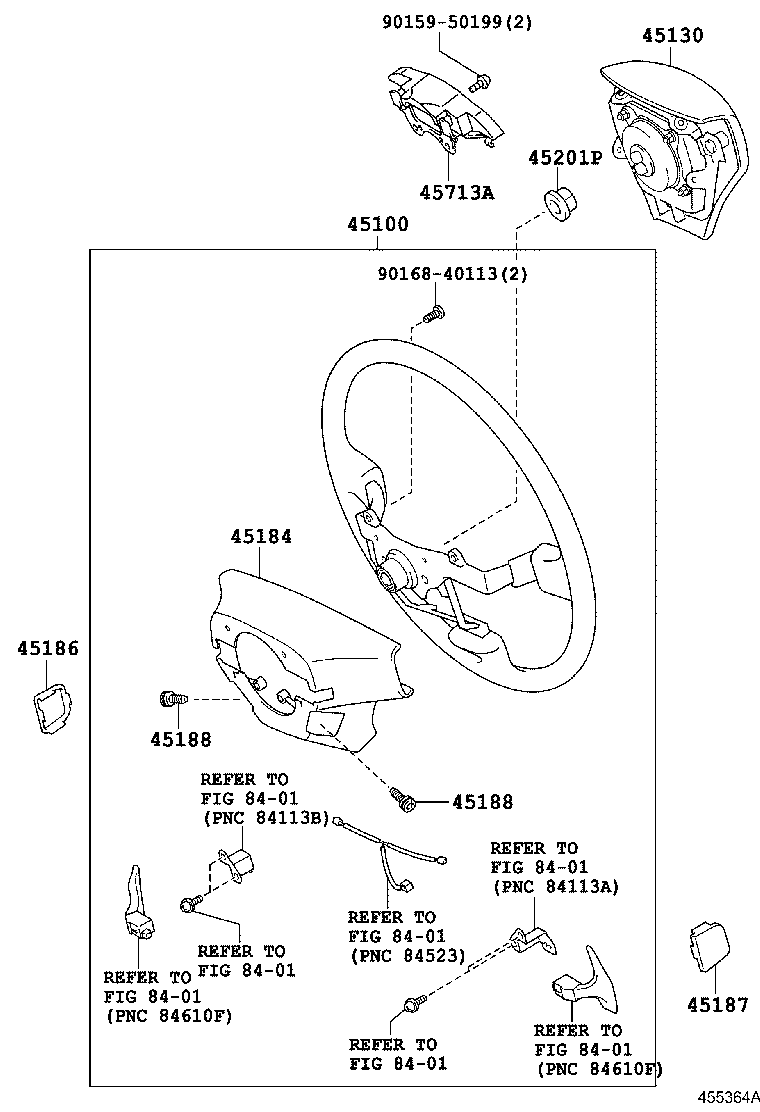

Figure 455365 455365 2009-04 → — Figure 455364A 455364A 2009-04 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
