Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01

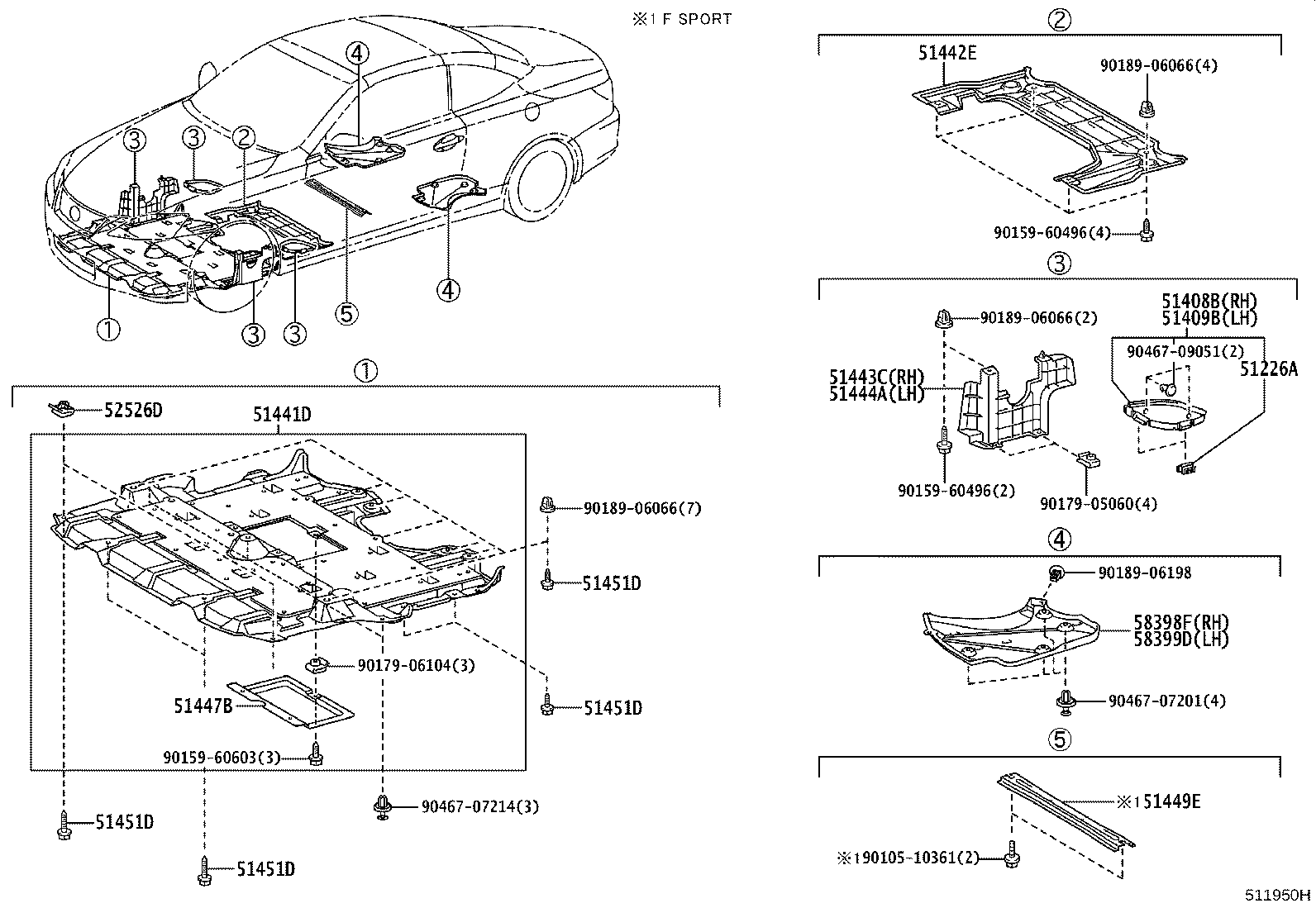

Suspension Crossmember & Under Cover

35 part groups · 2 illustrations

PNC	Description
51073	Bracket Sub-assy, Rear Body Mounting, NO.2 RH
51074	Bracket Sub-assy, Rear Body Mounting, NO.2 LH
51201	Crossmember Sub-assy, Front Suspension
51206A	Member Sub-assy, Rear Suspension
51219	Protector, Front Suspension Member, Lwr
51224A	Plate, Front Suspension Menber Brace
51226A	Bracket, Front Suspension Member, LH
51229A	Bolt, Front Suspension Member Mounting
51296	Bolt, Front Suspension Member Mounting
51408B	Cover Sub-assy, Engine Under, RH
51409B	Cover Sub-assy, Engine Under, LH
51441D	Cover, Engine Under
51442E	Cover, Engine Under, NO.2
51443C	Cover, Engine Under, Rear RH
51444A	Cover, Engine Under, Rear LH
51447B	Protector, Oil Pan
51449E	Bracket, Engine Under Cover Air Guide
51451D	Screw, NO.1
51715	Bracket, Body Support, Rear RH
51716	Bracket, Body Support, Rear LH
52267	Reinforce, Rear Suspension Member Lower Stopper, RH
52268	Reinforce, Rear Suspension Member Lower Stopper, LH
52271D	Cushion, Rear Suspension Member Body Mounting, Front
52273A	Stopper, Rear Suspension Member, Lower RH
52274A	Stopper, Rear Suspension Member, Lower LH
52275A	Cushion, Rear Suspension Member Body Mounting, Rear
52277B	Stopper, Rear Suspension Member, Rear Upper
52278C	Stopper, Rear Suspension Member, Rear Lower
52285	Bolt, Differential Support Member Mounting, NO.1
52286	Bolt, Differential Support Member Mounting, NO.2
52295	Brace, Rear Suspension Member, RH
52296	Brace, Rear Suspension Member, LH
52526D	Retainer, Front Bumper, Lower
58398F	Cover, Floor Under, NO.1
58399D	Cover, Floor Under, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
