Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

13 part groups · 2 illustrations

Illustrations

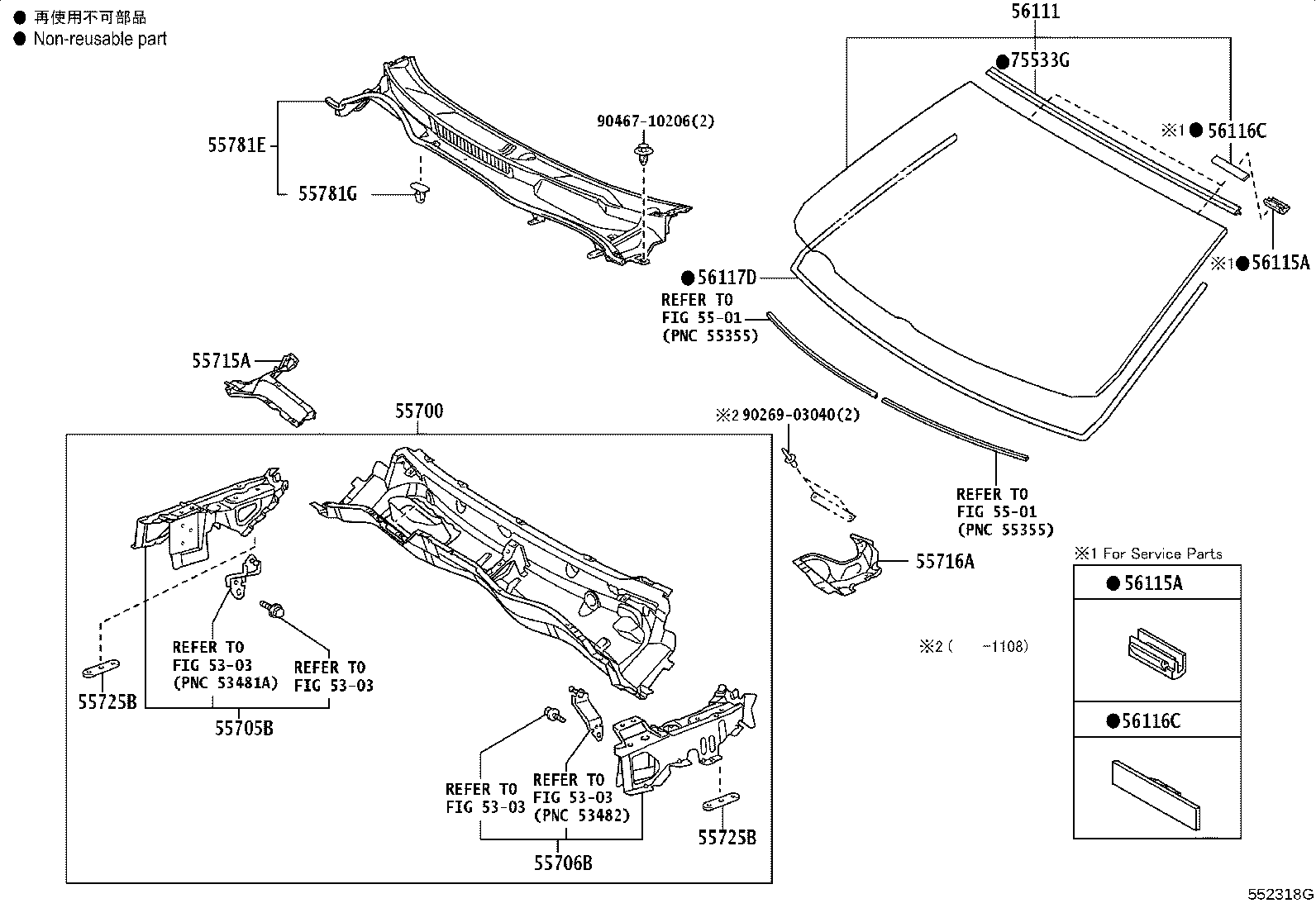

Figure 552317F 552317F 2009-04 → — Figure 552318G 552318G 2009-04 → —

Part groups

PNCDescription
55700 Panel Assy, Front
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55725B Reinforcement, Hood Hinge Mounting
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117D Dam, Windshield Glass Adhesive
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
