Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

27 part groups · 2 illustrations

Illustrations

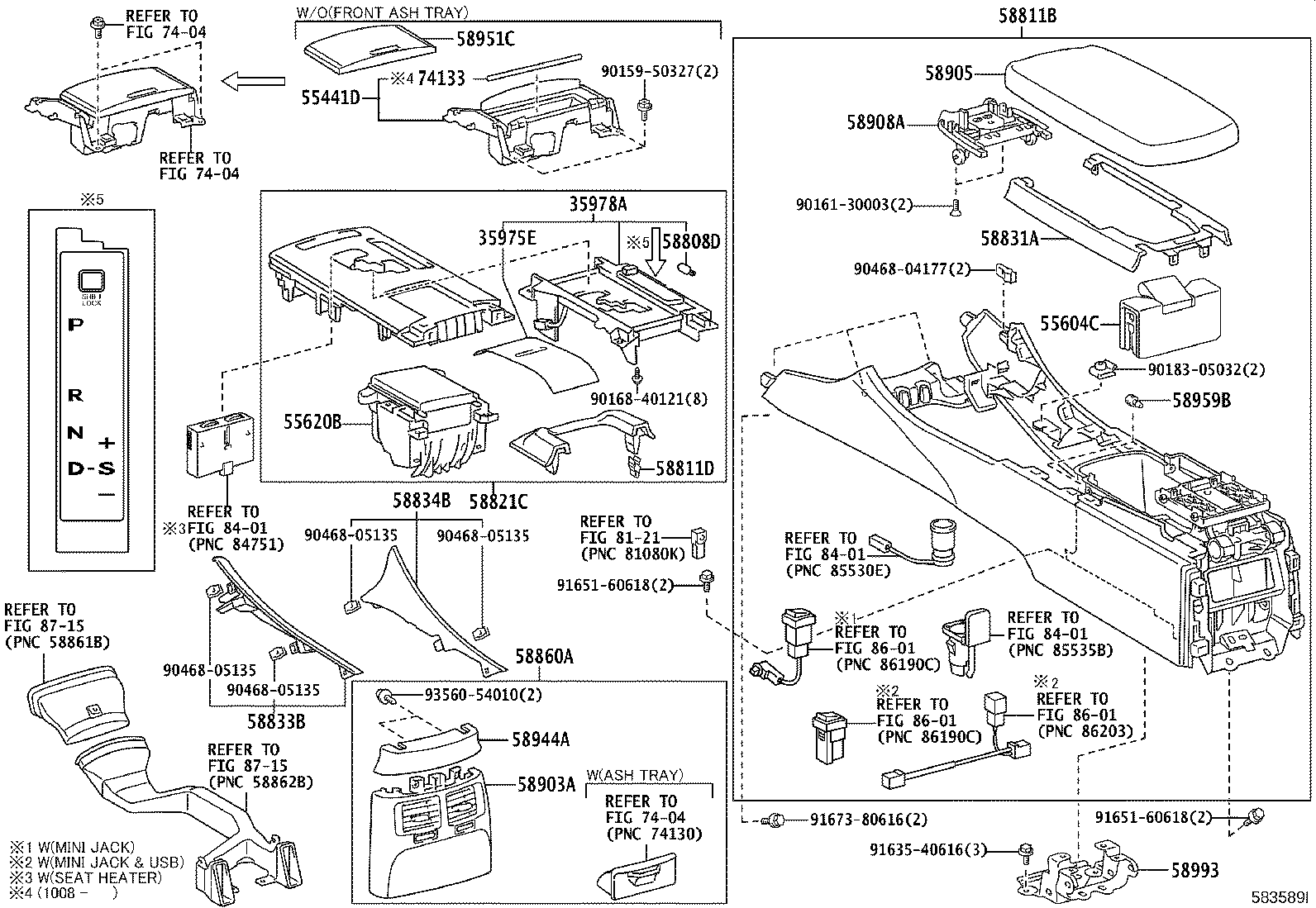

Figure 583586D 583586D 2009-04 → — Figure 583589I 583589I 2009-04 → —

Part groups

PNCDescription
35975E Cover, Slide (FOR POSITION INDICATOR)
35978A Indicator, Shift Position
55441D Box, Instrument Panel Coin
55604C Holder Sub-assy, Console Box Cup
55620B Holder, Instrument Panel Cup
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58808D Shift Indicator Lamp Bulb
58811B Box, Console
58811D Clip(FOR CONSOLE BOX)
58821C Panel, Console, Upper
58831A Garnish, Console Upper Panel, Front
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58860A Register Assy, Console Box
58878 Pad, Console Box Silencer, NO.4
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910D Clip(FOR CONSOLE BOX)
58941A Cover, Parking Brake Hole
58944A Cover, Console, Rear
58944B Cover, Console, Rear
58951C Door, Box
58959B Cushion, Console Compartment Door
58993 Bracket, Console Box Mounting, Rear
74133 Seal, Front Ash Receptacle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
