Toyota Lexus IS250C
2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe
Supported model
Data version 2016-01
Roof Panel & Back Window Glass

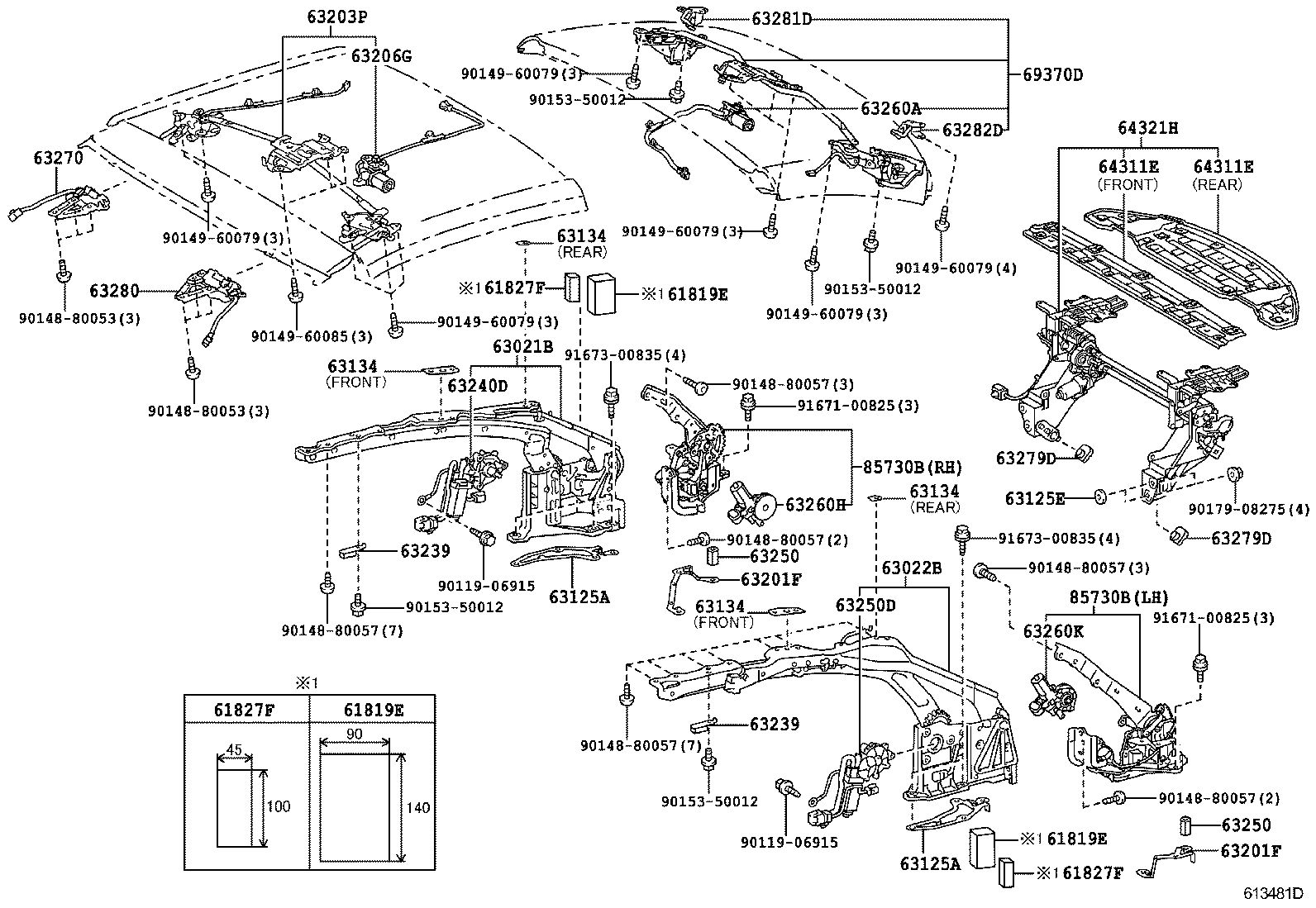

58 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61737E | Reinforcement, Quarter, Inner, RH |
| 61737F | Reinforcement, Quarter, Inner, LH |
| 61819E | Seal, Roof Side Inner Cover, NO.1 |
| 61824J | Pad, Noise Shutter, NO.1 |
| 61826B | Plate, Noise Control, NO.3 |
| 61827F | Seal, Roof Side Inner Cover, NO.2 |
| 61881 | Seal, Roof Side Rail, Front RH |
| 61882 | Seal, Roof Side Rail, Front LH |
| 61883 | Seal, Roof Side Rail, Rear RH |
| 61884 | Seal, Roof Side Rail, Rear LH |
| 62381G | Weatherstrip, Roof Side Rail, RH |
| 62382F | Weatherstrip, Roof Side Rail, LH |
| 62581E | Garnish, Quarter Pillar, RH |
| 62582E | Garnish, Quarter Pillar, LH |
| 63021B | Strength Sub-assy, Roof Panel |
| 63022B | Strength Sub-assy, Roof Panel, NO.2 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63125A | Shim, Roof Panel |
| 63125E | Shim, Roof Panel, NO.2 |
| 63134 | Shim, Roof Set |
| 63201F | Shim(FOR REMOVABLE ROOF PANEL) |
| 63201Q | Panel Sub-assy, Slide Roof, Front |
| 63202F | Panel Sub-assy, Slide Roof, Rear |
| 63203P | Lock Sub-assy, Removable Roof |
| 63206G | Gear Sub-assy, Sliding Roof Drive |
| 63239 | Stopper, Sliding Roof Panel |
| 63240D | Gear Assy, Sliding Roof Drive, RH |
| 63250 | Base Assy, Removable Roof Lock |
| 63250D | Gear Assy, Sliding Roof Drive, LH |
| 63251F | Weatherstrip, Removable Roof, Front |
| 63252B | Weatherstrip, Removable Roof, Rear |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63260K | Gear Assy, Sliding Roof Drive |
| 63270 | Catch Assy, Removable Roof Auxiliary, RH |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63281D | Stopper, Removable Roof Panel, RH |
| 63282D | Stopper, Removable Roof Panel, LH |
| 63637 | Garnish, Removable Roof |
| 63666A | Protector, Roof, Rear |
| 64208B | Member Sub-assy, Room Partition Cross |
| 64311E | Panel, Package Tray |
| 64312B | Bracket, Package Tray, RH |
| 64321H | Bracket, Package Tray Trim |
| 64811 | Glass, Back Window |
| 64813D | Dam, Back Window Glass Adhesive |
| 64839A | Packing, Back Window |
| 64843 | Weatherstrip, Back Window Channel |
| 69370D | Lock Assy, Back Window |
| 75573F | Moulding, Back Window, Outside |
| 75575C | Moulding, Back Window, Lower |
| 75575E | Moulding, Back Window, Outside Lower |
| 75925A | Tape, Black Out, NO.3 RH |
| 75926A | Tape, Black Out, NO.3 LH |
| 85730B | Motor Assy, Slide Roof |
| 86168B | Cover, Speaker Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
