Toyota Lexus IS250C
2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe
Supported model
Data version 2016-01

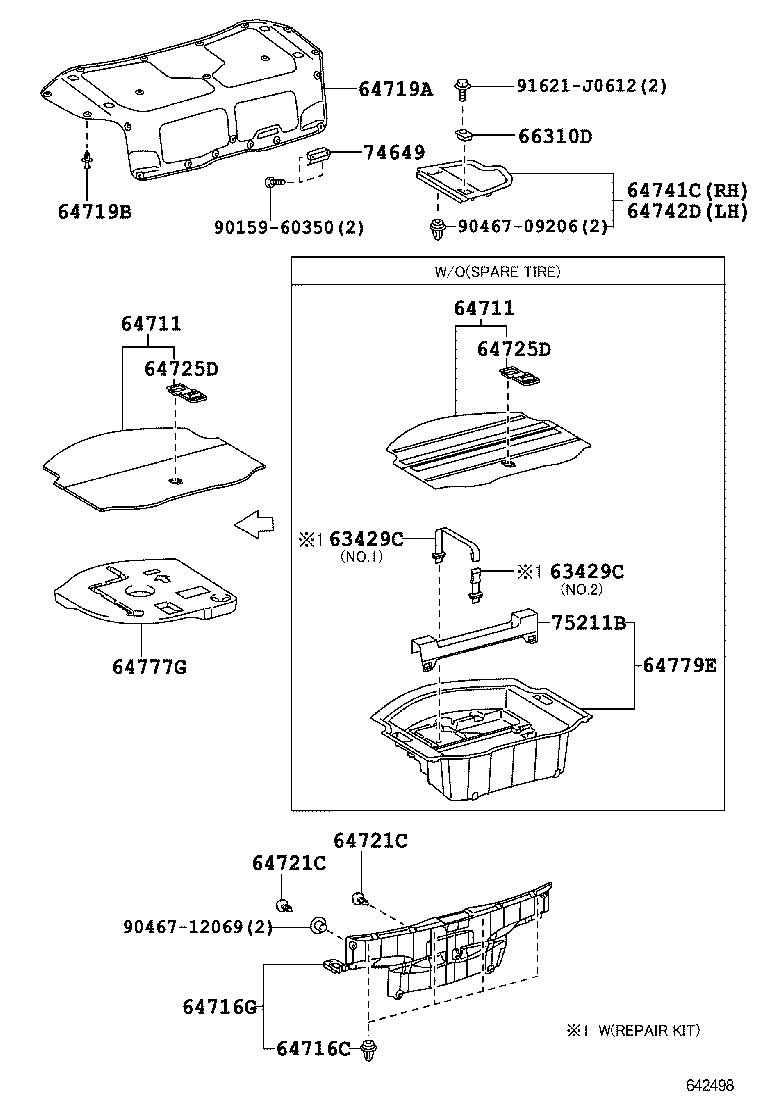

Package Tray Panel & Luggage Compartment Mat
68 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58461D | Cover, Junction Block Service |
| 61653E | Bracket, Deck Side Trim |
| 61955 | Bracket, Side Trim, Upper NO.1 |
| 62533G | Bracket, Quarter Trim, RH |
| 62534E | Bracket, Side Trim, NO.2 |
| 62789A | Spacer |
| 63249T | Hose, Removable Roof Drain |
| 63429C | Band, Room Rack |
| 64191 | Plate, Package Tray Rear End |
| 64271F | Trim, Room Partition |
| 64273E | Pad, Room Partition |
| 64274A | Pad, Room Partition, NO.2 |
| 64330 | Panel Assy, Package Tray Trim |
| 64330F | Lid Sub-assy, Package Tray Trim Pocket |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64331B | Board, Package Tray Trim, Front |
| 64332 | Cover, Package Tray Trim |
| 64333D | Cover, Package Tray Trim Side, RH |
| 64337 | Garnish, Package Tray Trim, RH |
| 64339 | Garnish, Package Tray Trim, LH |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64342 | Cover, Package Tray Trim, Under |
| 64347 | Retainer, Package Tray Trim Edge Side |
| 64349D | Cover, Package Tray Trim Side, LH |
| 64391C | Cap |
| 64711 | Mat, Luggage Compartment Floor |
| 64712 | Cover, Luggage Compartment Trim, RH |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64713 | Cover, Luggage Compartment Trim, LH |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64718B | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721B | Cover, Luggage Compartment Trim, NO.1 |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64723A | Cover, Luggage Compartment Trim, Inner Lower |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64726A | Clip, Luggage Trim, Rear |
| 64726D | Clip, Luggage Trim, Rear |
| 64741C | Box, Deck Side Trim, RH |
| 64742D | Box, Deck Side Trim, LH |
| 64753B | Plate, Rear Floor Finish Side, RH |
| 64754B | Plate, Rear Floor Finish Side, LH |
| 64760C | Clip(FOR DECK SIDE TRIM PANEL) |
| 64777G | Cushion, Spare Wheel |
| 64779E | Tray, Spare Wheel Cover |
| 64831C | Weatherstrip, Back Window Glass, RH |
| 64832B | Weatherstrip, Back Window Glass, LH |
| 64833 | Weatherstrip, Back Window Channel |
| 64834B | Weatherstrip, Back Window Glass, Inner |
| 64835B | Weatherstrip, Back Window Glass, Center |
| 64907C | Stopper Sub-assy, Tonneau Cover, RH |
| 64909B | Stopper Sub-assy, Tonneau Cover, LH |
| 64910N | Cover Assy, Tonneau |
| 64928B | Holder, Tonneau Cover Hook |
| 66310D | Hook Assy, Rope |
| 66311L | Hook,Rope |
| 66571 | Garnish, Roll Over, RH |
| 66572 | Garnish, Roll Over, LH |
| 74649 | Grip, Luggage Compartment Door Assist |
| 75211B | Panel, Tool Box |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
