Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

15 part groups · 2 illustrations

Illustrations

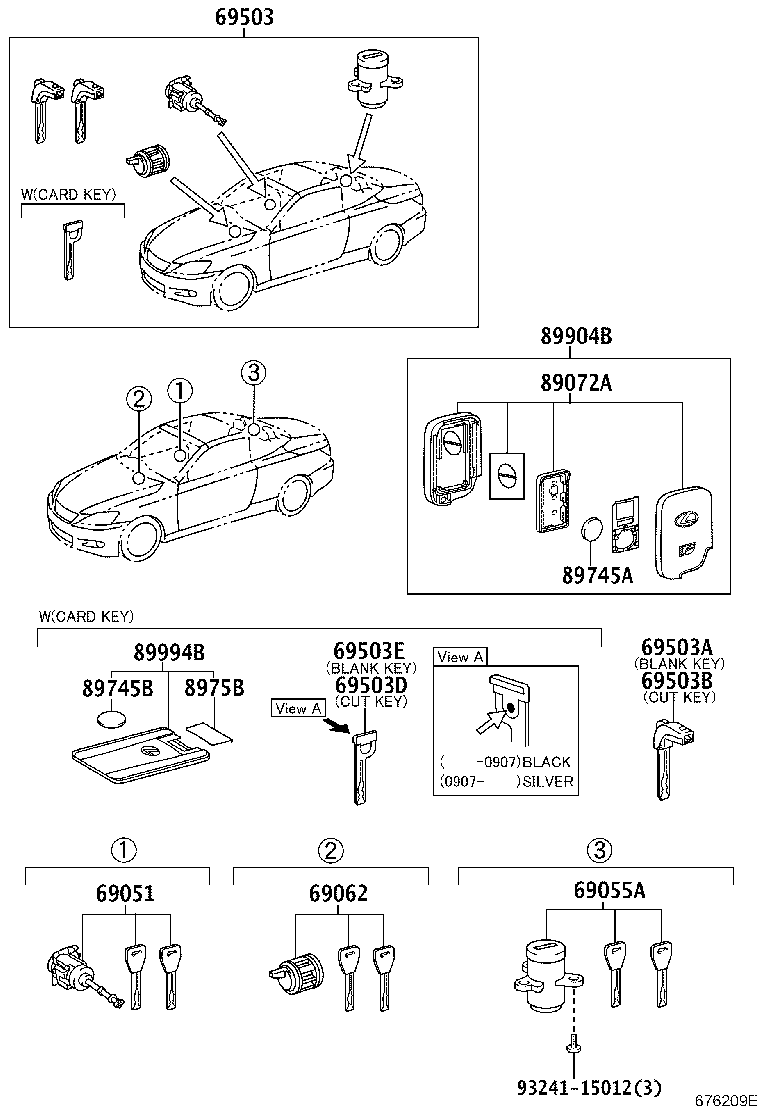

Figure 676098E 676098E 2009-04 → — Figure 676209E 676209E 2009-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
69503D Key, Cut(CARD KEY)
69503E Key, Blank(CARD KEY)
89072A Housing Set, Door Control Transmitter
89745A Battery, Transmitter
89745B Battery, Transmitter(CARD KEY)
8975B Cover, Transmitter Battery Housing
89904B Transmitter Sub-assy, Electrical Key
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
