Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

84 part groups · 3 illustrations

Illustrations

716279F 2009-04 → —

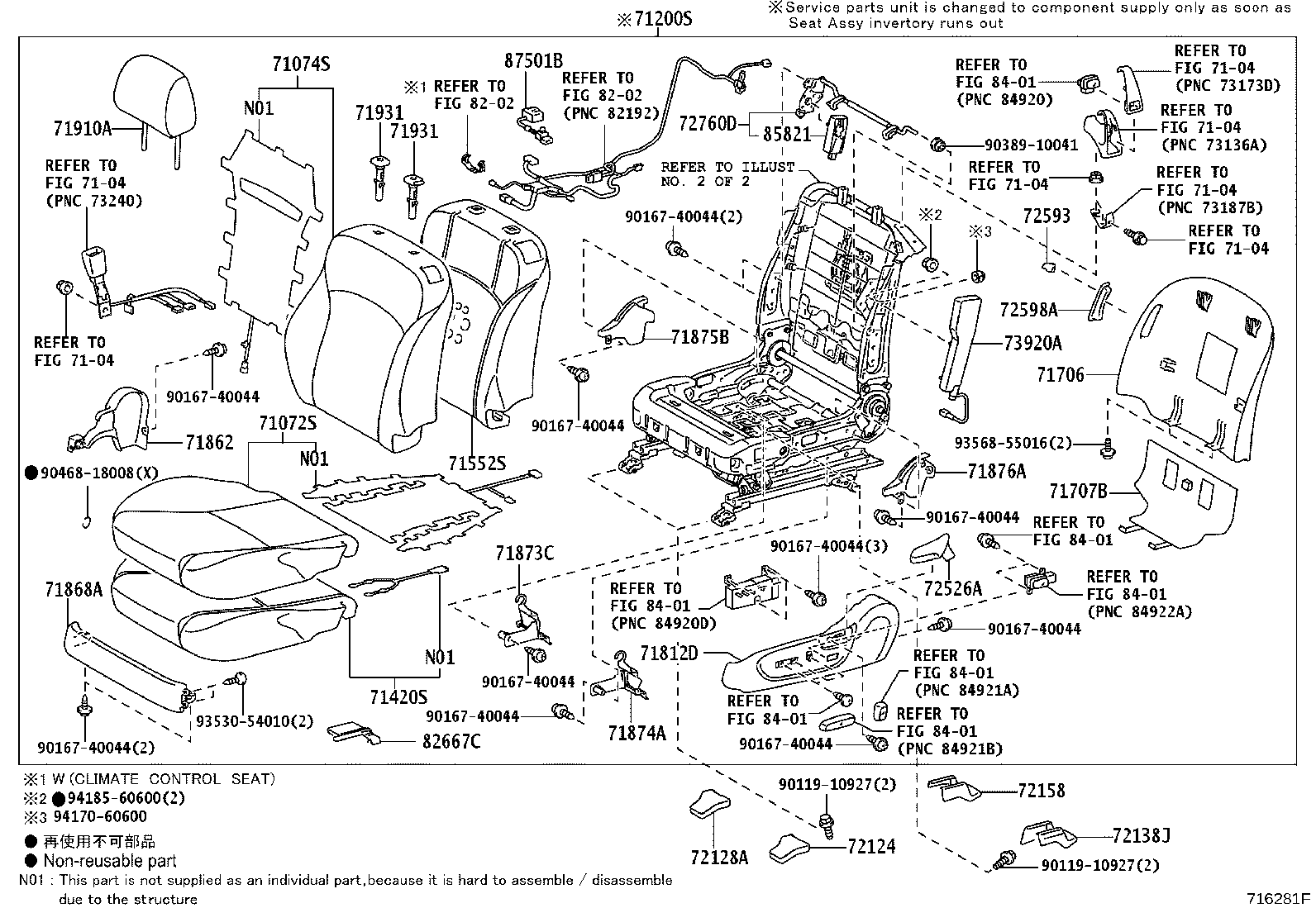

716281F 2009-04 → —

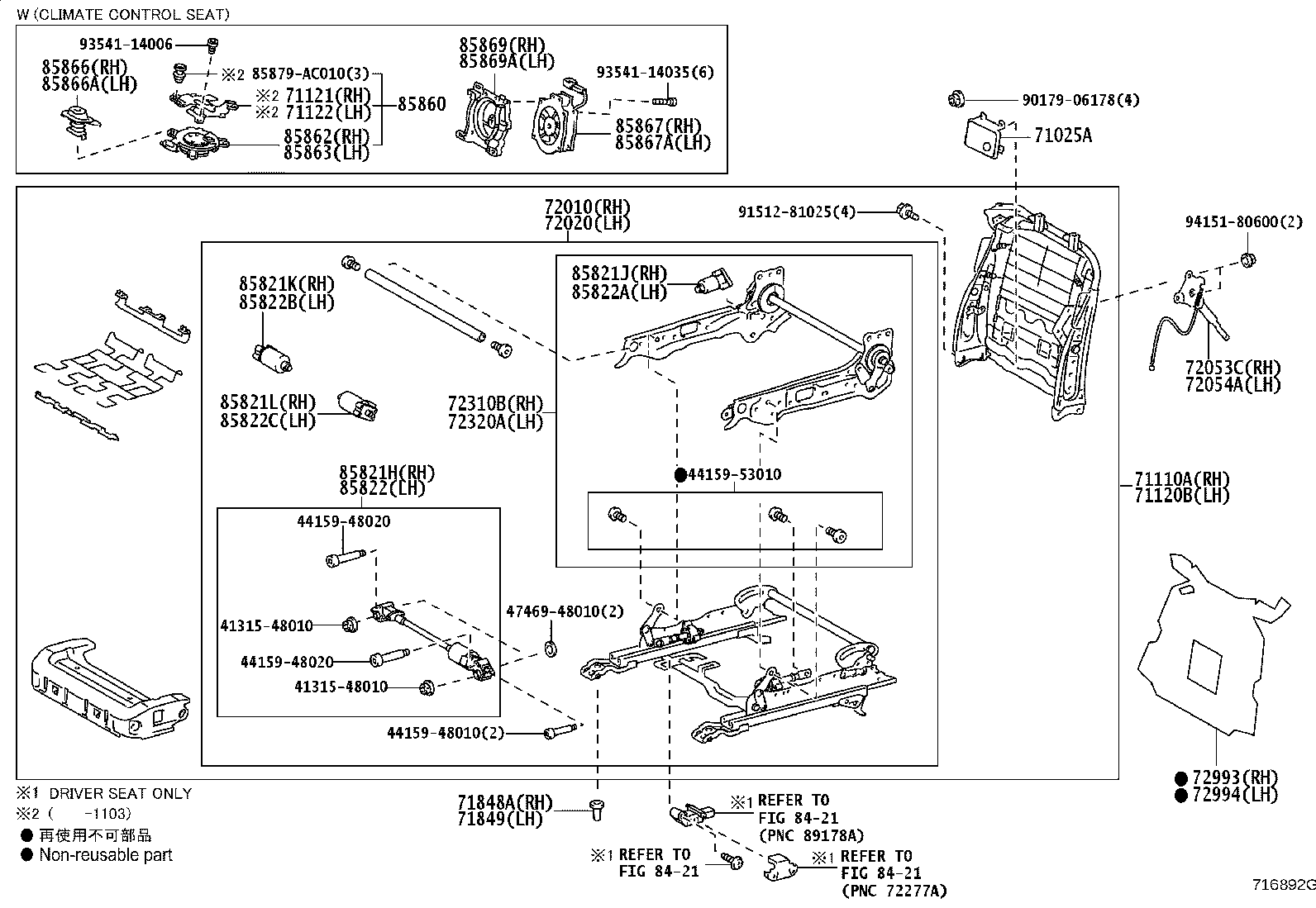

716892G 2009-04 → —

Part groups

PNC	Description
71025A	Bracket Sub-assy, Front Seatback
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S	Seat Assy, Front RH
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71121	Bracket, Front Seat Cushion, RH
71122	Bracket, Front Seat Cushion, LH
71200S	Seat Assy, Front LH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71707A	Cover Sub-assy, Front Seatback Board
71707B	Cover Sub-assy, Front Seatback Board
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71873C	Shield, Rear Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72053C	Lever Sub-assy, Reclining Remote Control, RH
72054A	Lever Sub-assy, Reclining Remote Control, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137J	Cover, Front Seat Track, RH Rear Outer
72138J	Cover, Front Seat Track, LH Rear Outer
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72310B	Adjuster Assy, Front Seat Vertical, RH
72320A	Adjuster Assy, Front Seat Vertical, LH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72593	Knob, Reclining Remote Control Lever
72597A	Bezel, Reclining Remote Control Lever, RH
72598A	Bezel, Reclining Remote Control, LH
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
72993	Cover, Front Seatback
72994	Cover, Front Seatback
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
82666M	Holder, Connector
82667C	Holder, Connector
85821	Motor Assy, Power Seat
85821H	Motor Assy, Power Seat Slide, RH
85821J	Motor Assy, Power Seat Reclining, RH
85821K	Motor Assy, Power Seat Tilt, RH
85821L	Motor Assy, Power Seat Lifter, RH
85822	Motor Assy, Power Seat Slide, LH
85822A	Motor Assy, Power Seat Reclining, LH
85822B	Motor Assy, Power Seat Tilt, LH
85822C	Motor Assy, Power Seat Lifter, LH
85860	Blower Assy, Seat Cushion Climate Control
85862	Blower, Seat Climate Control, RH
85863	Blower, Seat Climate Control, LH
85866	Duct, Seat Cushion Climate Control, RH
85866A	Duct, Seat Cushion Climate Control, LH
85867	Blower, Seatback Climate Control, RH
85867A	Blower, Seatback Climate Control, LH
85869	Cover, Seatback Climate Control, RH
85869A	Cover, Seatback Climate Control, LH
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
