Toyota Lexus IS250C
2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe
Supported model
Data version 2016-01
Fuel Tank & Tube
62 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23020 | Regulator Assy, Fuel Pressure W/Jet Pump |
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23222A | Tube, Fuel Return Jet |
| 23225A | Spacer, Fuel Pump |
| 23226 | Ring, O(FOR FUEL PUMP) |
| 23229A | Clip(FOR FUEL PUMP FILTER) |
| 23239C | Seal, Fuel Pump Filter |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23300J | Filter Assy, Fuel |
| 77012A | Tube Sub-assy, Fuel Tank Breather, NO.1 |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |

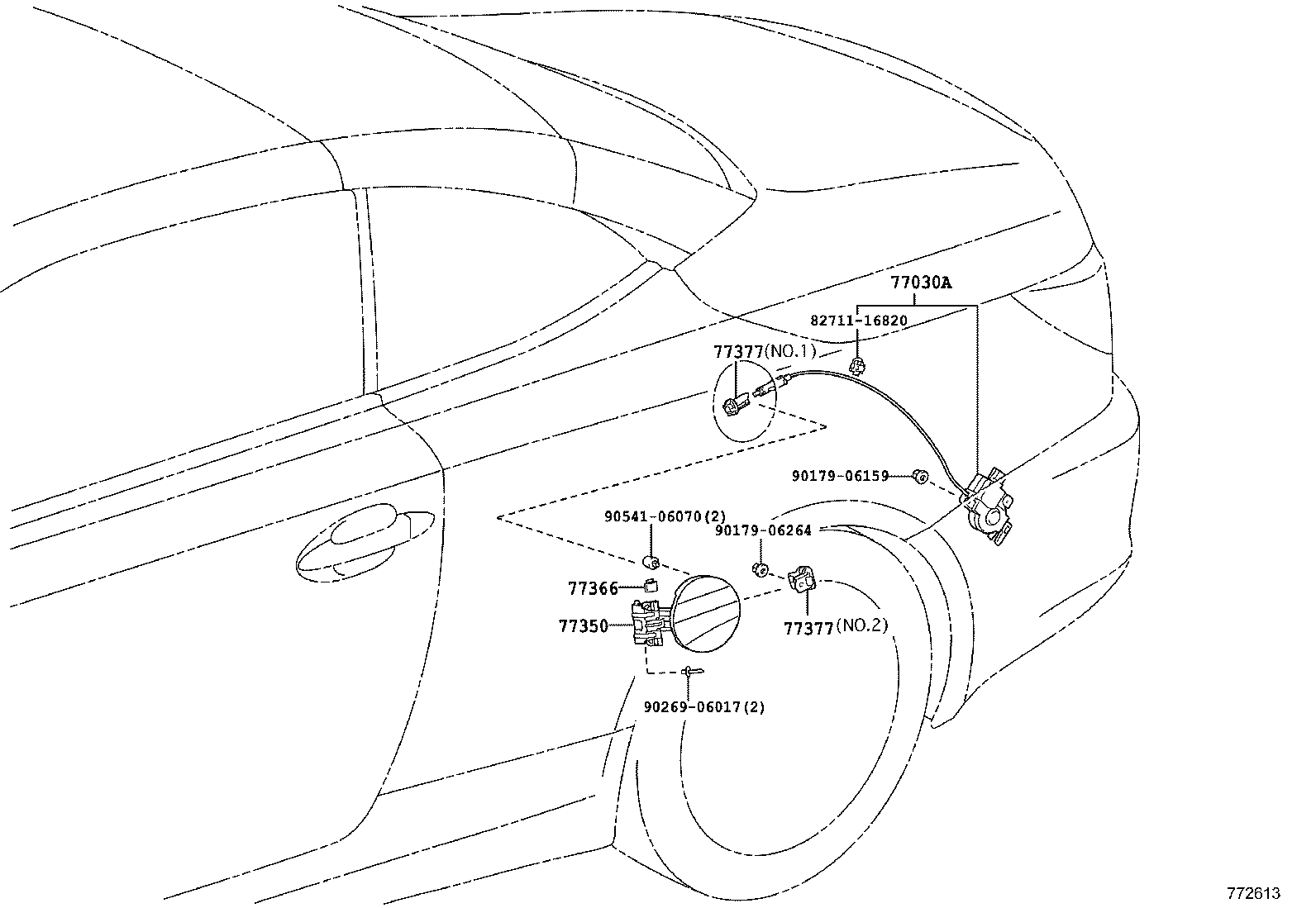

| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77100 | Tank Assy, Fuel |
| 77131C | Sub-tank, Fuel, NO.1 |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77241W | Clip, Tube Joint |
| 77245D | Tube, Fuel Tank Return Vent |

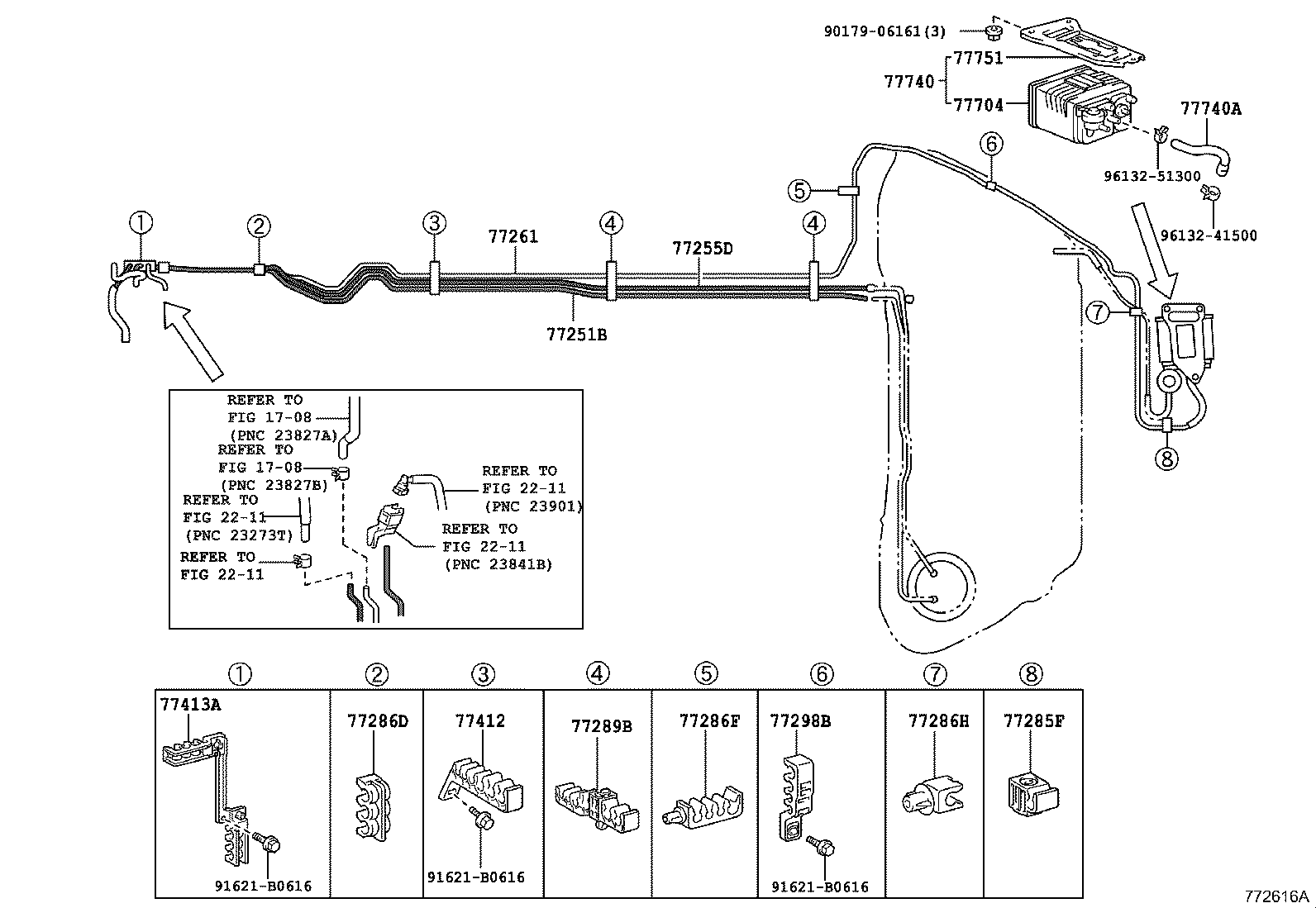

| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77269A | Hose, Fuel Tank Breather |
| 77281A | Clamp, Fuel Filler Pipe |
| 77284 | Clamp, Fuel Tube |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391A | Ring, Fuel Inlet Box |
| 77412 | Support, Fuel Tube Grommet, NO.2 |
| 77413A | Support, Fuel Tube Grommet, NO.3 |
| 77444 | Hose, Fuel Tank Vent |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77704 | Canister Sub-assy, Charcoal |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
