Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

26 part groups · 3 illustrations

Illustrations

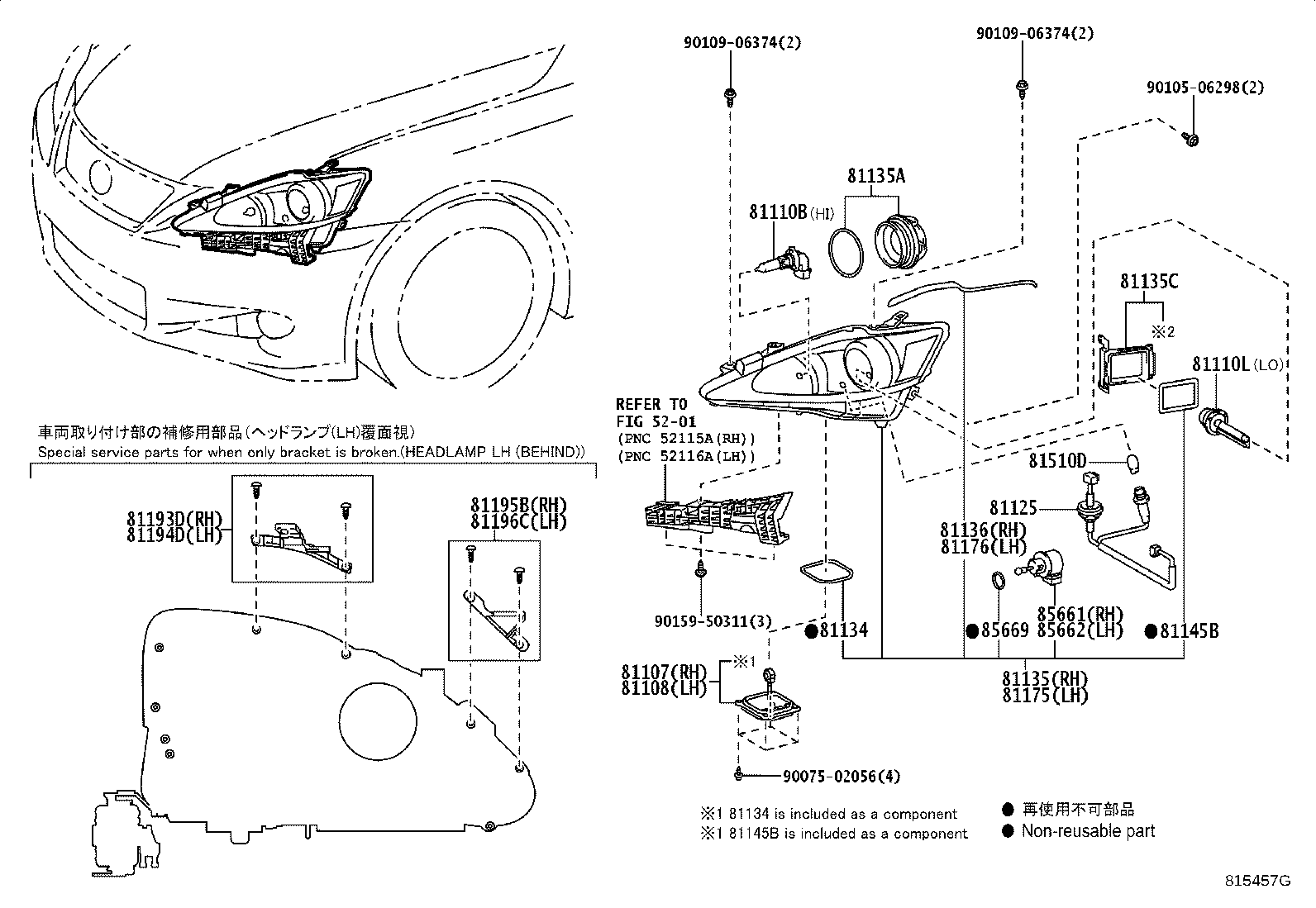

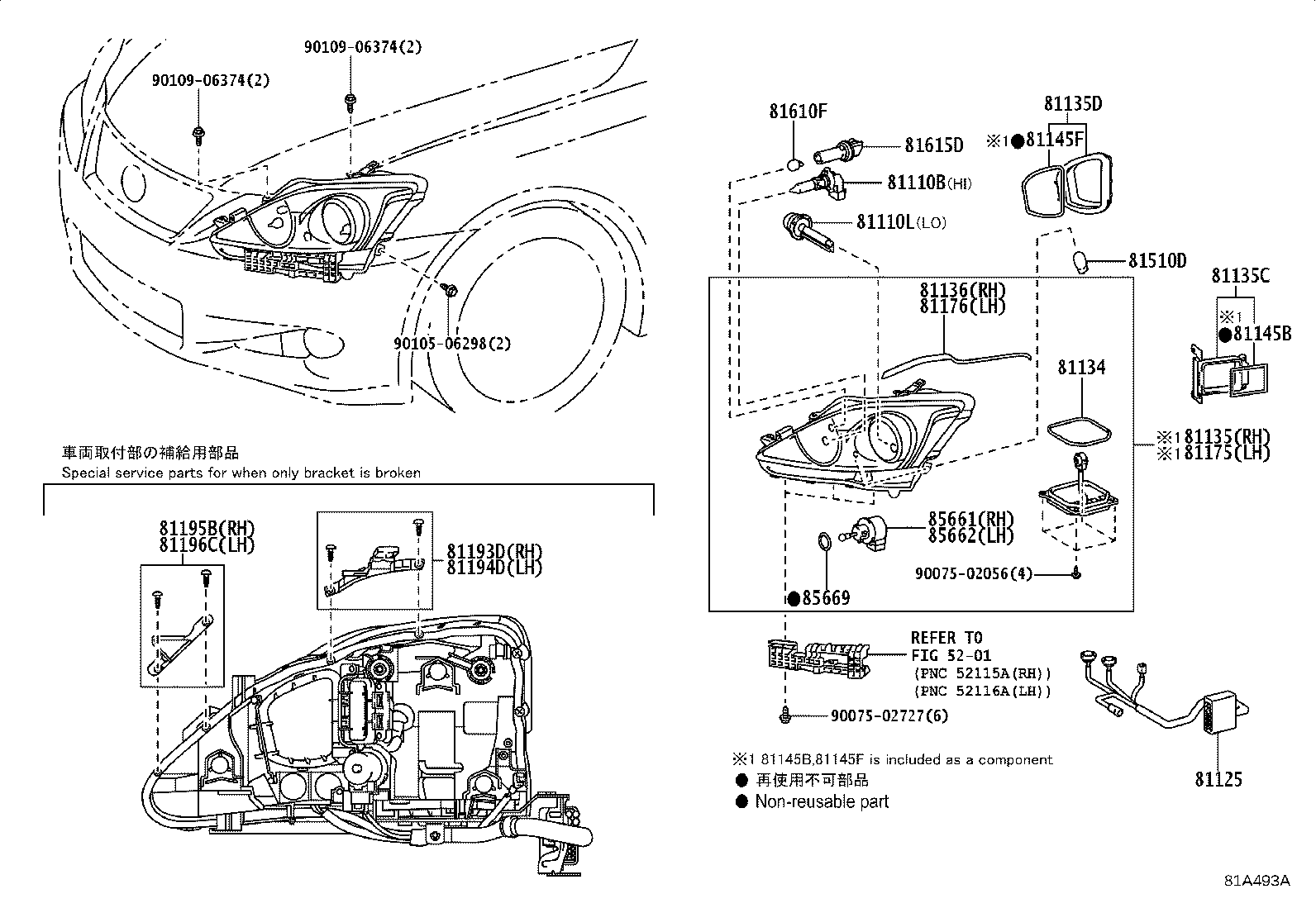

Figure 815049F 815049F 2009-04 → — Figure 81A493A 81A493A 2009-04 → 2010-08 Figure 815457G 815457G 2010-08 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135A Cap, Locking
81135C Cover, Headlamp Back, NO.1
81135D Cover, Headlamp Back, NO.2
81136 Protector, Headlamp, NO.1 RH
81145B Gasket, Headlamp Cover, NO.1
81145F Gasket, Headlamp Cover, NO.2
81175 Unit Assy, Headlamp, LH
81176 Protector, Headlamp, NO.1 LH
81193D Retainer, RH Headlamp Protector, Upper LH
81194D Retainer, LH Headlamp Protector, Upper LH
81195B Retainer, RH Headlamp Protector, Lower RH
81196C Retainer, LH Headlamp Protector, Lower LH
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
