Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

63 part groups · 12 illustrations

Illustrations

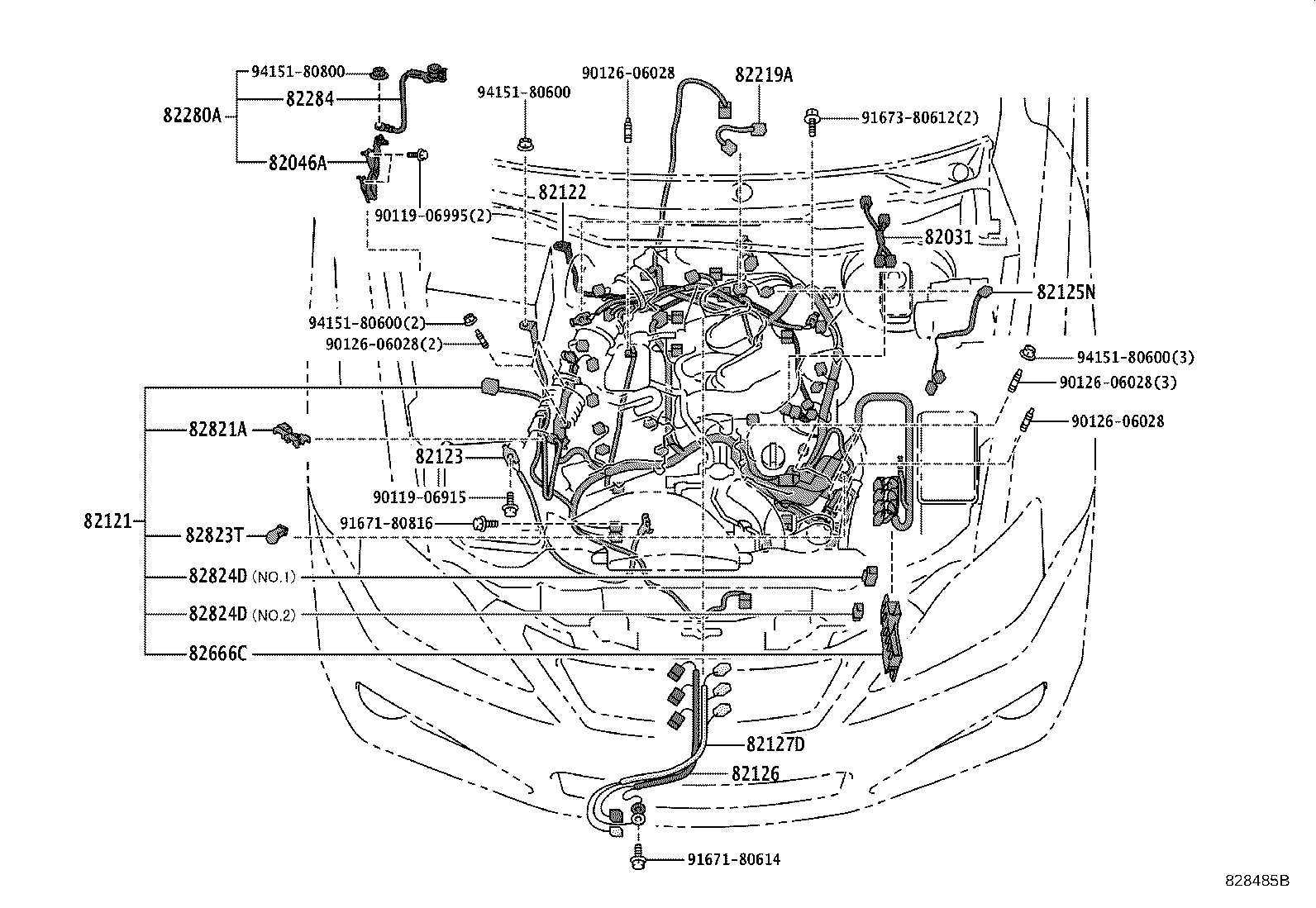

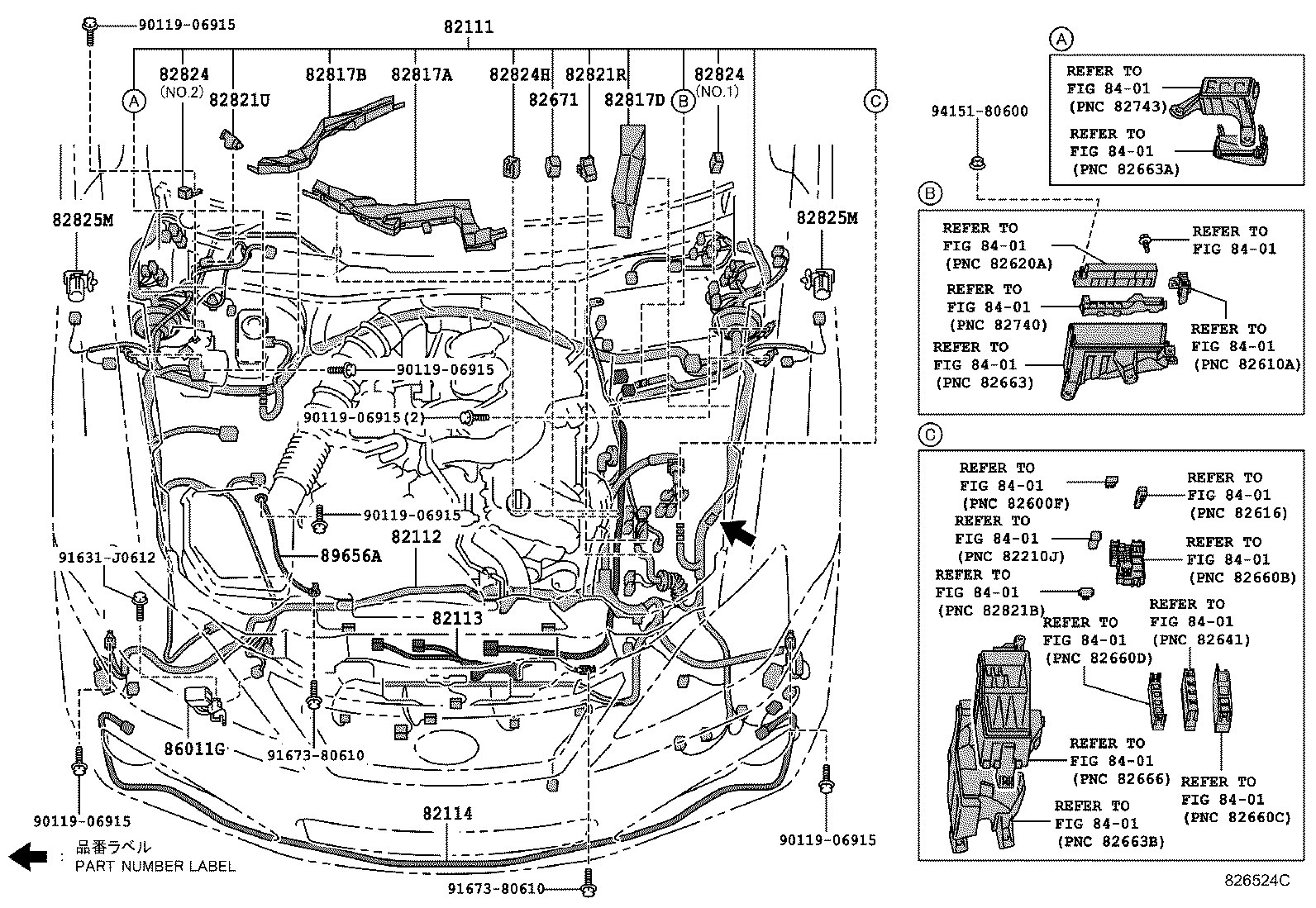

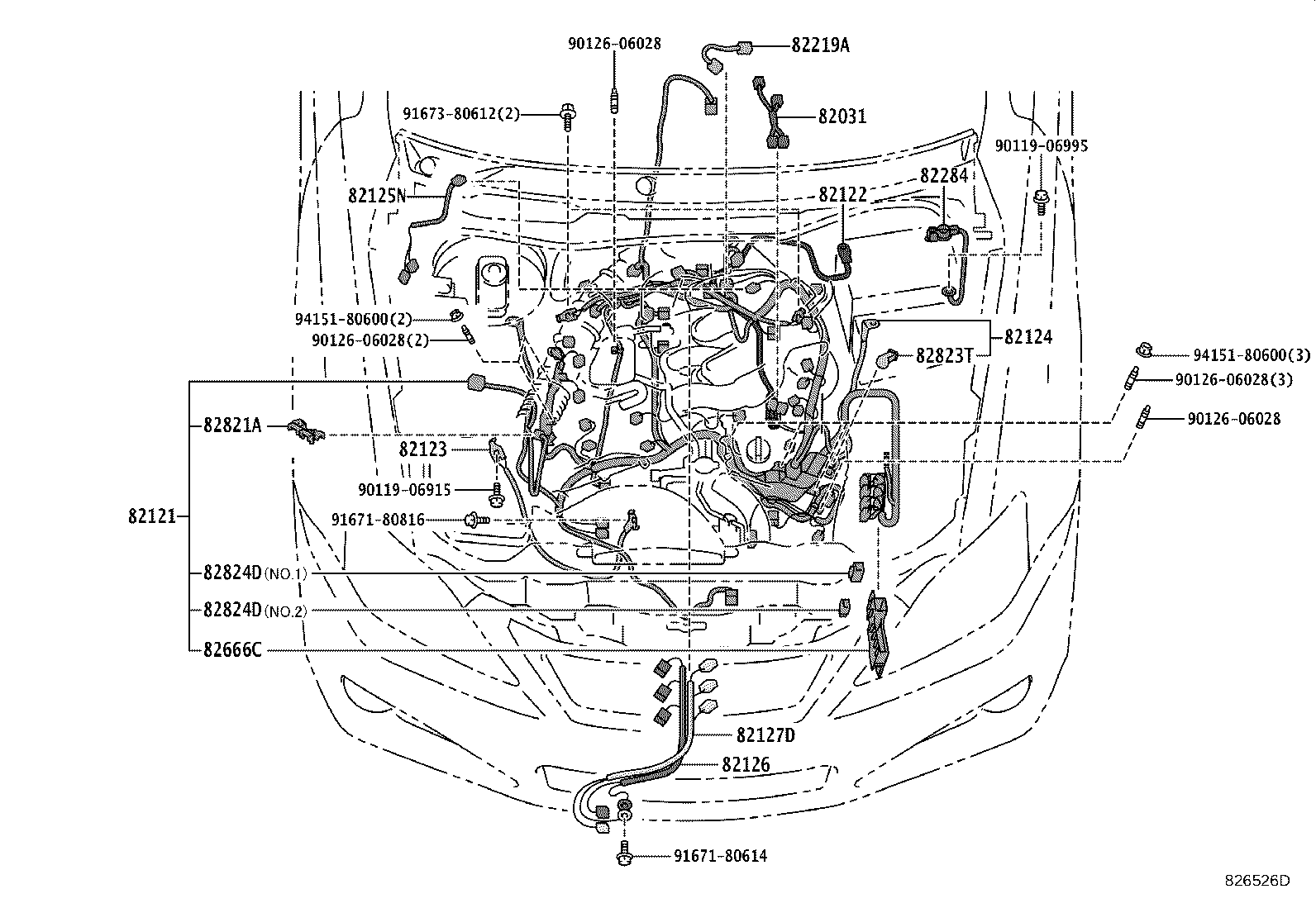

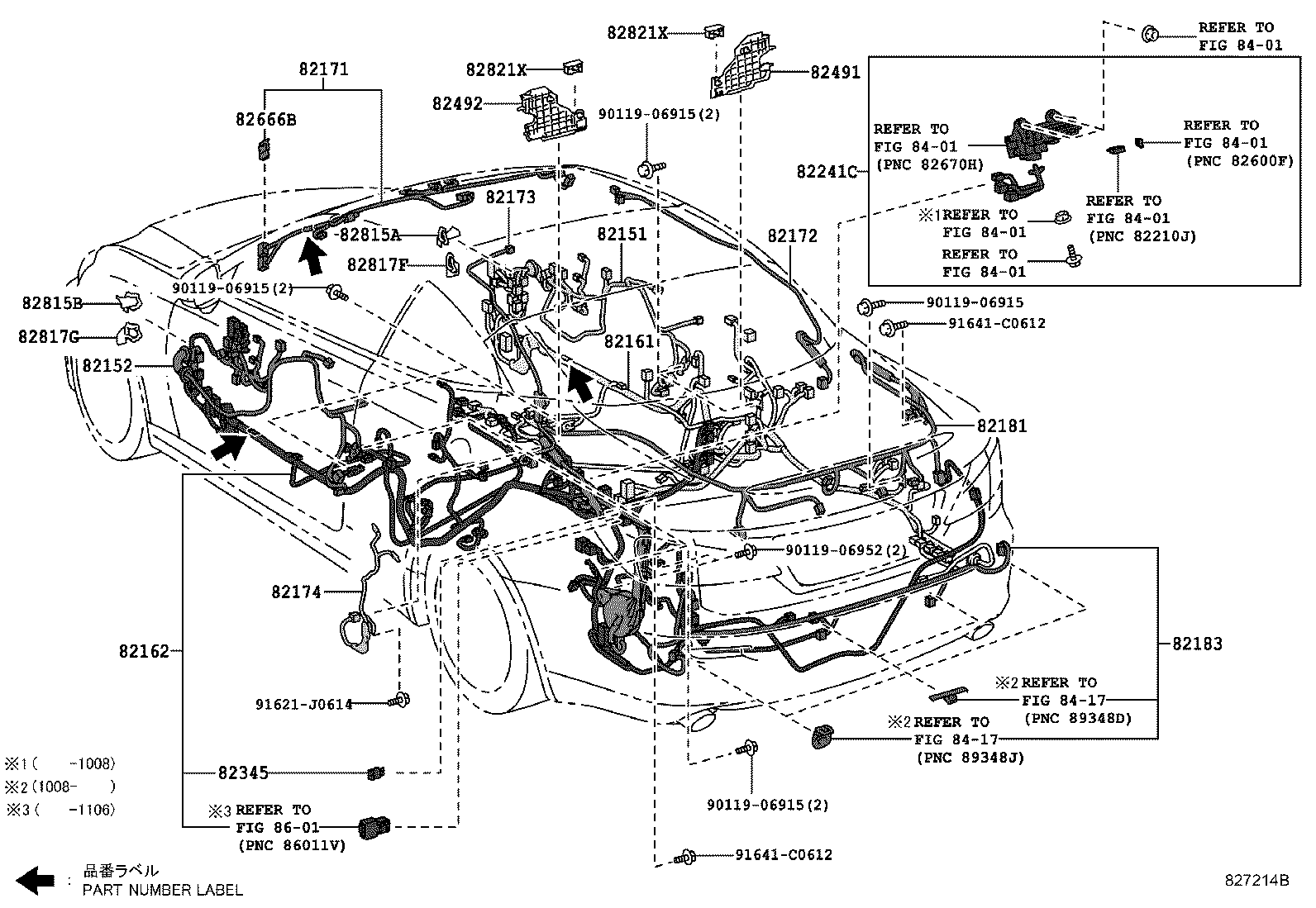

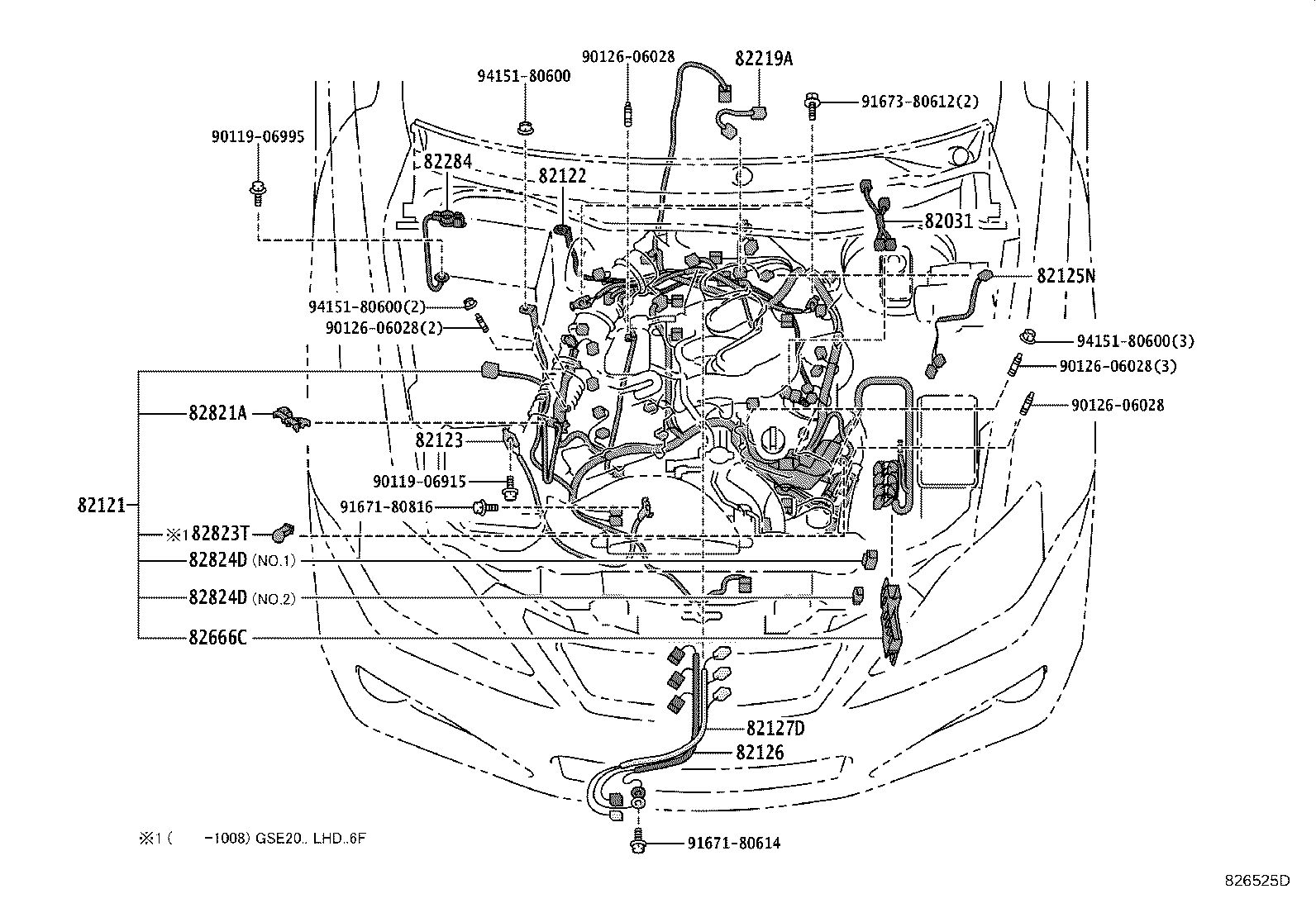

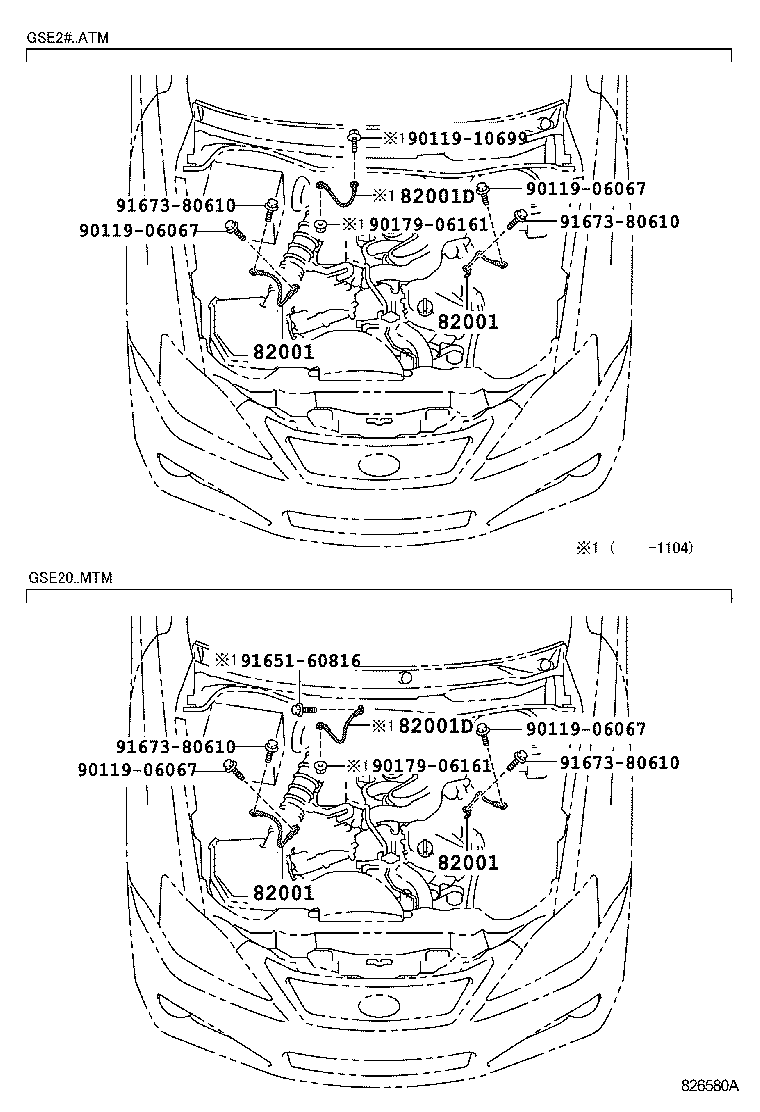

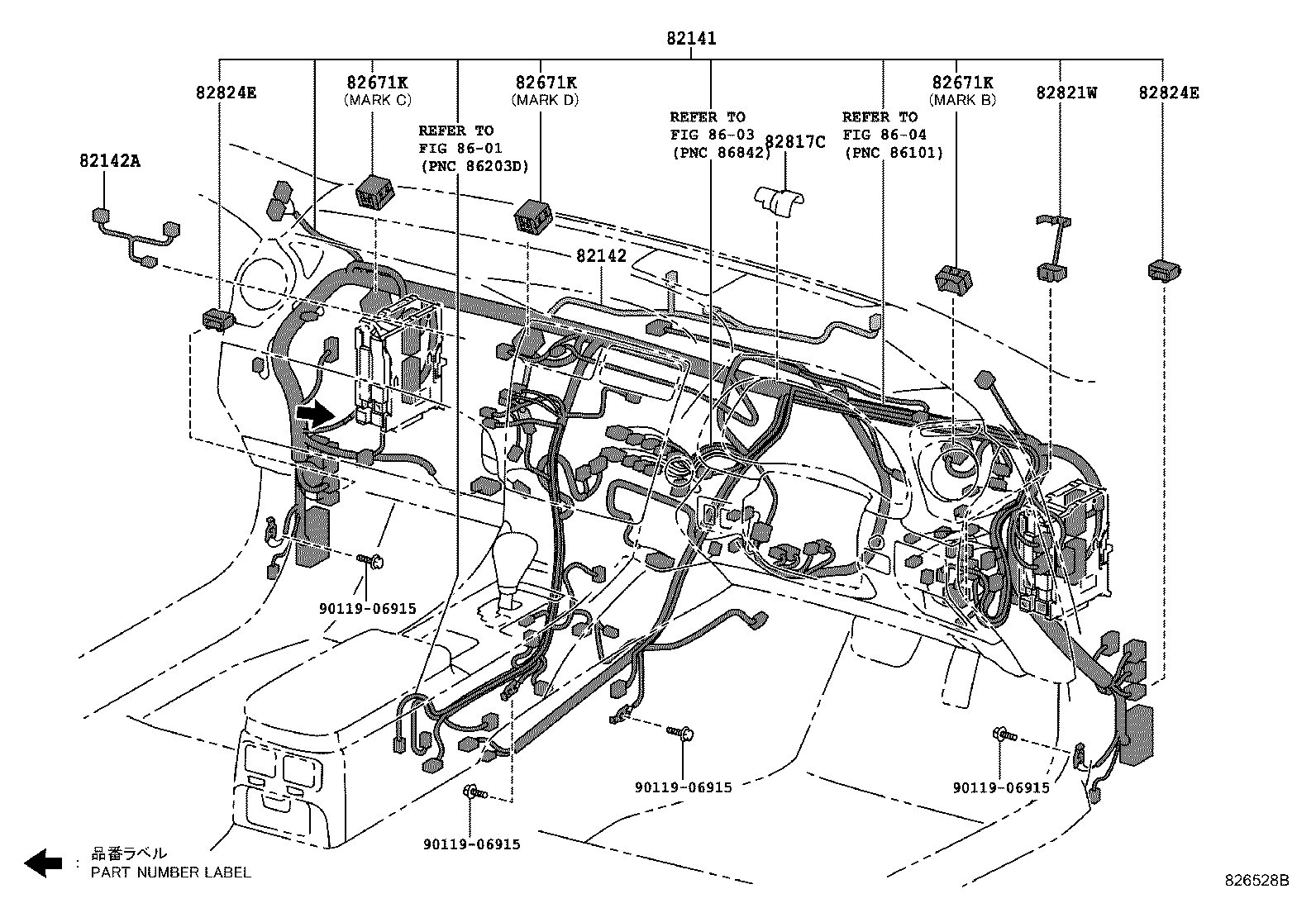

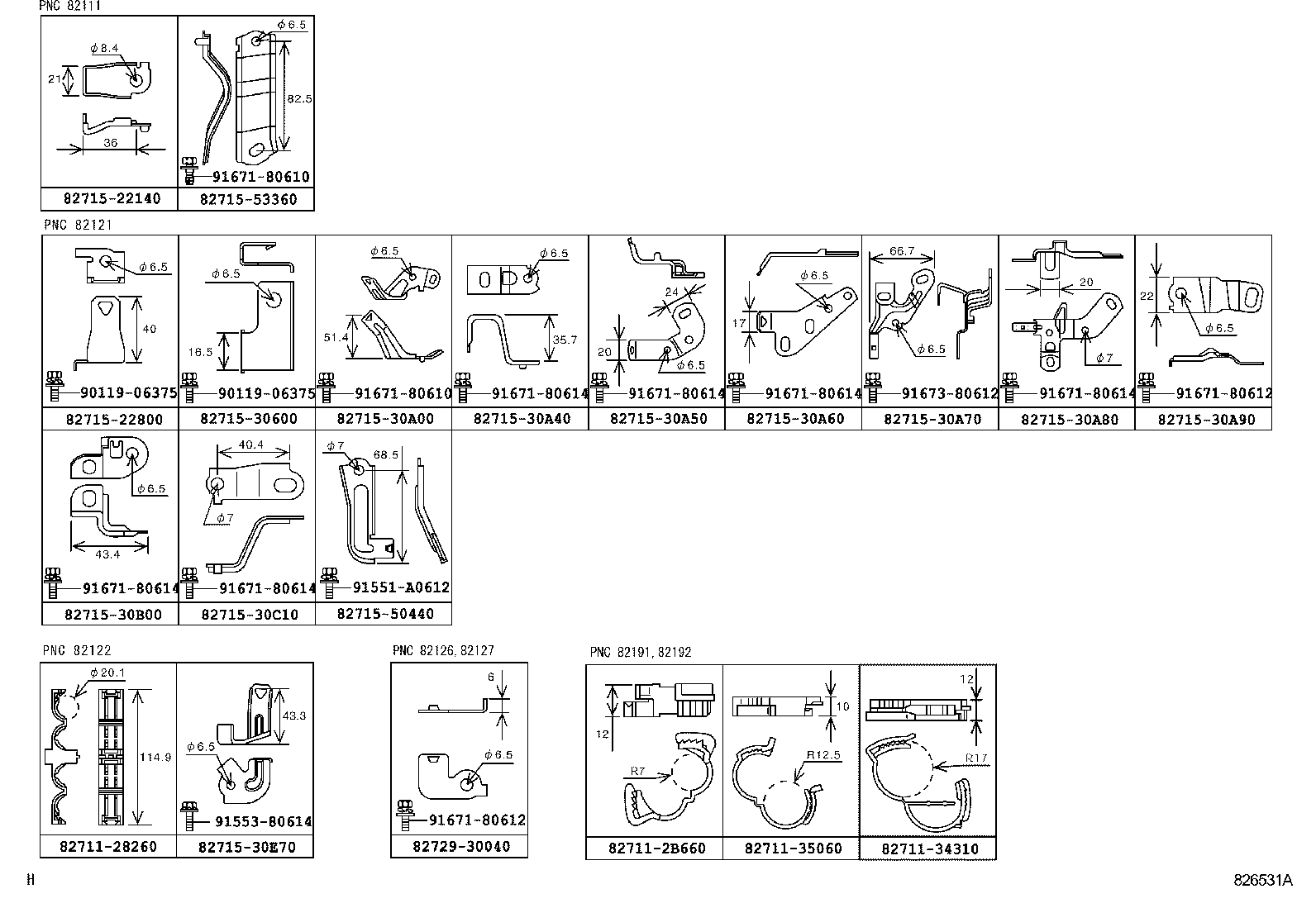

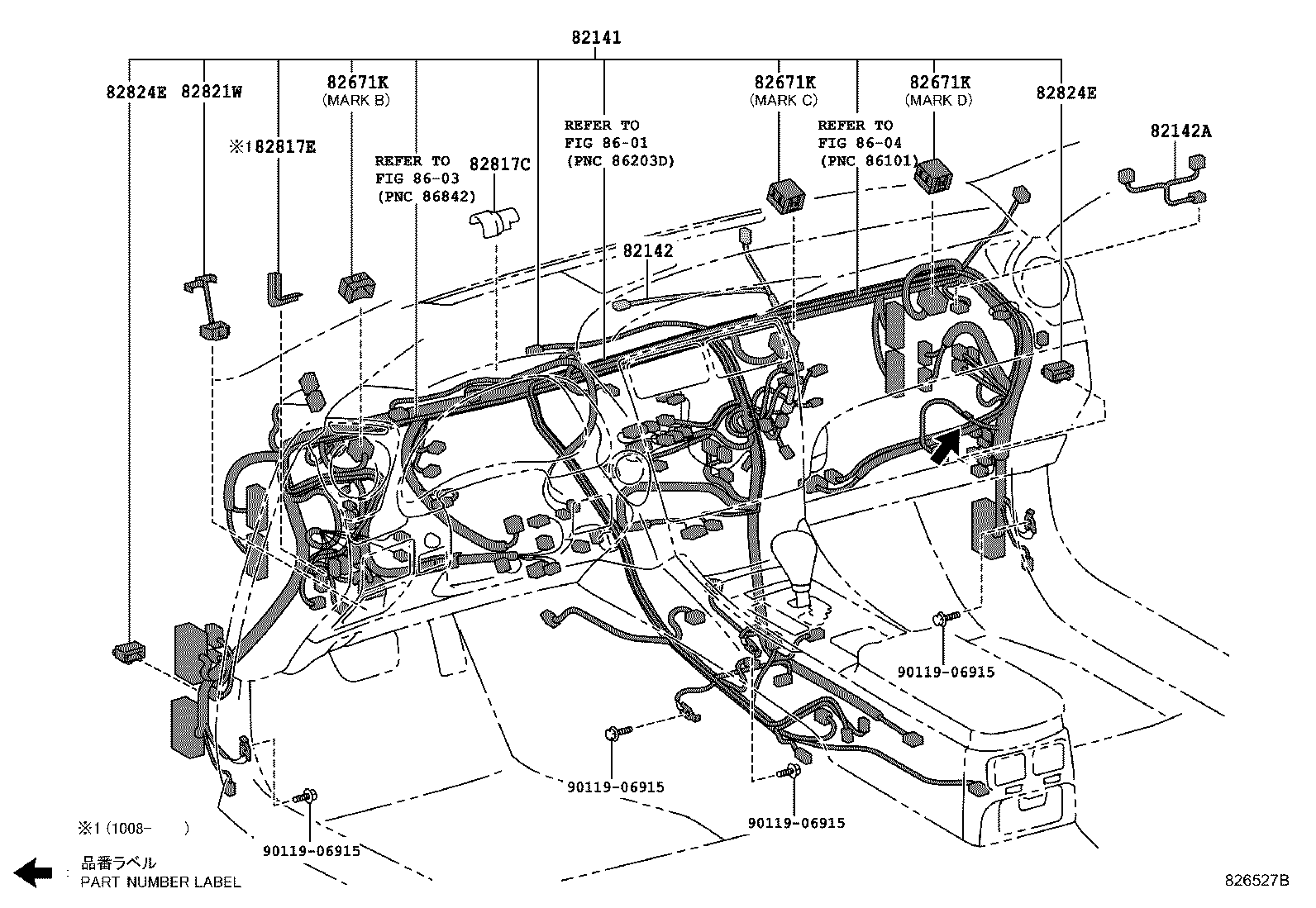

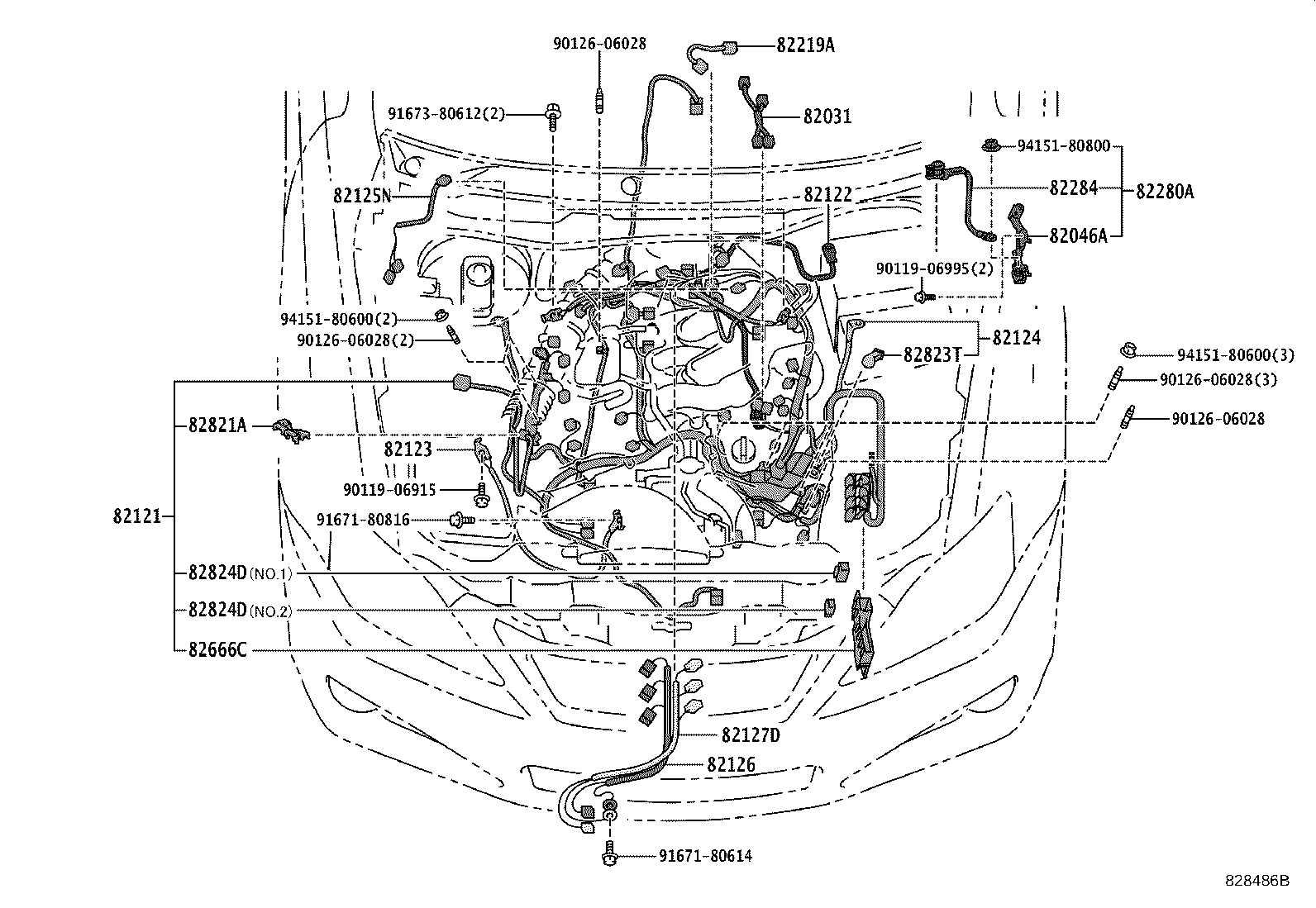

Figure 826523C 826523C 2009-04 → — Figure 826524C 826524C 2009-04 → — Figure 826525D 826525D 2009-04 → 2012-08 Figure 826526D 826526D 2009-04 → 2012-08 Figure 828485B 828485B 2012-08 → — Figure 828486B 828486B 2012-08 → — Figure 826527B 826527B 2009-04 → — Figure 826528B 826528B 2009-04 → — Figure 827214B 827214B 2009-04 → — Figure 826530 826530 2009-04 → — Figure 826531A 826531A 2009-04 → — Figure 826580A 826580A 2009-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001D Cable, Bond, NO.3
82031 Wire Sub-assy, Ignition Coil
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82174 Wire, Roof, NO.4
82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82241C Wire, Relay
82280A Wire Assy, Battery TO Cowl Top Side
82284 Wire, Earth
82345 Diode
82491 Plate, Wiring Harness Protector, NO.1
82492 Plate, Wiring Harness Protector, NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82671 Block, Junction
82671K Block, Junction, NO.3
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82821A Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824H Connector, Wiring Harness
82825M Connector, Wiring Harness
86011G Condenser
89656A Wire, Power Steering Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
