Toyota Lexus IS250C
2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe
Supported model
Data version 2016-01
Switch & Relay & Computer
135 part groups · 17 illustrations
Illustrations

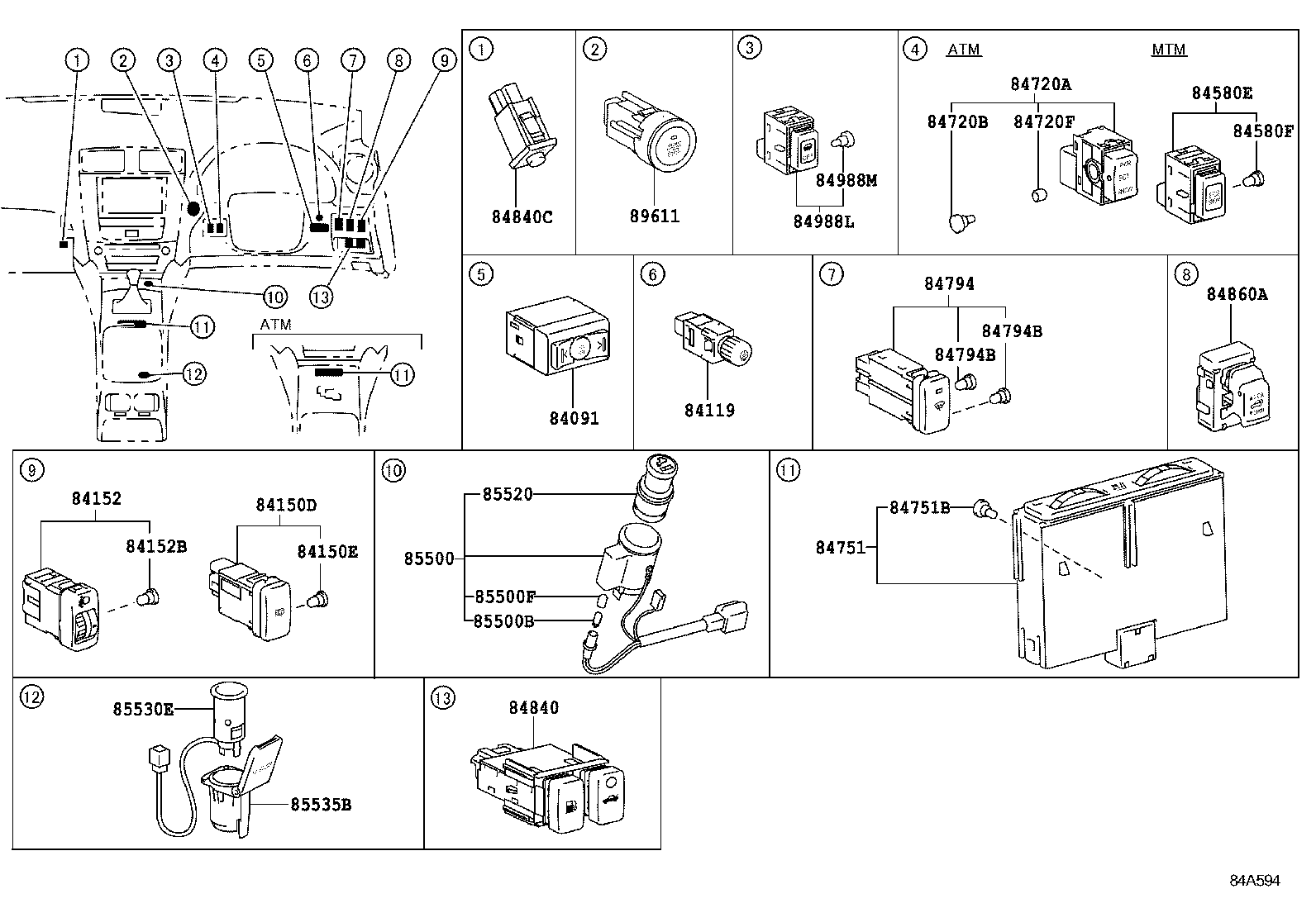

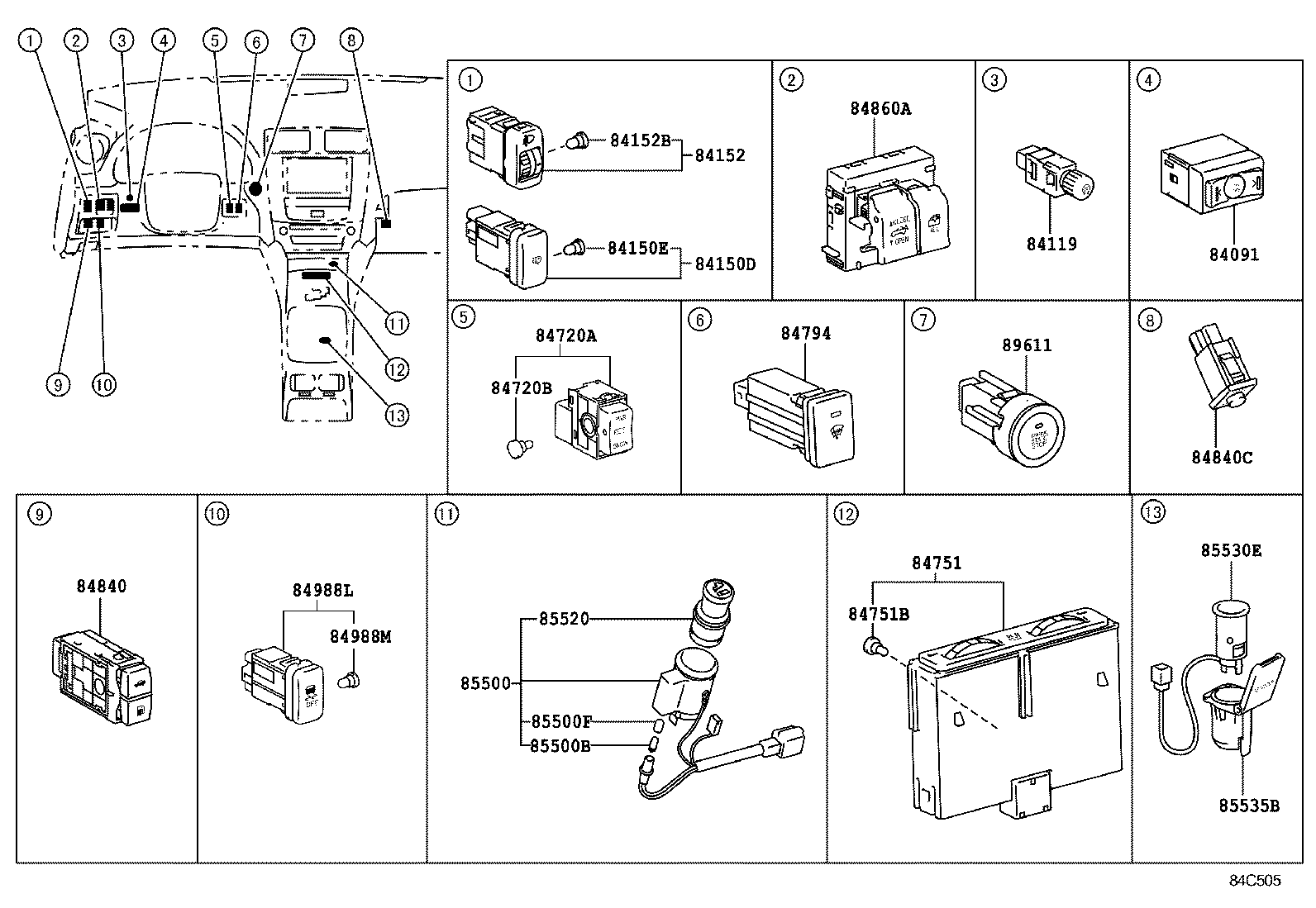

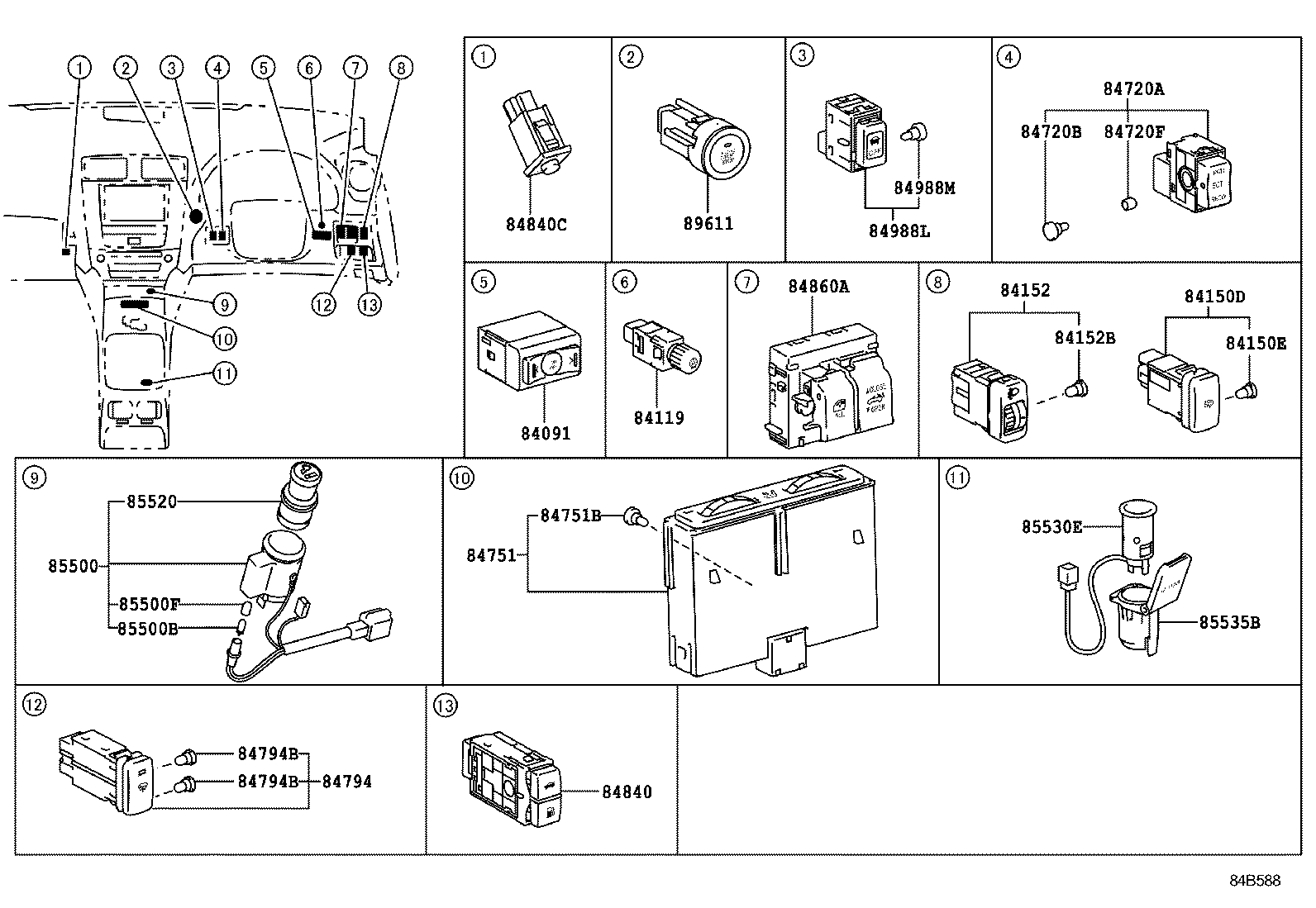

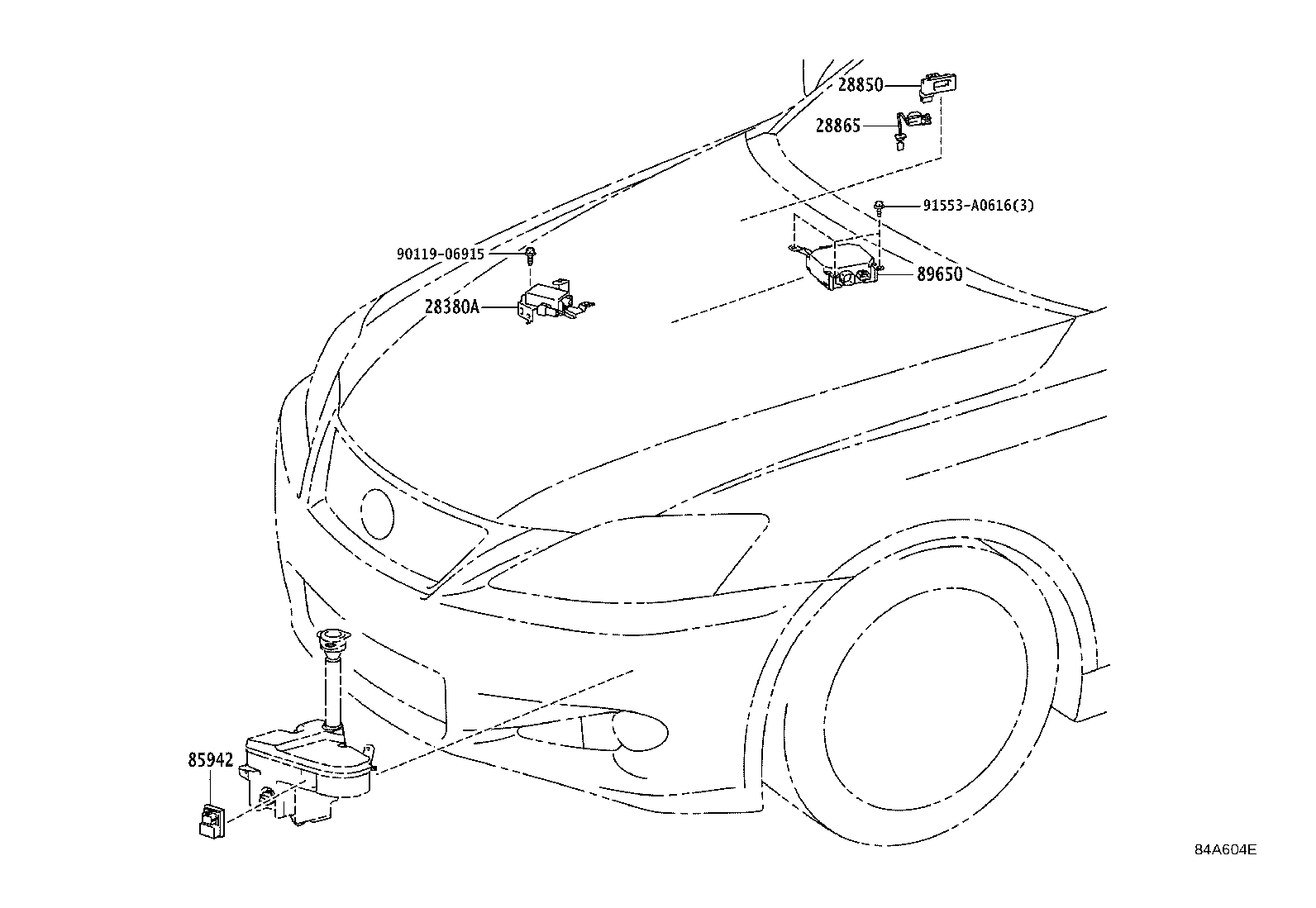

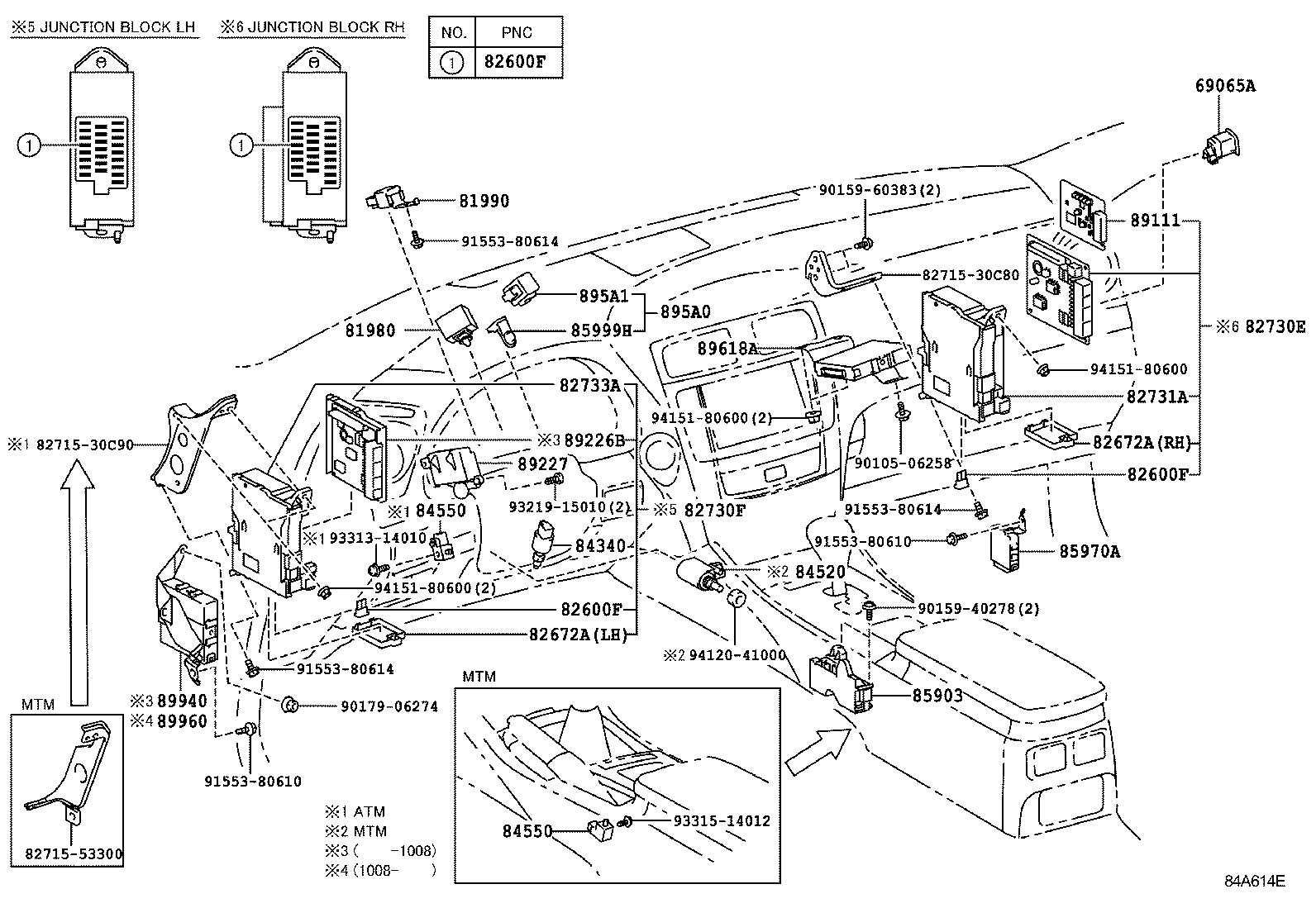

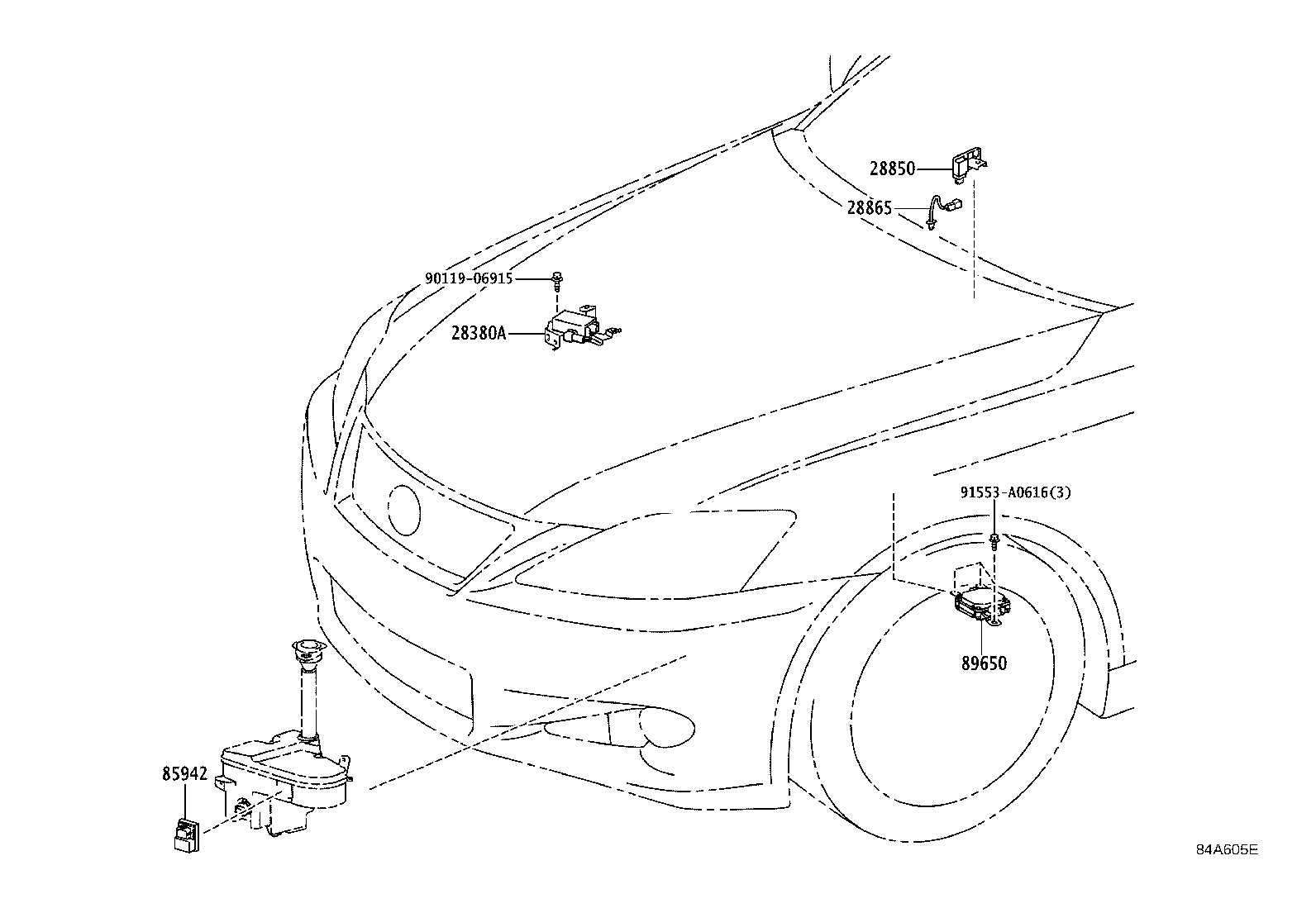

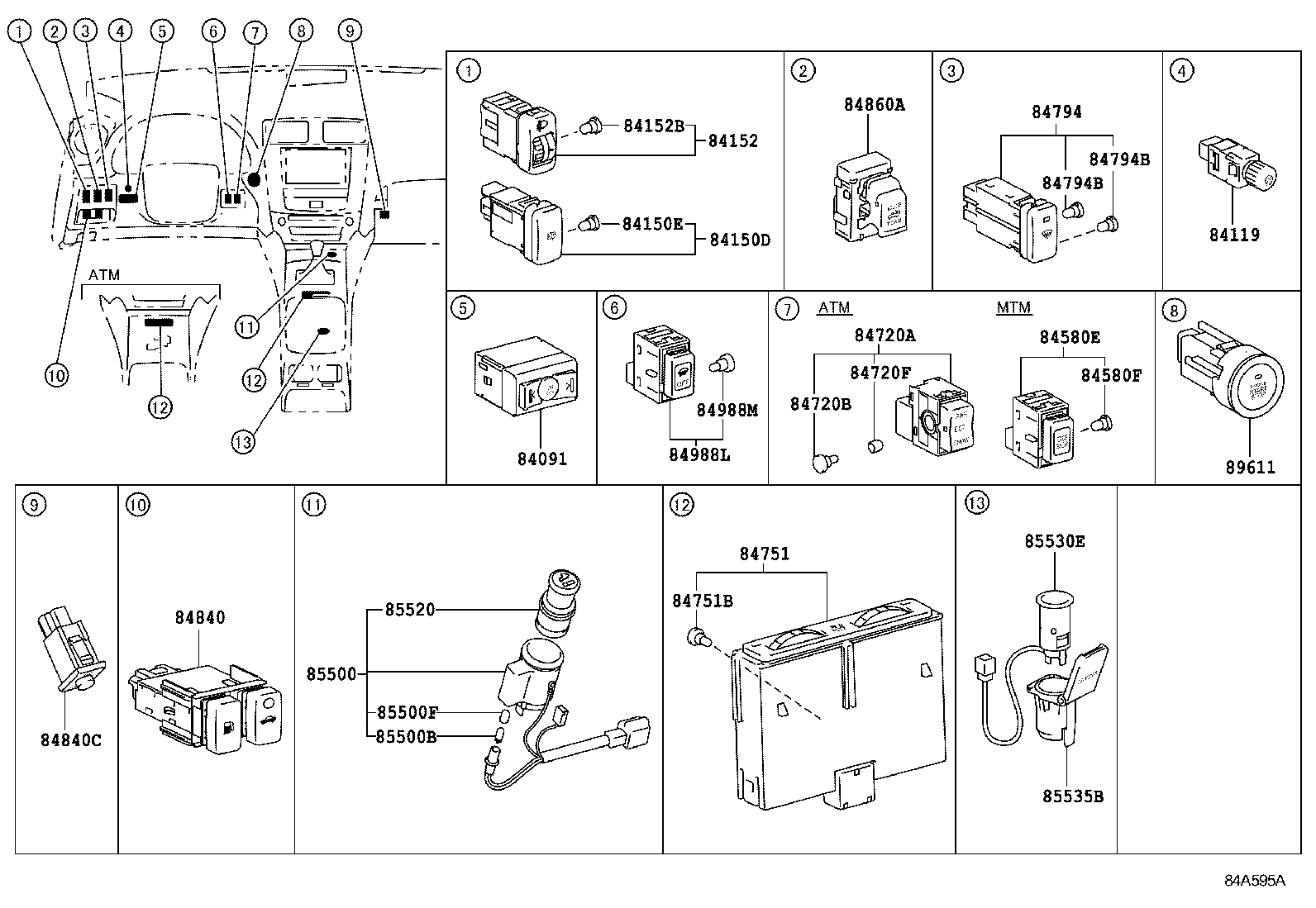

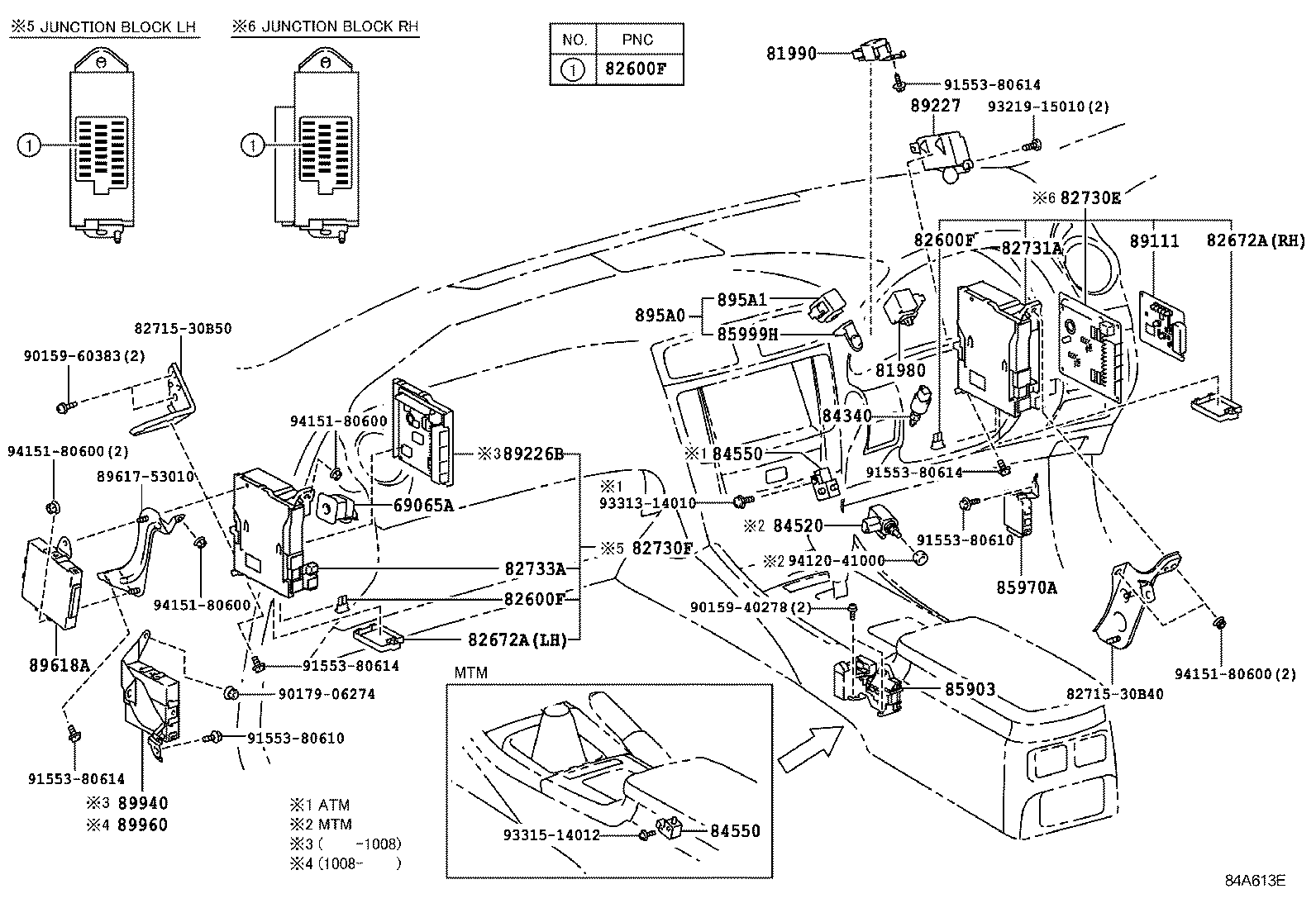

Part groups

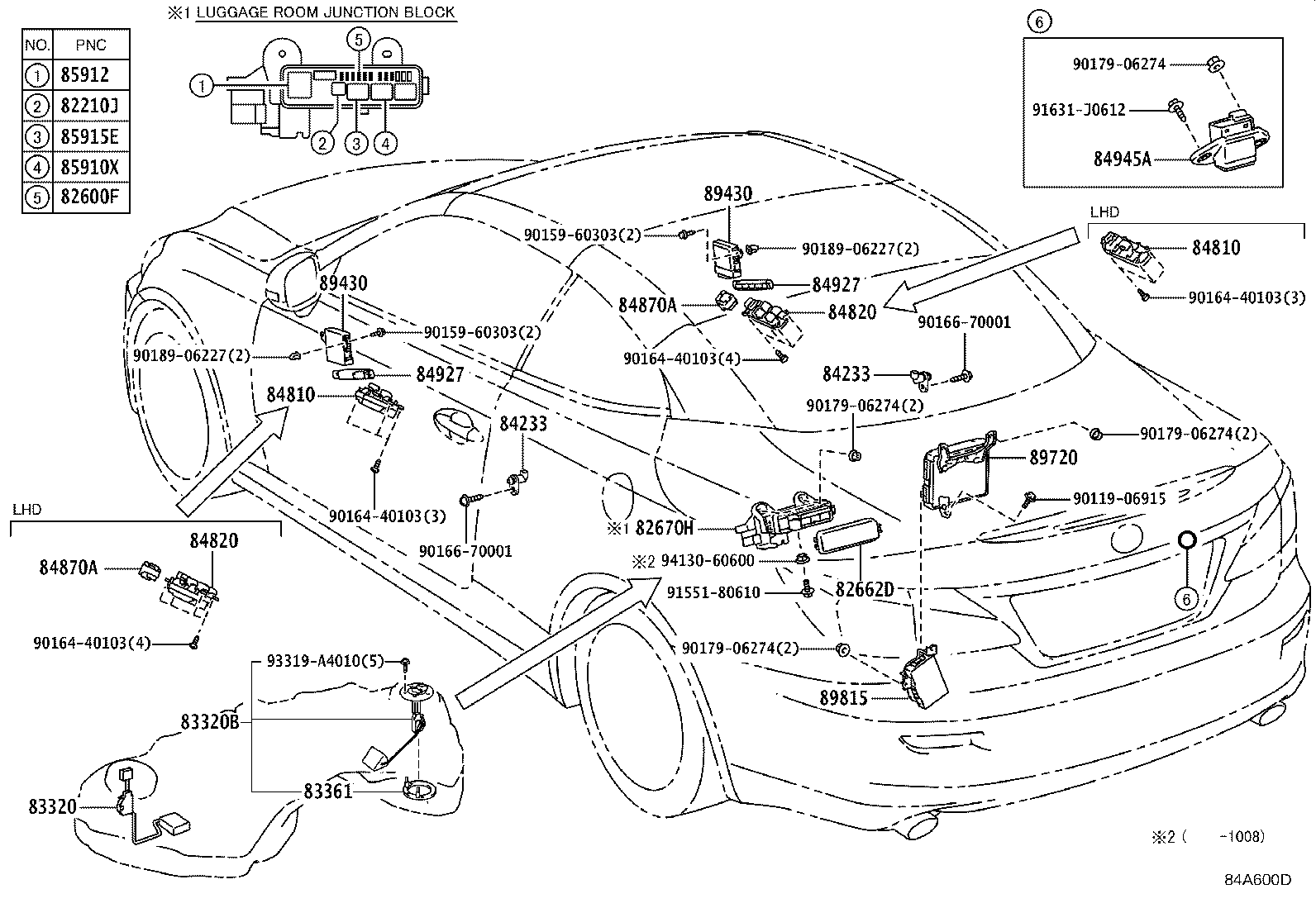

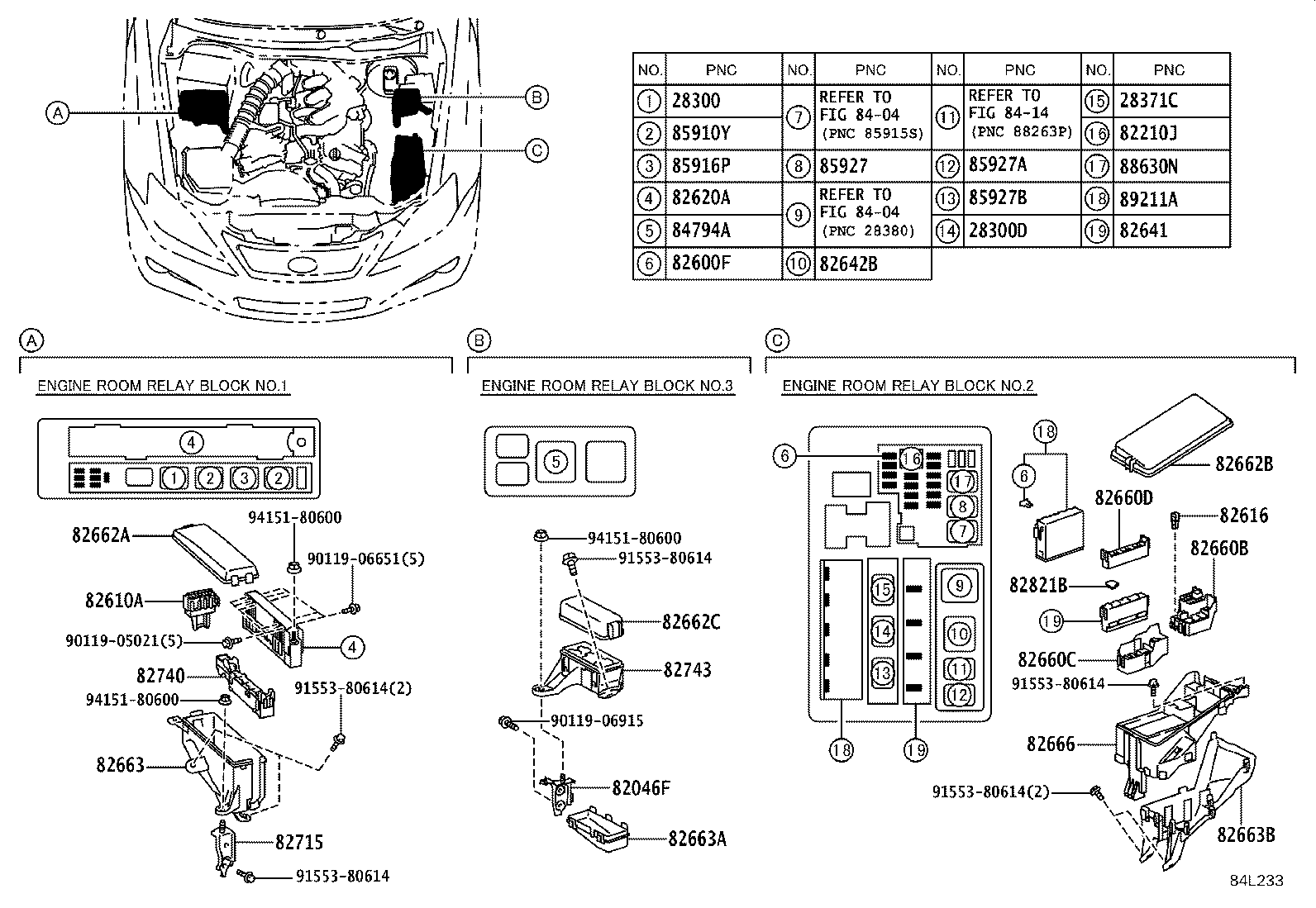

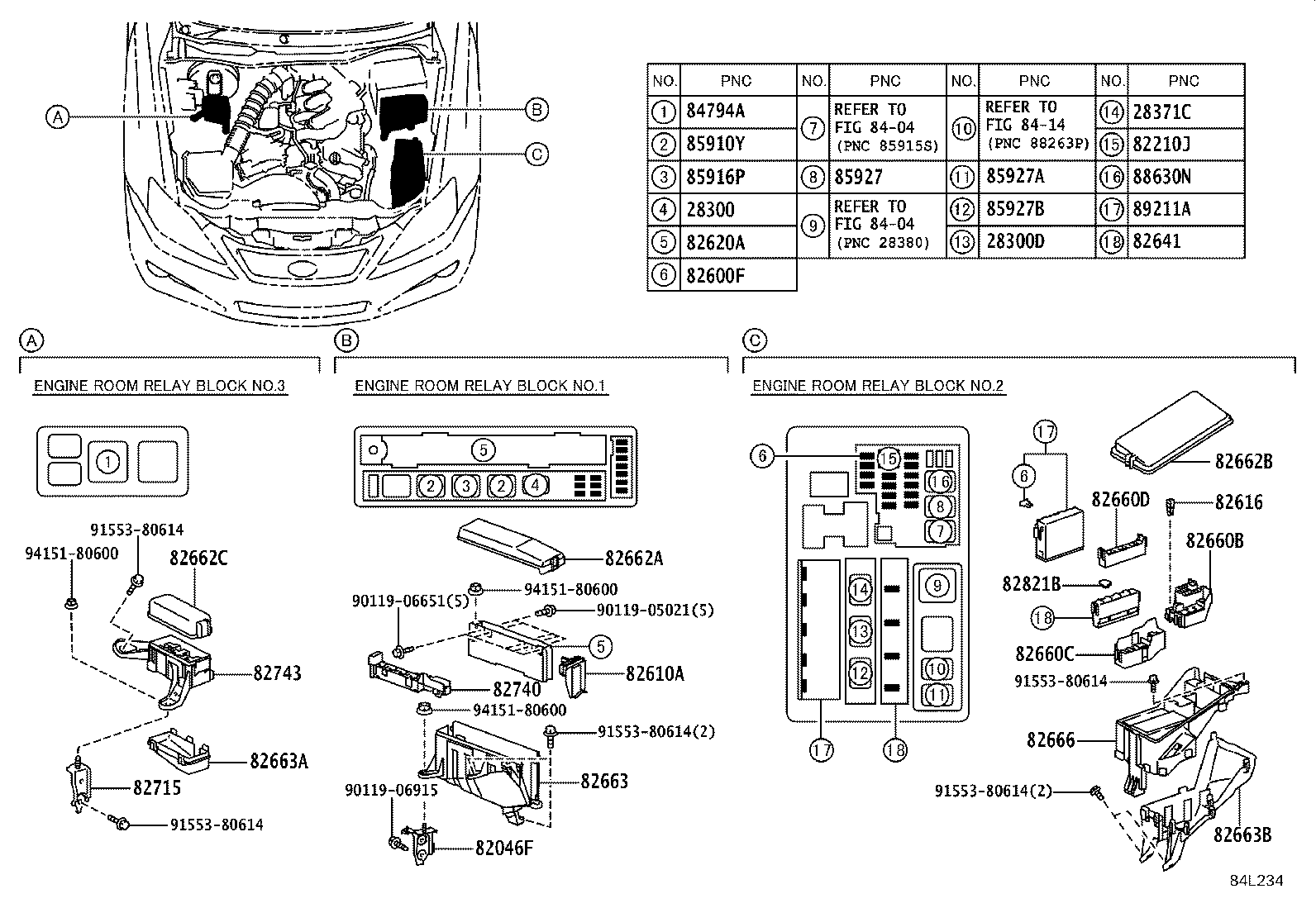

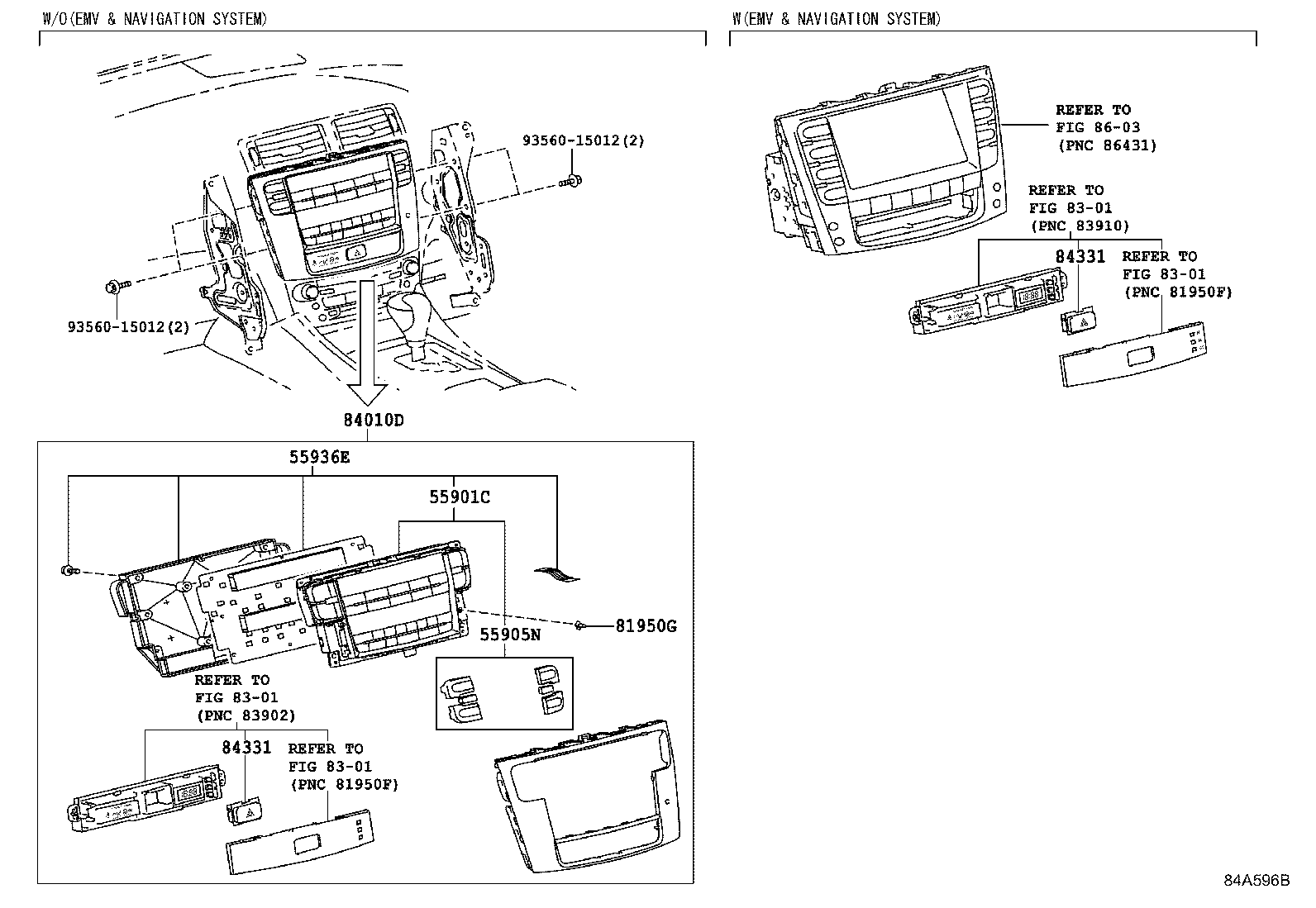

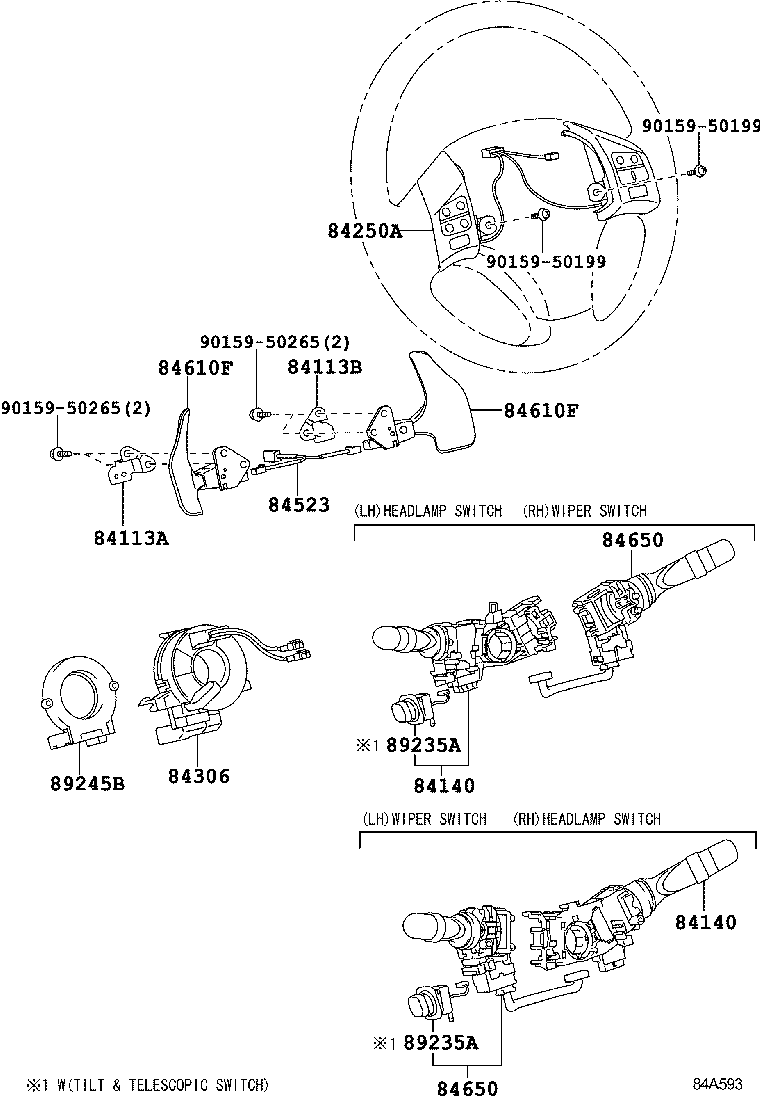

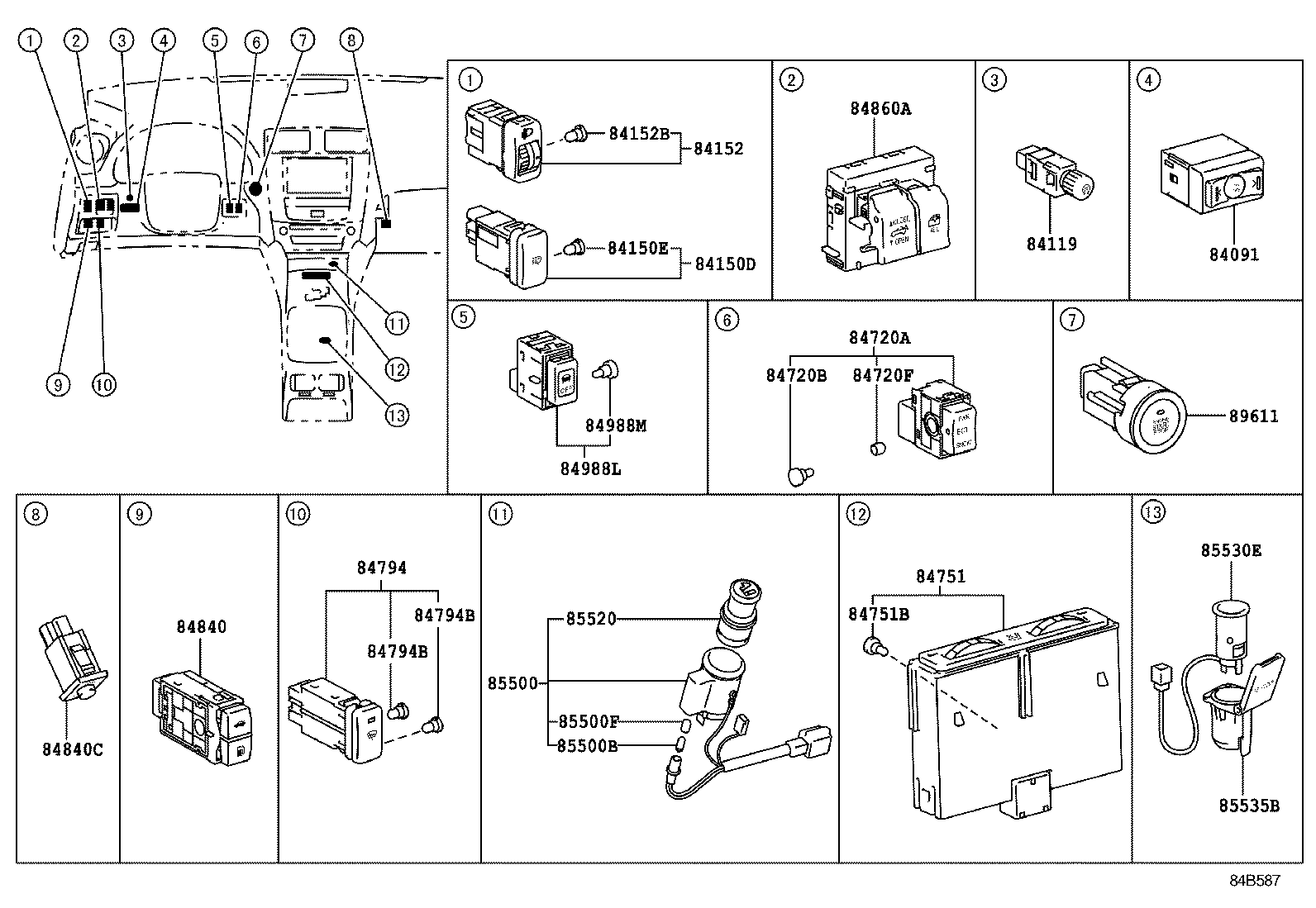

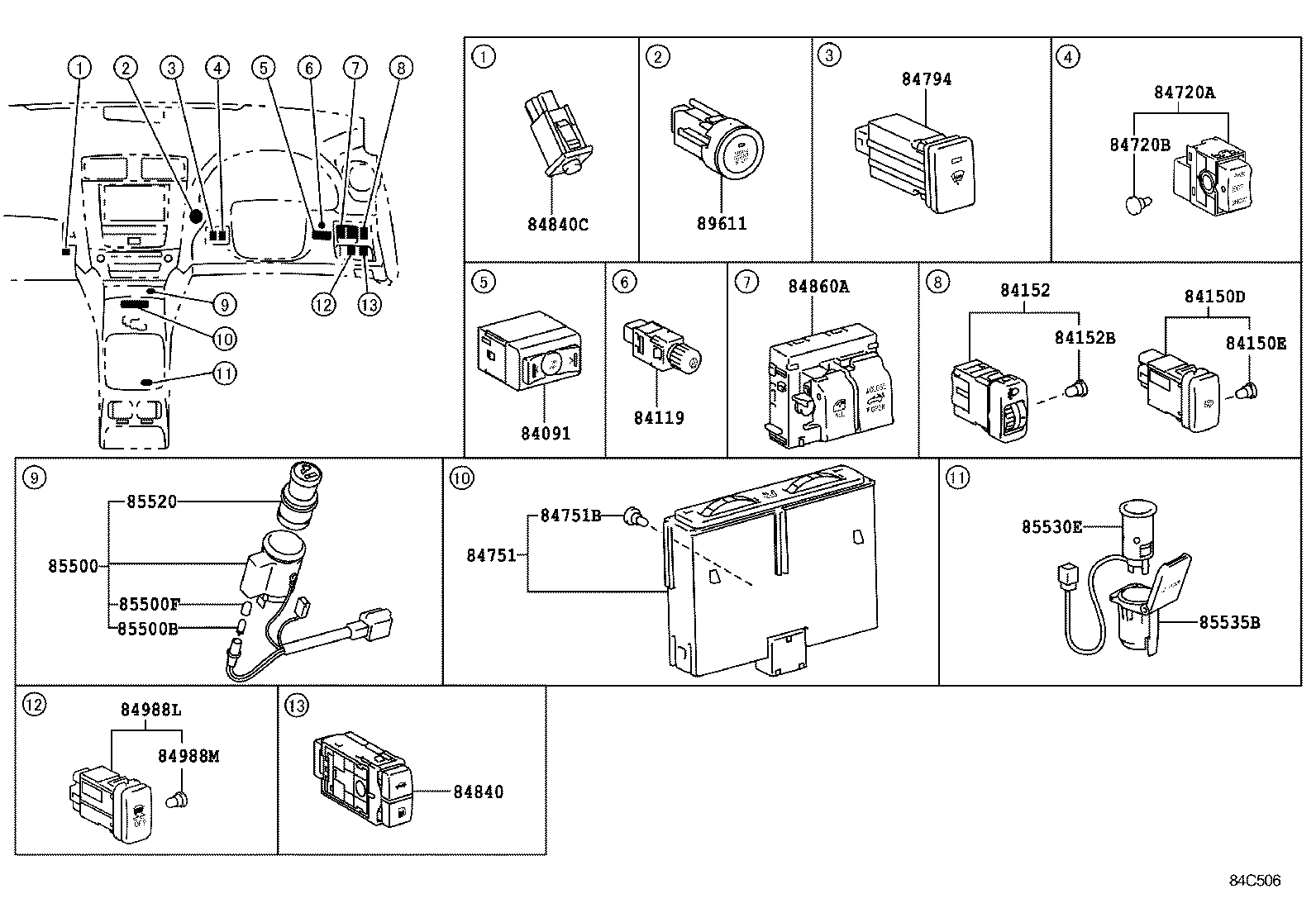

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28300D | Relay, Starter Cut |
| 28371C | Relay, Ignition, NO.2 |
| 28380A | Resister, Fuel Pump |
| 28850 | Sensor Assy, Battery Current |
| 28865 | Sensor, Battery Thermometer |
| 55901C | Base Sub-assy, Heater Control |
| 55905N | Knob Sub-assy, Control, NO.1 |
| 55936E | Switch, Center Cluster Module |
| 69065A | Cylinder Sub-assy, Airbag Cut Off Switch |
| 81950G | Lens Assy, Switch Indicator |
| 81980 | Flasher Assy, Turn Signal |
| 81990 | Relay Assy, Turn Signal |
| 82046F | Wire Sub-assy, Body Ground, NO.1 |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82662D | Cover, Relay Block, Upper, NO.4 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82666 | Holder, Connector |
| 82670H | Block Assy, Luggage Room Junction |
| 82672A | Cover, Junction Block |
| 82715 | Bracket,Wiring Harness Clamp |
| 82730E | Block Assy, Junction, RH |
| 82730F | Block Assy, Junction, LH |
| 82731A | Block, Cowl Side Junction, RH |
| 82733A | Block, Cowl Side Junction, LH |
| 82740 | Block Assy, Engine Room Relay |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82821B | Cover, Connector |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83361 | Gasket, Fuel Sender Gage |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84010D | Control & Panel Assy, Integration |
| 84091 | Switch Set, Satellite |
| 84113A | Bracket, Switch, NO.1 |
| 84113B | Bracket, Switch, NO.2 |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84150E | Bulb, Headlamp Cleaner Switch |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84331 | Knob, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84520 | Switch Assy, Clutch Start |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84580E | Switch Assy, Throttle Position |
| 84580F | Bulb, Throttle Position Switch |
| 84610F | Switch Assy, Transmission Shift |
| 84650 | Switch Assy, Windshield Wiper |
| 84720A | Switch Assy, Pattern Select, NO.1 |
| 84720B | Bulb (FOR PATTERN SELECT SWITCH) |
| 84720F | Cap, Pattern Select Switch |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |
| 84794B | Bulb, FR Wiper Deicer Switch |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840C | Switch Assy, Luggage Door Opening, Cancel |
| 84860A | Switch Assy, Sliding Roof |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84920C | Switch Assy, Power Seat Front, RH |
| 84920D | Switch Assy, Power Seat Front, LH |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84927 | Switch, Seat Memory |
| 84945A | Switch, Luggage Electrical Key |
| 84988L | Switch, Vsc Off |
| 84988M | Bulb, Vsc Off Switch |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85910X | Relay, Heater Mirror |
| 85910Y | Relay, Rear Heater |
| 85912 | Relay, Defogger |
| 85915E | Relay |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85942 | Relay, Headlamp Cleaner Control |
| 85970A | Relay Assy, Double Lock Door Control |
| 85999H | Bracket, Relay |
| 88630N | Relay Assy, Cooler |
| 89111 | Computer, Network Gateway |
| 89211A | Computer, Multiplex Network Body |
| 89226B | Computer, Multiplex Network Body, NO.2 |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89430 | Computer Assy, Outer Mirror Control |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 895A0 | Relay Assy, Stop Lamp Control |
| 895A1 | Relay, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89618A | Computer, Power Source Control |
| 89650 | Computer Assy, Power Steering |
| 89720 | Computer Assy, Sliding Roof Control |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
