Abs & Vsc

9 part groups · 2 illustrations

Illustrations

Figure 84A583D

84A583D 2009-04 → —

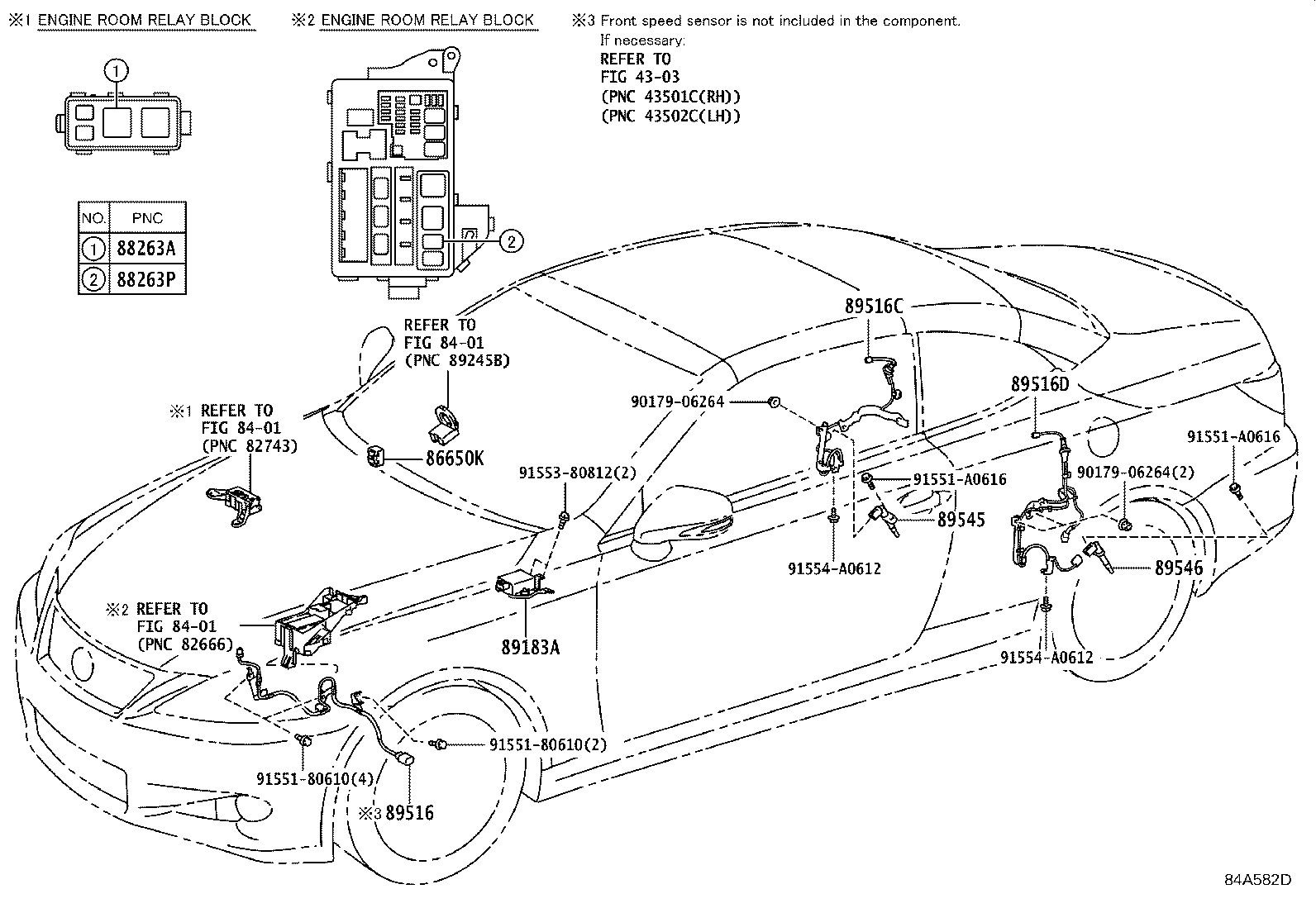

Figure 84A582D

84A582D 2009-04 → —

Part groups

PNC	Description
86650K	Buzzer Assy, Skid Control
88263A	Relay, Skid Control
88263P	Relay, Stop Lamp Control
89183A	Sensor, Yawrate
89516	Wire, Skid Control Sensor
89516C	Wire, Skid Control Sensor, RH
89516D	Wire, Skid Control Sensor, LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
