Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

6 part groups · 4 illustrations

Illustrations

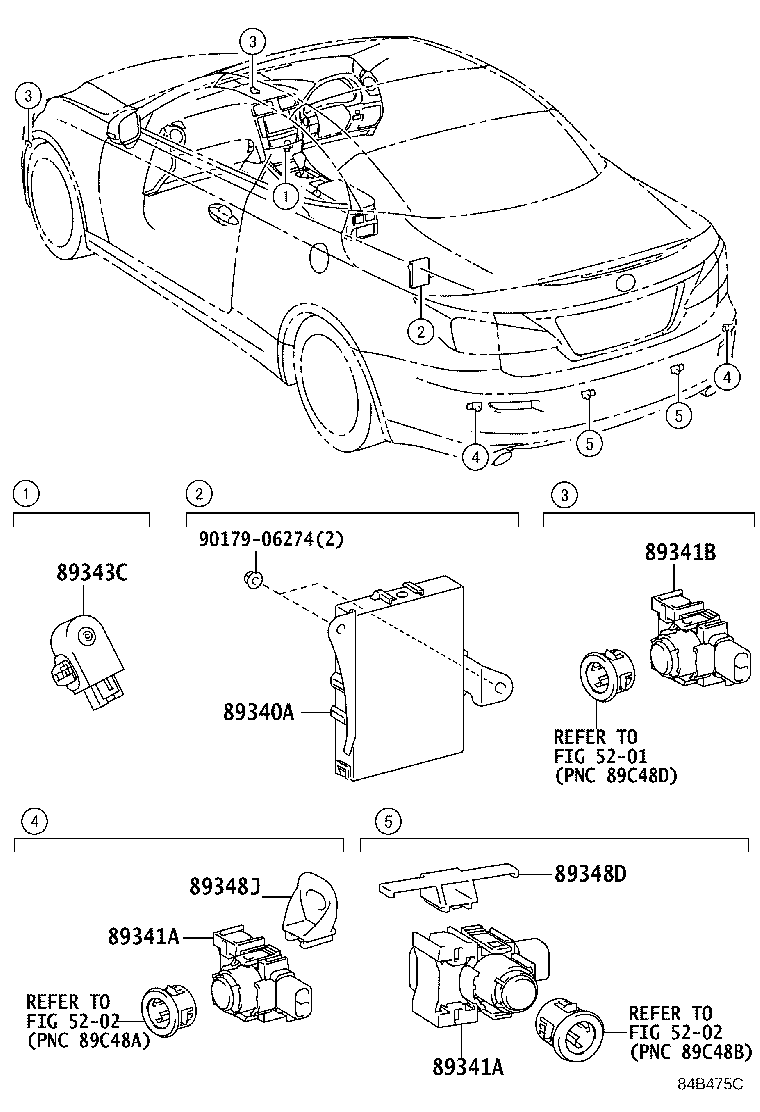

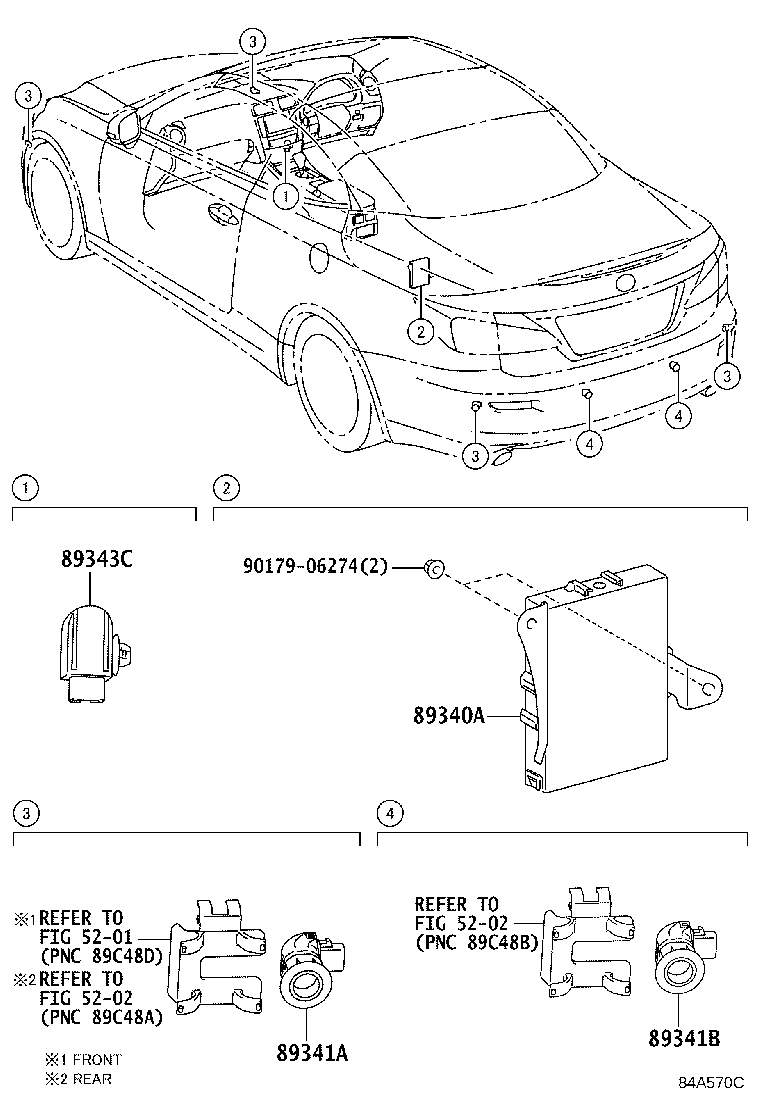

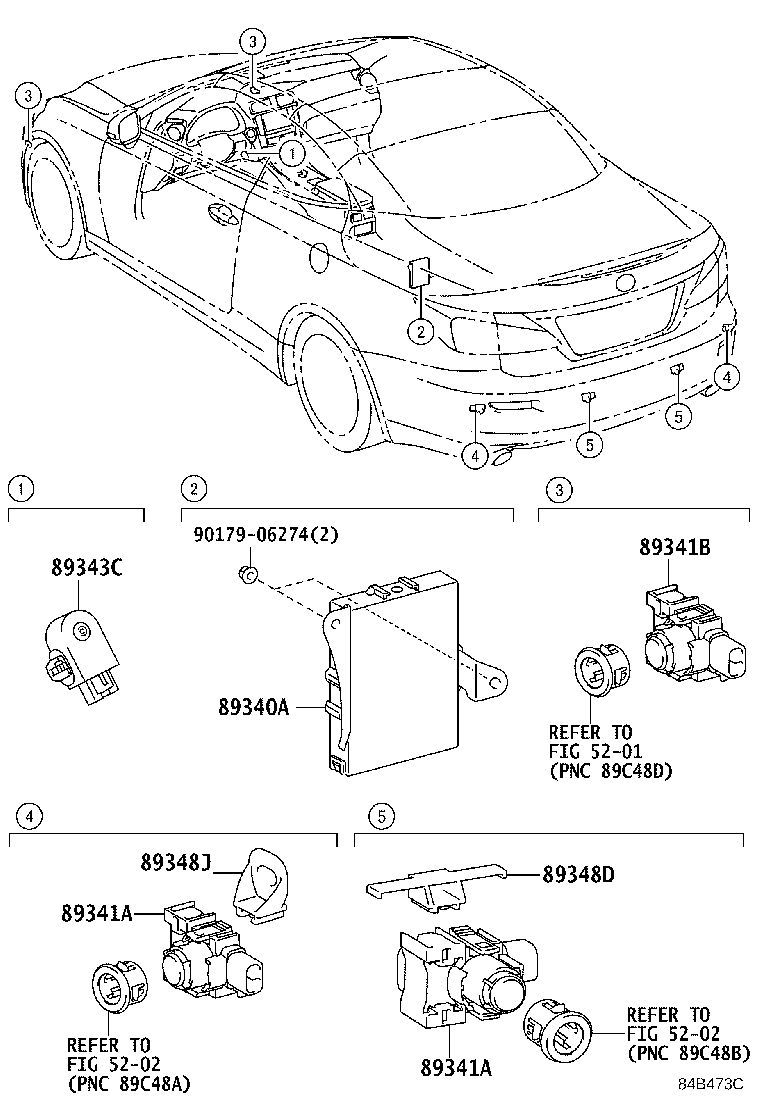

Figure 84A571C 84A571C 2009-04 → 2010-08 Figure 84A570C 84A570C 2009-04 → 2010-08 Figure 84B473D 84B473D 2010-08 → — Figure 84B475C 84B475C 2010-08 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
89348J Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
