Toyota Lexus IS250C
2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe
Supported model
Data version 2016-01

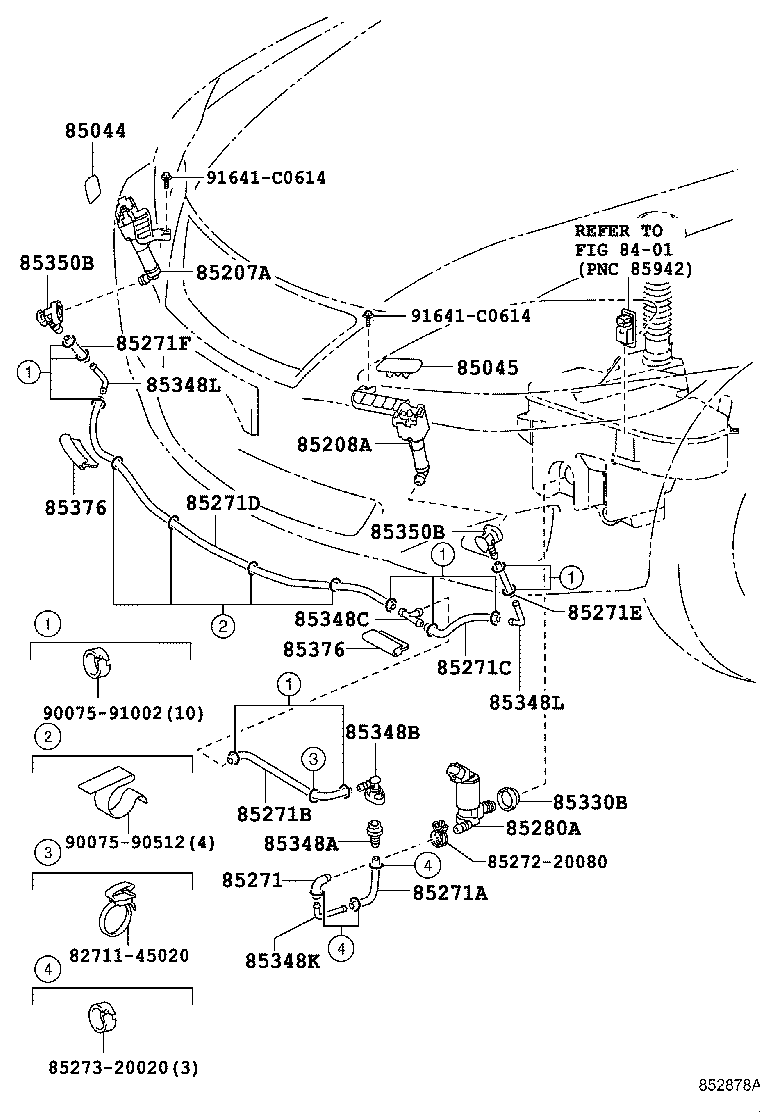

Headlamp Cleaner
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85044 | Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH |
| 85045 | Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH |
| 85207A | Actuator Sub-assy, Headlamp Washer, RH |
| 85208A | Actuator Sub-assy, Headlamp Washer, LH |
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271A | Hose, Headlamp Cleaner, NO.2 |
| 85271B | Hose, Headlamp Cleaner, NO.3 |
| 85271C | Hose, Headlamp Cleaner, NO.4 |
| 85271D | Hose, Headlamp Cleaner, NO.5 |
| 85271E | Hose, Headlamp Cleaner, NO.6 |
| 85271F | Hose, Headlamp Cleaner, NO.7 |
| 85280A | Motor And Pump Assy, Headlamp Cleaner |
| 85330B | Bush, Headlamp Cleaner Washer Jar |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85348B | Joint, Headlamp Cleaner Hose, NO.2 |
| 85348C | Joint, Headlamp Cleaner Hose, NO.3 |
| 85348H | Joint, Headlamp Cleaner Hose, NO.4 |
| 85348K | Joint, Headlamp Cleaner Elbow, NO.1 |
| 85348L | Joint, Headlamp Cleaner Elbow, NO.2 |
| 85350B | Joint, Headlamp Cleaner Elbow, NO.4 |
| 85376 | Protector, Headlamp Cleaner Hose, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
