Toyota Lexus IS250C

2009-04 → 2015-07 · chassis GSE20 · catalogue 246510 · Europe

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 6 illustrations

Illustrations

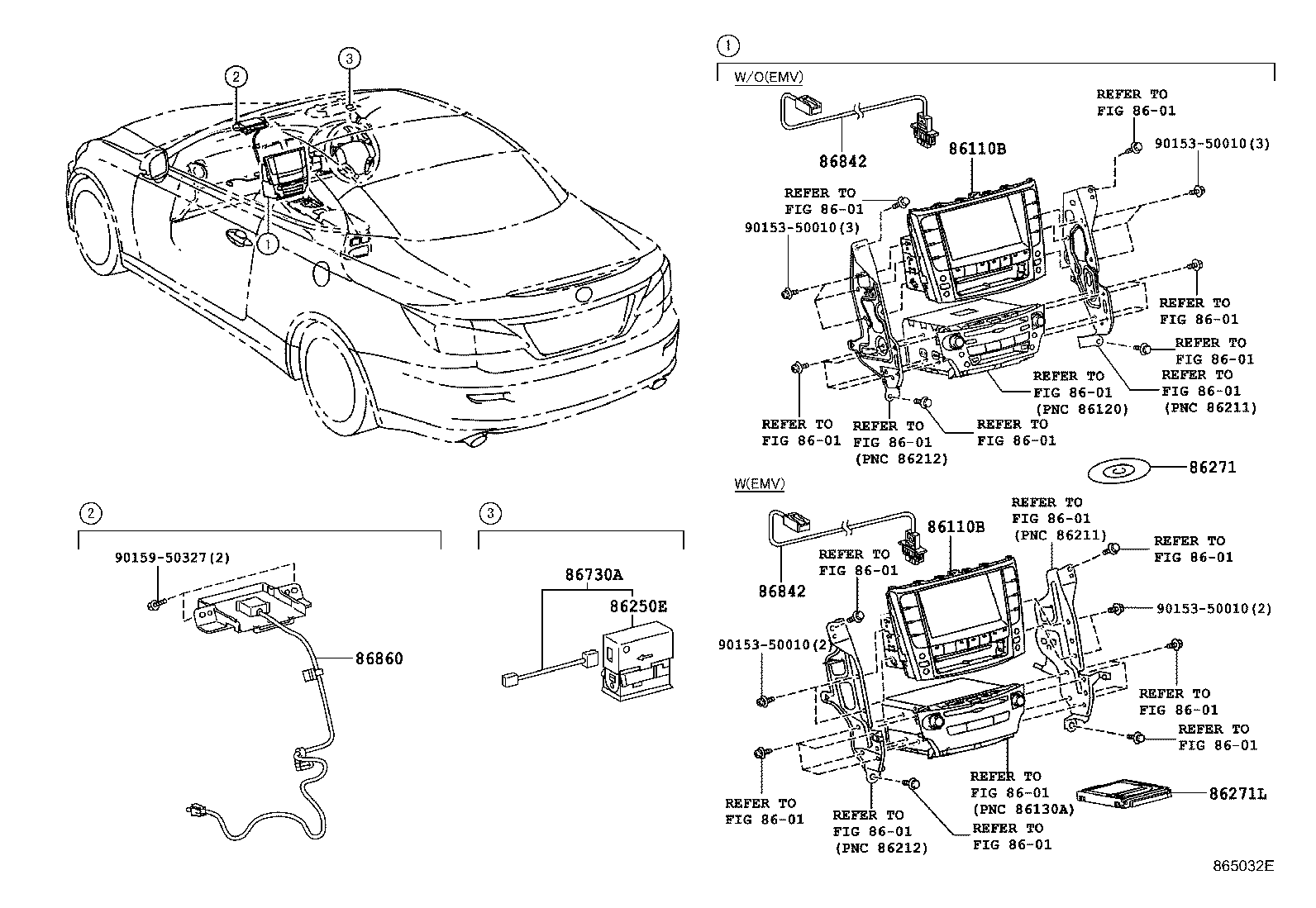

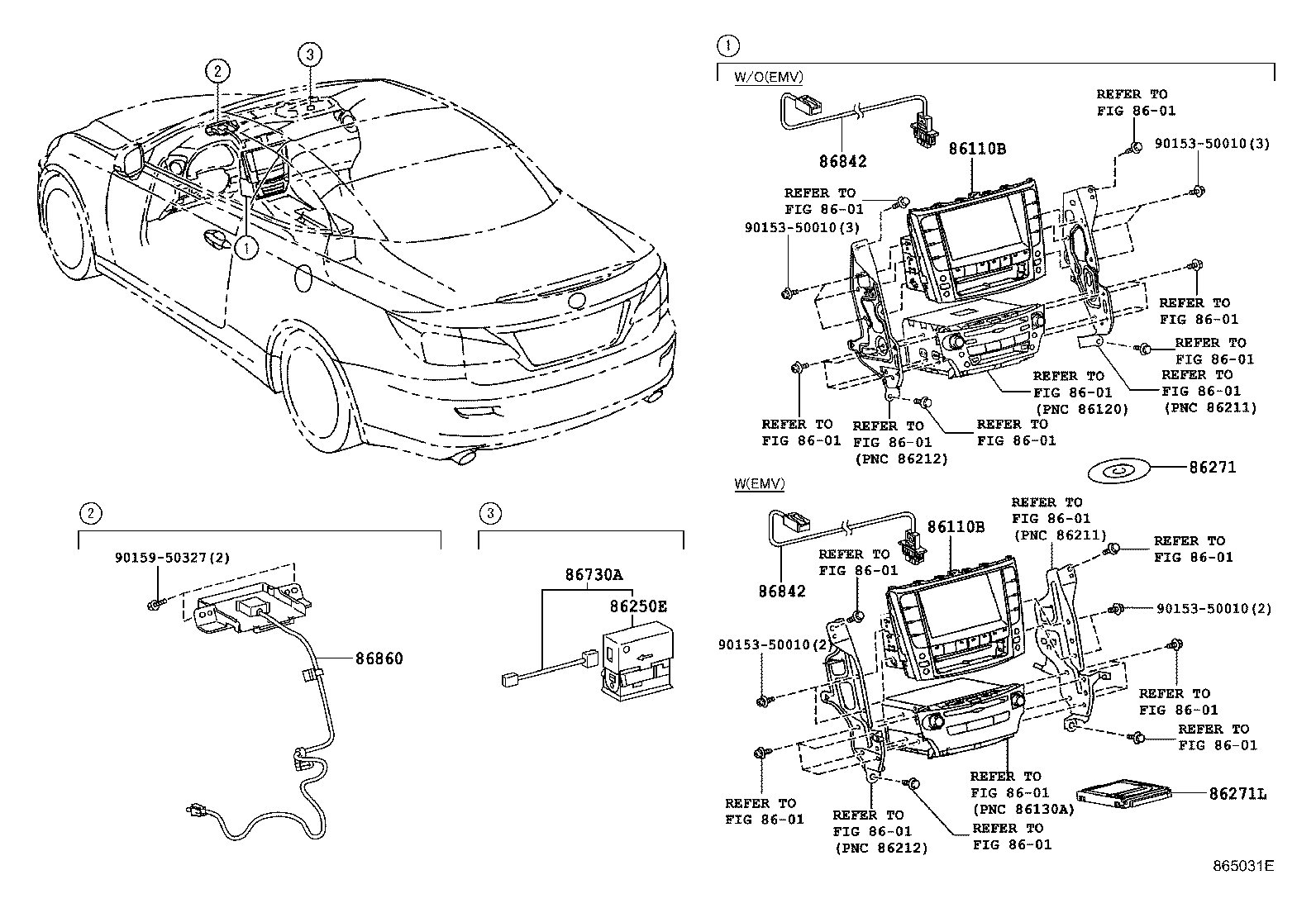

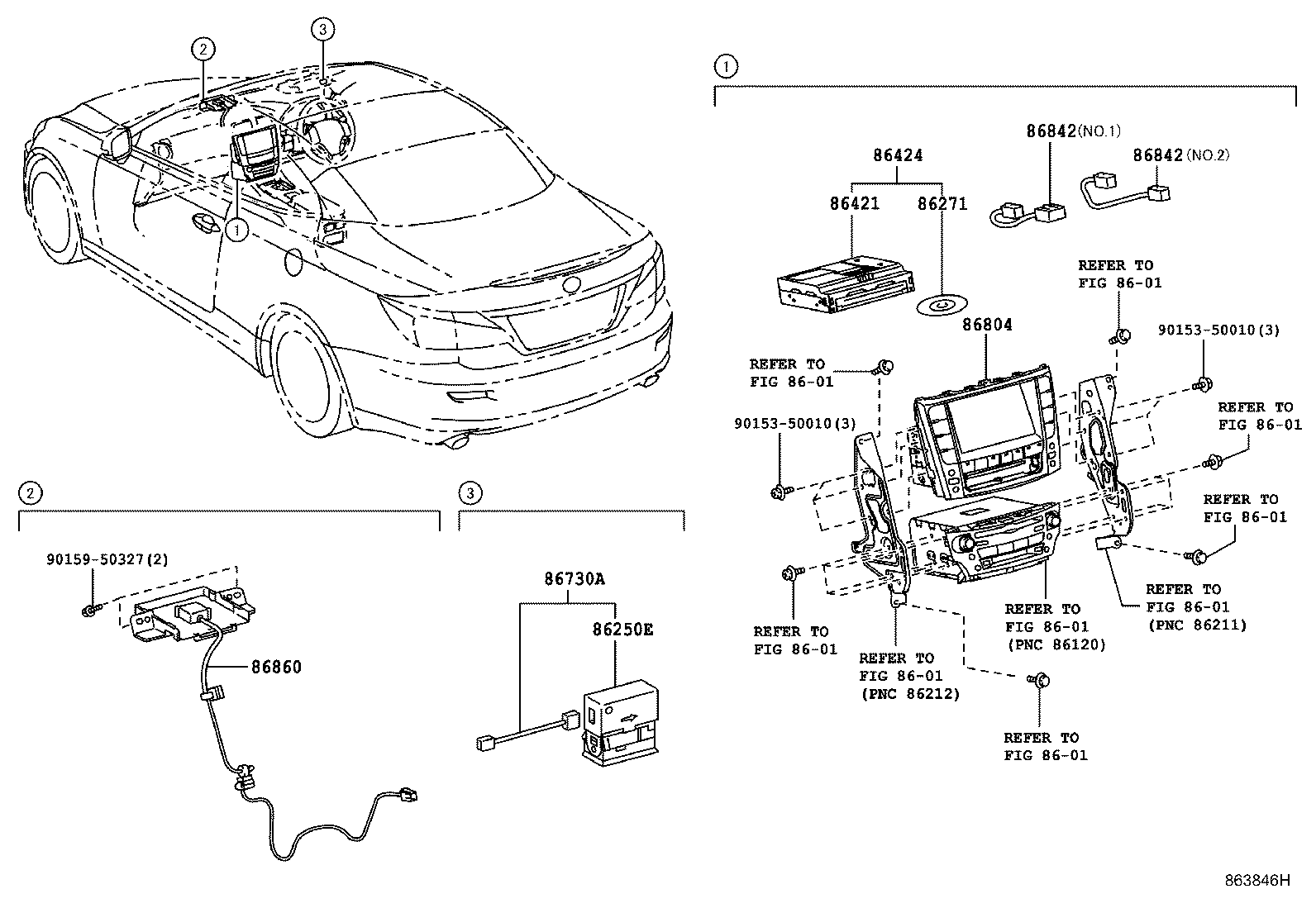

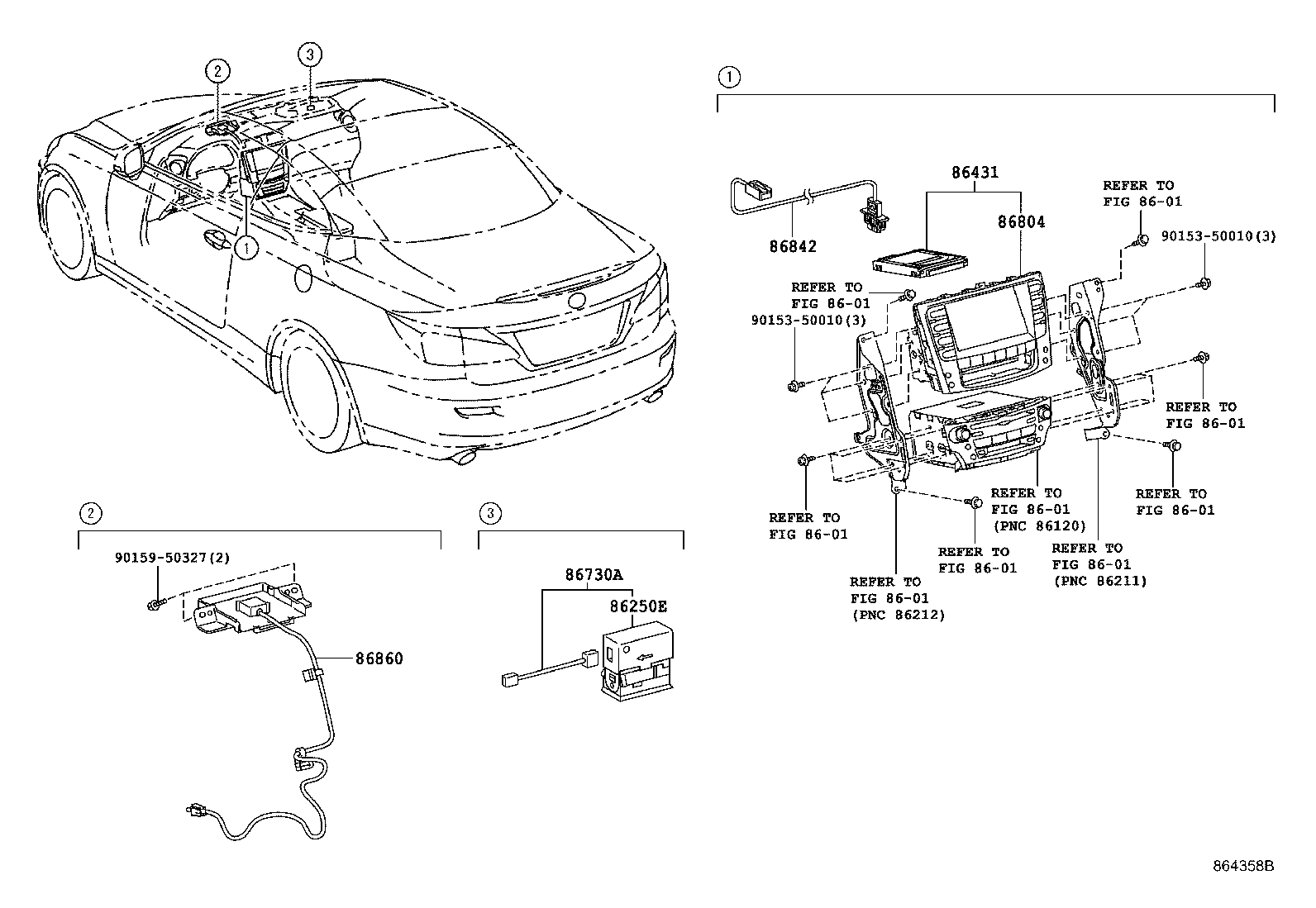

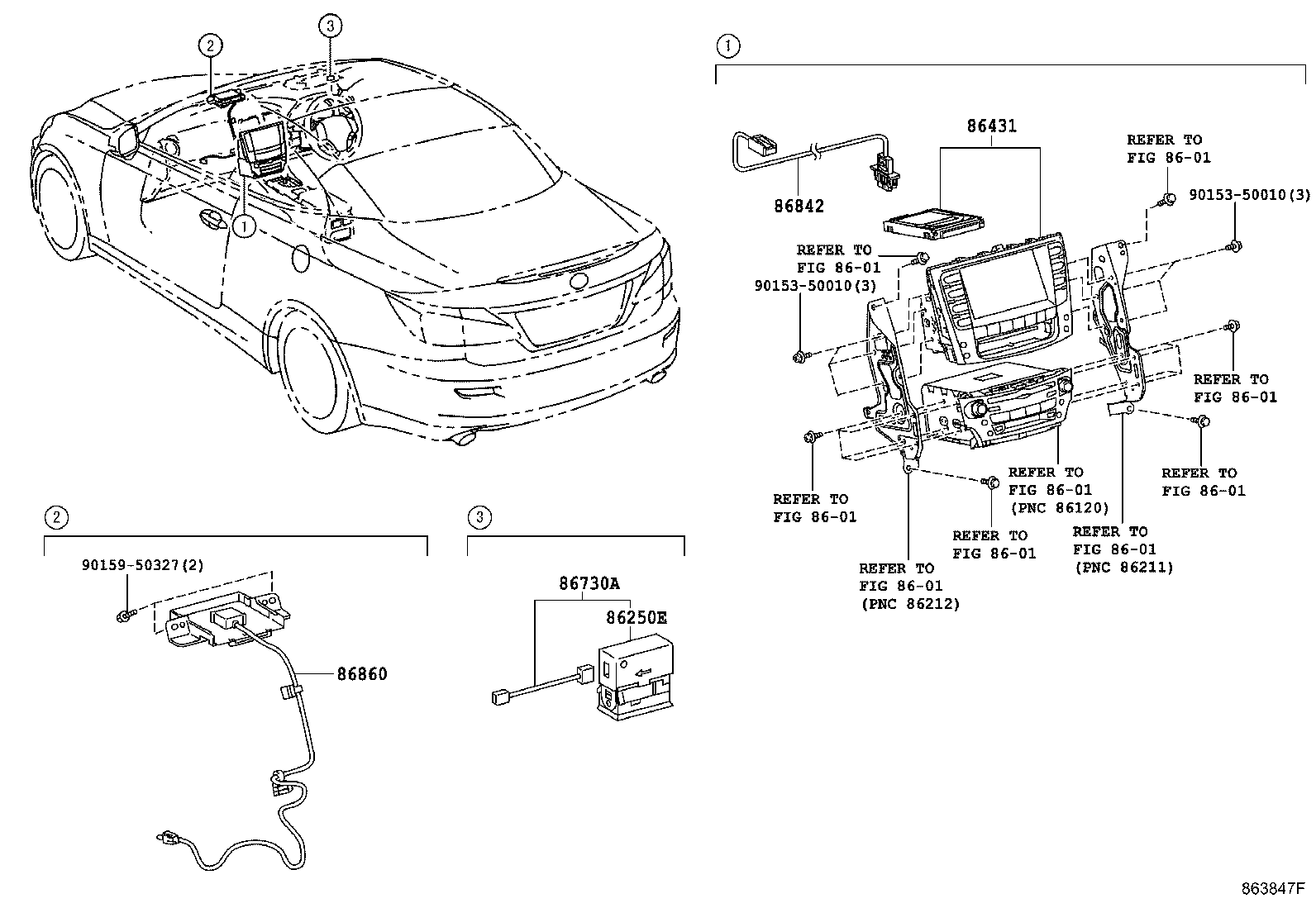

Figure 863848F 863848F 2009-04 → 2012-08 Figure 864358B 864358B 2009-04 → 2012-08 Figure 865031E 865031E 2012-08 → — Figure 863846H 863846H 2009-04 → 2012-08 Figure 863847F 863847F 2009-04 → 2012-08 Figure 865032E 865032E 2012-08 → —

Part groups

PNCDescription
86110B Multi-display Assy
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86421 Board, Navigation Module
86424 Deck, Dvd
86431 Display, Display & Navigation Module
86730A Microphone Assy, Telephone
86804 Cover Sub-assy, Navigation Computer
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
