Toyota Lexus RC F
2014-09 → present · chassis USC10 · catalogue 246520 · Europe
Supported model
Data version 2019-03

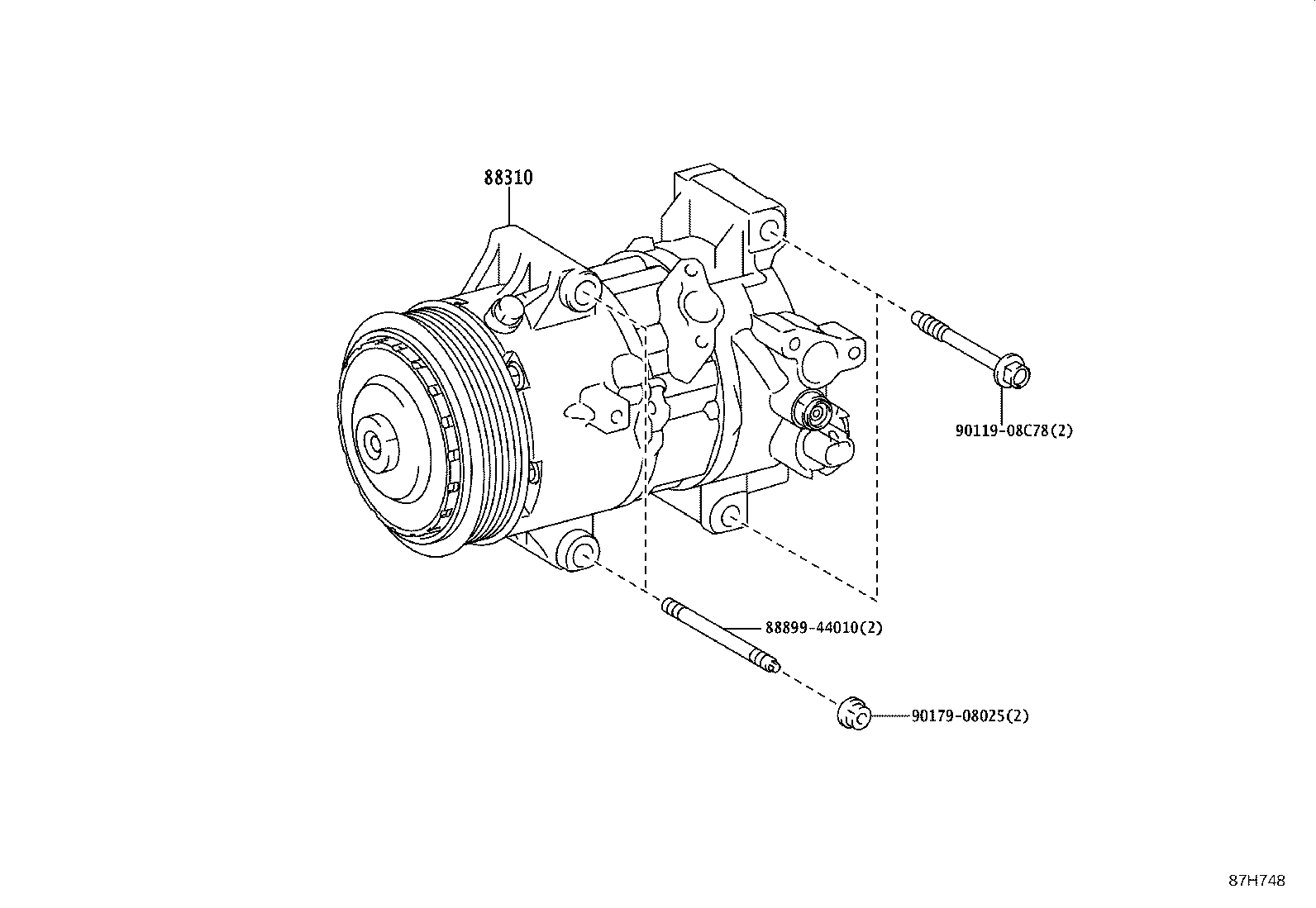

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310 — Compressor Assy, W/Pulley | ||||
| 88310-24180 note |
Compressor Assy, W/Pulley
2014-09 → 2015-11
ended
|
USC10 LHD | — | |
| 88310-24180 note |
Compressor Assy, W/Pulley
2014-09 → 2015-11
ended
|
USC10 LHD | — | |
| 88310-24180 note |
Compressor Assy, W/Pulley
2015-10 → 2015-11
ended
|
USC10 LHD | — | |
| 88310-24180 note |
Compressor Assy, W/Pulley
2015-10 → 2015-11
ended
|
USC10 LHD | — | |
| 88310-24180 note |
Compressor Assy, W/Pulley
2015-10 → 2015-11
ended
|
USC10 LHD | — | |
| 88310-24181 note |
Compressor Assy, W/Pulley
2015-12 → 2017-11
ended
|
USC10 LHD | — | |
| 88310-24181 note |
Compressor Assy, W/Pulley
2015-12 → 2017-11
ended
|
USC10 LHD | — | |
| 88310-24181 note |
Compressor Assy, W/Pulley
2015-12 → 2019-02
ended
|
USC10 LHD | — | |
| 88310-24181 note |
Compressor Assy, W/Pulley
2015-12 → 2019-02
ended
|
USC10 LHD | — | |
| 88310-24181 note |
Compressor Assy, W/Pulley
2015-12 → 2019-02
ended
|
USC10 LHD | — | |
| 88310-24190 |
Compressor Assy, W/Pulley
2014-09 → 2015-11
ended
|
USC10 | — | |
| 88310-24191 |
Compressor Assy, W/Pulley
2015-12 → 2019-02
ended
|
USC10 | — | |
| 88310-24200 note |
Compressor Assy, W/Pulley
2019-03 → 2020-09
ended
|
USC10 LHD | — | |
| 88310-24200 note |
Compressor Assy, W/Pulley
2019-03 → 2020-09
ended
|
USC10 LHD | — | |
| 88310-24210 |
Compressor Assy, W/Pulley
2019-03 → 2025-01
ended
|
USC10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
