Toyota Lexus RC F
2014-09 → present · chassis USC10 · catalogue 246520 · Europe
Supported model
Data version 2019-03
Radiator & Water Outlet

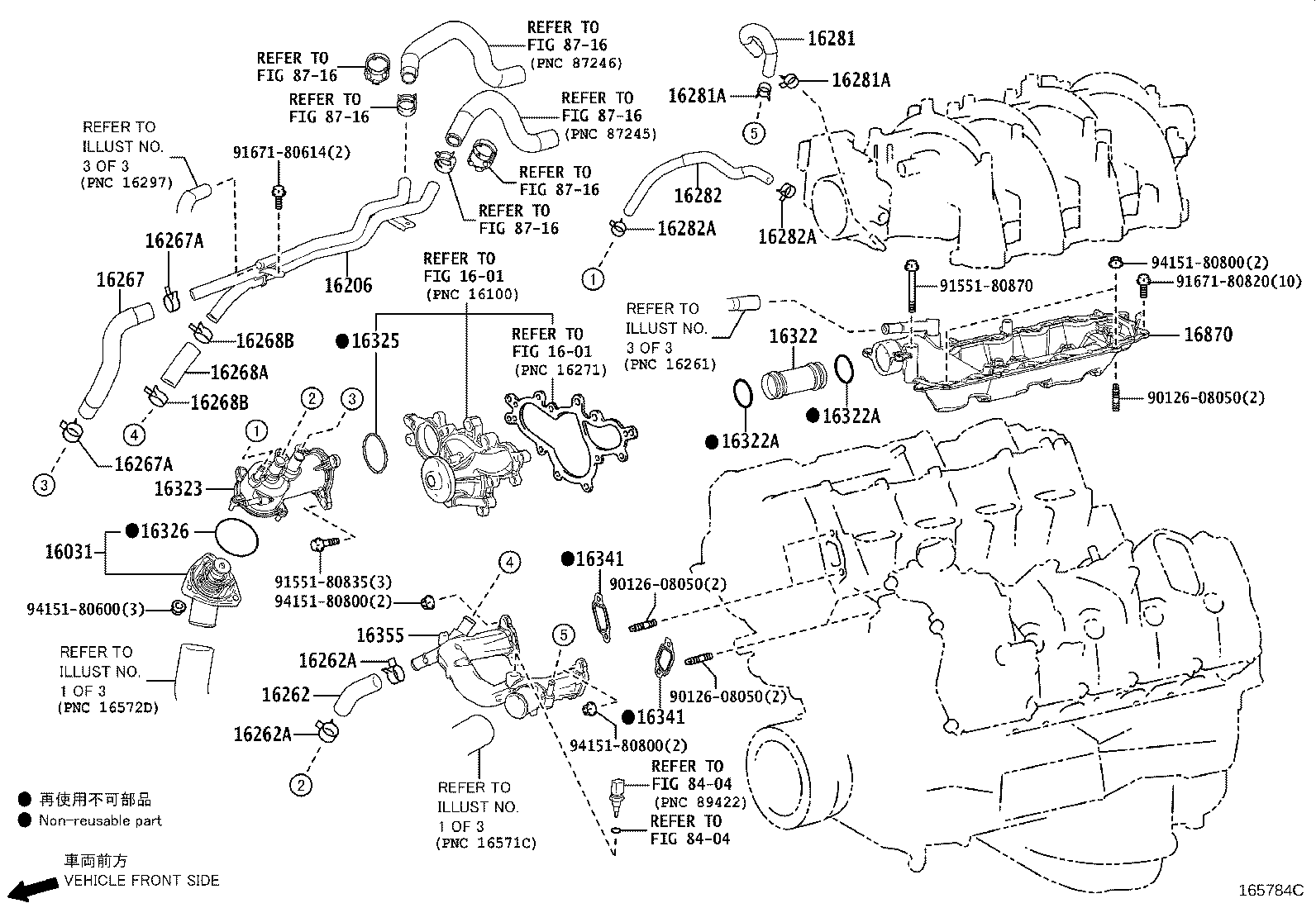

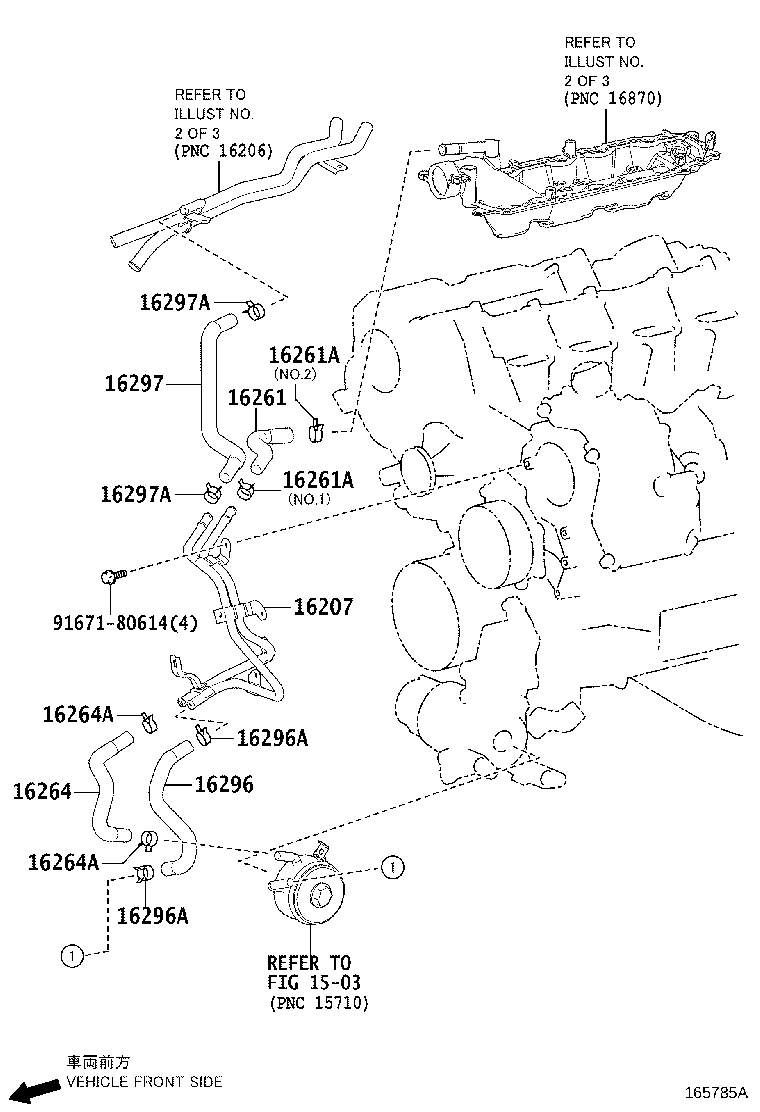

55 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16207 | Pipe Sub-assy, Water By-pass, NO.2 |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268A | Hose(FOR WATER BY-PASS PIPE) |
| 16268B | Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE) |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16322 | Pipe, Water Inlet |
| 16322A | Ring, O(FOR WATER INLET) |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16341 | Gasket, Water Outlet |
| 16355 | Joint, Water By-pass, Front |
| 16361 | Fan |
| 16361B | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |
| 16363A | Motor, Cooling Fan, NO.2 |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16417 | Cock |
| 16418 | Packing |
| 16470 | Tank Assy, Radiator Reserve |
| 16470M | Grommet |
| 16471B | Cap, Reserve Tank |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16562 | Seal, Radiator TO Support, NO.2 |
| 16563 | Seal, Radiator TO Support, NO.3 |
| 16566 | Hose, Reserve Tank Outlet |
| 16566A | Clip(FOR RESERVE TANK OUTLET) |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16567A | Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16711 | Shroud, Fan |
| 16870 | Exchanger Assy, Heat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
