Toyota Lexus RC F

2014-09 → present · chassis USC10 · catalogue 246520 · Europe

Supported model Data version 2019-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

11 part groups · 3 illustrations

Illustrations

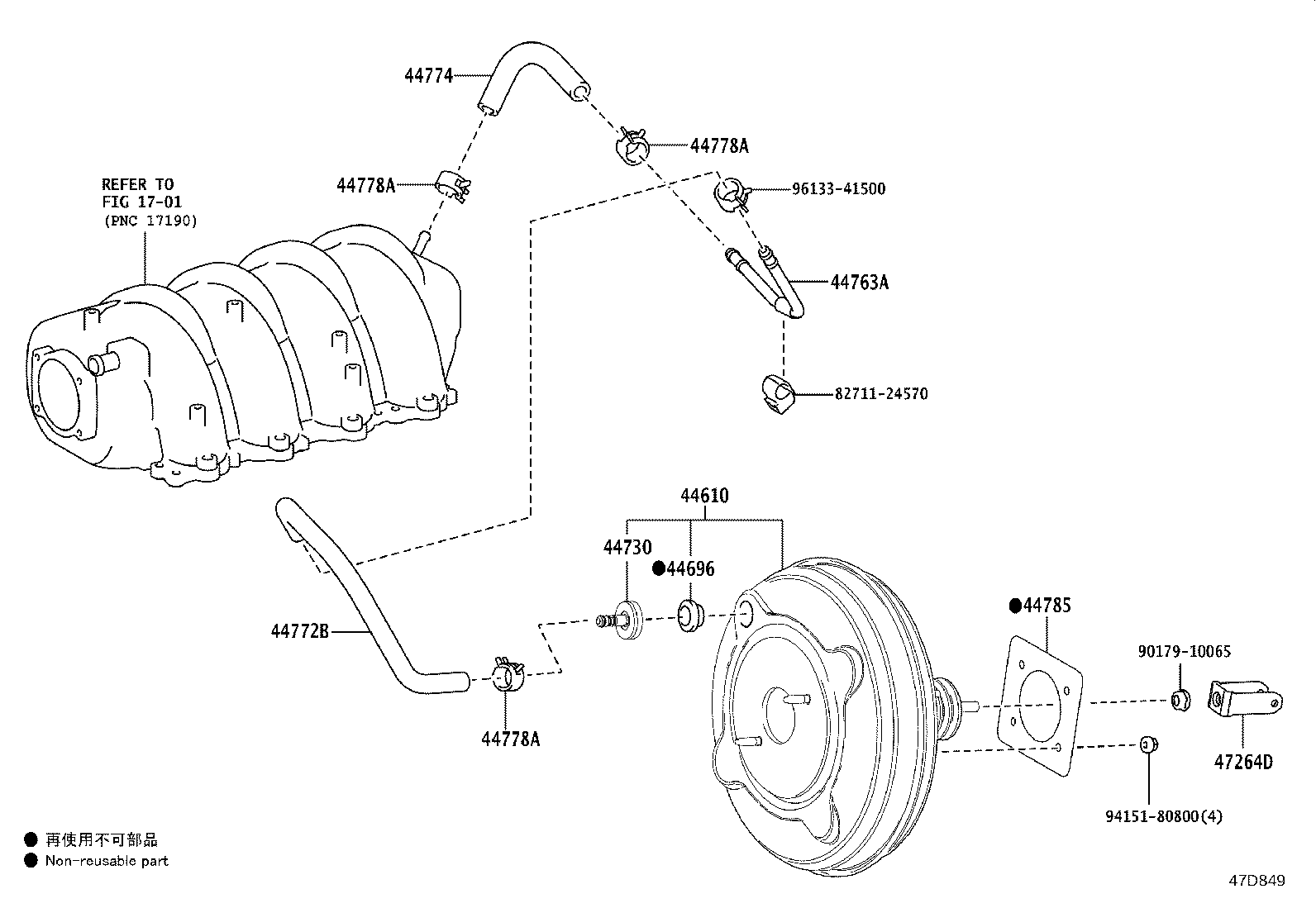

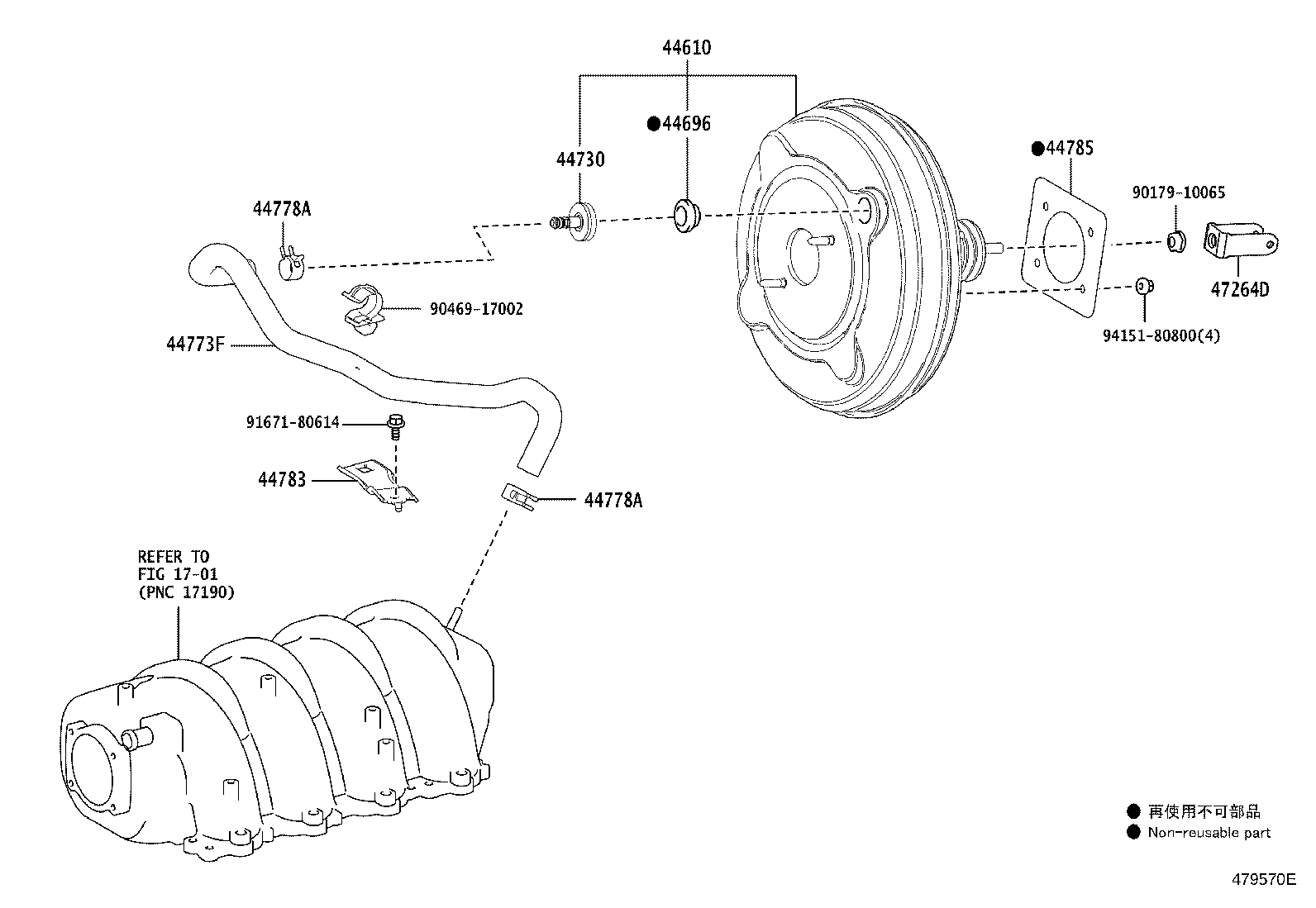

Figure 479569E 479569E 2014-09 → 2023-01 Figure 479570E 479570E 2014-09 → — Figure 47D849 47D849 2023-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763A Tube, Hose TO Hose, NO.1
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44778A Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
