Toyota Lexus RC F

2014-09 → present · chassis USC10 · catalogue 246520 · Europe

Supported model Data version 2019-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Disc Brake Caliper & Dust Cover

11 part groups · 2 illustrations

Illustrations

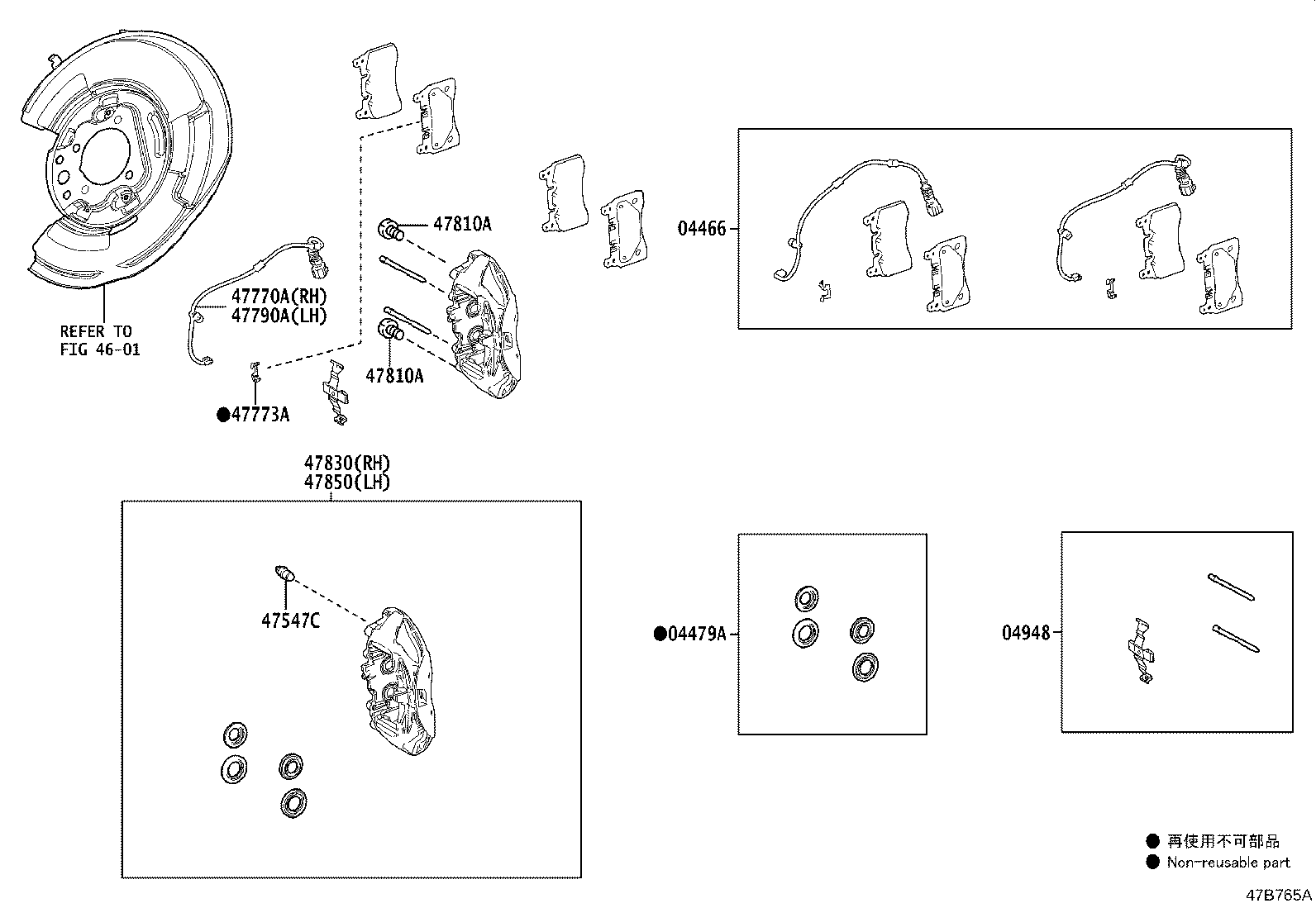

Figure 479580B 479580B 2014-09 → — Figure 47B765A 47B765A 2019-03 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
47547C Plug, Bleeder(FOR REAR DISC BRAKE)
47770A Wire Assy, Pad Wear Indicator, RH
47773A Retainer, Pad Wear Indicator
47790A Wire Assy, Pad Wear Indicator, LH
47810A Bolt, Hexagon(FOR REAR CALIPER)
47830 Cylinder Assy, Disc Brake, Rear RH
47850 Cylinder Assy, Disc Brake, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
