Toyota Lexus RC F

2014-09 → present · chassis USC10 · catalogue 246520 · Europe

Supported model Data version 2019-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

24 part groups · 3 illustrations

Illustrations

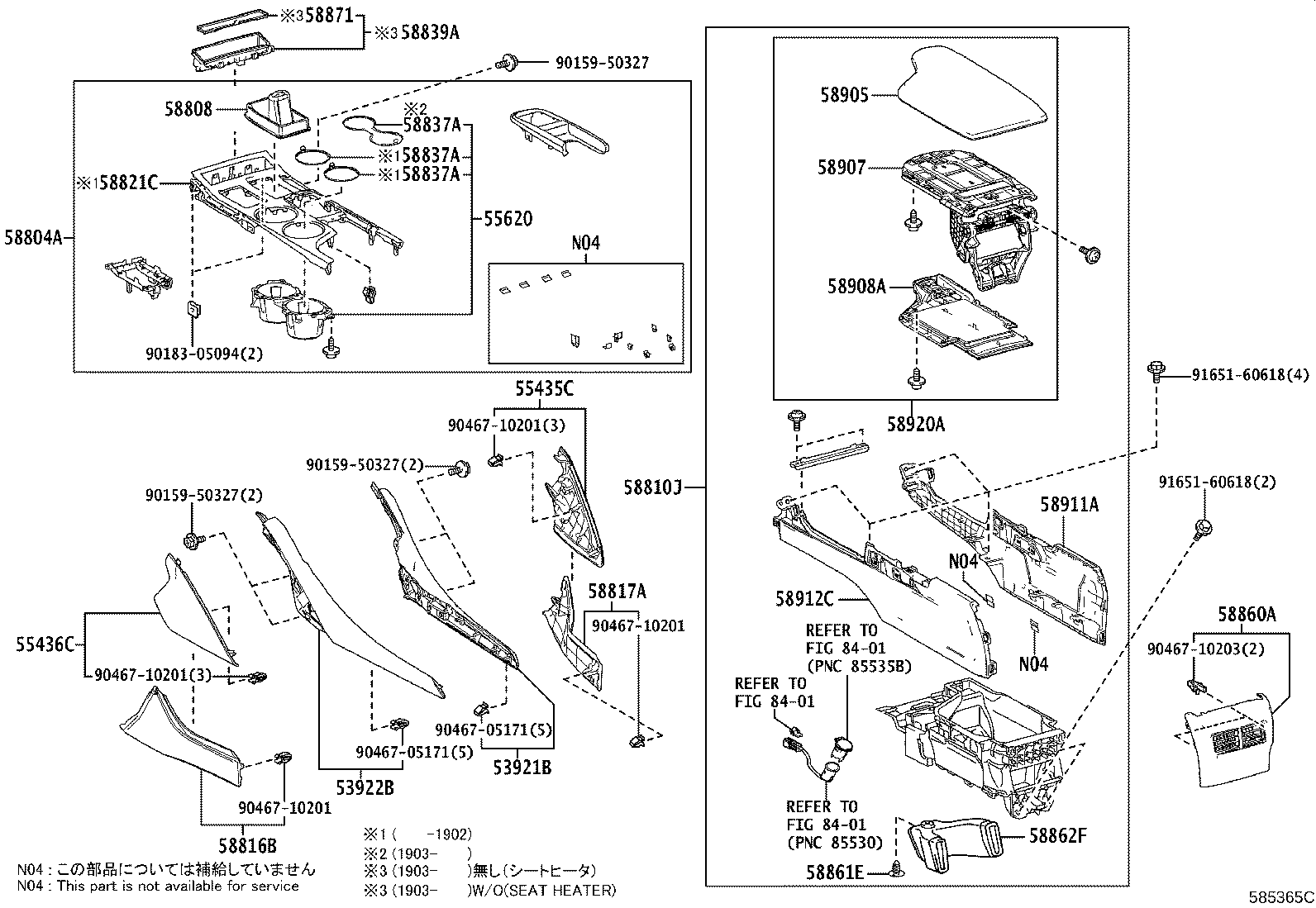

Figure 585372C 585372C 2014-09 → — Figure 585365C 585365C 2014-09 → — Figure 585366A 585366A 2014-09 → —

Part groups

PNCDescription
53921B Garnish, Front Panel, RH
53922B Garnish, Front Panel, LH
55435C Panel, Instrument Panel Finish, End RH
55436C Panel, Instrument Panel Finish, End LH
55620 Holder Assy, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58837A Pad, Console Box Silencer, NO.2
58839A Cover, Console Box Hole
58860A Register Assy, Console Box
58861E Clip, Console Box Duct
58862F Duct, Console Box, NO.2
58871 Cushion, Console Box
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58911A Panel, Box Side, NO.1
58912C Panel, Box Side, NO.2
58920A Armrest Assy, Rear Console
589F0 Box Assy, Rear Seat Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
