Toyota Lexus RC F
2014-09 → present · chassis USC10 · catalogue 246520 · Europe
Supported model
Data version 2019-03

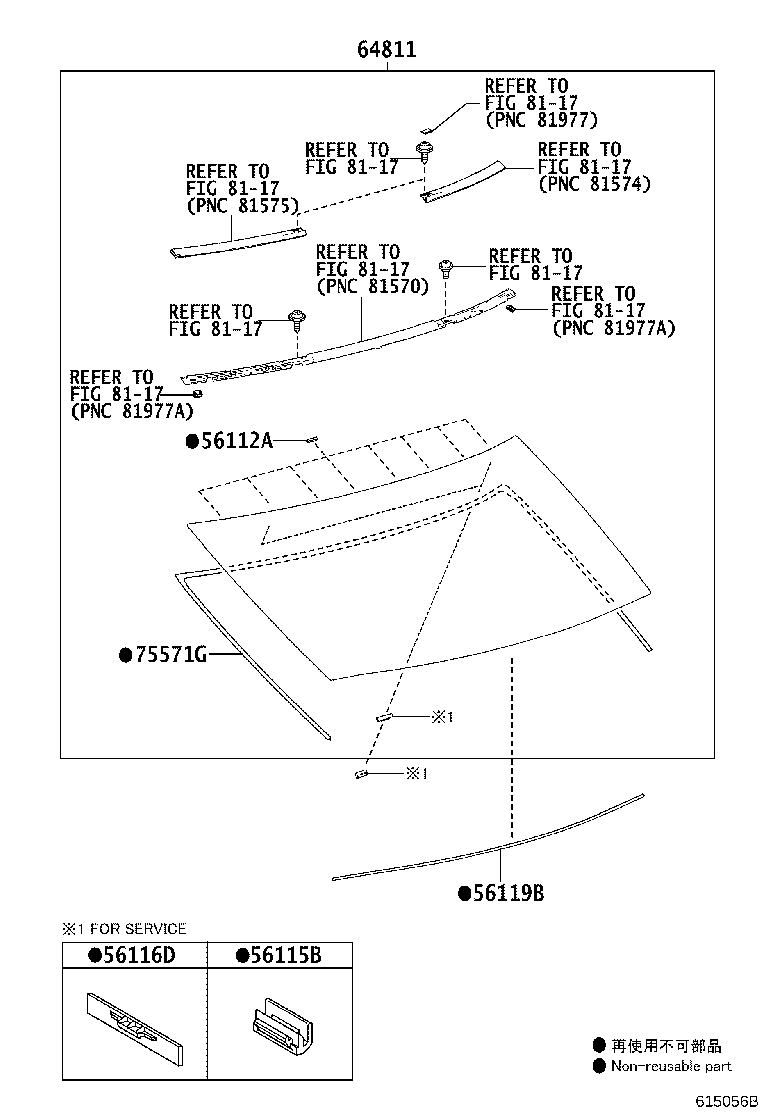

Roof Panel & Back Window Glass
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 56112A | Dam, Window Glass Adhesive |
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 56119B | Dam, Back Window Glass Adhesive |
| 63102A | Panel Sub-assy, Windshield Header |
| 63104 | Reinforcement Sub-assy, Roof Panel, Center |
| 63105 | Reinforcement Sub-assy, Roof Panel, Rear |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63123C | Reinforcement, Roof Panel |
| 63124 | Reinforcement, Roof Panel, NO.1 |
| 63133B | Frame, Back Window |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143A | Reinforcement, Roof Panel |
| 63146A | Bracket, Roof Panel Reinforcement, NO.1 |
| 63147 | Bracket, Roof Panel Reinforcement |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63220A | Hose Assy, Sliding Roof Drain, RH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63240A | Hose Assy, Sliding Roof Drain, LH |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248 | Joint, Slide Roof Drain Hose, RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249 | Joint, Slide Roof Drain Hose, LH |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63669B | Grommet, Sliding Roof Drain |
| 64101 | Panel Sub-assy, Upper Back |
| 64206F | Panel Sub-assy, Room Partition |
| 64226D | Hanger, Rear Seat Cushion Support, NO.2 |
| 64270E | Clip |
| 64811 | Glass, Back Window |
| 75571G | Moulding, Back Window, Outside Upper, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
