Toyota Lexus RC F
2014-09 → present · chassis USC10 · catalogue 246520 · Europe
Supported model
Data version 2019-03

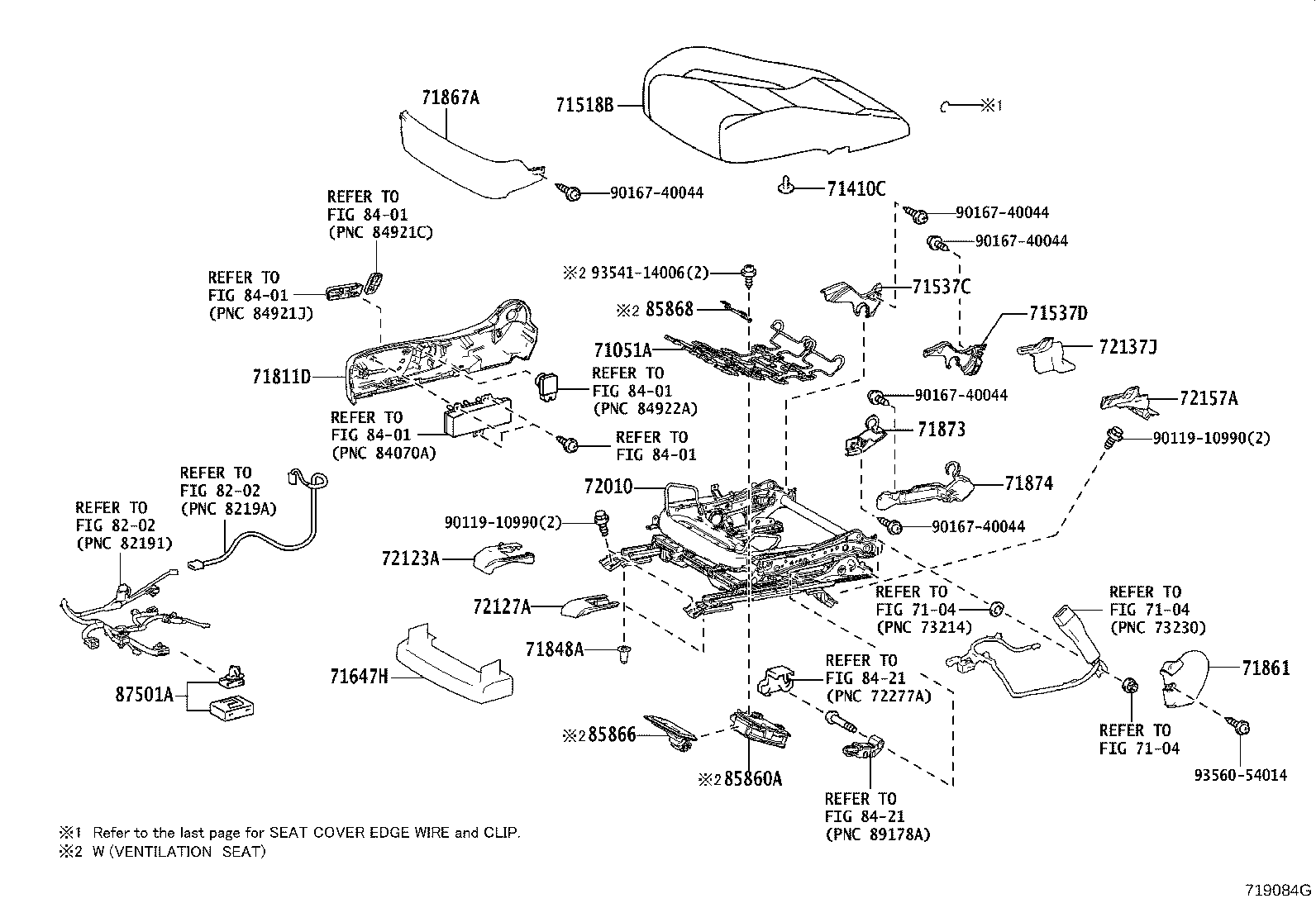

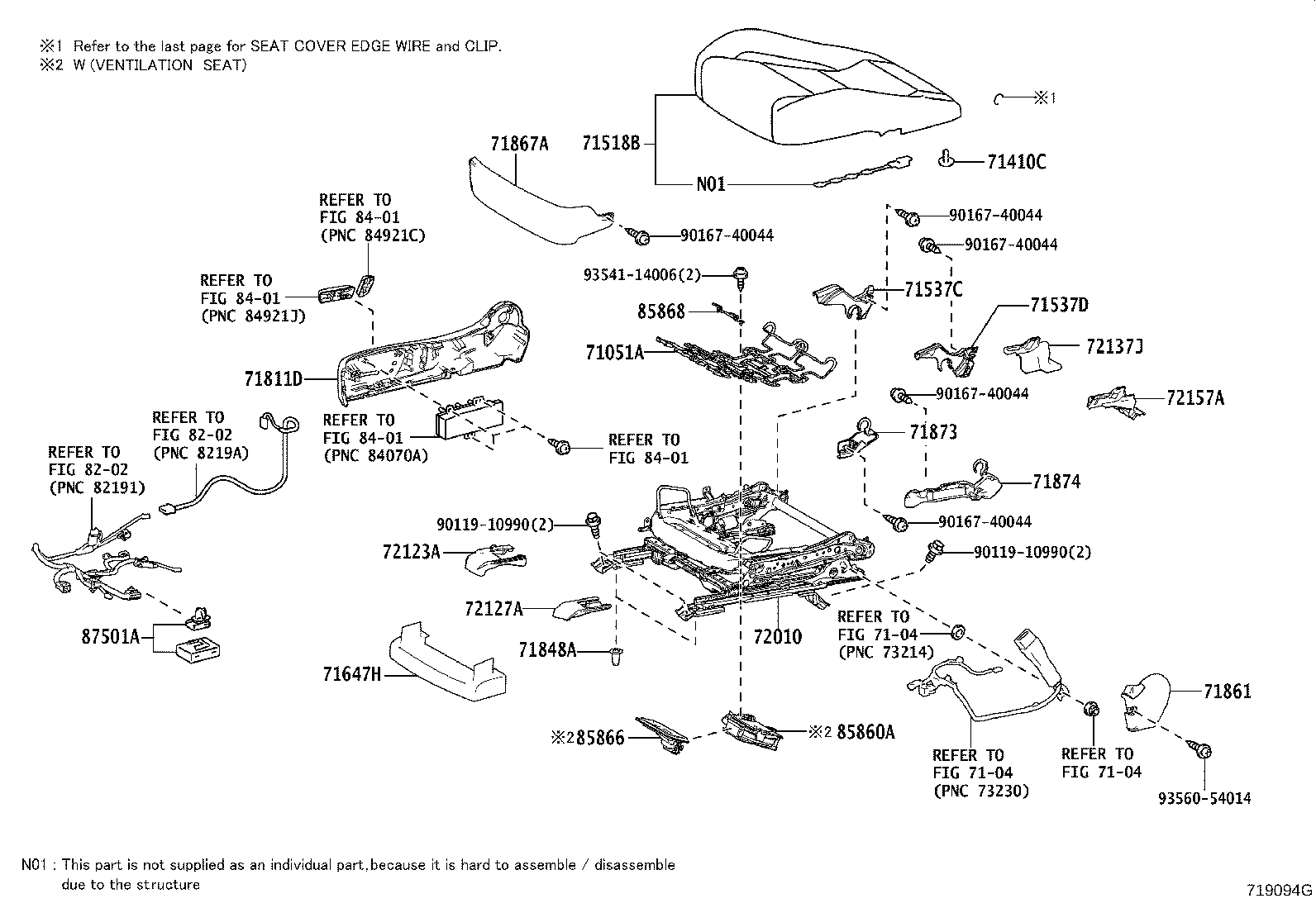

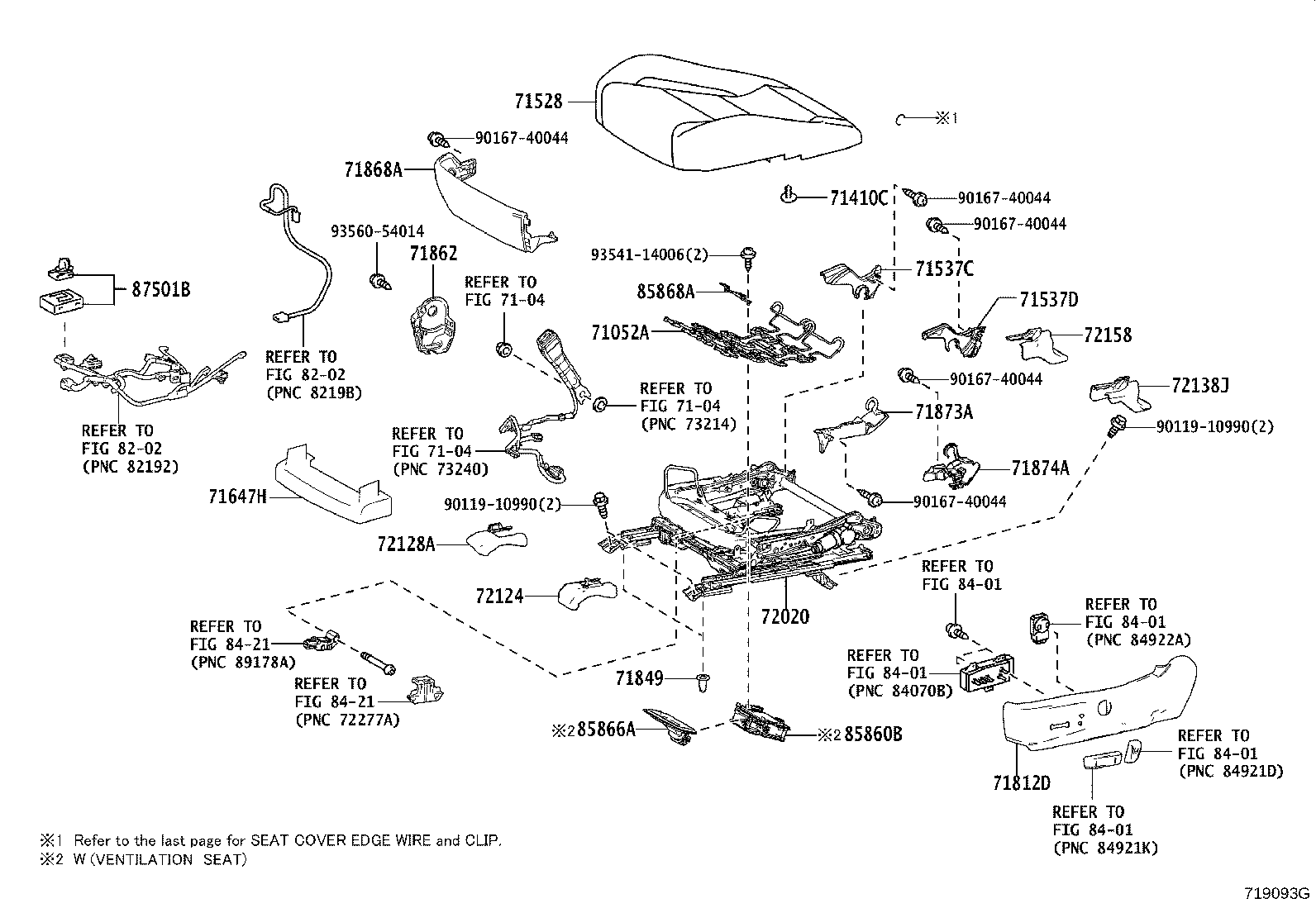

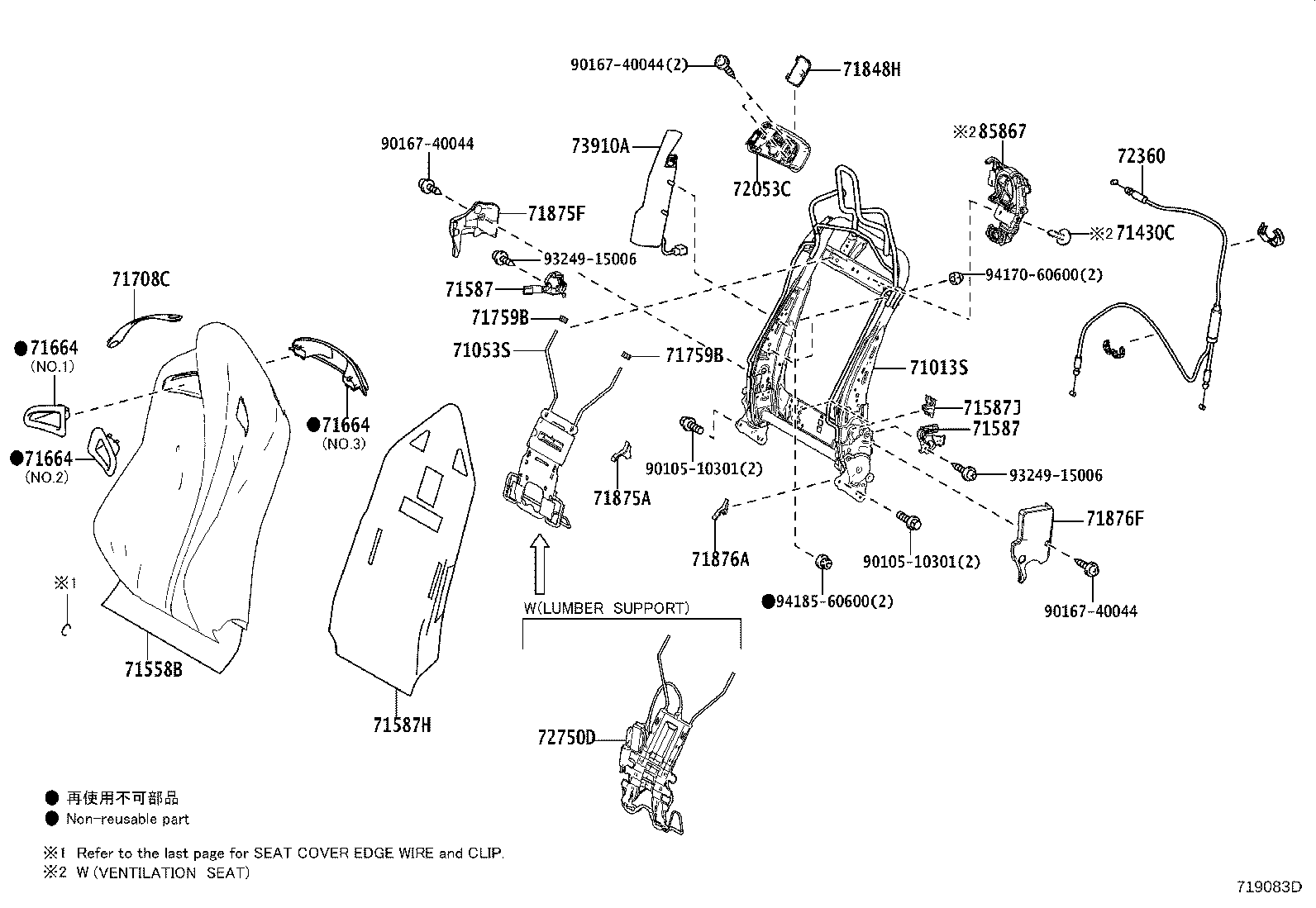

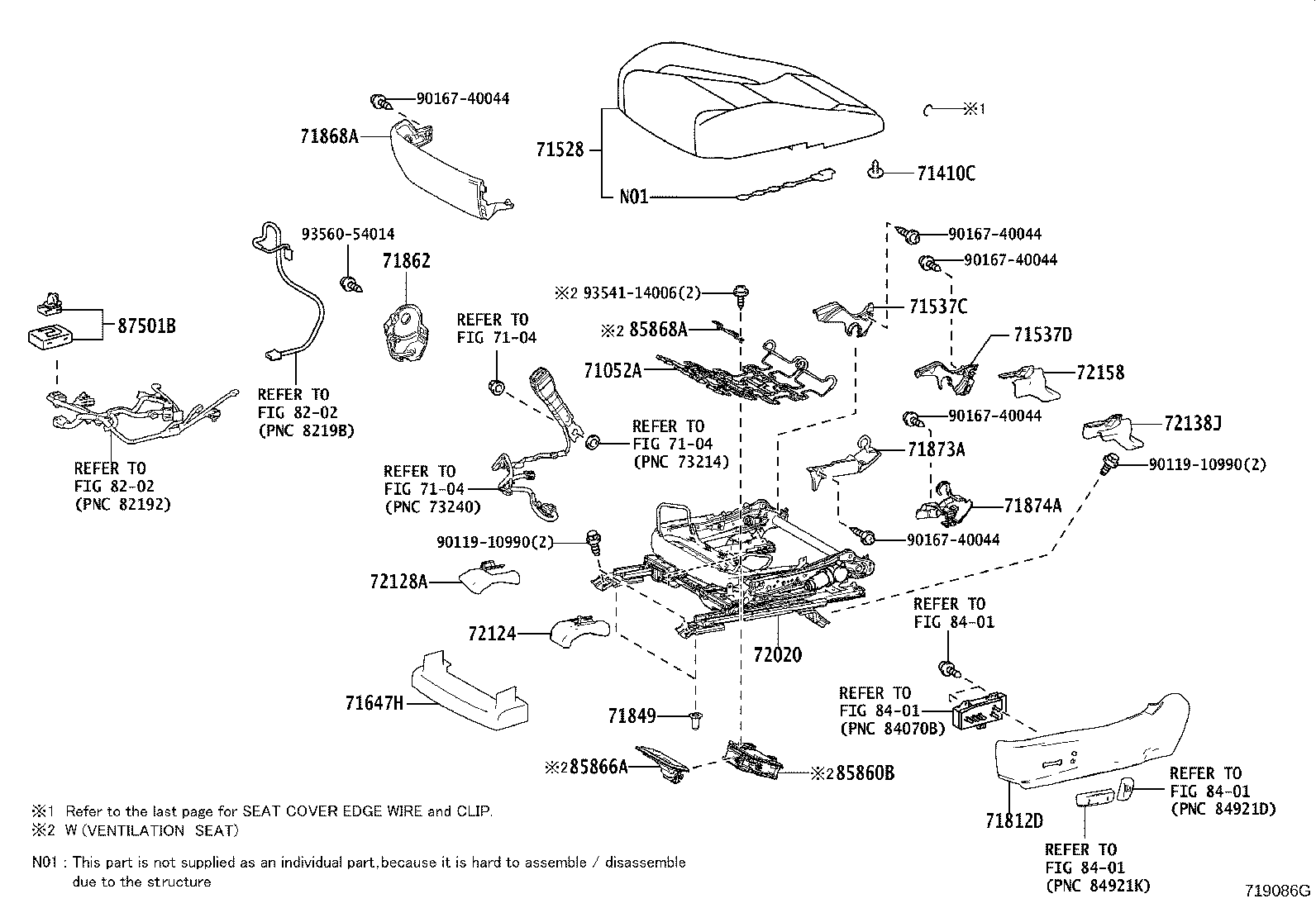

Front Seat & Seat Track
70 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71410C | Clip(FOR FRONT SEAT CUSHION) |
| 71430C | Clip |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71537C | Protector, Front Seat Cushion Edge, RH |
| 71537D | Protector, Front Seat Cushion Edge, LH |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71587 | Protector, Front Seatback Edge |
| 71587B | Protector, Front Seatback Edge |
| 71587H | Protector, Front Seatback Edge |
| 71587J | Protector, Front Seatback Edge |
| 71647H | Protector, Front Seat Cushion Edge |
| 71664 | Guide, Seat Belt |
| 71708C | Strap Sub-assy, Seat Cover, RH |
| 71708D | Strap Sub-assy, Seat Cover, LH |
| 71759B | Hook, Front Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71848H | Cap, Reclining Remote Control, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71849E | Cap, Reclining Remote Control, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72053C | Lever Sub-assy, Reclining Remote Control, RH |
| 72054A | Lever Sub-assy, Reclining Remote Control, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72360 | Cable Assy, Reclining Adjuster Equalizing |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 85860A | Blower Assy, Seat Cushion Climate Control, RH |
| 85860B | Blower Assy, Seat Cushion Climate Control, LH |
| 85866 | Duct, Seat Cushion Climate Control, RH |
| 85866A | Duct, Seat Cushion Climate Control, LH |
| 85867 | Blower, Seatback Climate Control, RH |
| 85867A | Blower, Seatback Climate Control, LH |
| 85868 | Bracket, Seat Cushion Climate Control, RH |
| 85868A | Bracket, Seat Cushion Climate Control, LH |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
