Toyota Lexus RC F

2014-09 → present · chassis USC10 · catalogue 246520 · Europe

Supported model Data version 2019-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

11 part groups · 3 illustrations

Illustrations

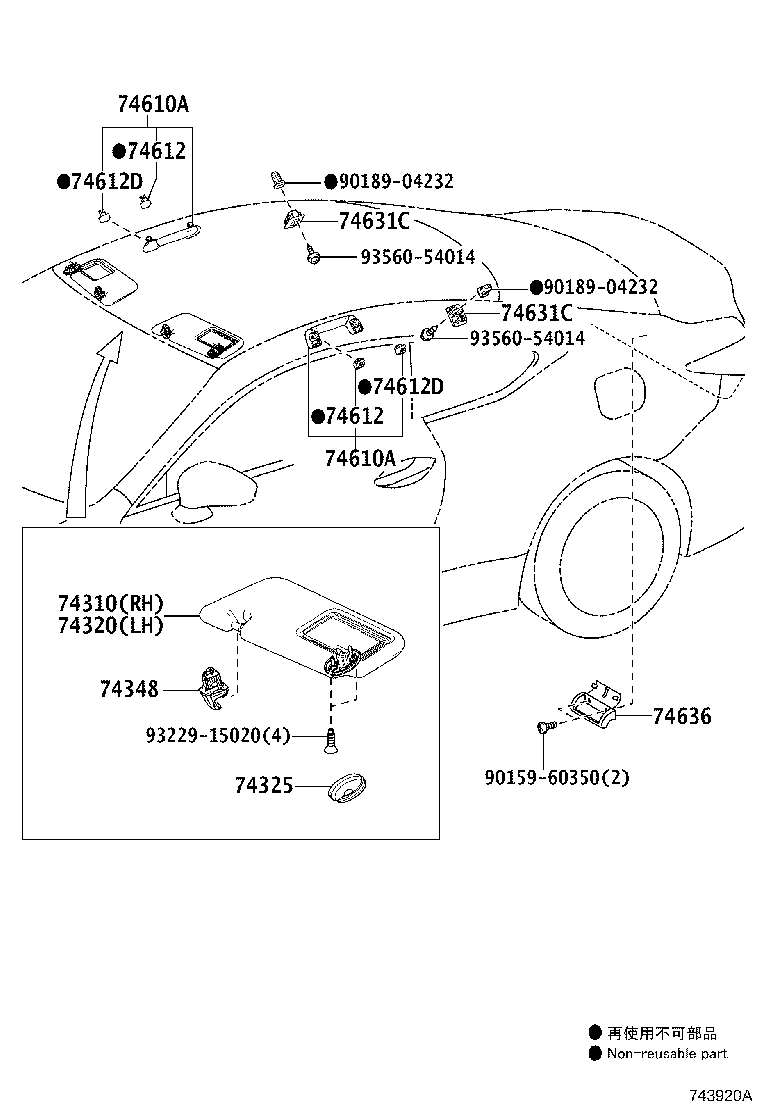

Figure 743921 743921 2014-09 → — Figure 743919 743919 2014-09 → — Figure 743920A 743920A 2014-09 → —

Part groups

PNCDescription
74230A Panel Assy, Front Door Armrest Base, RH
74240A Panel Assy, Front Door Armrest Base, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74612D Cover, Assist Grip
74631C Hook, Coat
74636 Grip, Back Door Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
