Toyota Lexus RC F

2014-09 → present · chassis USC10 · catalogue 246520 · Europe

Supported model Data version 2019-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

30 part groups · 3 illustrations

Illustrations

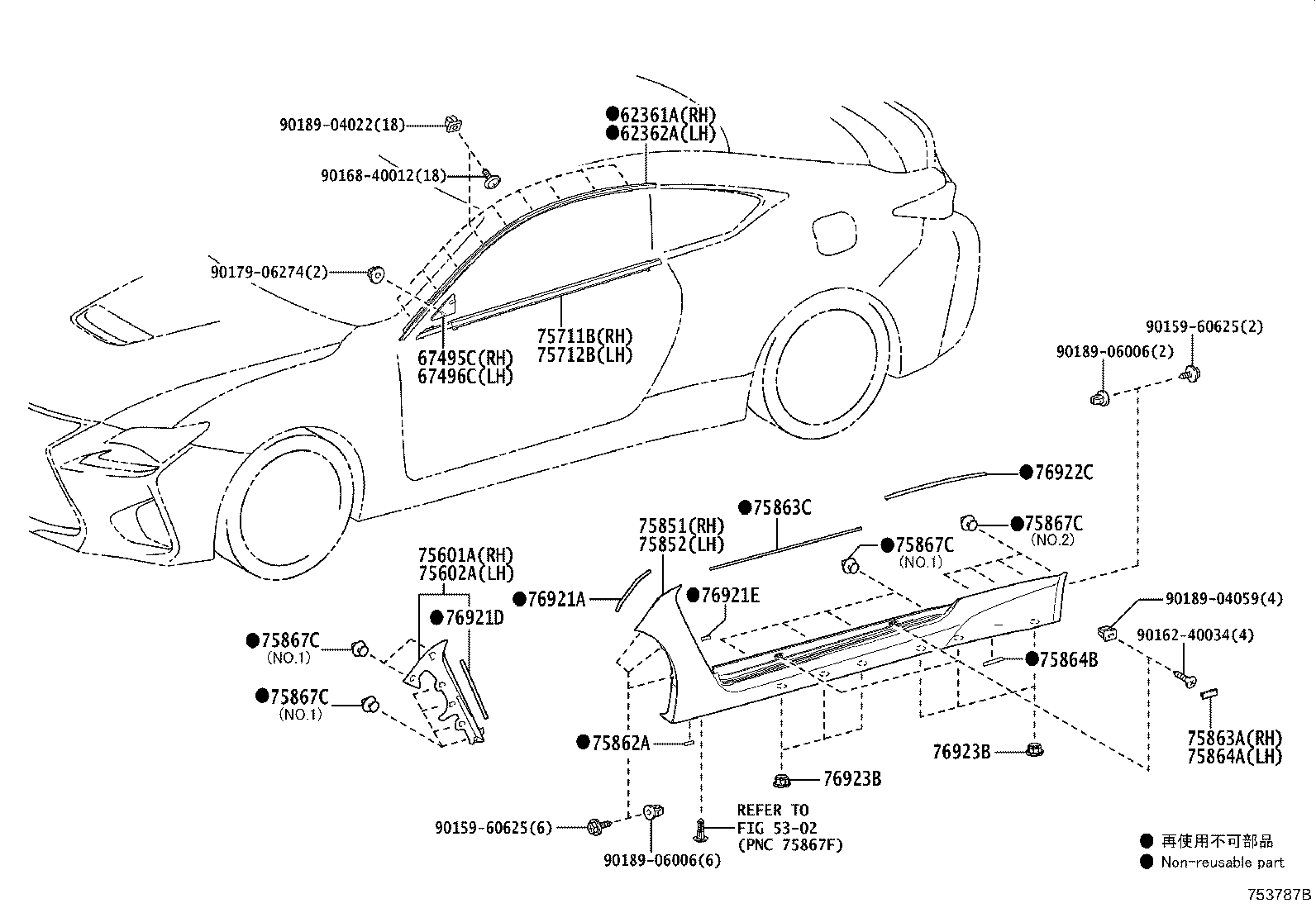

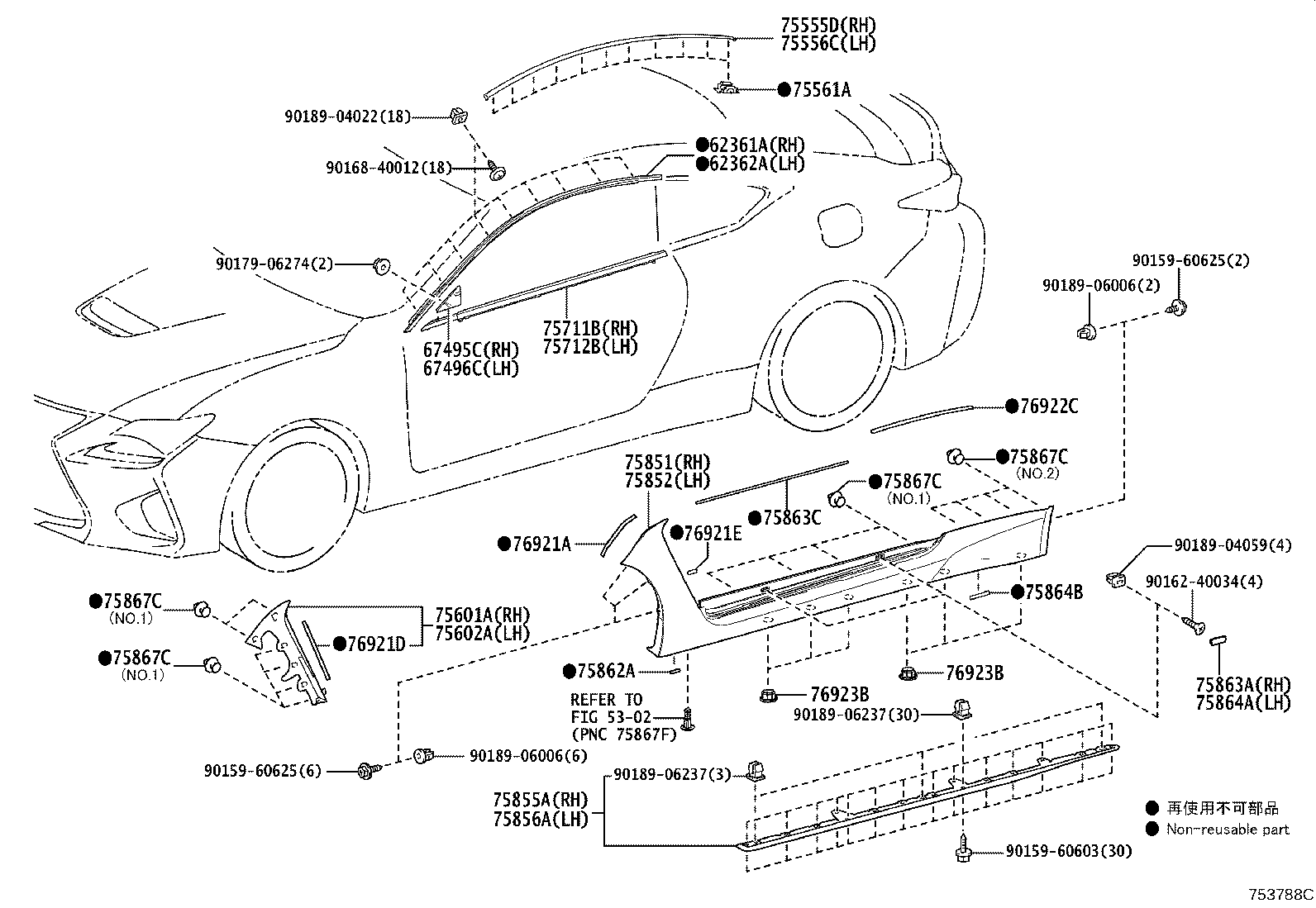

Figure 753079G 753079G 2014-09 → 2019-02 Figure 753787B 753787B 2019-03 → — Figure 753788C 753788C 2019-03 → —

Part groups

PNCDescription
62361A Retainer, Roof Side Rail Weatherstrip, Front RH
62362A Retainer, Roof Side Rail Weatherstrip, Front LH
67495C Cover, Front Door Front Lower Frame, Upper RH
67496C Cover, Front Door Front Lower Frame, Upper LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561A Clip, Roof Drip Side Finish Moulding
75601A Moulding Sub-assy, Front Fender, RH
75602A Moulding Sub-assy, Front Fender, LH
75711B Moulding, Front Door Belt, RH
75712B Moulding, Front Door Belt, LH
75850A Moulding Assy, Body Rocker Panel, RH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75855A Moulding, Rocker Panel, Rear RH
75856A Moulding, Rocker Panel, Rear LH
75860A Moulding Assy, Body Rocker Panel, LH
75861A Protector, Rocker Panel Moulding, NO.1
75862A Protector, Rocker Panel Moulding, NO.2
75863A Cover, Rocker Panel Moulding End, Rear RH
75863C Protector, Rocker Panel Moulding, NO.3
75864A Cover, Rocker Panel Moulding End, Rear LH
75864B Protector, Rocker Panel Moulding, NO.4
75867C Clip, Rocker Panel Moulding
75868B Clip, Rocker Panel Moulding, NO.2
76921A Protector, Side Mudguard, NO.1
76921D Protector, Side Mudguard, NO.1
76921E Protector, Side Mudguard, NO.3
76922C Protector, Side Mudguard, NO.2
76923B Retainer, Side Mudguard
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
