Toyota Lexus RC F

2014-09 → present · chassis USC10 · catalogue 246520 · Europe

Supported model Data version 2019-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

19 part groups · 2 illustrations

Illustrations

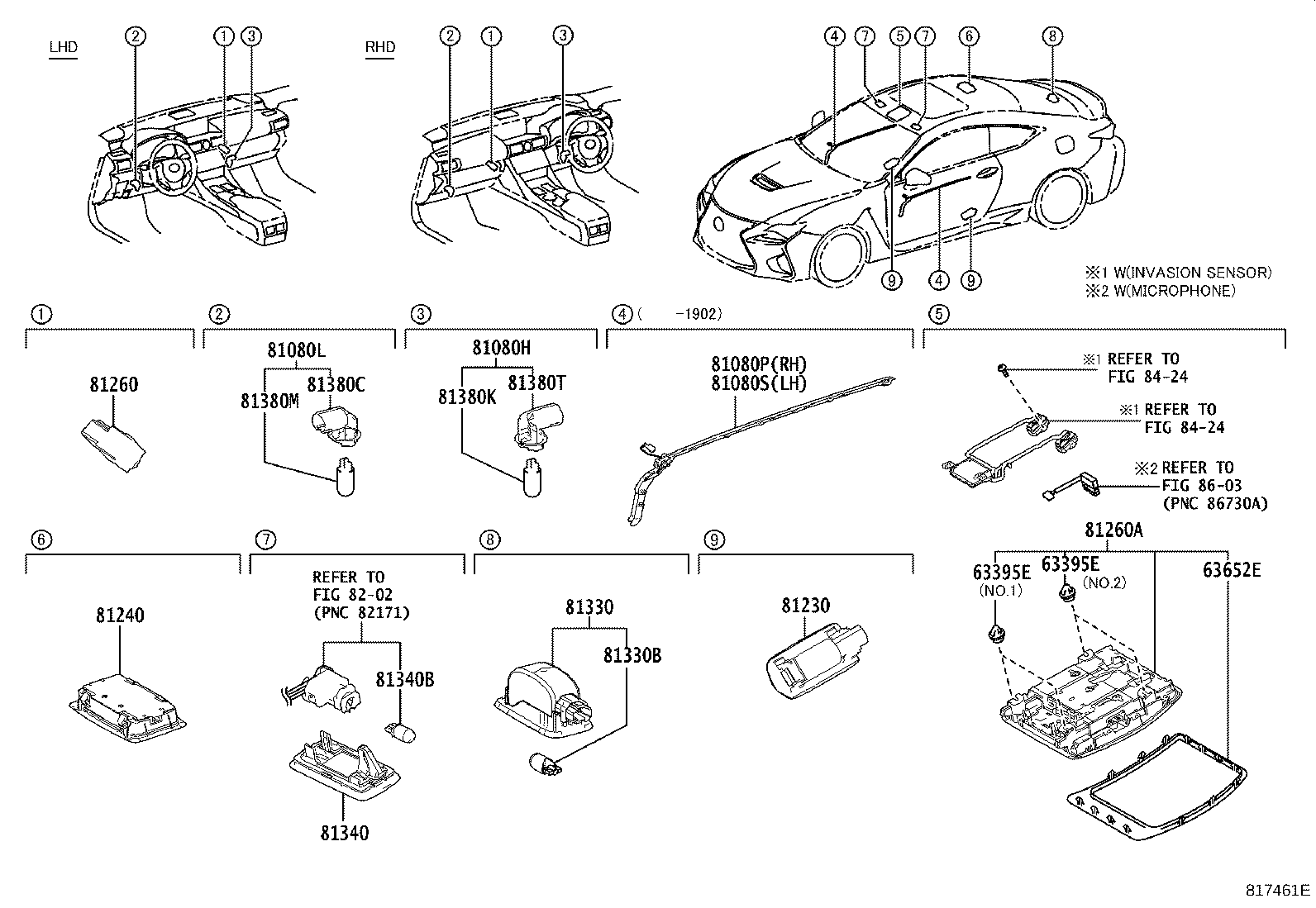

Figure 817108F 817108F 2014-09 → 2015-10 Figure 817461E 817461E 2015-10 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
63652E Cover, Roof Console Box, NO.1
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240 Lamp Assy, Room, NO.1
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81380C Socket, Plug, NO.1
81380K Bulb, Instrumet Panel Under Lamp, NO.2
81380M Bulb, Instrumet Panel Under Lamp, NO.1
81380T Socket, Plug, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
