Toyota Lexus RC F
2014-09 → present · chassis USC10 · catalogue 246520 · Europe
Supported model
Data version 2019-03
Wiring & Clamp
60 part groups · 12 illustrations

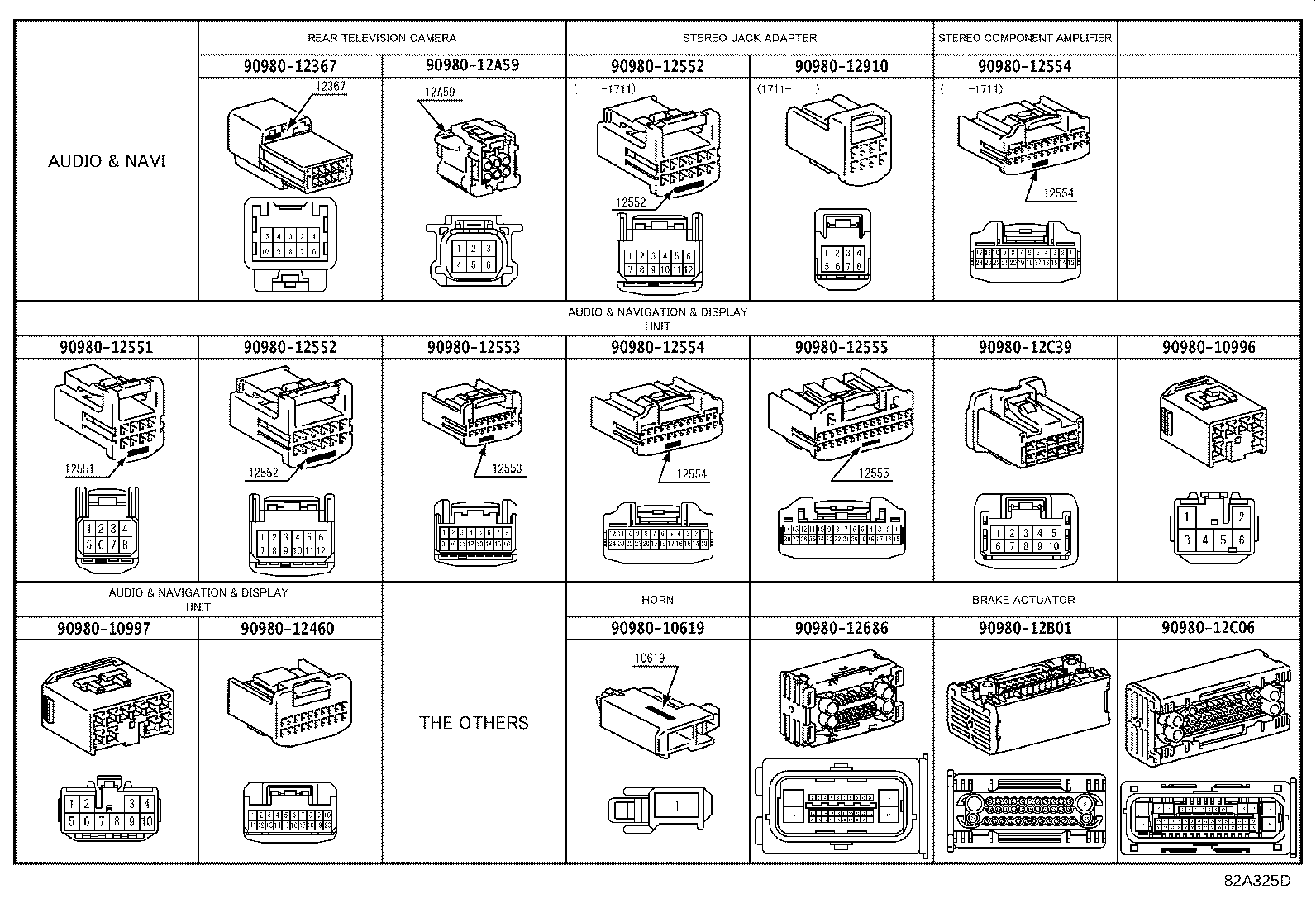

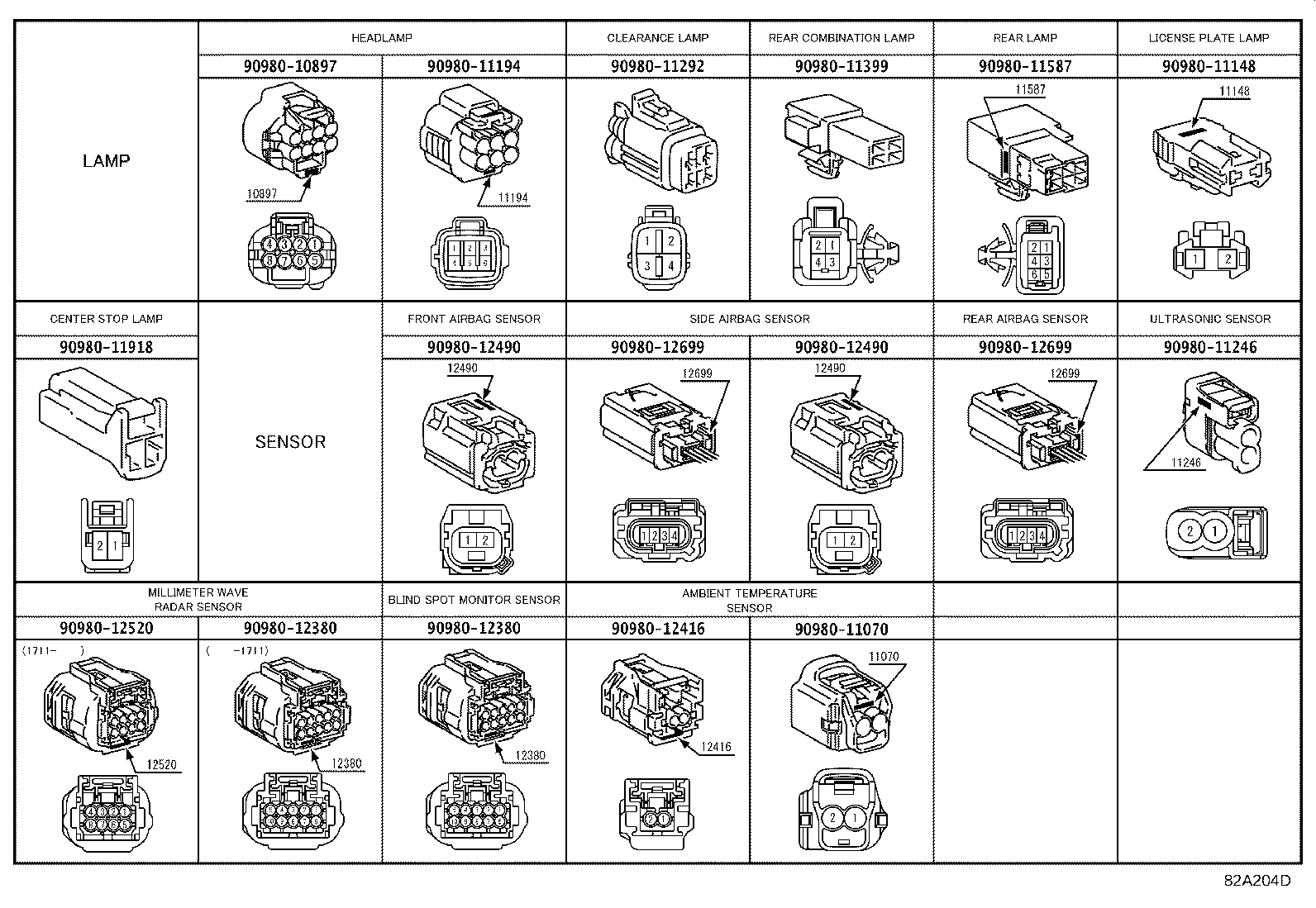

Illustrations
Part groups
| PNC | Description |
|---|---|
| 16364A | Wire, Cooling Fan |
| 19309 | Harness Sub-assy, Cam Position Sensor |

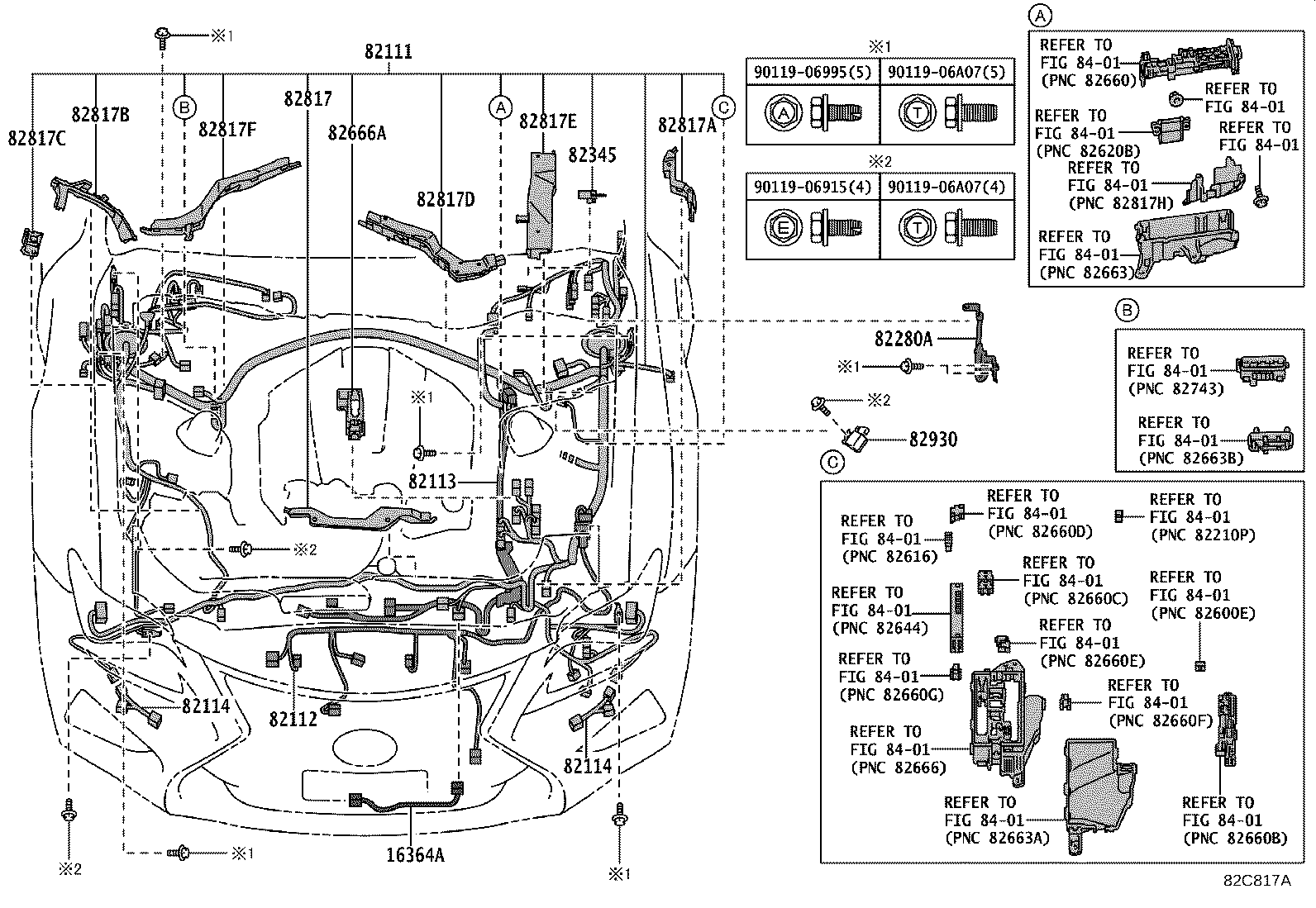

| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82113 | Wire, Engine Room, NO.3 |
| 82114 | Wire, Engine Room, NO.4 |

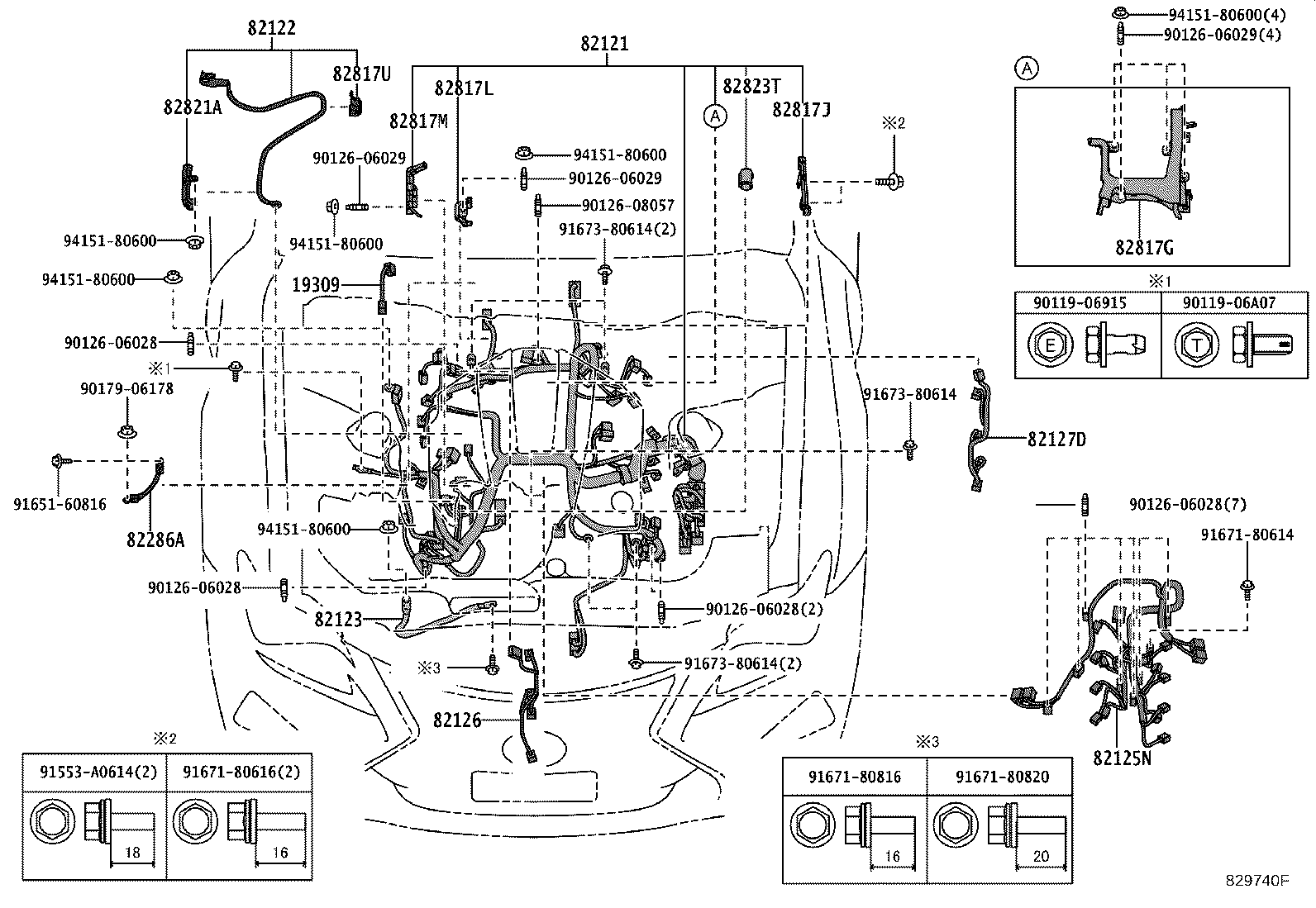

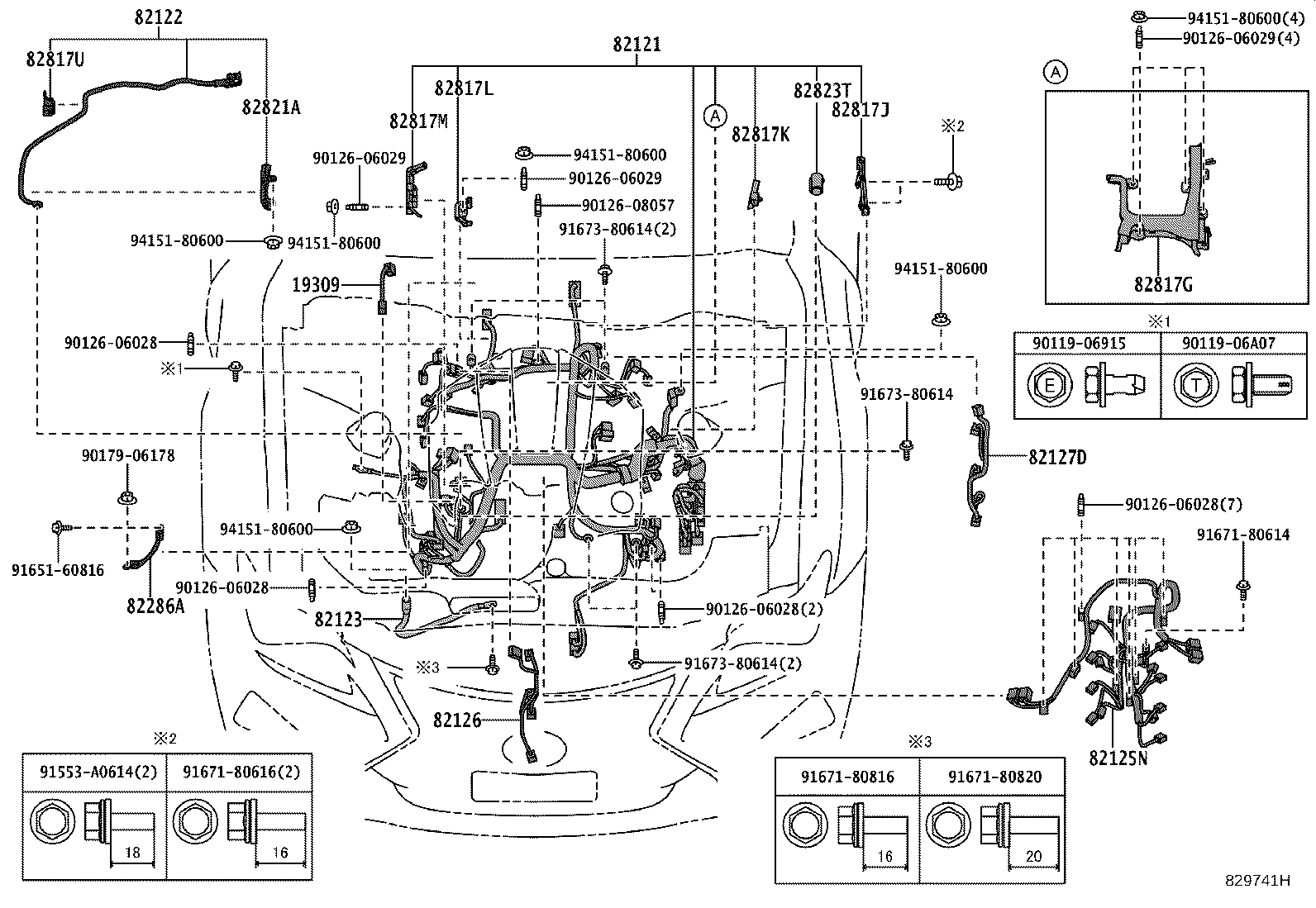

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82125N | Wire, Engine, NO.5 |
| 82126 | Wire, Engine |
| 82127D | Wire, Engine, NO.7 |

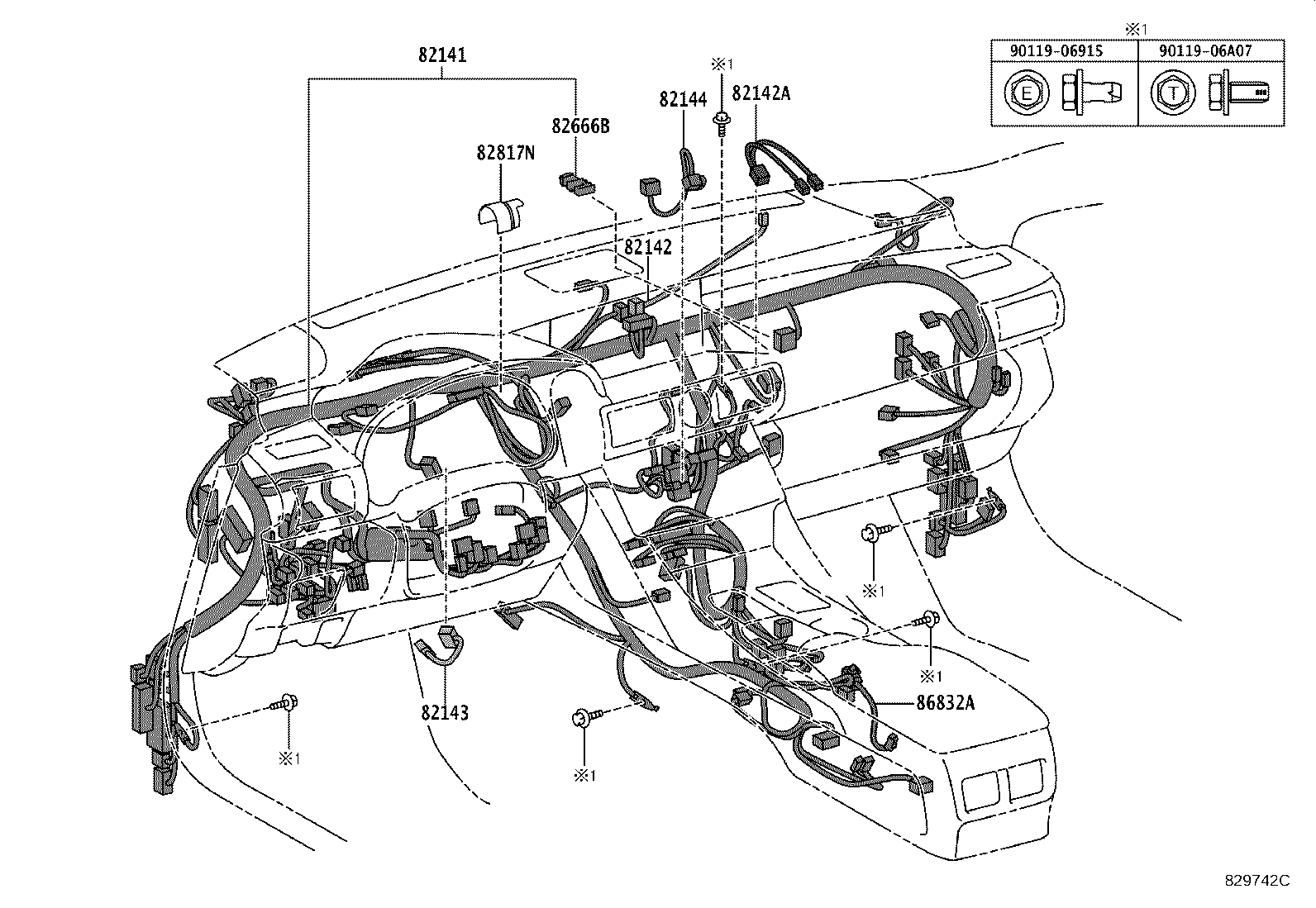

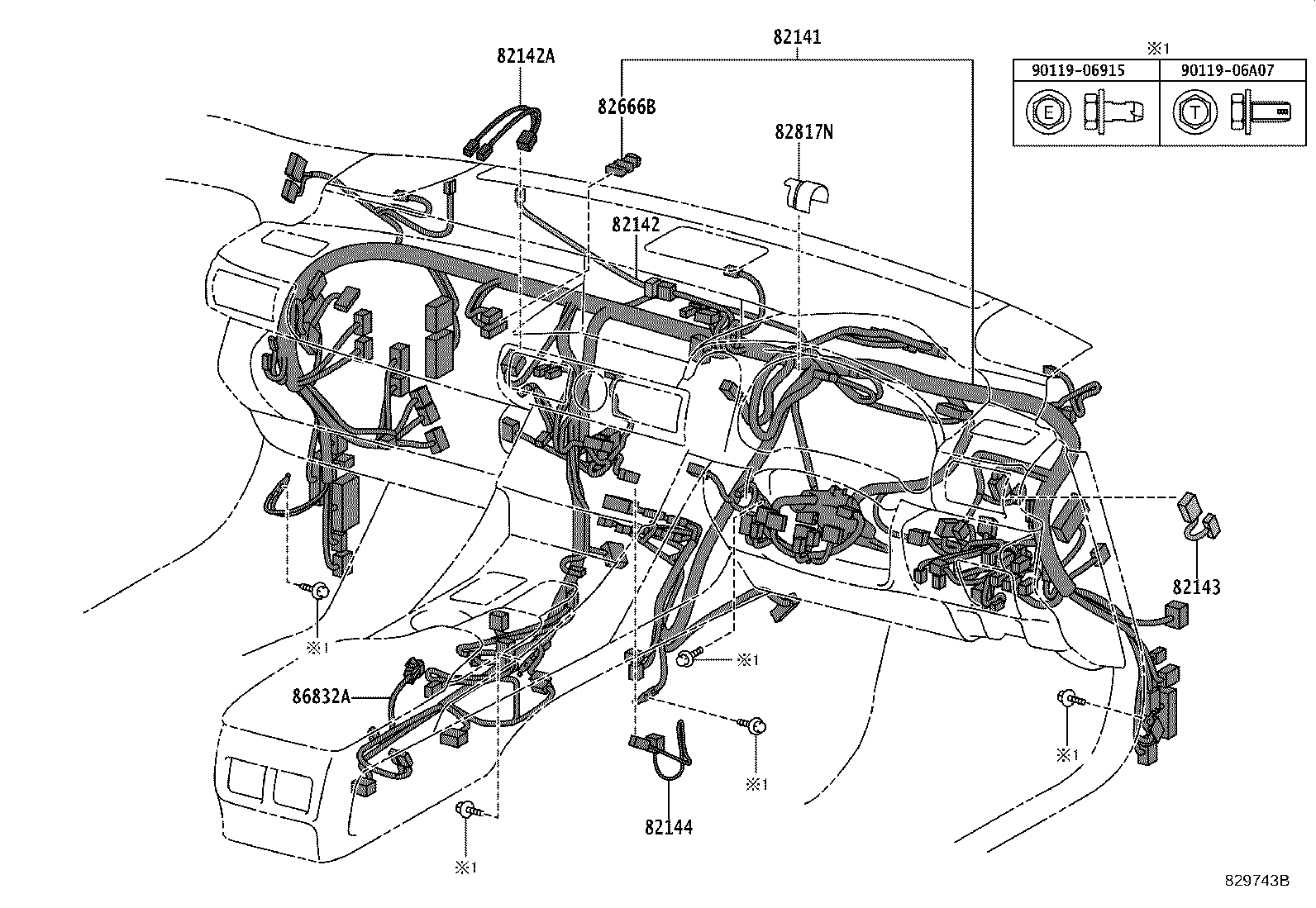

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82144 | Wire, Instrument Panel, NO.4 |

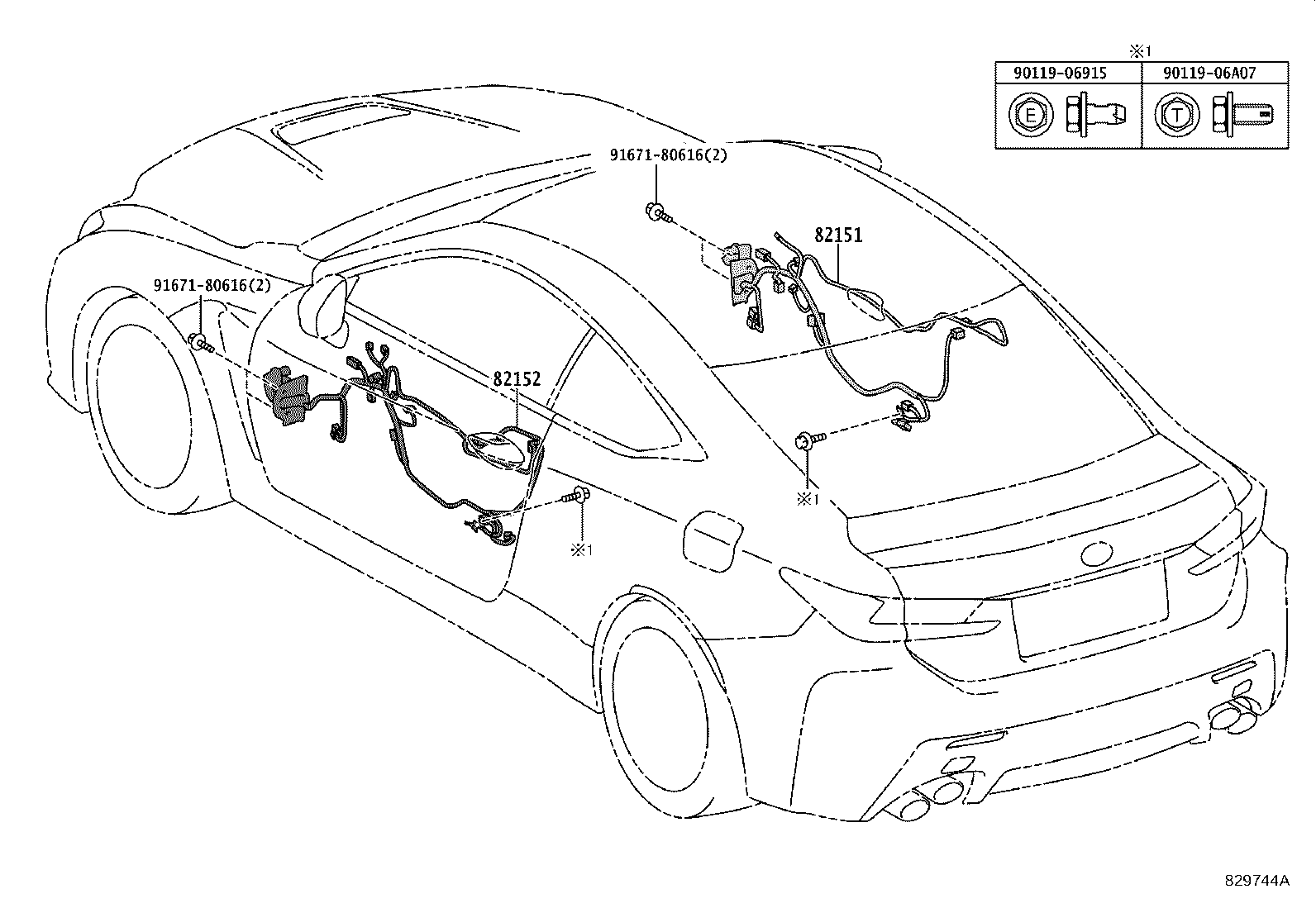

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |

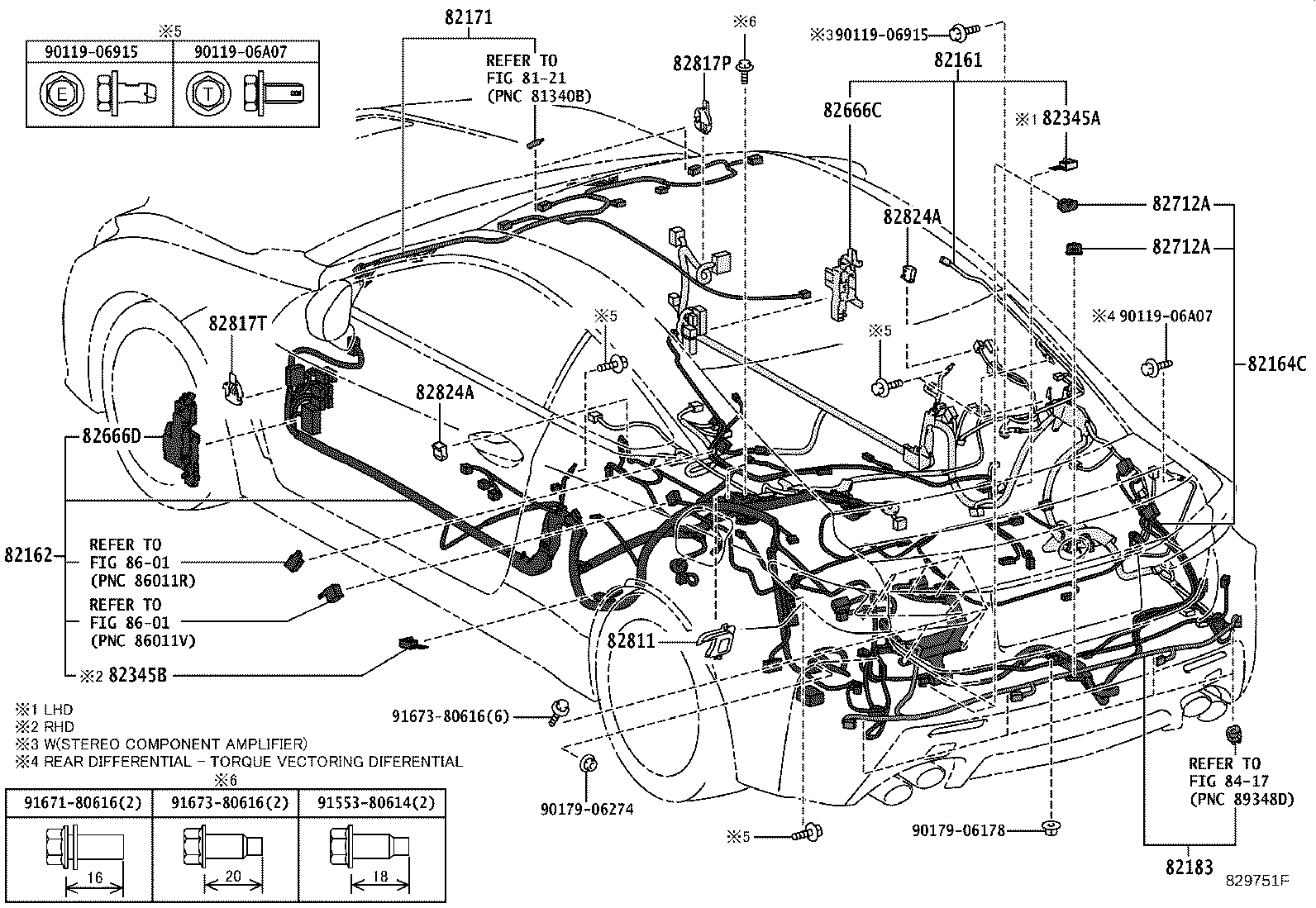

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164C | Wire, Floor, NO.4 |
| 82171 | Wire, Roof, NO.1 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 82280A | Wire Assy, Battery TO Cowl Top Side |
| 82286A | Wire, Earth, NO.2 |
| 82345 | Diode |
| 82345A | Diode |
| 82345B | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |

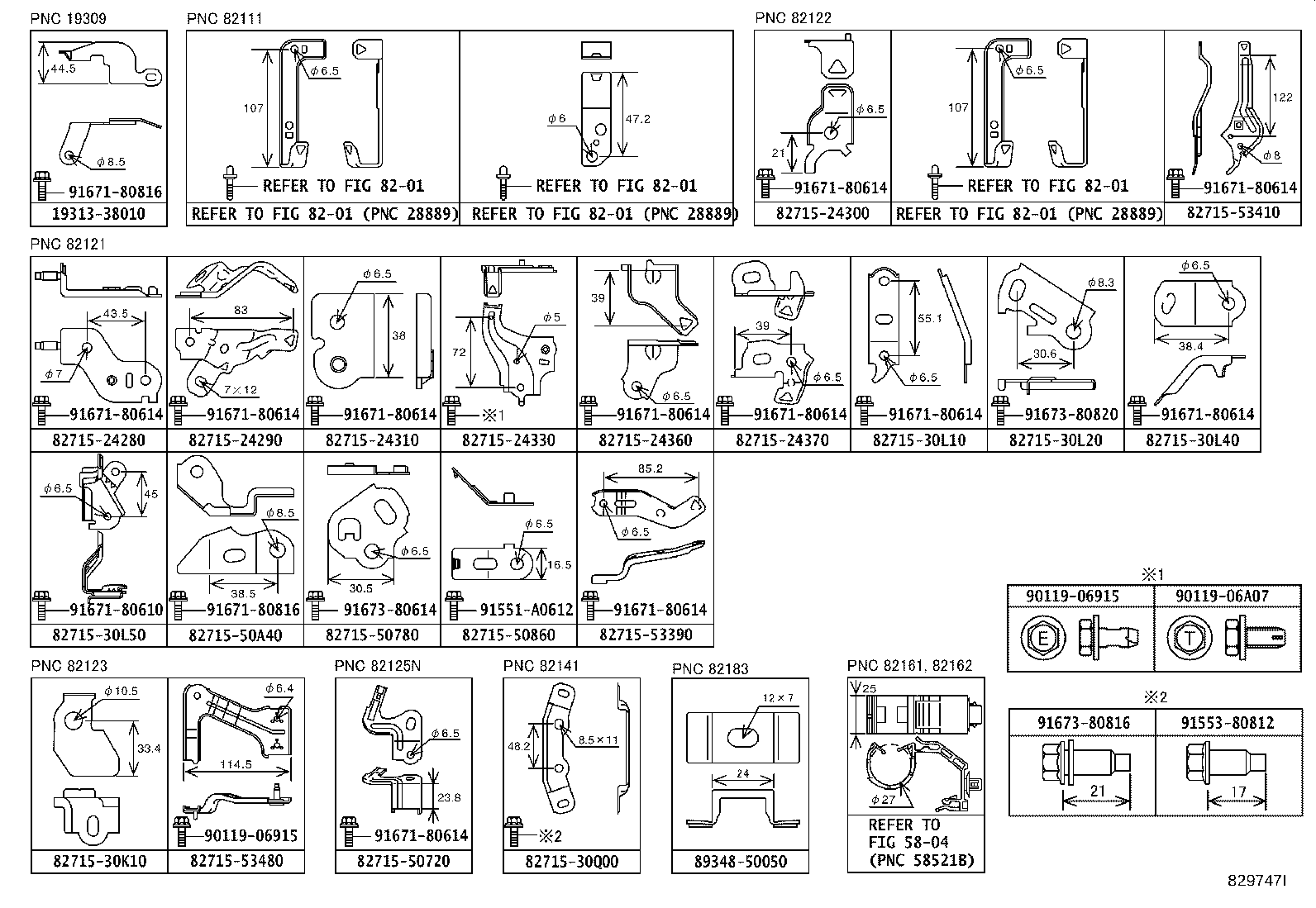

| 82712A | Support, Wiring Harness |
| 82811 | Plate, Wiring Harness Through Hole, NO.1 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82821A | Cover, Connector |
| 82823T | Cap, Alternator Terminal |
| 82824A | Connector, Wiring Harness |
| 82930 | Condenser Assy, Wiring Harness, NO.1 |
| 86832A | Wire, Accessory Socket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
