Toyota Lexus RC F

2014-09 → present · chassis USC10 · catalogue 246520 · Europe

Supported model Data version 2019-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

115 part groups · 18 illustrations

Illustrations

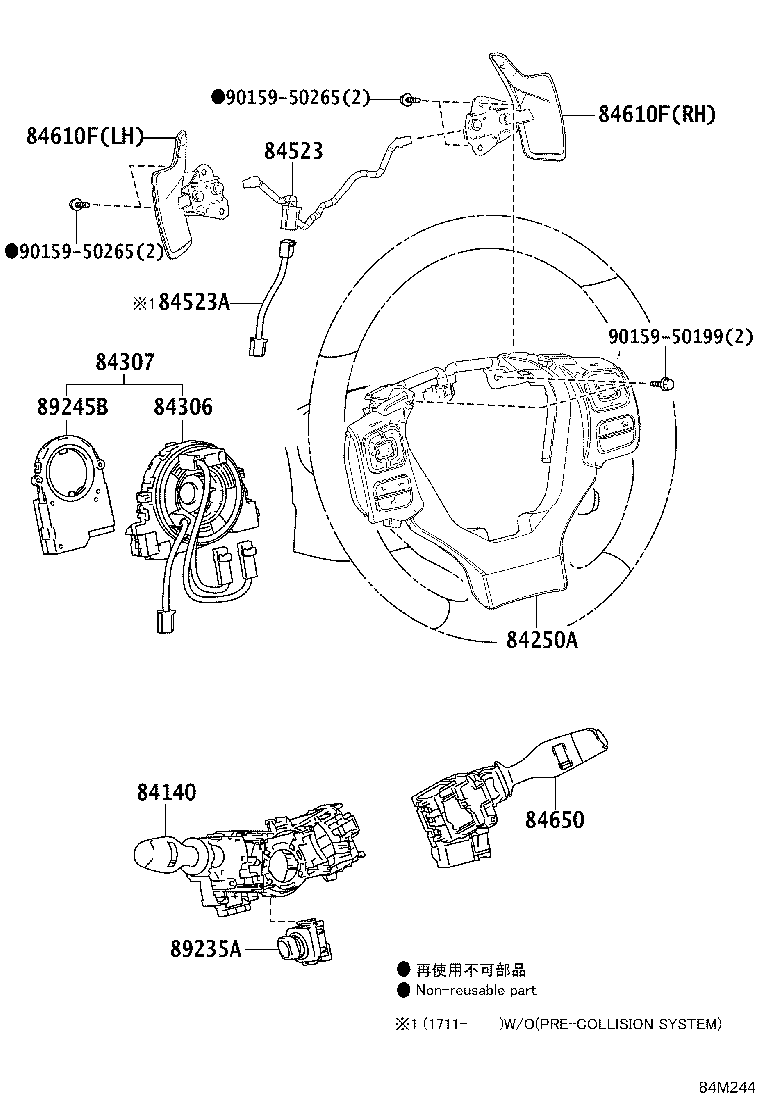

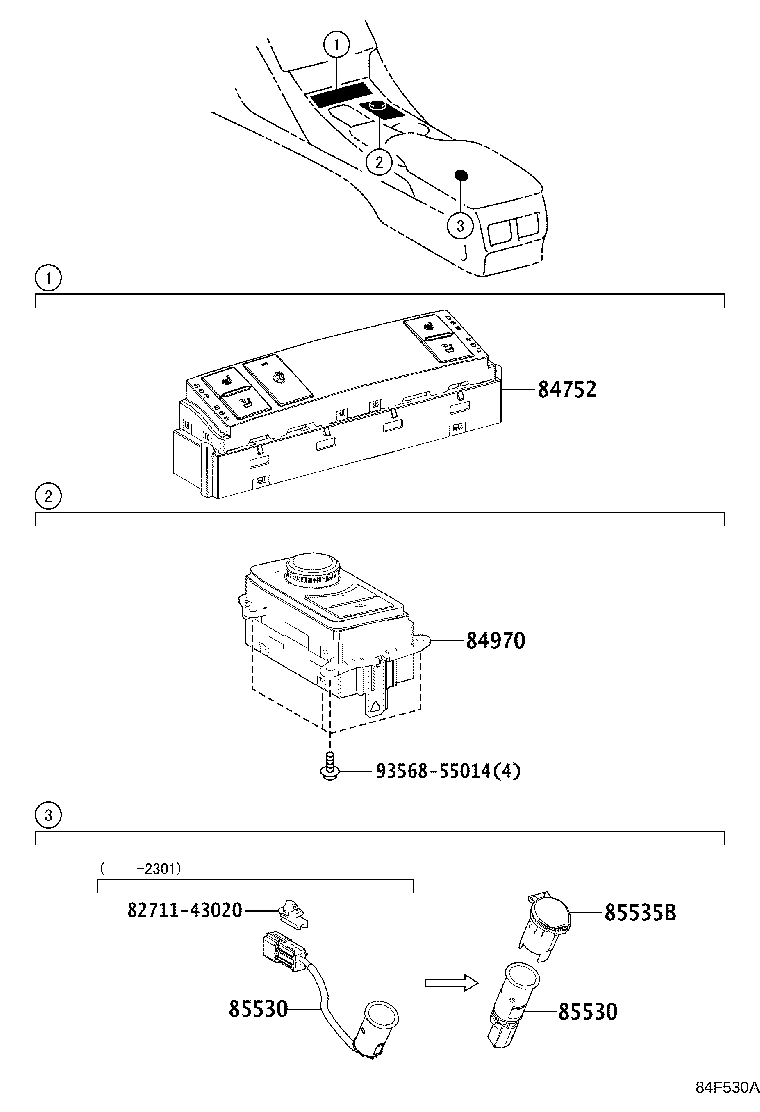

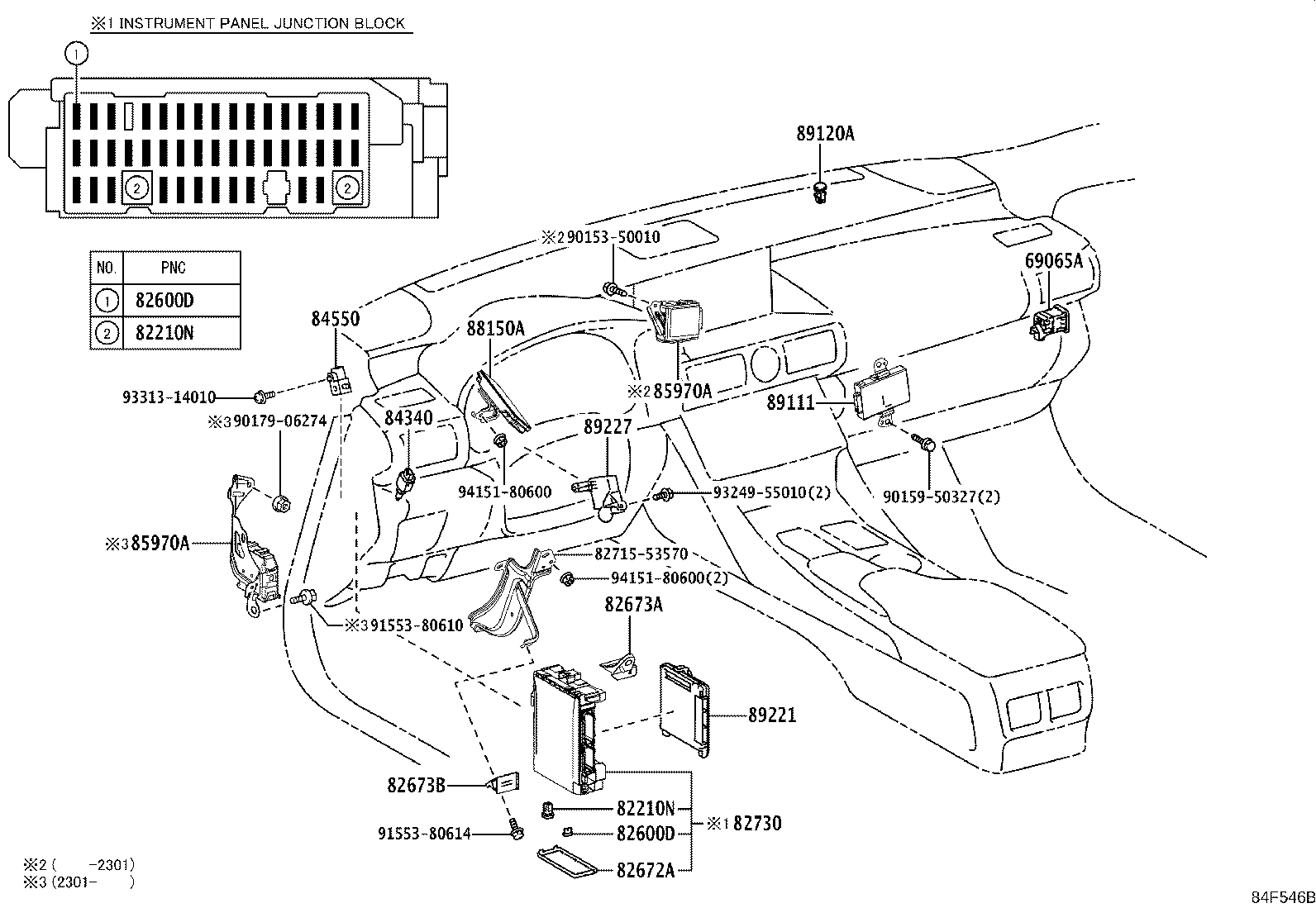

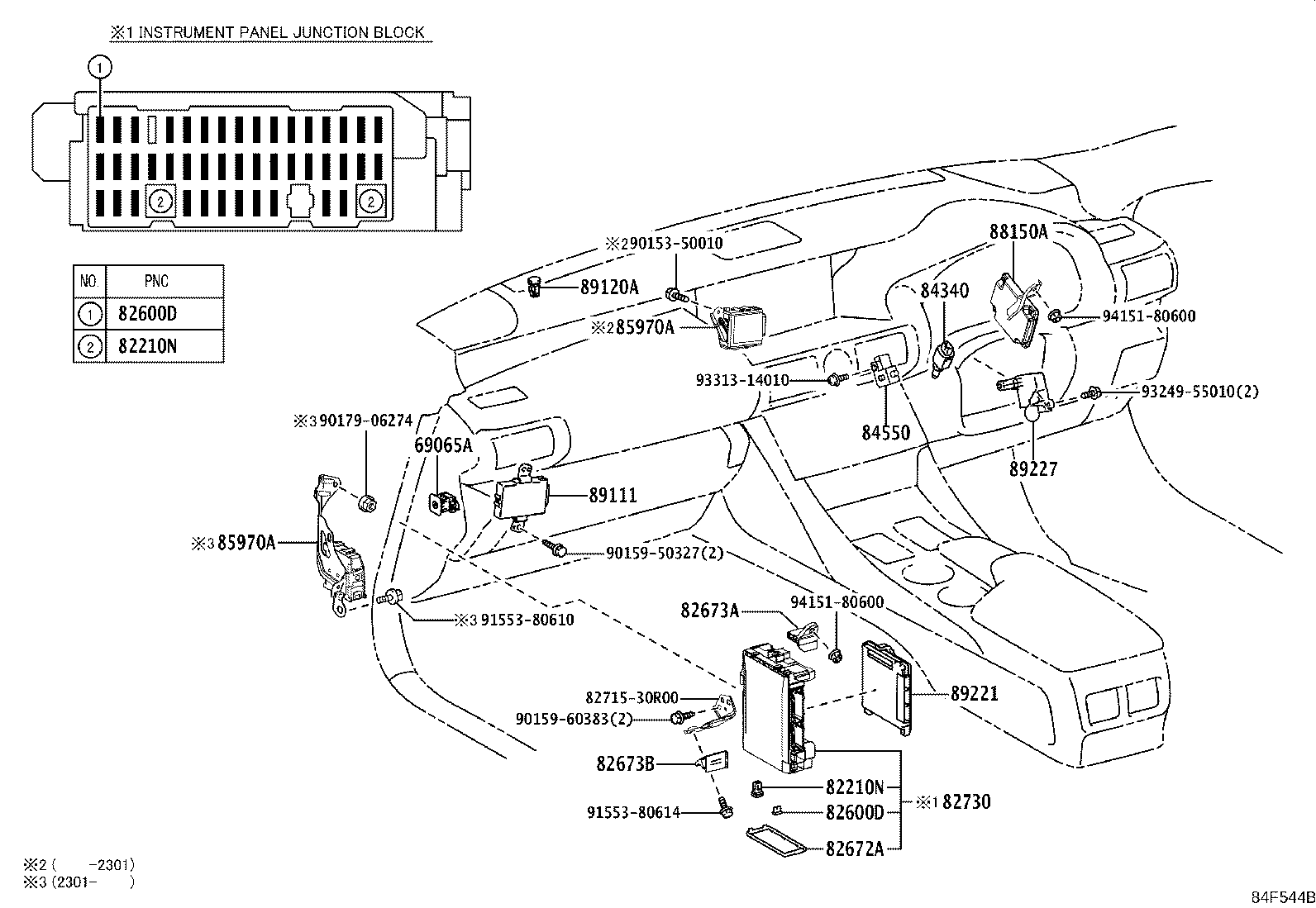

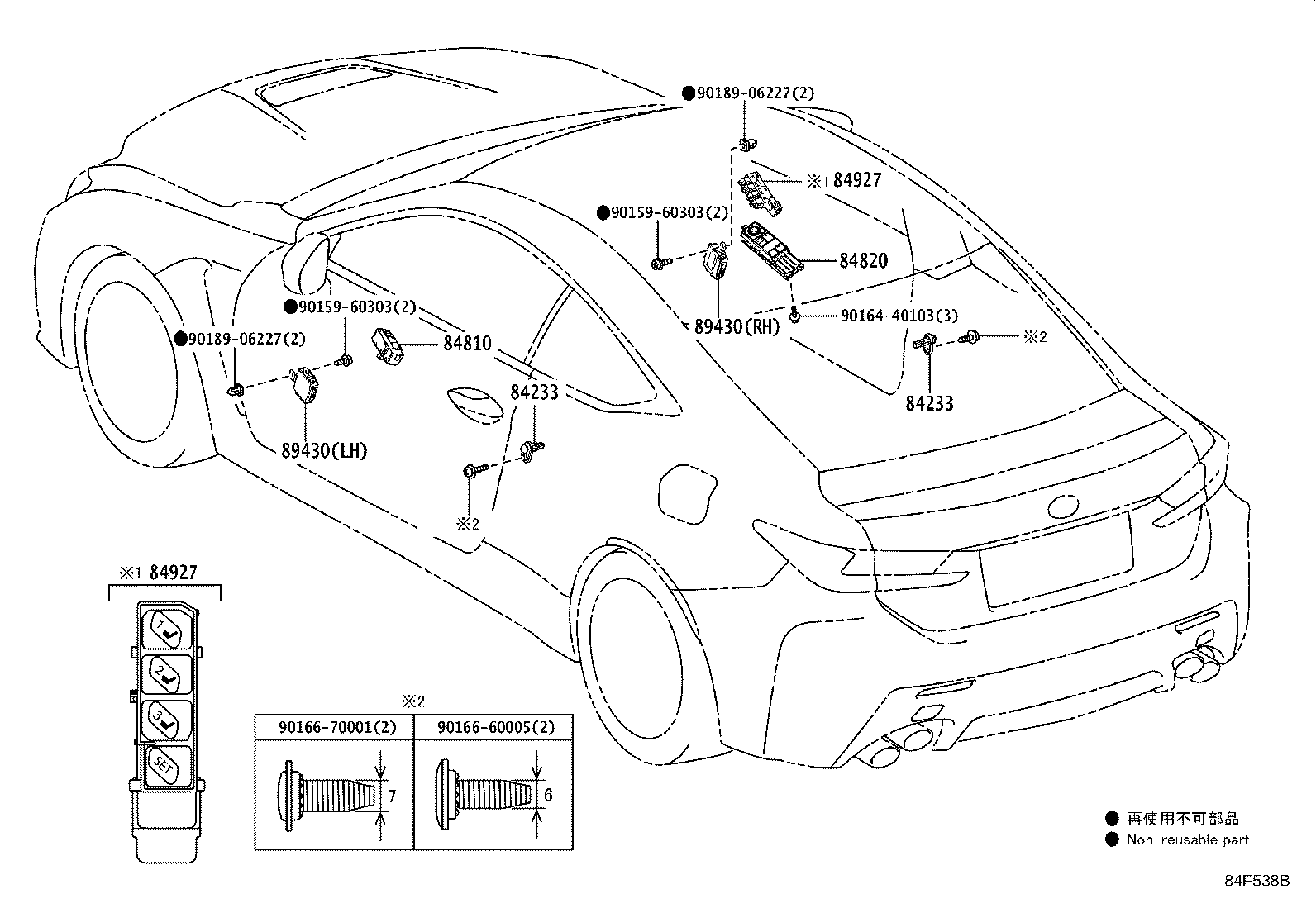

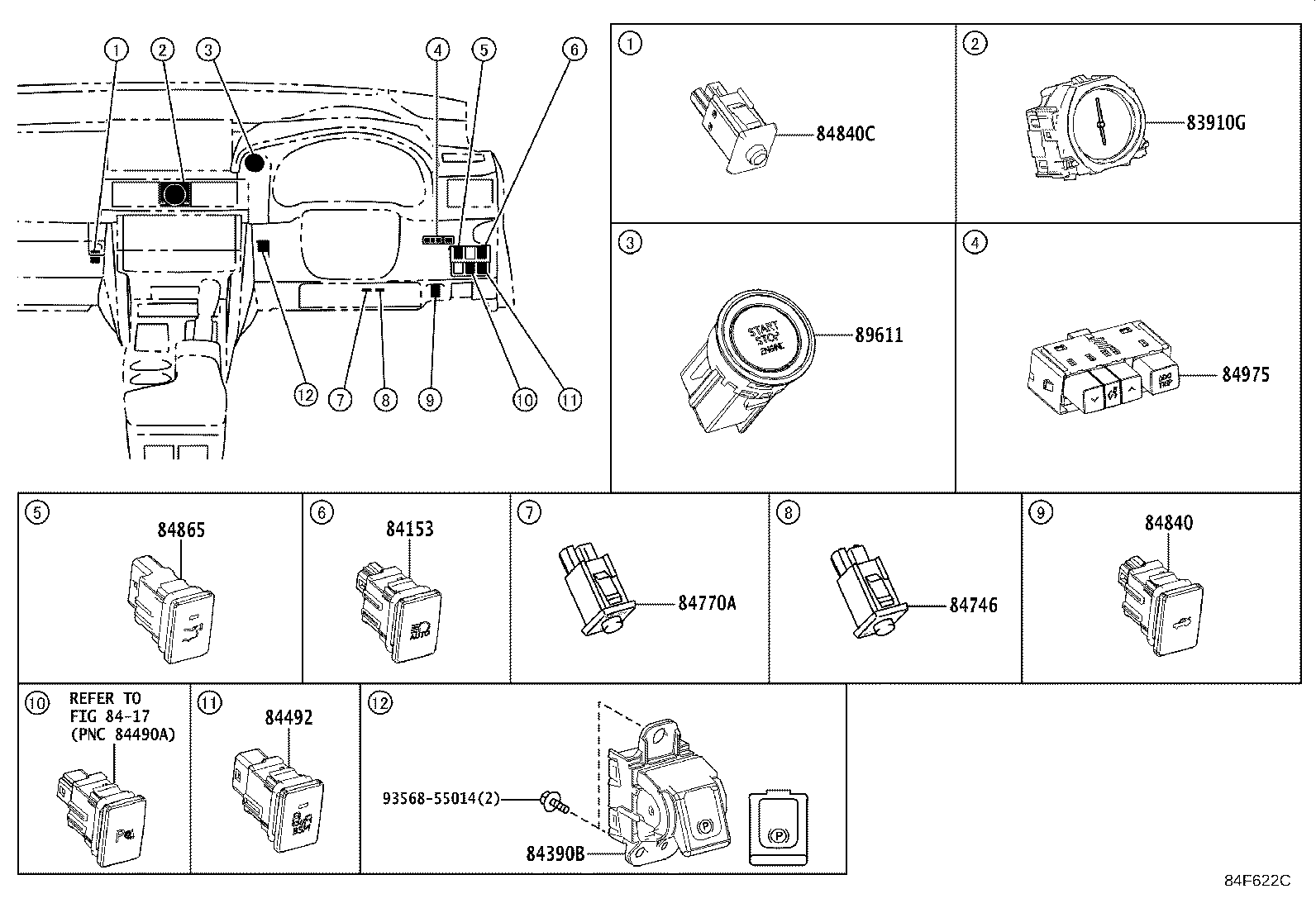

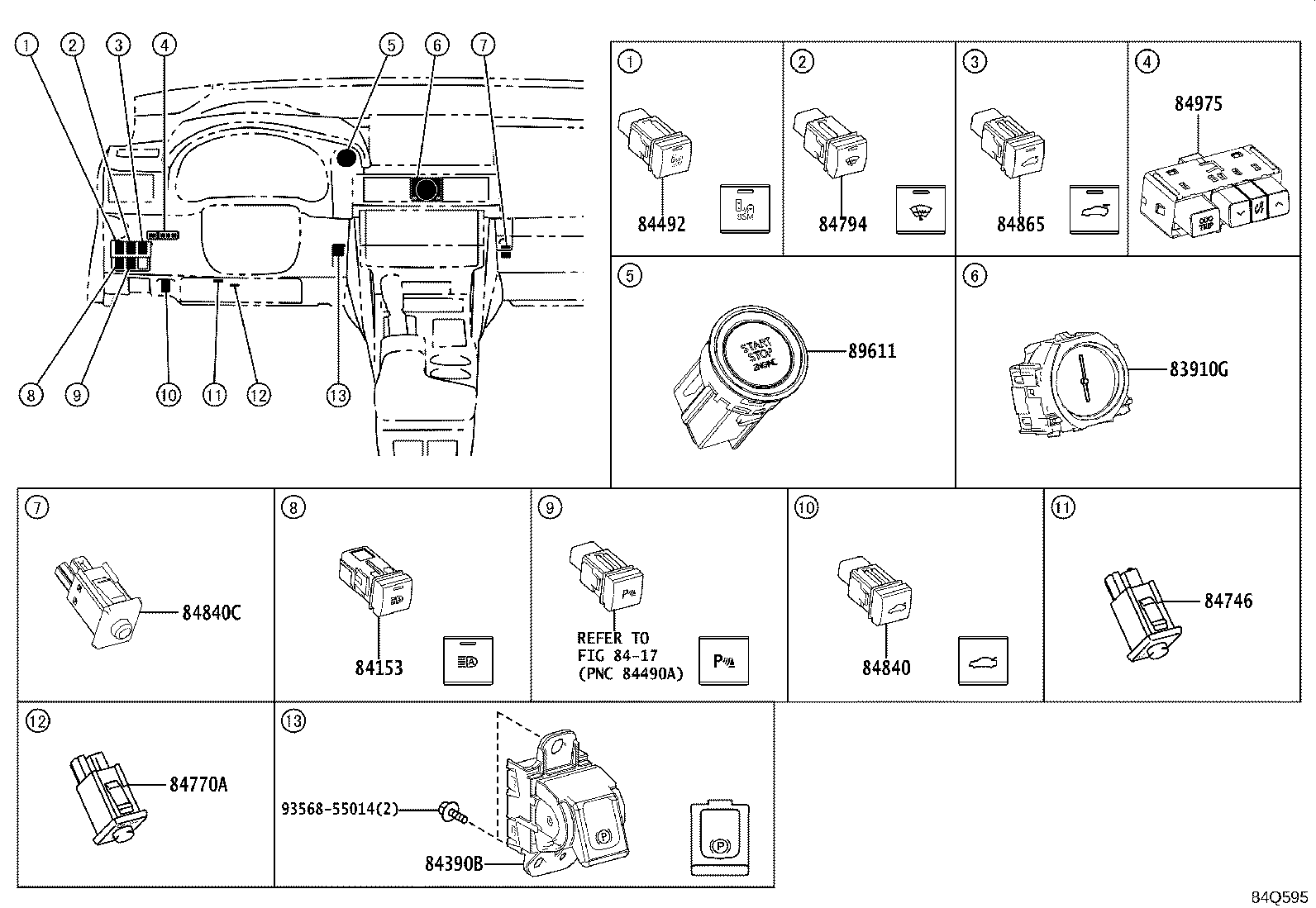

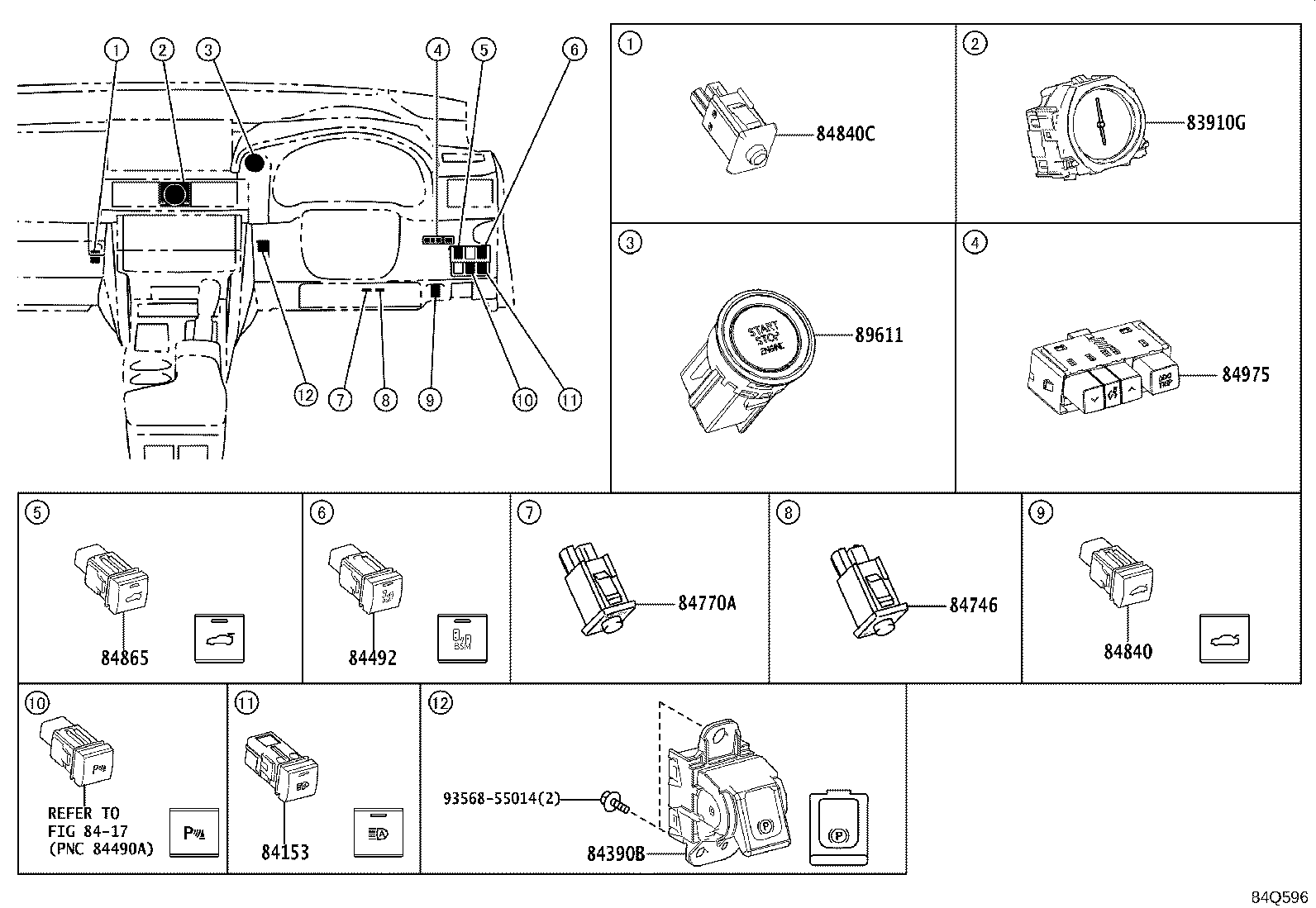

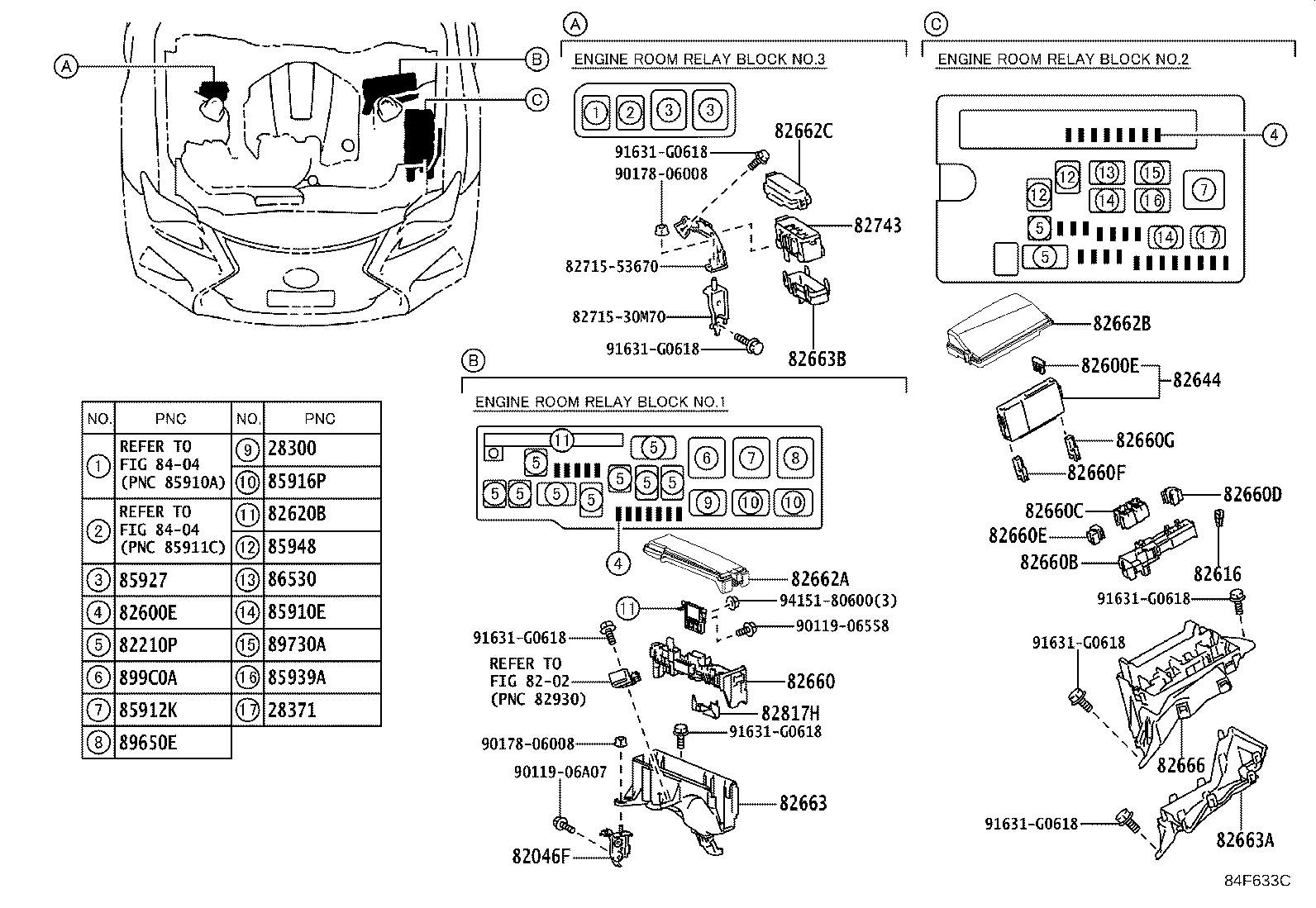

Figure 84M243A 84M243A 2014-09 → — Figure 84F551C 84F551C 2014-09 → — Figure 84F630D 84F630D 2014-09 → — Figure 84F634C 84F634C 2014-09 → — Figure 84F633C 84F633C 2014-09 → — Figure 84F546B 84F546B 2014-09 → — Figure 84F544B 84F544B 2014-09 → — Figure 84F529C 84F529C 2014-09 → 2023-01 Figure 84Q595 84Q595 2023-01 → — Figure 84F622C 84F622C 2014-09 → 2023-01 Figure 84Q596 84Q596 2023-01 → — Figure 84F530A 84F530A 2014-09 → — Figure 84F531D 84F531D 2014-09 → — Figure 84M244 84M244 2014-09 → — Figure 84F525A 84F525A 2014-09 → — Figure 84F537B 84F537B 2014-09 → — Figure 84F538B 84F538B 2014-09 → — Figure 84M251B 84M251B 2014-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82046F Wire Sub-assy, Body Ground, NO.1
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620B Block Assy, Fusible Link
82644 Computer, Semiconductor Power Integration
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82666 Holder, Connector
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82730 Block Assy, Instrument Panel Junction
82743 Block, Engine Room Relay, NO.3
82817H Protector, Wiring Harness
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83531A Switch, Oil Pressure
83910G Clock Assy
84070A Computer & Switch Assy, Position Control, RH
84070B Computer & Switch Assy, Position Control, LH
84140 Switch Assy, Headlamp Dimmer
84153 Switch, Auto High Beam
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84390B Switch Assy, Electric Parking Brake
84492 Switch, Blind Spot Monitor
84523 Wire, Switch NO.1
84523A Wire, Switch NO.2
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84746 Switch, Tire Pressure Warning
84752 Switch, Refreshing Seat
84770A Switch Assy, Pre-collision System Cancel
84794 Switch, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840 Switch Assy, Luggage Compartment Door Opening
84840C Switch Assy, Luggage Door Opening, Cancel
84865 Switch, Spoiler Control
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84927 Switch, Seat Memory
84970 Switch Assy, Combination
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85910E Relay, Injector
85912K Relay, Vvt
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85939A Relay, Steering Heater
85942 Relay, Headlamp Cleaner Control
85948 Relay, Windshield Wiper
85970A Relay Assy, Double Lock Door Control
86530 Relay Assy, Horn
88150A Computer Assy, Driving Support
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89426A Bracket, Vacuum Sensor
89429 Sensor, Oil Temperature
89430 Computer Assy, Outer Mirror Control
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89650E Relay, Electric Power Steering
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89750 Computer Assy, Spoiler Control
899C0 Computer Assy, Torque Vectoring Differential
899C0A Relay, Torque Vectoring Differential
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
