Toyota Lexus RC F

2014-09 → present · chassis USC10 · catalogue 246520 · Europe

Supported model Data version 2019-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

16 part groups · 3 illustrations

Illustrations

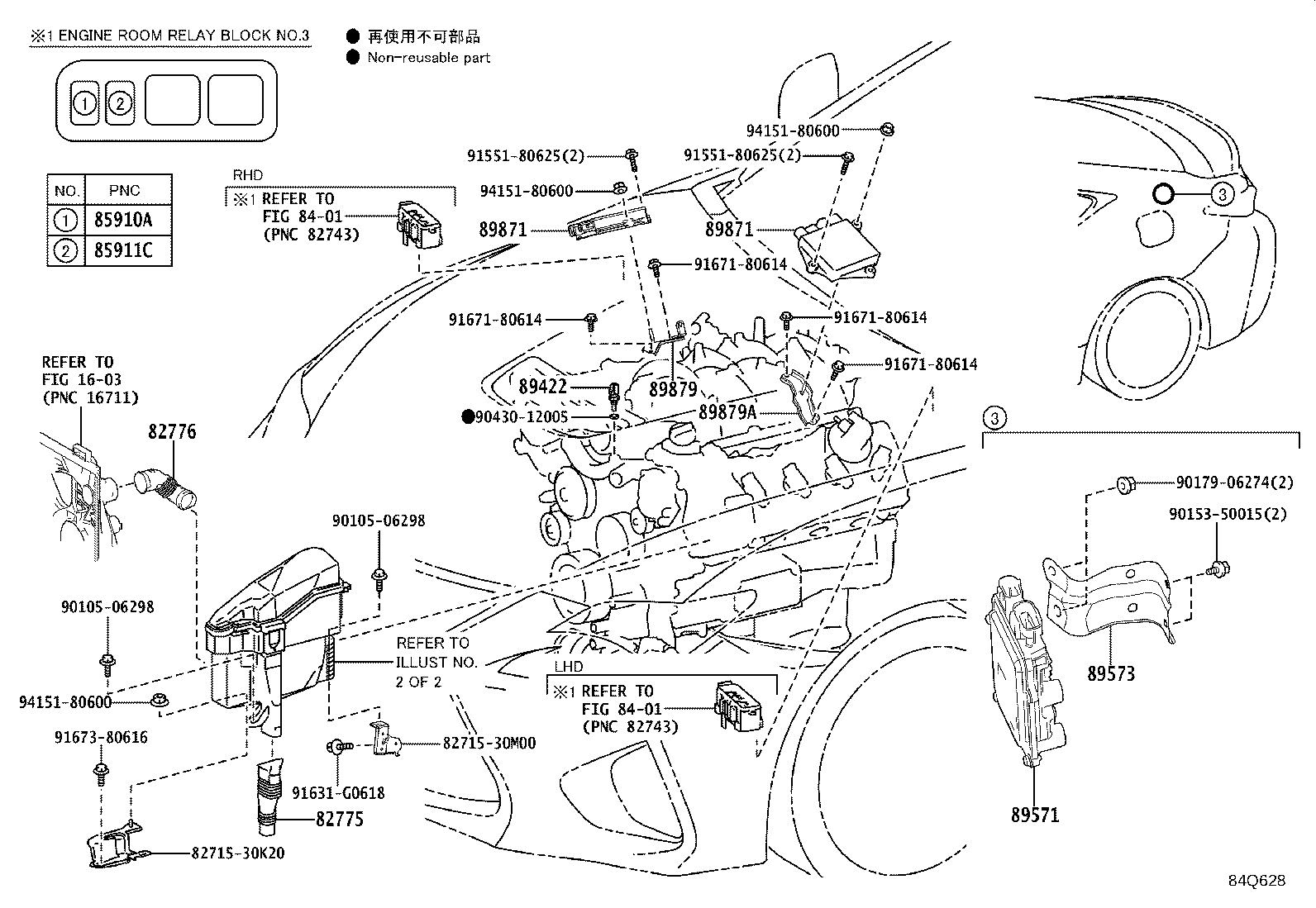

Figure 84F621E 84F621E 2014-09 → 2022-10 Figure 84Q628 84Q628 2022-10 → — Figure 84F636D 84F636D 2014-09 → —

Part groups

PNCDescription
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
82775 Duct, Engine Room Ecu Inlet
82776 Duct, Engine Room Ecu Outlet
85910A Relay Assy, Circuit Opening (FOR EFI)
85911C Relay, Efi 2
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89871 Driver, Injector
89879 Bracket, Injector Driver
89879A Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
