Toyota Lexus RC F
2014-09 → present · chassis USC10 · catalogue 246520 · Europe
Supported model
Data version 2019-03
Speaker

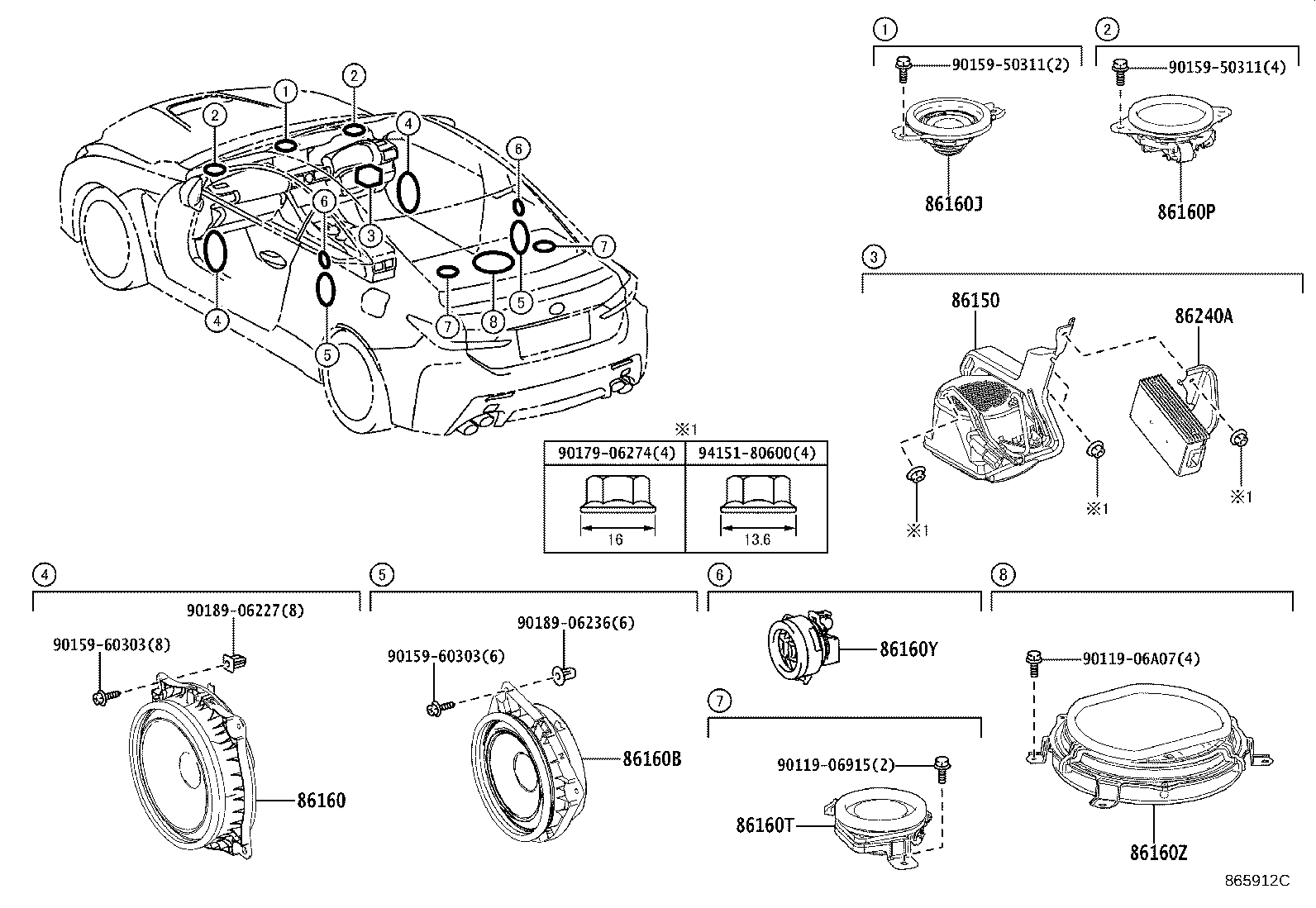

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86150 | Speaker Assy, W/Box, NO.1 |
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160J | Speaker Assy, Front NO.3 |
| 86160P | Speaker Assy, Front NO.2 |
| 86160T | Speaker Assy, Rear Header |
| 86160Y | Speaker Assy, Rear NO.2 |
| 86160Z | Speaker Assy, Rear NO.3 |
| 86240A | Equalizer Assy,Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
